Premium Non-Contact Sensing for Critical Machinery Monitoring

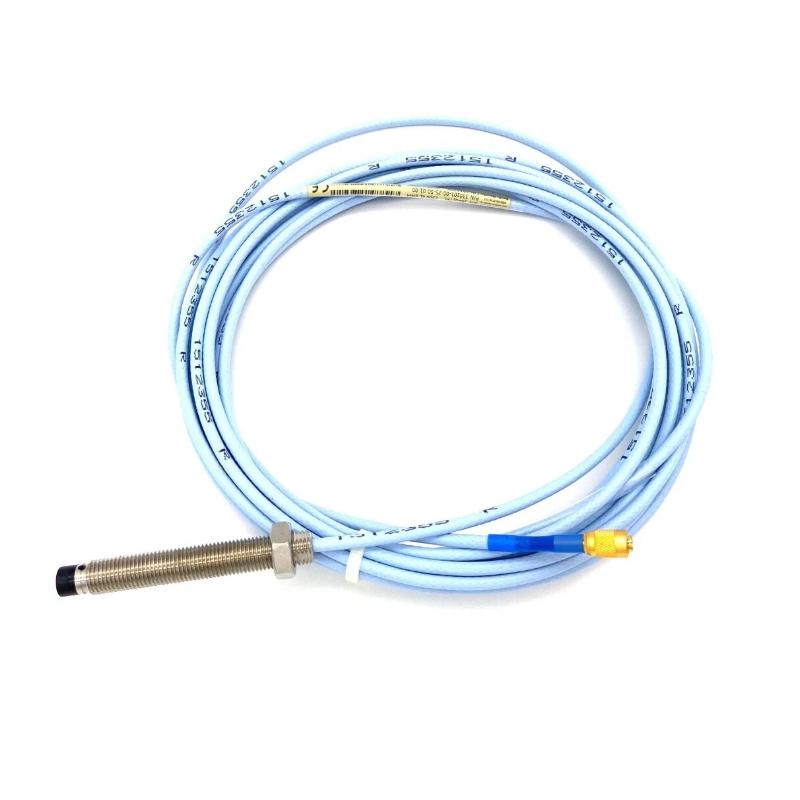

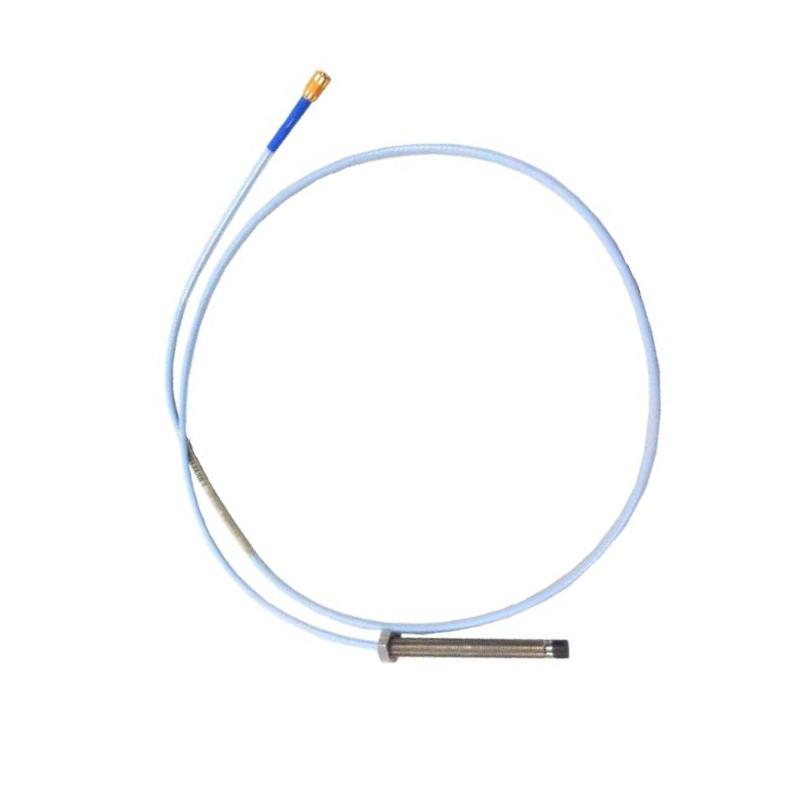

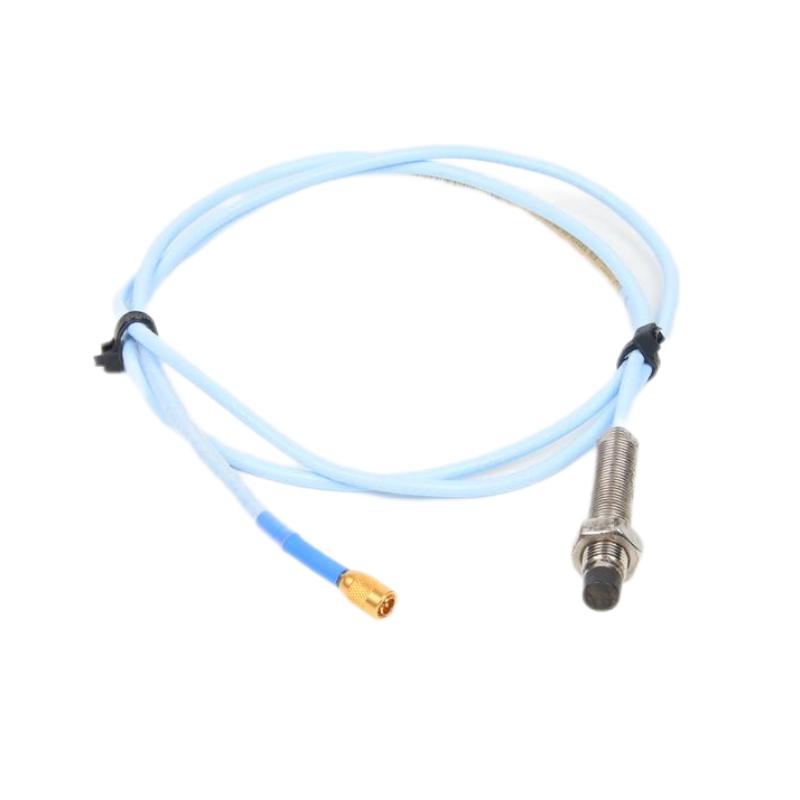

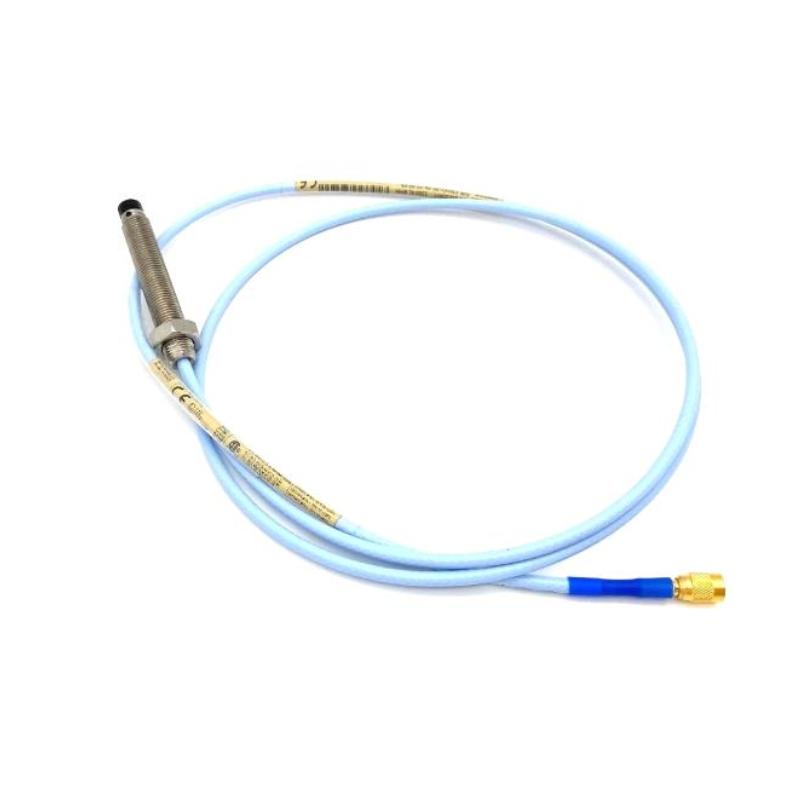

The Bently Nevada 330101-00-52-10-02-05 3300 XL 8 mm Proximity Probe is designed to deliver highly accurate shaft vibration, displacement, and position measurements for industrial rotating equipment. As part of the industry-recognized 3300 XL Series, this probe provides exceptional signal stability, robust construction, and dependable long-term performance in demanding operating environments.
Using advanced eddy current technology, the probe performs precise non-contact measurements of conductive target surfaces. Its compatibility with the complete 3300 XL transducer system ensures seamless integration into machinery protection and condition monitoring applications across multiple industries.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-52-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Measurement Technology | Eddy Current Sensing |
| Sensing Method | Non-Contact Measurement |
| Probe Diameter | 8 mm |
| Measurement Functions | Shaft Vibration, Shaft Position, Displacement |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.0 in |
| Case Length | 5.2 in |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc Connector |
| Approval Option | Industrial Certified Configuration |
| Armor Configuration | Without Armor |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | Stainless Steel |
| System Compatibility | 3300 XL Extension Cable and Proximitor Sensor |
| Linear Measurement Range | Up to 2 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature Range | -51°C to +177°C |
| Environmental Rating | Industrial Duty Design |
| Dimensions (Approx.) | 132.1 mm Case Length × 8 mm Probe Diameter |
| Weight (Approx.) | 0.30–0.42 kg |
