Optimized Shaft Monitoring for Demanding Industrial Applications

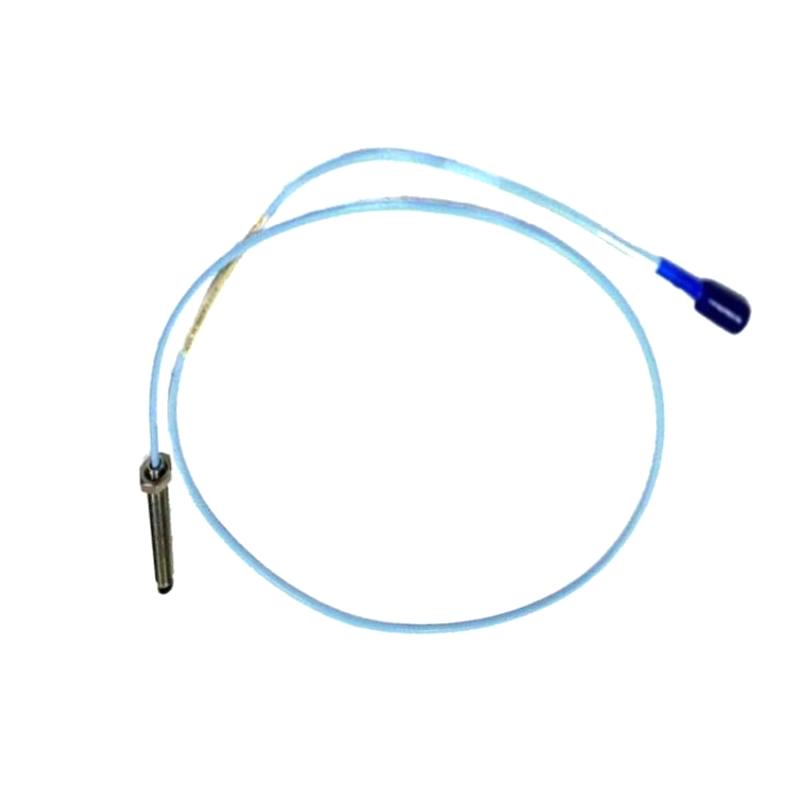

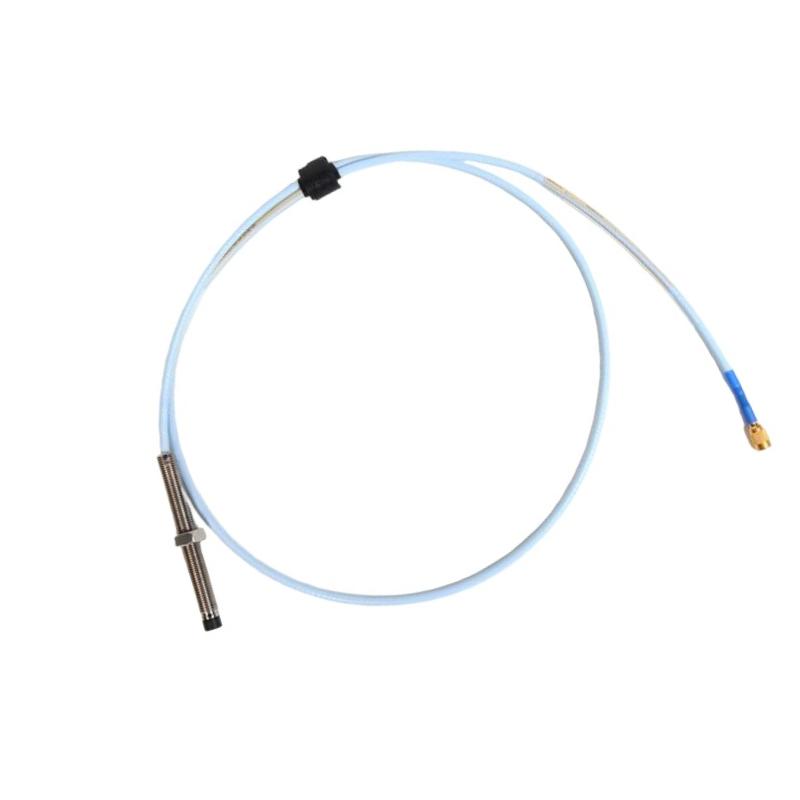

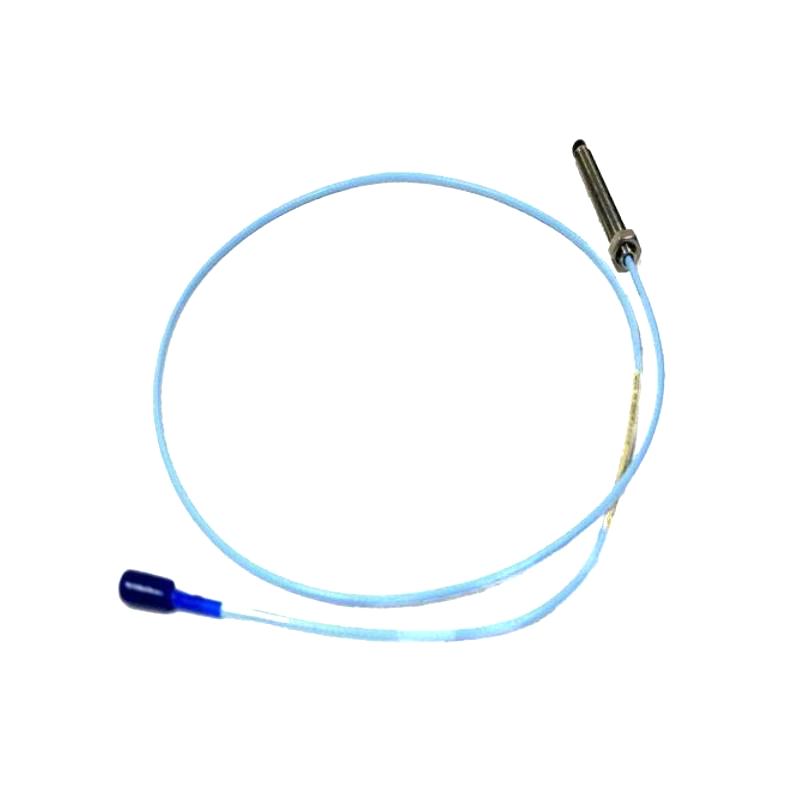

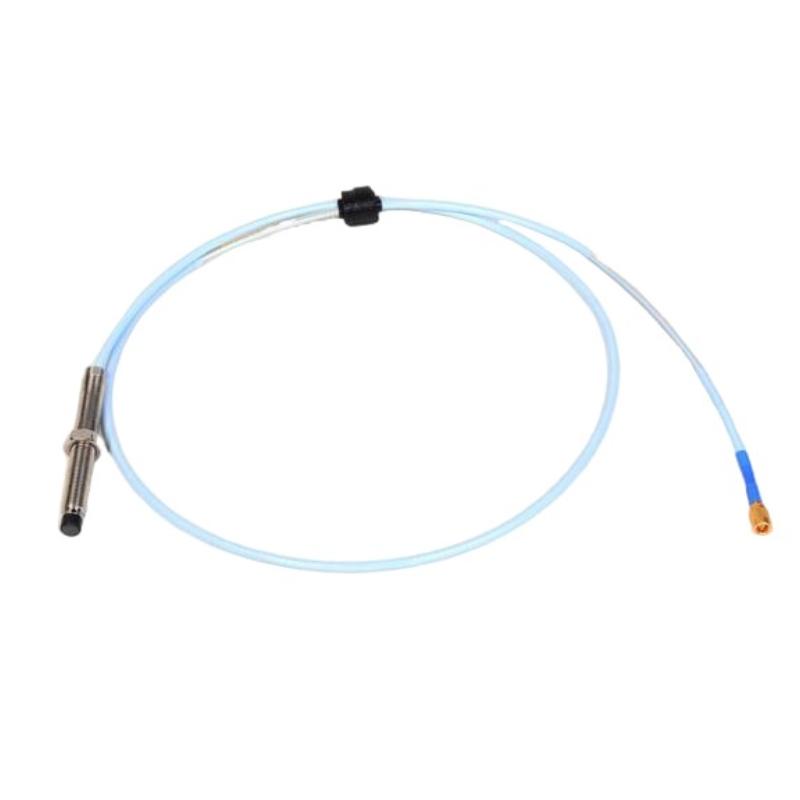

The Bently Nevada 330101-00-40-10-12-05 3300 XL 8 mm Proximity Probe is a high-precision non-contact sensor designed for continuous monitoring of shaft vibration, displacement, and position in critical rotating machinery. As part of the proven 3300 XL Series, this probe provides reliable measurement performance, excellent environmental resistance, and long-term operational stability.
Built using advanced eddy current sensing technology, the probe delivers accurate displacement measurements without physical contact with the monitored surface. Its robust construction and compatibility with the 3300 XL transducer system make it an ideal solution for machinery condition monitoring and predictive maintenance programs.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-40-10-12-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Measurement Technology | Eddy Current Sensing |
| Measurement Method | Non-Contact |
| Probe Diameter | 8 mm |
| Measurement Parameters | Shaft Vibration, Displacement, Position |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.0 in |
| Case Length | 4.0 in |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc Connector |
| Approval Option | Multiple Industrial Certifications |
| Armor Configuration | Without Armor |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | Stainless Steel |
| System Compatibility | 3300 XL Extension Cable and Proximitor Sensor |
| Linear Measurement Range | Up to 2 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature Range | -51°C to +177°C |
| Minimum Cable Bend Radius | 25.4 mm |
| Dimensions (Approx.) | 8 mm Diameter × 101.6 mm Case Length |
| Weight (Approx.) | 0.25–0.38 kg |
