Precision Shaft Vibration and Position Monitoring for Rotating Equipment

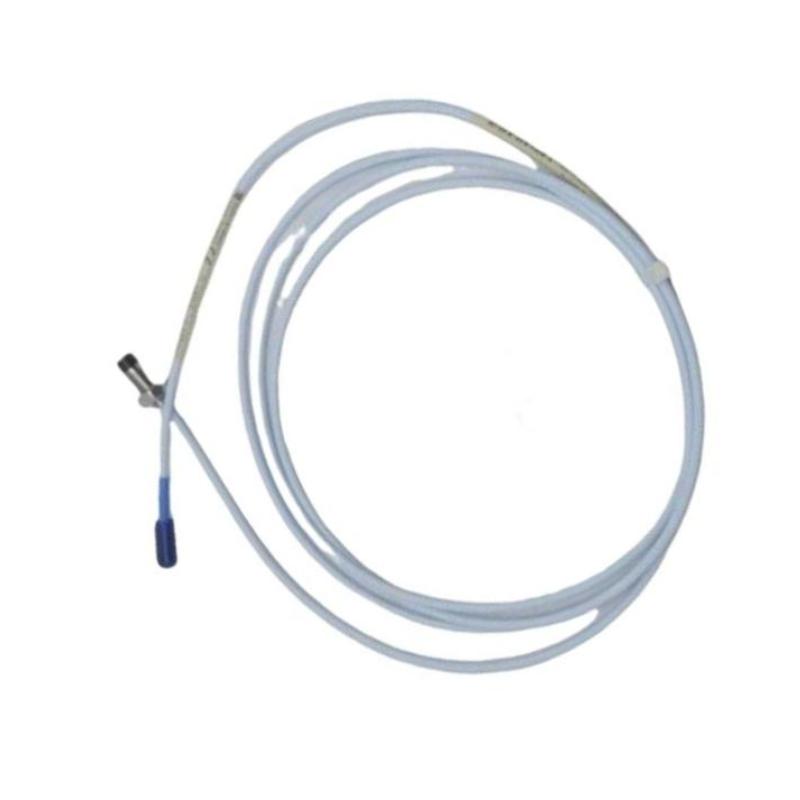

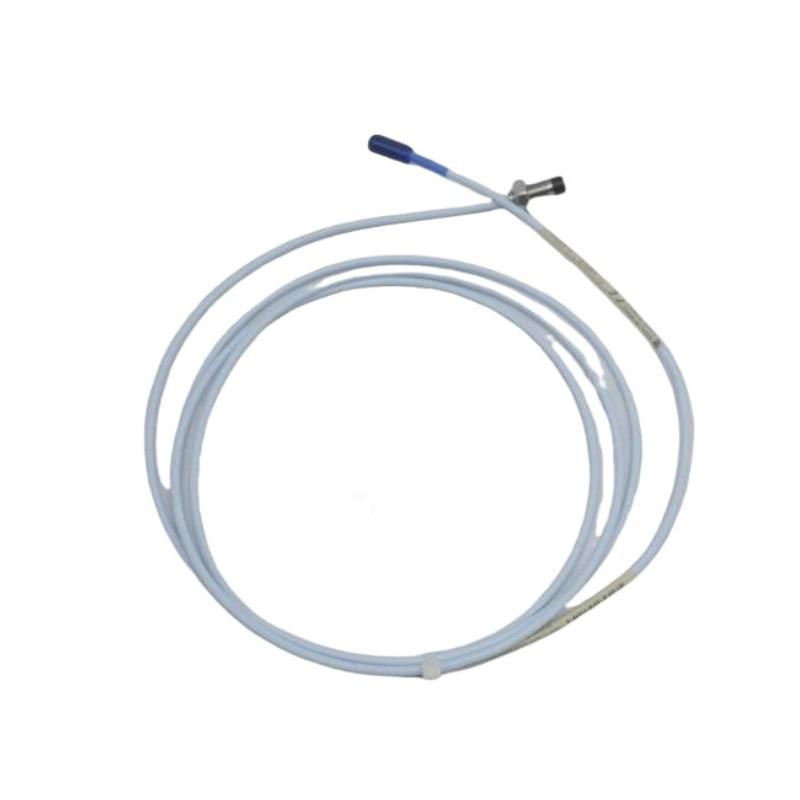

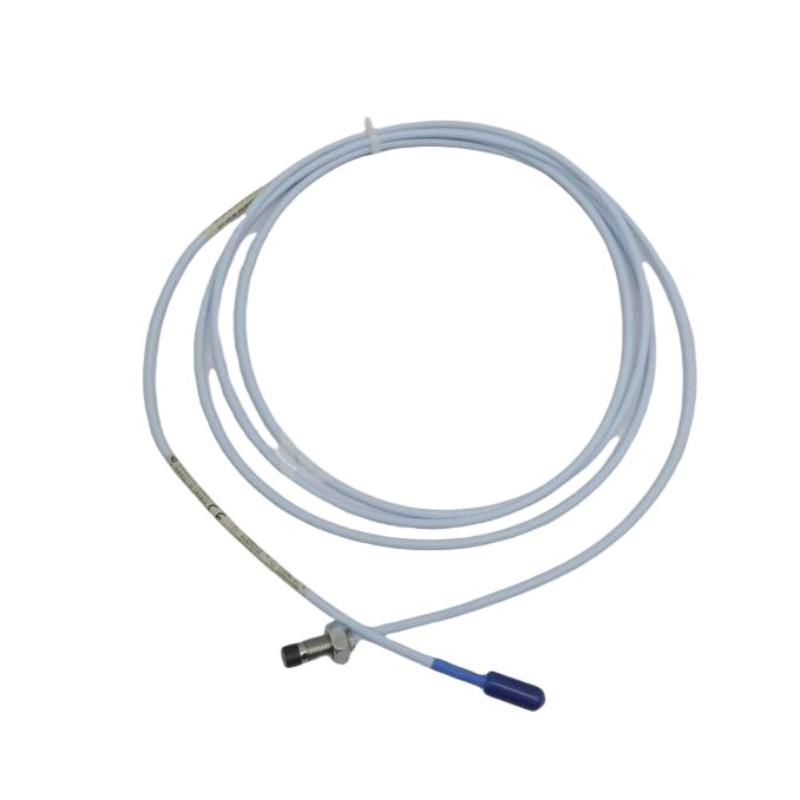

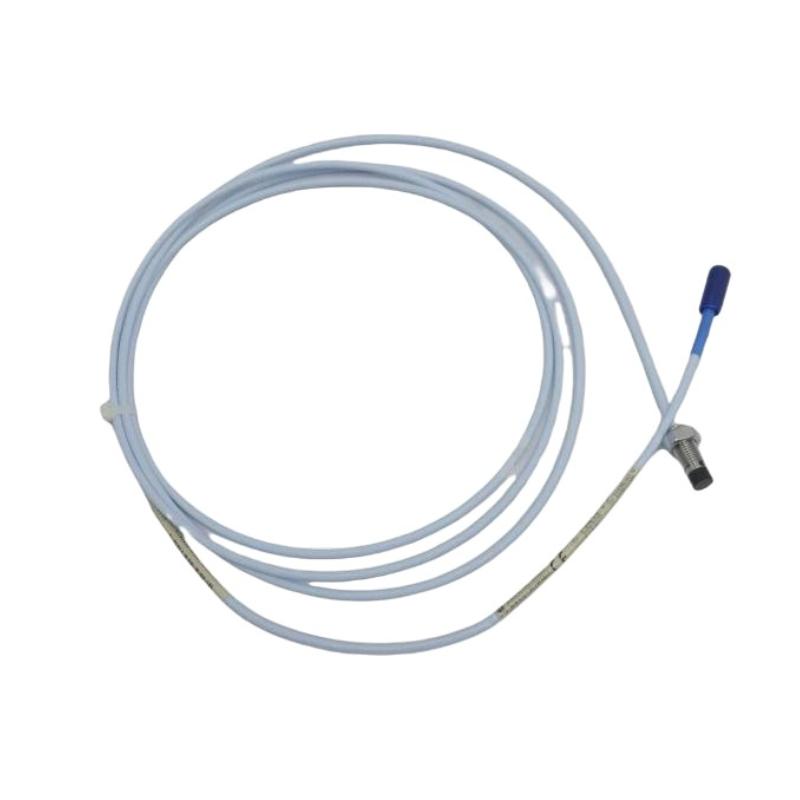

The Bently Nevada 330101-00-36-05-02-00 3300 XL 8 mm Proximity Probe is a high-performance non-contact sensor designed for continuous shaft vibration and position measurement in critical rotating machinery. As a key component of the 3300 XL proximity transducer system, it provides reliable and repeatable measurements for machinery condition monitoring and operational performance assessment.
Built around proven eddy current sensing technology, the probe operates with a compatible extension cable and Proximitor sensor to deliver highly accurate displacement data. Its rugged construction and compact design make it well suited for demanding industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-36-05-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Measurement Technology | Eddy Current Sensing |
| Sensing Method | Non-Contact Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Armor Option | Without Armor |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 3.6 in |
| Total Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard 75 Ω Cable |
| Measurement Function | Shaft Vibration, Displacement, Position |
| System Compatibility | 3300 XL Extension Cable and Proximitor Sensor |
| Linear Measurement Range | Up to 2 mm (system dependent) |
| Frequency Response | DC to 10 kHz (system dependent) |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Housing Material | Stainless Steel |
| Operating Temperature | -51°C to +177°C (system dependent) |
| Minimum Cable Bend Radius | 25.4 mm |
| Dimensions (Approx.) | 8 mm Probe Tip Diameter, 3.6 in Case Length |
| Weight (Approx.) | 0.05–0.32 kg |
