Advanced Non-Contact Shaft Monitoring for Industrial Rotating Equipment

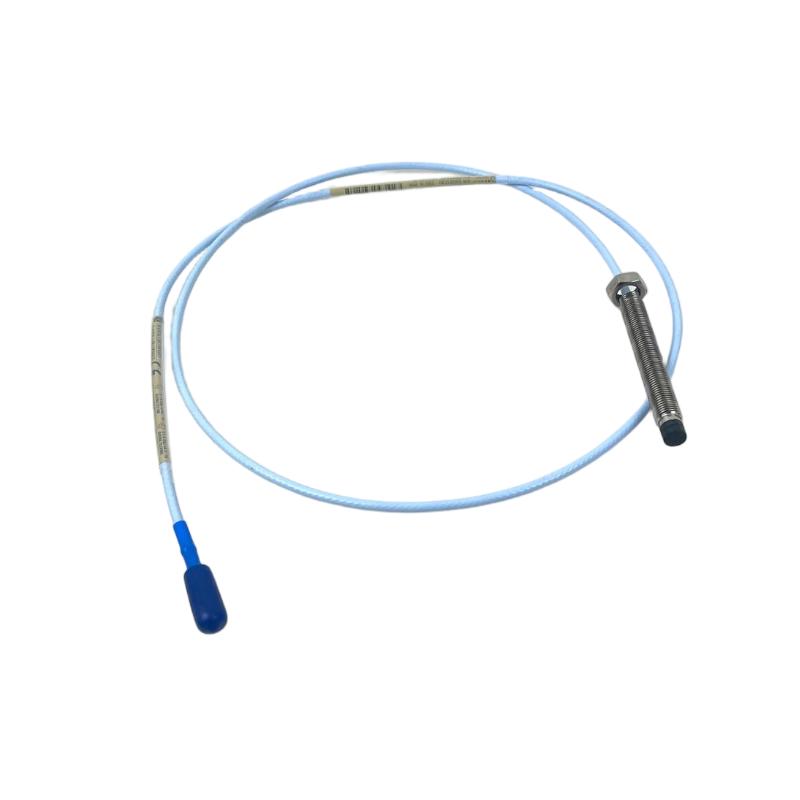

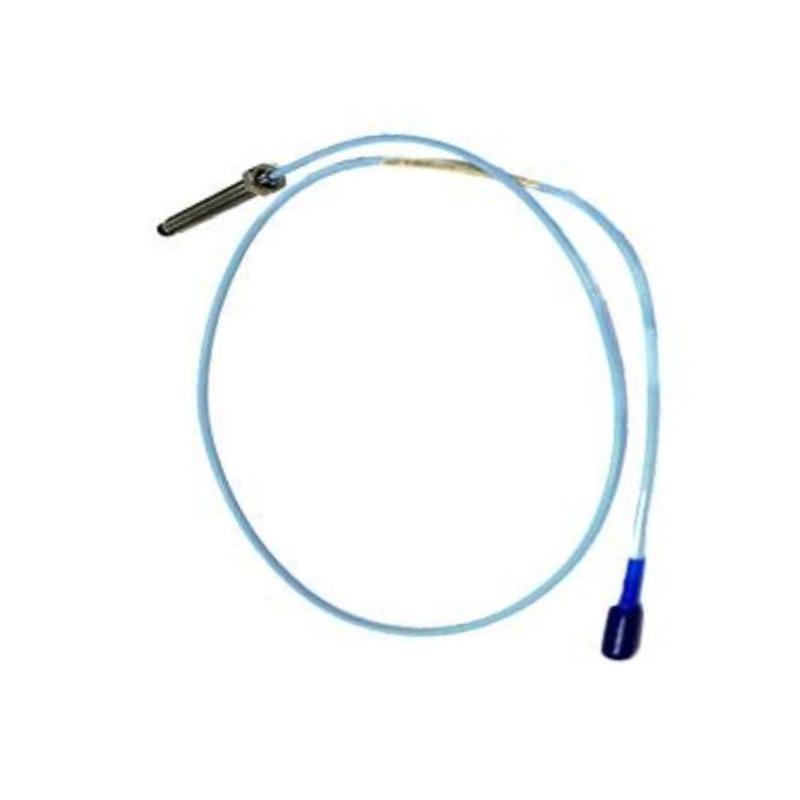

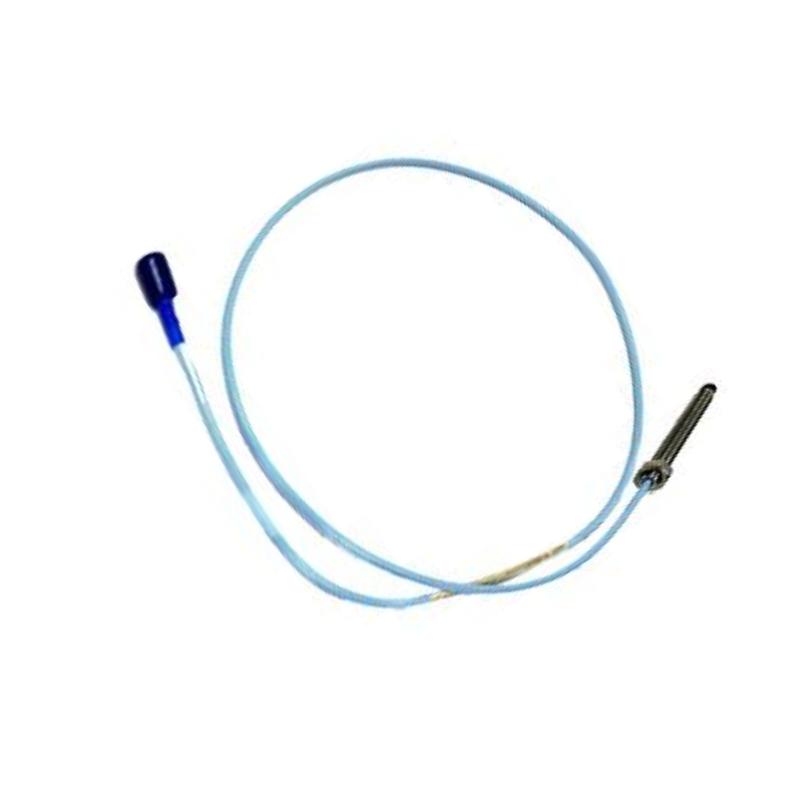

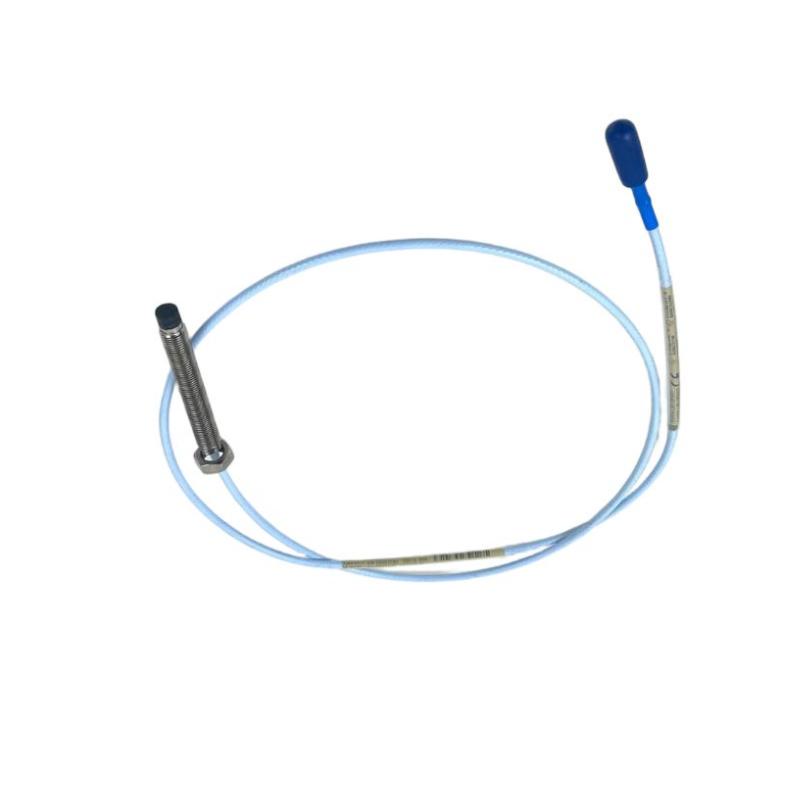

The Bently Nevada 330101-00-35-10-02-00 3300 XL 8 mm Proximity Probe is engineered for accurate, non-contact measurement of shaft vibration, displacement, and position in critical rotating machinery. As part of the renowned 3300 XL proximity transducer family, this probe delivers dependable performance and long-term measurement stability for machinery condition monitoring applications.
Designed to operate with a compatible extension cable and Proximitor sensor, the probe provides highly linear output characteristics and excellent environmental durability, making it an ideal solution for demanding industrial environments.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-35-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Measurement Technology | Eddy Current Sensing |
| Sensing Method | Non-Contact Measurement |
| Probe Diameter | 8 mm |
| Measurement Parameters | Shaft Vibration, Displacement, Position |
| System Compatibility | 3300 XL Proximitor Sensor System |
| Linear Range | Up to 2 mm (system dependent) |
| Frequency Response | DC to 10 kHz (typical system performance) |
| Thread Size | 3/8-24 UNF |
| Probe Body Material | Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Cable Type | High-Performance Coaxial Cable |
| Connector Style | Standard Industrial Connection |
| Operating Temperature | -51°C to +177°C |
| Environmental Protection | Industrial Sealed Construction |
| Dimensions (Approx.) | Probe Diameter: 8 mm |
| Weight (Approx.) | 0.30 kg |
