Introduction

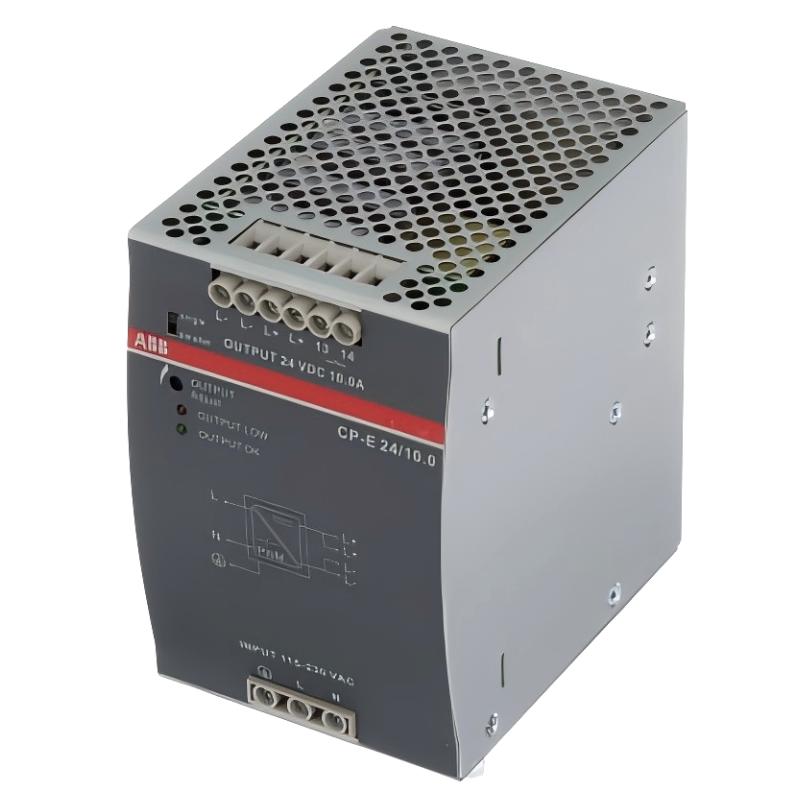

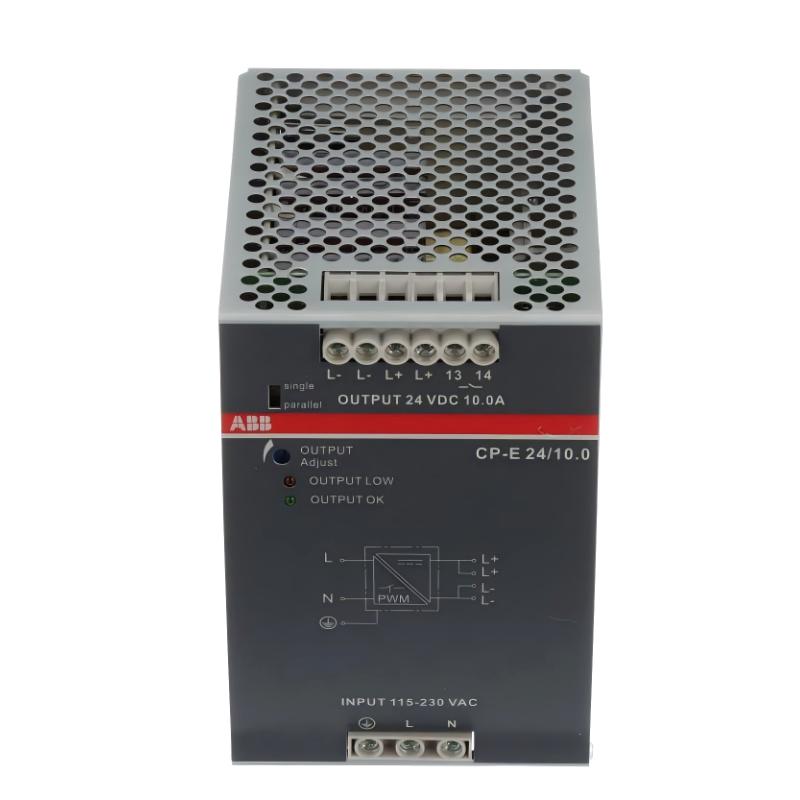

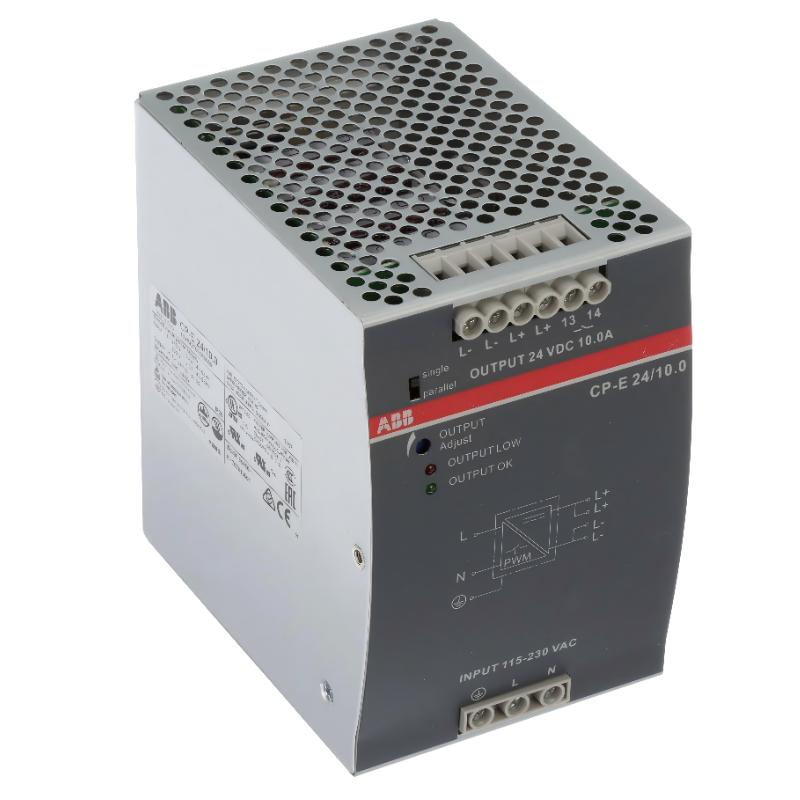

The ABB CP-E 24/10.0 (1SVR427035R0000) is a high-efficiency DIN-rail mounted switch mode power supply designed to deliver stable 24V DC power for industrial automation, control systems, and electrical distribution panels. As part of ABB’s CP-E series, it is engineered for reliability, compact installation, and consistent performance in continuous-duty industrial environments.
With a 10A output capacity and robust electrical protection features, this model is widely used in PLC systems, DCS cabinets, and factory automation setups where voltage stability directly impacts system uptime and process safety.
Technical Specifications
| Parameter | Details |
|---|
| Model | CP-E 24/10.0 |
| Order Code | 1SVR427035R0000 |
| Product Type | Switch Mode Power Supply (SMPS) |
| Manufacturer | ABB |
| Series | CP-E |
| Input Voltage | 90–132 V AC / 180–264 V AC / 210–375 V DC |
| Output Voltage | 24 V DC |
| Output Current | 10 A |
| Output Power | 240 W |
| Voltage Adjustment Range | 22.5 – 28.5 V DC |
| Frequency Range | 47 – 63 Hz |
| Efficiency | ~89% (typical) |
| Operating Temperature | -40°C to +70°C |

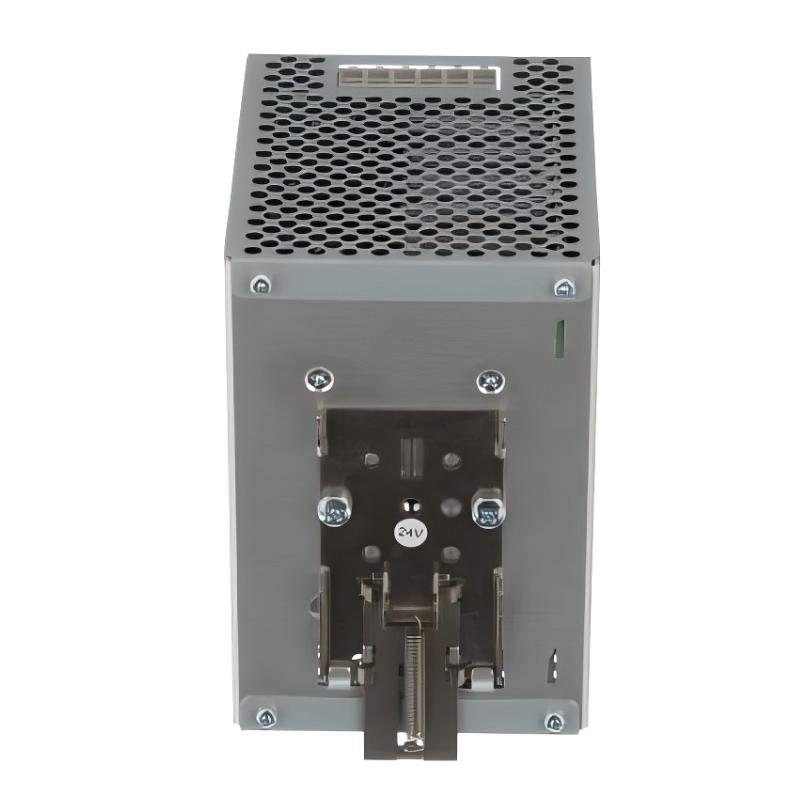

| Mounting Type | DIN rail (TH35 standard) |
| Dimensions | 83 × 123.6 × 123.6 mm |
| Weight | ~1.33–1.45 kg |
| Protection Rating | IP20 |
| Output Characteristic | U/I drooping characteristic |
| Parallel Operation | Up to 3 units supported |
Applications
The ABB CP-E 24/10.0 is widely used in industrial systems requiring stable low-voltage DC power distribution.
Typical applications include:
-
PLC and industrial control panels
-
ABB DCS and automation cabinets
-
Factory production line control systems
-
Robotics and motion control systems
-
Conveyor and packaging machinery
-
Power distribution for sensors and actuators
-
Building automation and HVAC control
-
Retrofit upgrades for legacy industrial systems
Its ability to maintain stable output under fluctuating input conditions makes it particularly valuable in environments with inconsistent grid quality.
Advantages
The CP-E 24/10.0 delivers strong operational benefits for industrial users:
-
High Output Stability – Ensures reliable 24V DC supply under load variations
-
Wide Input Range – Supports AC and DC input for flexible installation
-
Industrial Durability – Built for continuous 24/7 operation
-
Compact DIN-Rail Design – Saves cabinet space and simplifies installation
-
High Efficiency (~89%) – Reduces heat generation and energy loss
-
Parallel Operation Capability – Allows scalable power expansion
-
Strong Protection Features – Overload, short-circuit, and thermal protection
This combination makes it a dependable choice for modern automation infrastructure.
Technical FAQs (10 Questions)
1. What is the ABB CP-E 24/10.0 used for?
It is used to convert AC or DC input into stable 24V DC power for industrial systems.
2. What is its output capacity?
It provides 24V DC at up to 10A (240W).
3. Can it be used in PLC systems?
Yes, it is commonly used in PLC and industrial control cabinets.
4. What is its input voltage range?
It supports 90–132 V AC, 180–264 V AC, and 210–375 V DC.
5. Is it suitable for harsh environments?
Yes, it operates reliably from -40°C to +70°C.
6. What is the mounting type?
DIN-rail mounting (standard industrial TH35 rail).
7. Can multiple units be connected?
Yes, up to three units can be operated in parallel.
8. What is the efficiency level?
Approximately 89% depending on load conditions.
9. What protection features does it include?
Short-circuit, overload, and thermal protection systems.
10. Is it still widely used today?
Yes, it is commonly used in both new installations and industrial retrofits.
