Heavy-Duty Mechanical Mounting System for Precision Machinery Monitoring

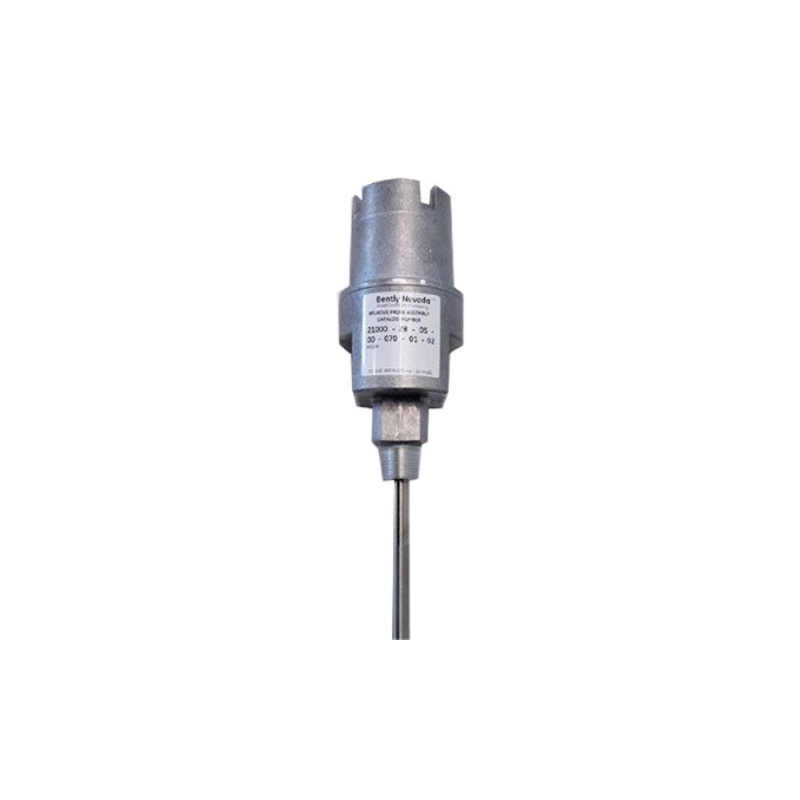

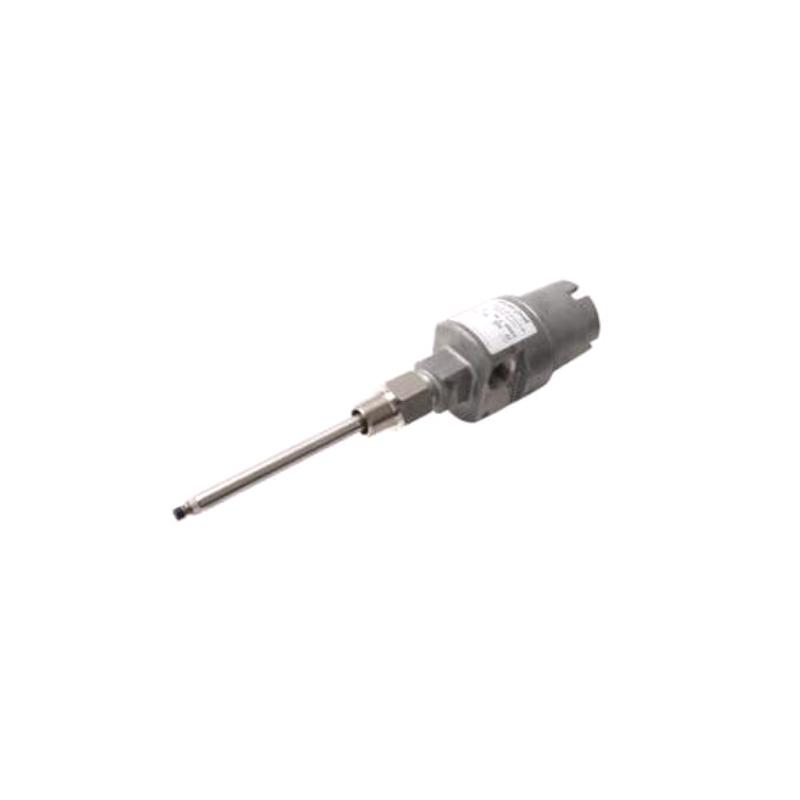

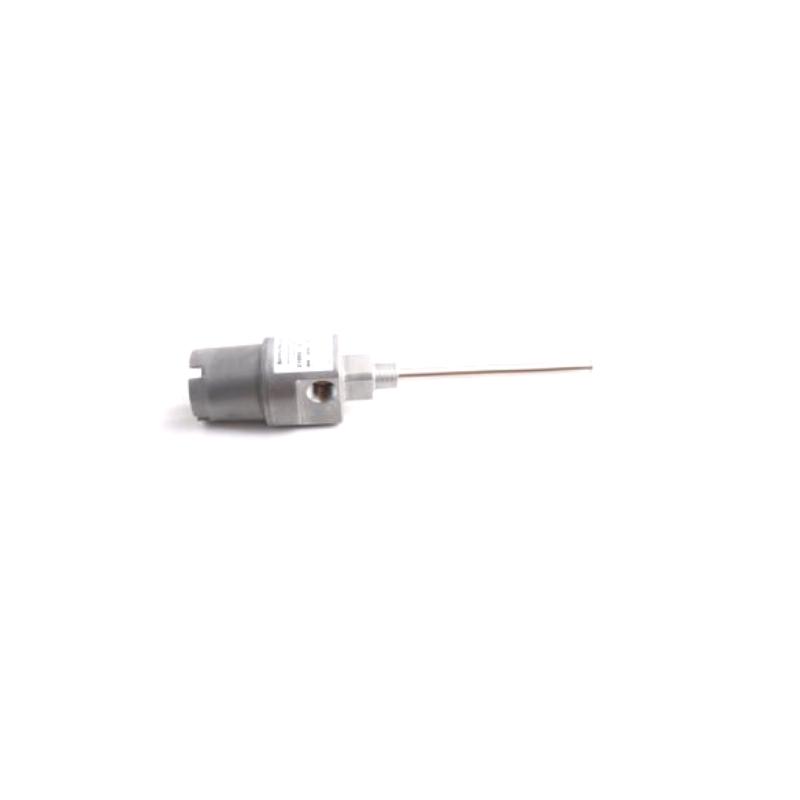

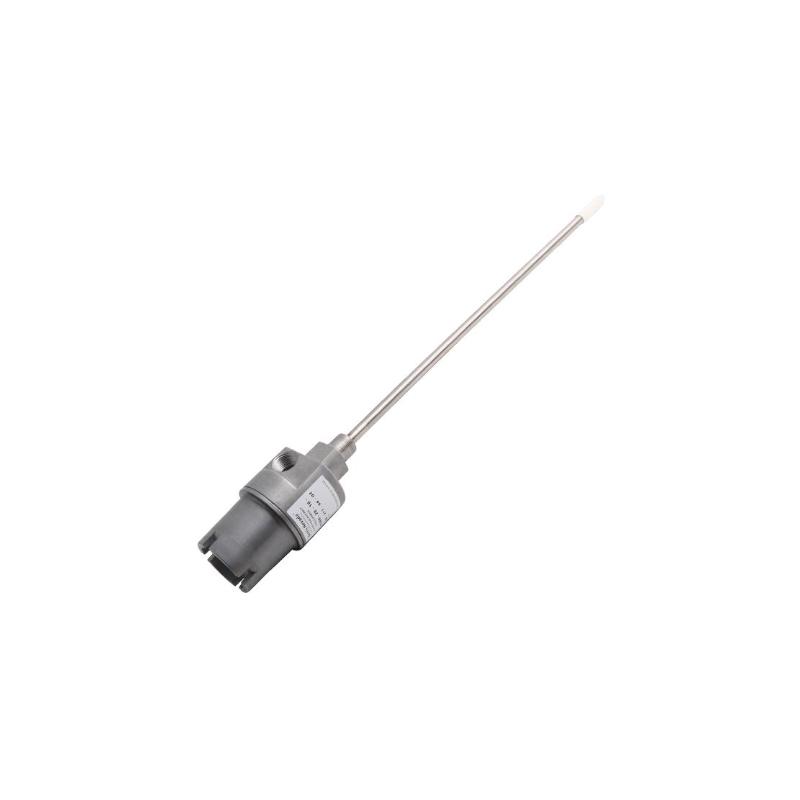

The Bently Nevada 21000-16-10-00-144-03-02 Proximity Probe Housing Assembly is engineered to provide a stable and structured installation platform for proximity probe systems used in rotating machinery monitoring applications. It ensures secure external mounting, consistent probe alignment, and reliable mechanical protection in demanding industrial environments. With its durable construction and modular configuration, this assembly is widely used in condition monitoring systems where long-term installation stability and measurement consistency are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 21000-16-10-00-144-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Probe Compatibility | 3300 XL 8 mm Proximity Probe |
| Cable Length | 1.0 m (39 in) |
| Probe Penetration | Approx. 14.4 in (configuration dependent) |
| Mounting Thread | 3/4-14 NPT |
| Fitting Configuration | Standard conduit fittings with sealing system |
| Housing Material | Aluminum body with stainless steel sleeve |
| Installation Type | External mechanical mounting |
| Operating Temperature | -51°C to +177°C |
| Dimensions | Approx. 12.5 × 2.1 × 10.5 cm |
| Weight | Approx. 1.0–2.0 kg (configuration dependent) |
