Introduction

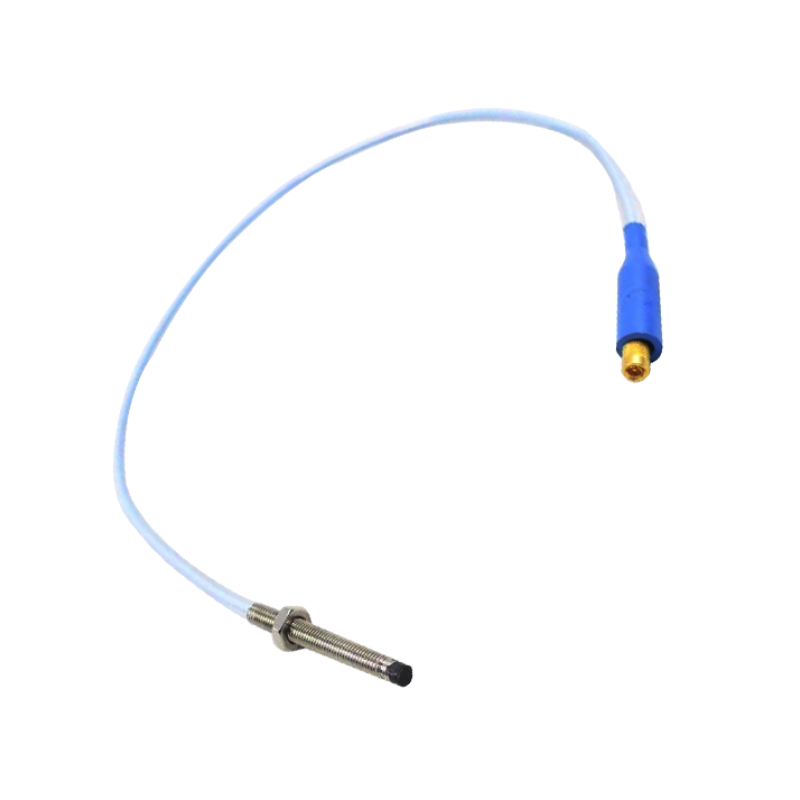

The Bently Nevada 330901-00-15-05-02-05 3300 NSv Proximity Probe is a high-precision eddy-current sensor designed for vibration, position, and shaft displacement measurement in rotating machinery. As part of the 3300 NSv (Narrow Side-View) proximity transducer system, it is optimized for tight installation spaces while maintaining exceptional signal stability and long-term measurement accuracy.
This probe is widely used in turbine trains, compressors, pumps, and other critical rotating equipment where continuous condition monitoring is essential for asset protection and operational reliability.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Bently Nevada |
| Model | 330901-00-15-05-02-05 |
| Series | 3300 NSv Proximity Probe |
| Measurement Principle | Eddy current (non-contact displacement sensing) |
| System Requirement | Probe + extension cable + Proximitor sensor |
| Case Length Option | 1.5 in (code 15) |
| Unthreaded Length | 0.0 in |
| Total Cable Length | 0.5 m (20 in system configuration) |
| Connector Type | Miniature coaxial ClickLoc |
| Thread Type | 1/4-28 UNF (standard NSv mounting) |
| Housing Material | Stainless steel (industrial grade) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Operating Temperature | -40°C to +177°C |
| Weight | ~0.06 kg – 0.15 kg (manufacturer-dependent listing variation) |
Applications
The 330901-00-15-05-02-05 is commonly deployed in high-value industrial monitoring systems, including:
-
Gas and steam turbine vibration monitoring
-
Centrifugal compressor shaft displacement measurement
-
Industrial pump condition monitoring systems
-
Gearbox vibration and alignment diagnostics
-
Generator rotor stability monitoring
-
Oil & gas rotating equipment protection
-
API 670 compliant machinery protection systems
It plays a critical role in detecting early mechanical faults such as imbalance, misalignment, and bearing degradation before catastrophic failure occurs.
Advantages
This NSv proximity probe is designed for reliability in harsh industrial environments:
-
High-accuracy eddy-current sensing for stable displacement measurement
-
Compact side-view design for restricted installation spaces
-
Strong EMI resistance for electrically noisy industrial environments
-
Stainless-steel construction for mechanical durability and corrosion resistance
-
Stable long-distance signal performance across full system architecture
-
ClickLoc connector system for secure, vibration-resistant connections
-
System-matched calibration with NSv cables and proximitor sensors
-
Proven field reliability in global power and process industries
In practice, it supports continuous monitoring systems where measurement consistency directly impacts machine protection decisions.
Technical FAQs
Q1: What is the main function of this probe?
A: It measures shaft vibration and radial displacement using eddy current technology.
Q2: Is it a contact sensor?
A: No, it is a non-contact proximity probe.
Q3: What system does it belong to?
A: The Bently Nevada 3300 NSv transducer system.
Q4: What does the code 15 mean?
A: It refers to a 1.5-inch case length configuration.
Q5: What is the cable length?
A: 0.5 meters (20 inches) in this configuration.
Q6: Can it be used alone?
A: No, it requires a matched extension cable and proximitor sensor.
Q7: What is the operating temperature range?
A: Typically -40°C to +177°C depending on system configuration.
Q8: Where is it commonly installed?
A: Turbines, compressors, pumps, and rotating industrial machinery.
Q9: Is it interchangeable with other Bently Nevada probes?
A: No, NSv components must remain within the NSv system family.
Q10: Why is NSv used instead of standard probes?
A: It provides better performance in tight spaces due to its narrow side-view design.
