Precision Synchronization Control for Industrial Power Systems

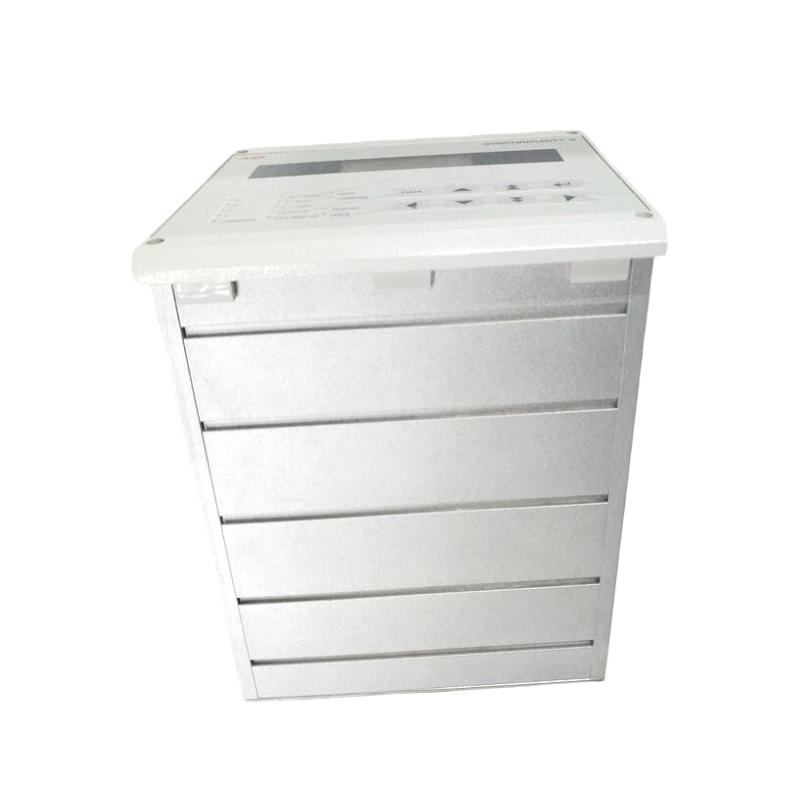

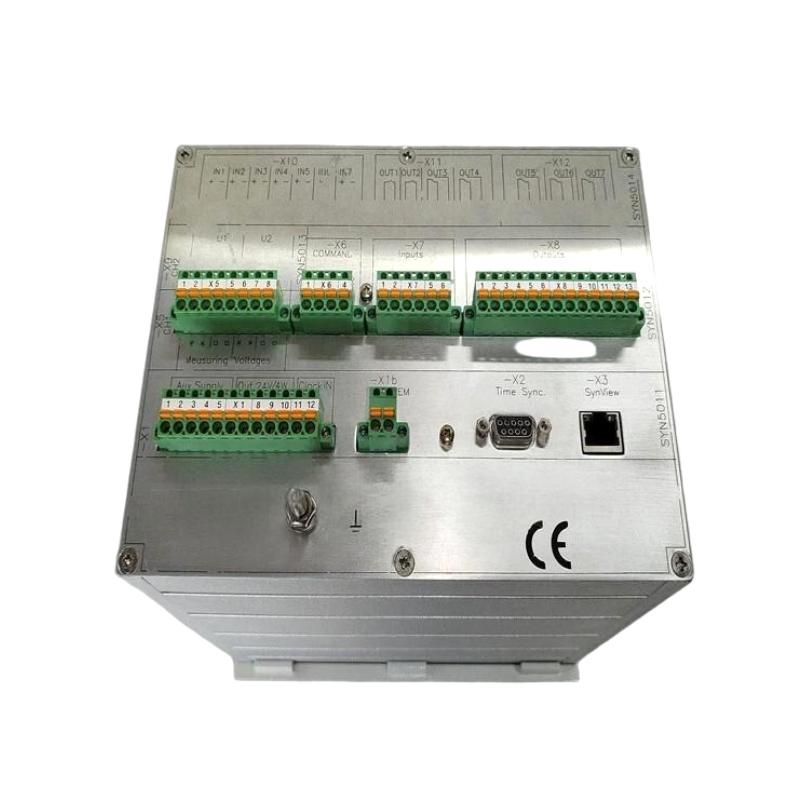

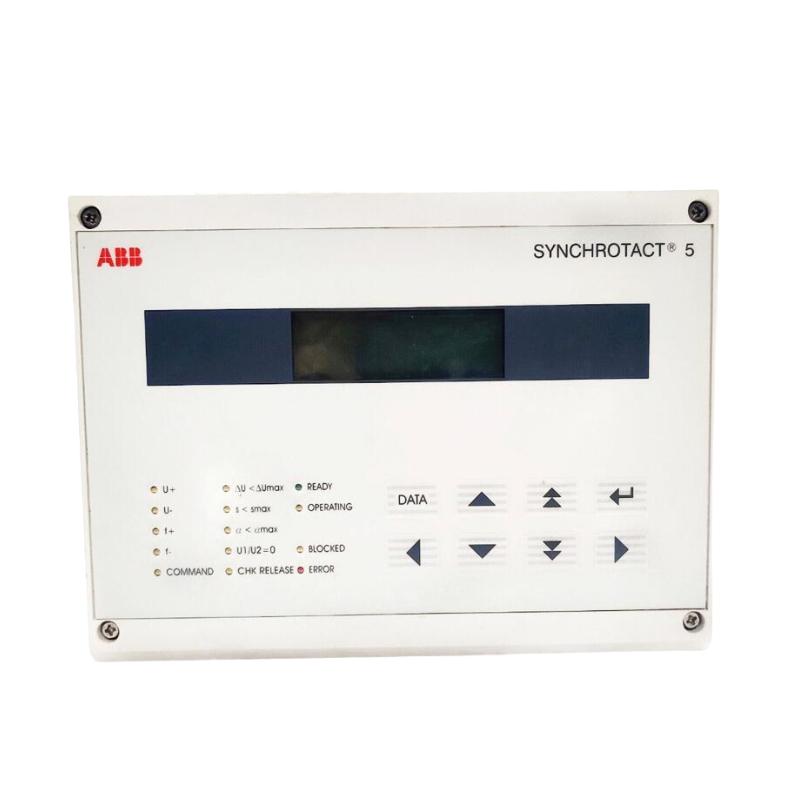

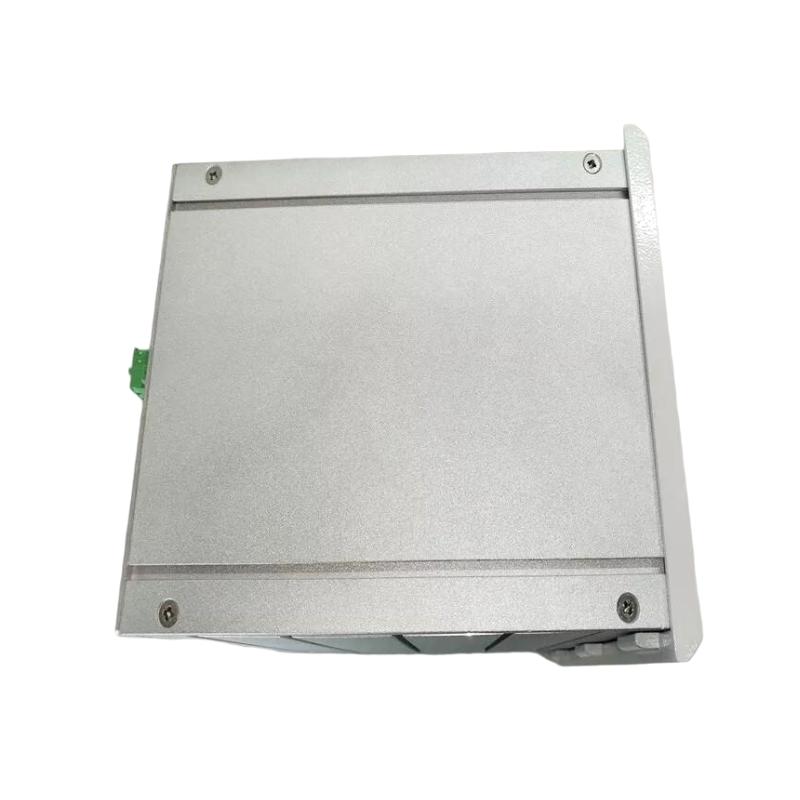

The ABB SYN 5201A-Z,V277 3BHB006714R0277 Automatic Single Channel Synchronizer is an industrial-grade synchronization device designed for accurate control of voltage, frequency, and phase alignment in power generation and distribution systems. As part of ABB’s SYNCHROTACT platform, it supports stable and coordinated operation between generators, busbars, and electrical networks in demanding industrial environments.
Built for reliability and consistent performance, this synchronizer is widely applied in power plants, utility networks, and medium-voltage drive systems where controlled synchronization is essential for smooth system operation.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model Number | SYN 5201A-Z,V277 |
| Part Number | 3BHB006714R0277 |
| Product Type | Automatic Single Channel Synchronizer |
| System Series | SYNCHROTACT |
| Function | Synchronization and Paralleling Control |
| Auxiliary Voltage AC | 100–230 V AC |
| Auxiliary Voltage DC | 24–250 V DC |
| Rated Frequency | 50 / 60 Hz |
| Measurement Frequency Range | 10–100 Hz |
| Input Voltage Range | 50–130 V AC |
| Phase Angle Range | -179° to +180° |
| Operating Temperature | +5°C to +70°C |
| Mounting Type | Panel / System Integration |
| Approx. Dimensions | 263 × 58 × 28 mm |
| Approx. Weight | 4.3–5.0 kg |
| Country of Origin | Switzerland / USA (production dependent) |
Industrial Applications
Power Generation Systems
Used for synchronization of generators before connection to electrical grids, ensuring stable system integration.
Utility and Substation Networks
Supports controlled paralleling of busbars and transmission lines in utility infrastructure.
Medium Voltage Drive Systems
Applied in ABB drive environments such as ACS platforms requiring coordinated synchronization logic.
Industrial Process Plants
Used in oil & gas, metallurgy, mining, and chemical production systems for stable electrical operation.
Renewable Energy Systems
Supports synchronization in hydro, wind, and hybrid power generation facilities.
Key Performance Advantages
Accurate Synchronization Control
Ensures precise alignment of voltage, frequency, and phase angle before system connection.
Stable System Integration
Helps maintain consistent operating conditions during generator or grid coupling operations.
Industrial Reliability Design
Built for continuous operation in harsh industrial environments with long service life expectations.
Flexible Power Compatibility
Supports a wide range of auxiliary voltage inputs for versatile system integration.
Efficient System Coordination
Enhances operational consistency across multi-source power configurations.
ABB Engineering Standard
Designed according to ABB’s industrial automation and power system engineering practices.
Technical FAQs
1. What is the main function of the SYN 5201A-Z,V277?
It manages automatic synchronization between electrical systems by aligning voltage, frequency, and phase conditions.
2. Where is this synchronizer typically used?
It is used in power plants, substations, and industrial drive systems.
3. Is it suitable for continuous industrial operation?
Yes, it is designed for long-term operation in demanding environments.
4. What voltage ranges does it support?
It supports 100–230 V AC and 24–250 V DC auxiliary supply ranges.
5. What frequency systems are compatible?
It operates with standard 50 Hz and 60 Hz power systems.
6. Can it be used in generator applications?
Yes, it is commonly used for generator synchronization before grid connection.
7. Does it require programming?
No direct programming is required; it operates within system-level configuration.
8. What industries use this module?
Energy, utilities, manufacturing, mining, and process industries.
9. What role does it play in system stability?
It ensures controlled synchronization to support stable electrical operation.
10. Why is this model widely adopted?
Due to its reliability, precision control capability, and compatibility with ABB systems.
