Introduction

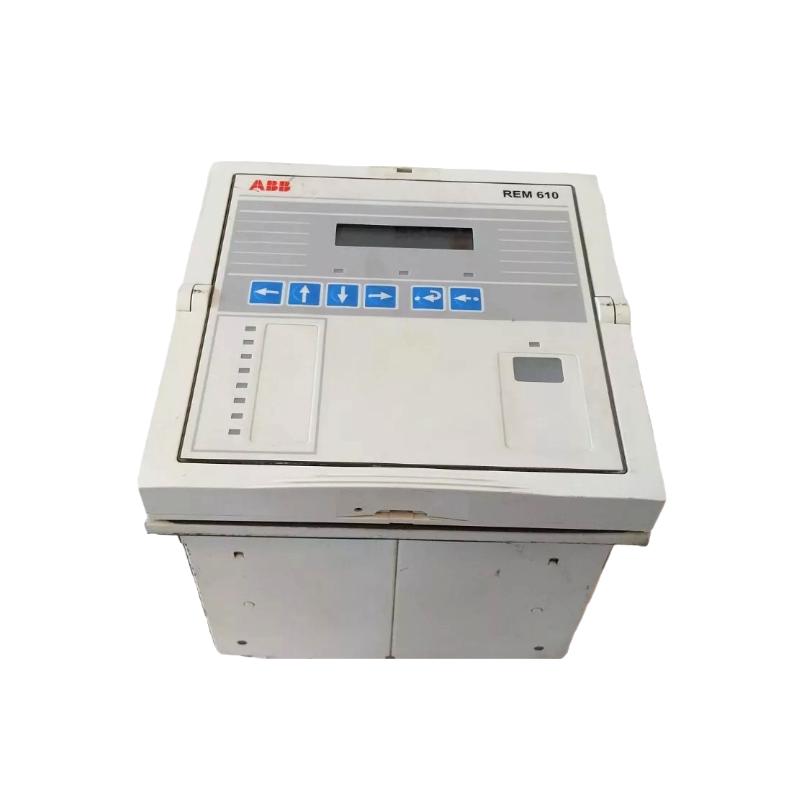

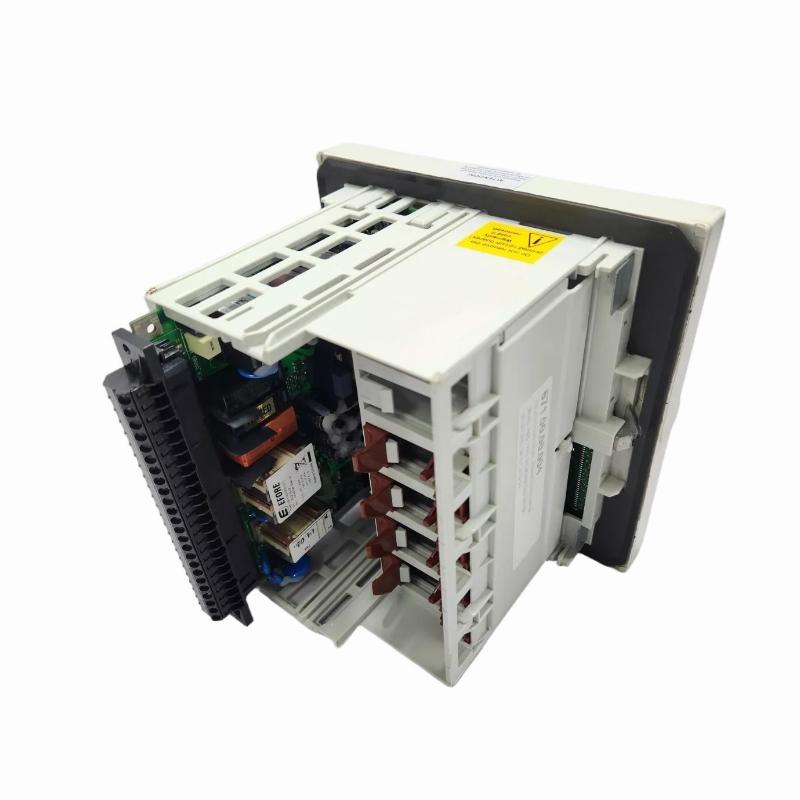

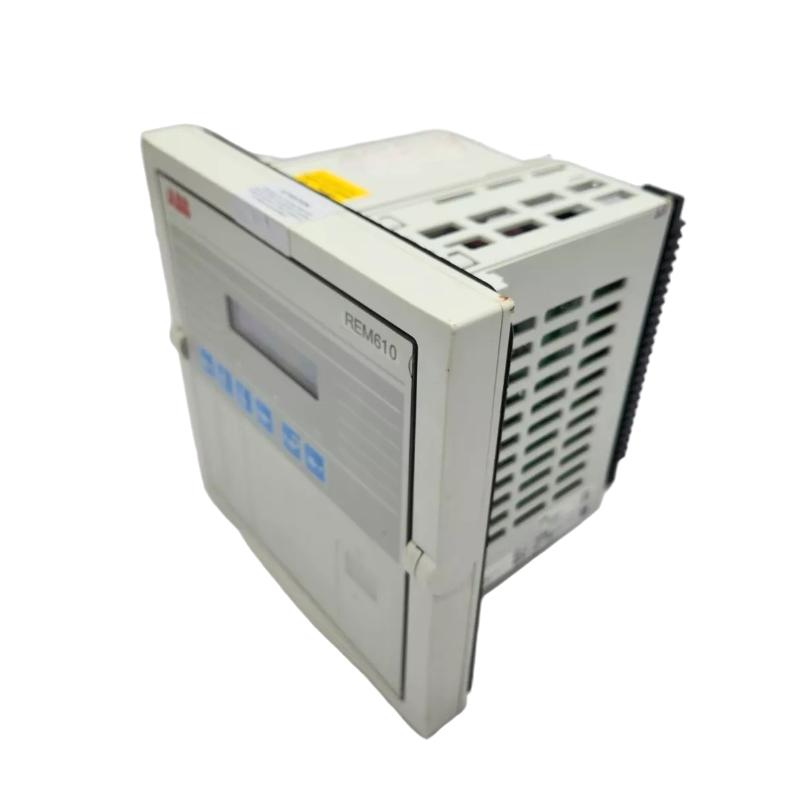

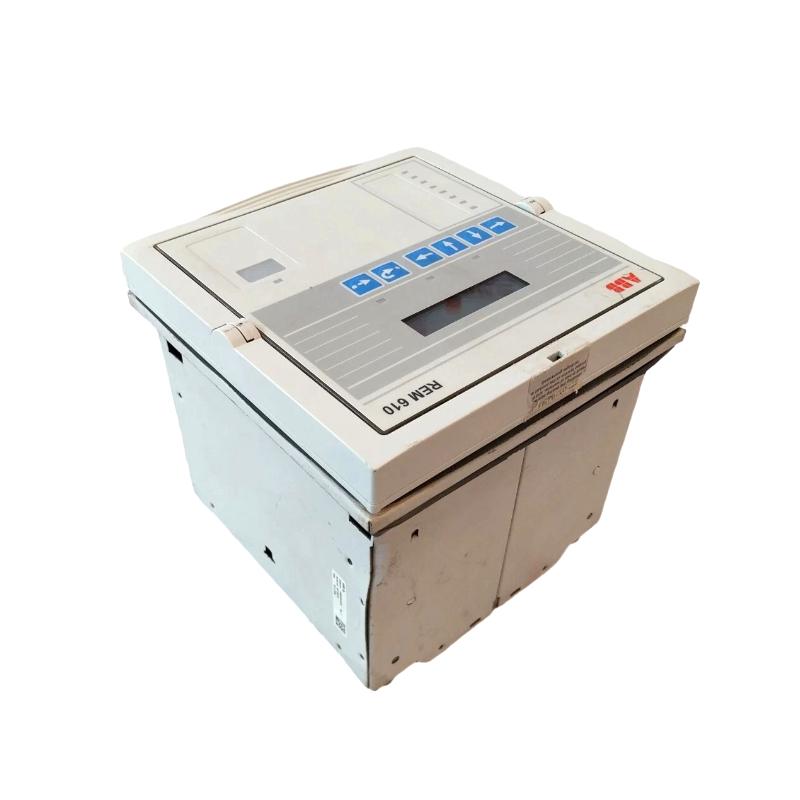

The ABB REM610 Motor Protection Relay is a multifunctional and microprocessor-based protection device designed to ensure reliable safeguarding, monitoring, and control of medium and large asynchronous motors in industrial and utility environments. As part of ABB’s Relion® 610 series, it delivers advanced motor protection logic combined with flexible configuration options for both circuit-breaker and contactor-controlled motor systems.
Engineered for demanding process industries, the REM610 focuses on operational stability, thermal modeling accuracy, and fault response precision. It is widely used in critical applications where motor downtime directly impacts production efficiency and system safety.
Technical Specifications
The REM610 is built with a modular architecture that supports extensive protection, measurement, and control functions for motor systems of varying sizes.
| Parameter | Specification |
|---|
| Model | REM610 |
| Series | ABB Relion® 610 Series |
| Type | Motor Protection Relay |
| Application | Medium & large asynchronous motors |
| Power Supply | AC/DC auxiliary supply (various ratings) |
| Frequency | 50/60 Hz |
| Mounting | Panel / rack / flush mounting options |
| Communication | Serial communication options (protocol-dependent) |
Applications
The ABB REM610 Motor Protection Relay is designed for a broad range of industrial motor protection scenarios, including:
-
Large industrial induction motor protection
-
Pumping systems in water and wastewater plants
-
Conveyor and material handling systems
-
Compressors in oil & gas and process industries
-
Fans and ventilation systems in power plants
-
Mining and mineral processing equipment
-
HVAC systems in large infrastructure installations
Its versatility allows it to operate effectively in both direct-on-line (DOL) and contactor-controlled motor configurations.
Applications
The ABB REM610 Motor Protection Relay is designed for a broad range of industrial motor protection scenarios, including:
-
Large industrial induction motor protection
-
Pumping systems in water and wastewater plants
-
Conveyor and material handling systems
-
Compressors in oil & gas and process industries
-
Fans and ventilation systems in power plants
-
Mining and mineral processing equipment
-
HVAC systems in large infrastructure installations
Its versatility allows it to operate effectively in both direct-on-line (DOL) and contactor-controlled motor configurations.
Technical FAQs
1. What type of motors does the REM610 protect?
It is designed for medium and large asynchronous (induction) motors.
2. Does it support thermal overload protection?
Yes, it includes advanced thermal overload modeling for motor protection.
3. Can it detect earth faults?
Yes, it supports non-directional earth-fault protection functions.
4. Is the relay suitable for industrial automation systems?
Yes, it is widely used in process industries and automation environments.
5. What is the device’s physical size?
It is a 4U unit with a 177 × 177 × 149.3 mm form factor.
6. Does it include self-diagnostics?
Yes, a built-in self-supervision system continuously monitors operation.
7. Can it be used with contactor-controlled motors?
Yes, it supports both breaker- and contactor-based motor control systems.
8. What communication options are available?
It supports serial communication protocols depending on configuration.
9. Is local configuration possible?
Yes, through its front-panel HMI with LCD display and buttons.
10. Is the REM610 still actively manufactured?
It belongs to an earlier ABB Relion 610 generation and may be considered legacy in some markets.
