Stable Industrial Measurement for Rotating Machinery Systems

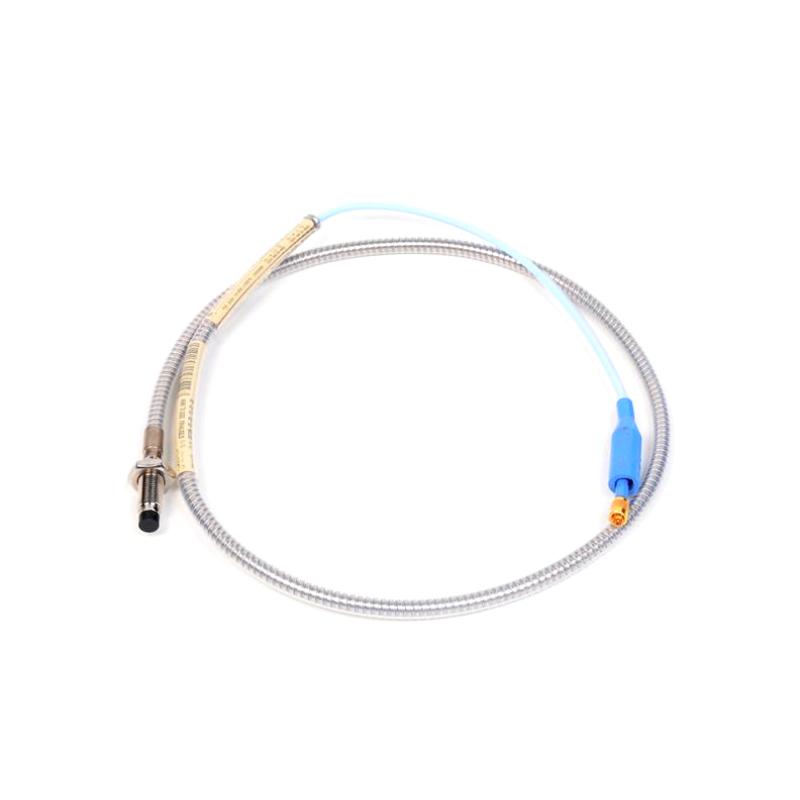

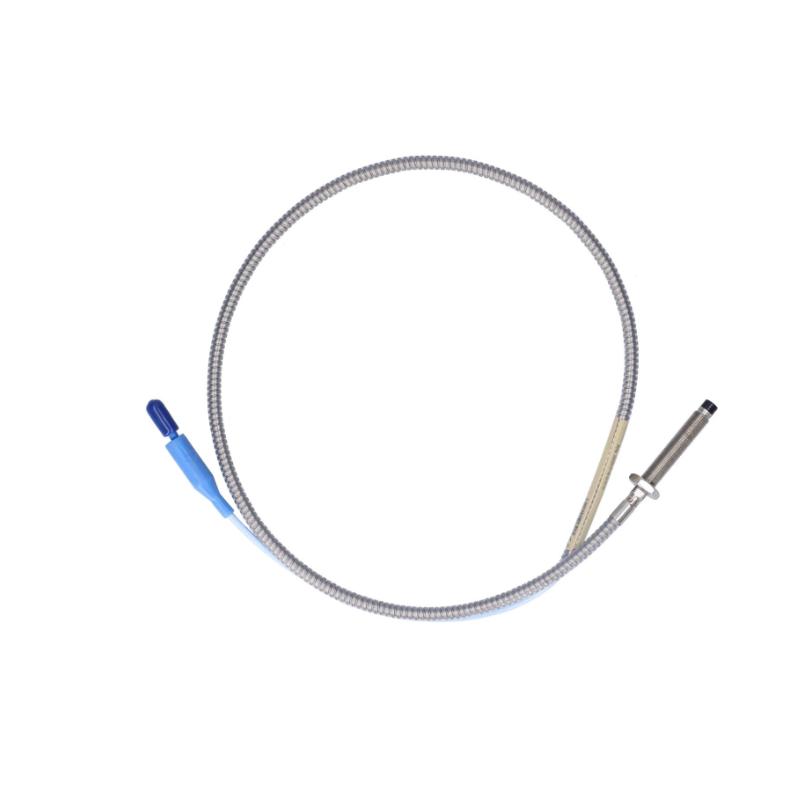

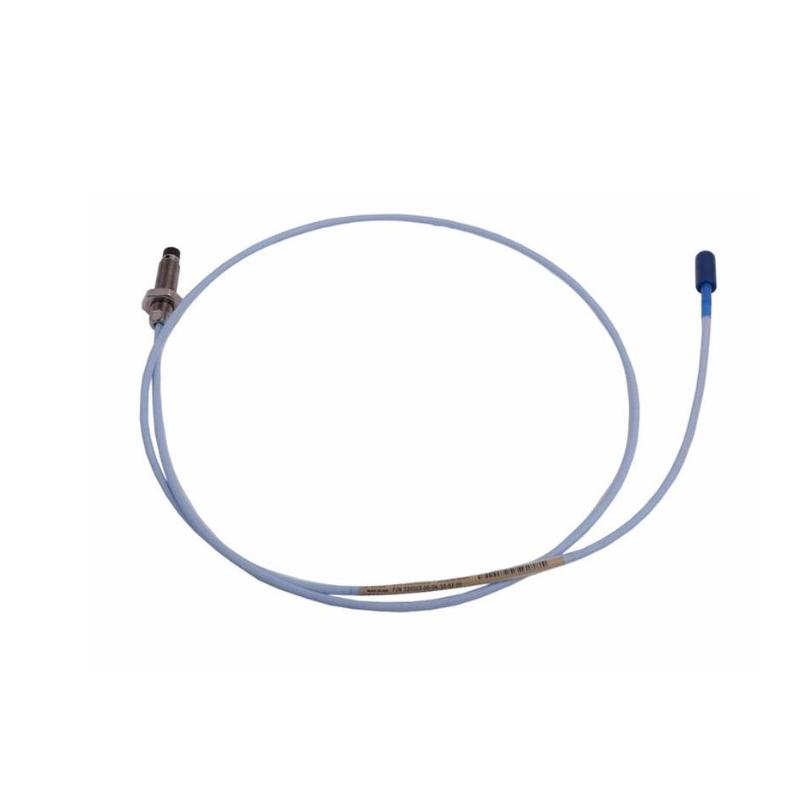

The Bently Nevada 330104-00-14-10-02-CN 3300 XL 8 mm Proximity Probe Metric is designed for non-contact measurement of shaft vibration and position in rotating machinery. It is part of the 3300 XL proximity transducer system, widely used in industrial condition monitoring applications where consistent and repeatable measurement data is required.
This probe is typically integrated into machinery monitoring architectures supporting turbines, compressors, pumps, and motors, helping provide stable displacement signals for operational analysis and equipment performance tracking.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-14-10-02-CN |
| Product Type | 3300 XL 8 mm Proximity Probe (Metric) |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Unthreaded Length | 0 mm |
| Case Length | 140 mm |
| Total Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard coaxial cable |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | Stainless steel |
| Measurement Principle | Eddy current proximity sensing |
| Mounting Type | Threaded installation |
| Application | Shaft vibration and position measurement |
| Operating Environment | Industrial monitoring systems |
| Weight | Approx. 0.32 kg |
Industrial Application Areas
Rotating Machinery Monitoring
Used for measuring shaft vibration and displacement in turbines, compressors, pumps, and electric motors.
Power Generation Equipment
Supports monitoring of rotating assets in energy production and utility systems.
Process Industry Systems
Applied in continuous production environments requiring stable mechanical condition data.
Mechanical Condition Evaluation
Provides input for assessing alignment, stability, and operational behavior of rotating components.
Key Advantages
Consistent Signal Performance
Designed to deliver stable and repeatable measurement output for monitoring systems.
Durable Mechanical Structure
Stainless steel housing provides reliable mechanical integrity in industrial environments.
System Compatibility
Compatible with Bently Nevada 3300 XL monitoring system architecture for straightforward integration.
Continuous Monitoring Capability
Suitable for long-term operation in industrial machinery monitoring systems.
Flexible Installation Design
Supports standard metric threaded mounting for broad application use.
Technical FAQs
1. What is the main function of this probe?
It measures shaft vibration and position using non-contact eddy current sensing.
2. What system is it compatible with?
It is designed for use with Bently Nevada 3300 XL proximity transducer systems.
3. What is the probe diameter?
The probe diameter is 8 mm.
4. What is the cable length?
The total cable length is 1.0 meter.
5. What mounting type does it use?
It uses M10 × 1 metric threaded mounting.
6. What materials are used in construction?
It features stainless steel housing and PPS probe tip material.
7. Is it suitable for continuous operation?
Yes, it is designed for continuous industrial monitoring applications.
8. What industries commonly use it?
It is used in energy, manufacturing, and process industries.
9. What is the approximate weight?
Approximately 0.32 kg depending on configuration.
10. What is the main benefit of this model?
It provides stable and consistent measurement signals for machinery condition monitoring.
