Product Overview

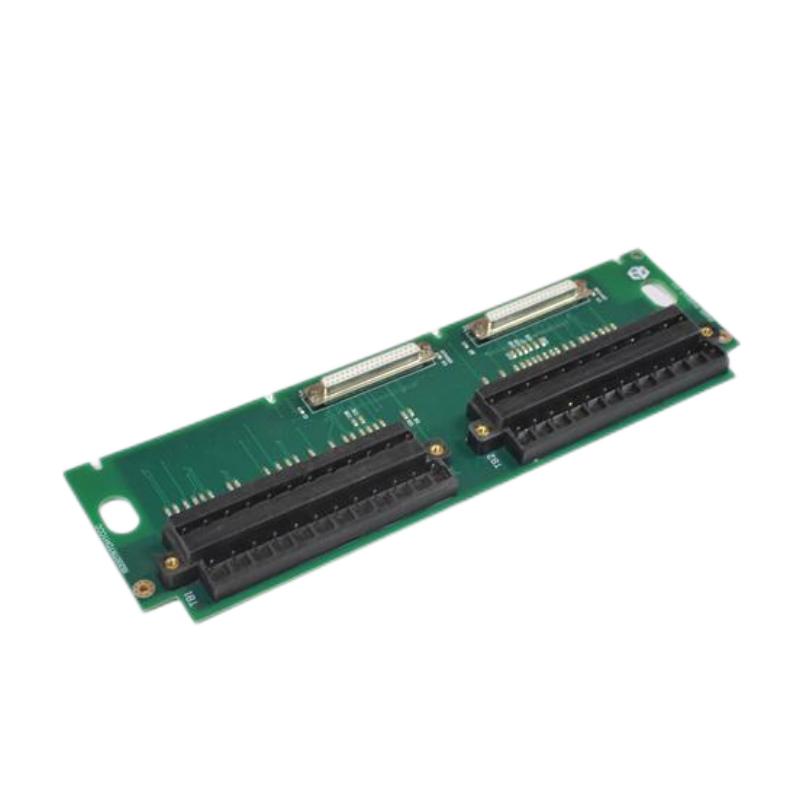

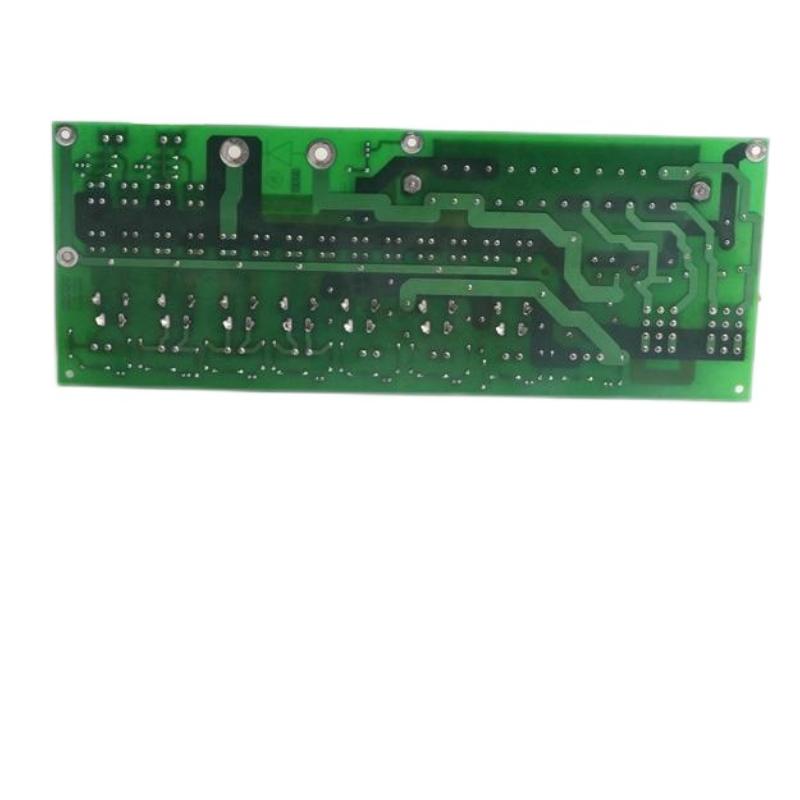

The GE IS200TRTDH1C RTD Input Terminal Board is a precision interface module designed for the Mark VI/Mark VIe Speedtronic control system. It provides accurate signal acquisition from Resistance Temperature Detectors (RTDs), converting temperature measurements from turbines, boilers, and industrial processes into reliable digital signals for monitoring and control.
This module ensures high signal integrity, noise immunity, and seamless integration with turbine and process control systems, making it indispensable for applications that demand precise thermal measurement and system safety.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | IS200TRTDH1C |
| Module Type | RTD Input Terminal Board |
| Series | GE Mark VI / Mark VIe |
| Input Channels | 16 RTD channels |
| Supported RTD Types | PT100, PT1000 (3-wire or 4-wire configuration) |
| Input Range | -200°C to 850°C |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel galvanic isolation |
| Signal Conditioning | Filtering, lead compensation, and linearization |
| Indicators | LED status/fault per channel |
| Operating Temperature | -20°C to 65°C |
| Mounting | Rack-mounted (Innovation Series) |
| Dimensions (HxWxD) | Approx. 160 × 120 × 40 mm |
| Weight | Approx. 0.8 kg |
