Stable Measurement Solution for Rotating Machinery Monitoring

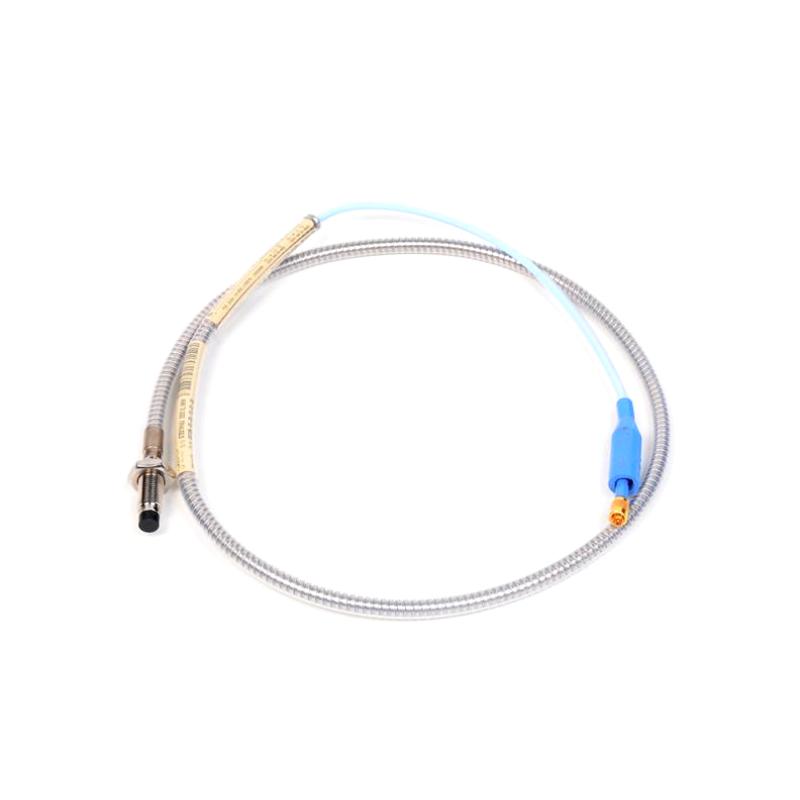

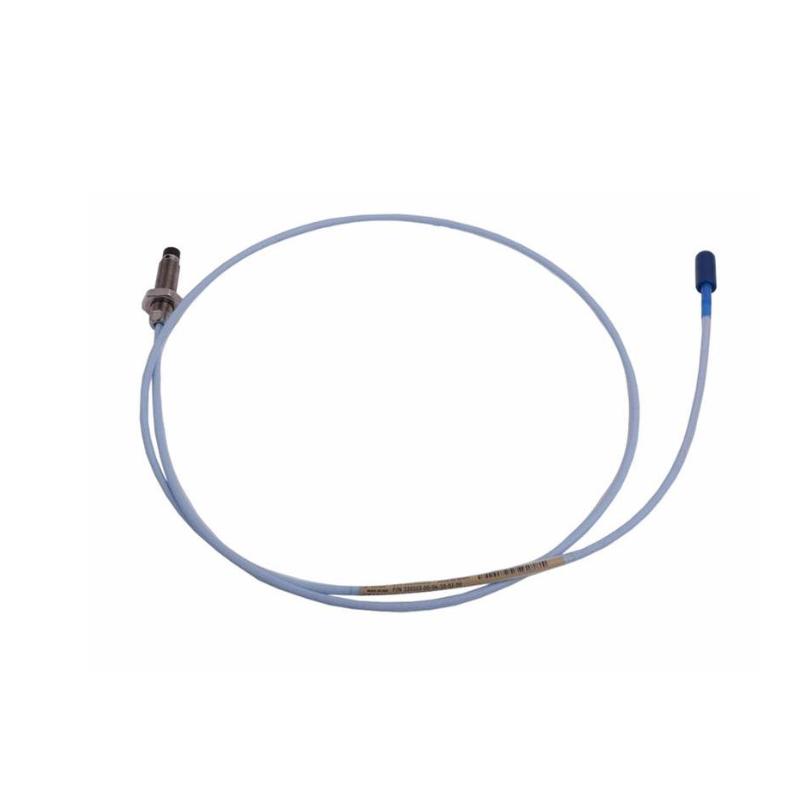

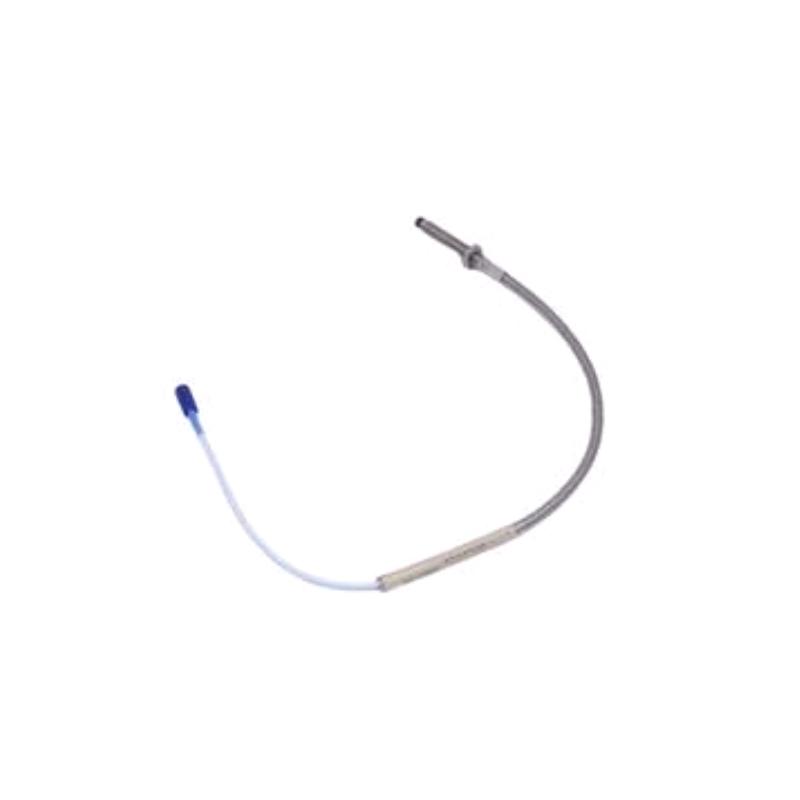

The Bently Nevada 330104-00-14-10-02-05 3300 XL 8 mm Proximity Probe Metric is designed for precise non-contact measurement of shaft vibration and position in rotating machinery systems. As part of the established 3300 XL transducer series, it supports consistent performance in industrial condition monitoring environments.
This probe is commonly used in machinery protection and monitoring systems where stable displacement data is required to support equipment assessment and operational visibility across continuous industrial processes.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-14-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe (Metric) |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Unthreaded Length | 0 mm |
| Case Length | 140 mm |
| Total Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard coaxial cable |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Housing Material | Stainless steel |
| Measurement Principle | Eddy current proximity sensing |
| Mounting Type | Threaded installation |
| Application | Shaft vibration and position measurement |
| Weight | Approx. 0.32 kg |
Application Scenarios
Rotating Machinery Systems
Used for monitoring shaft vibration and displacement in motors, compressors, pumps, and turbines.
Industrial Power Systems
Supports measurement tasks in energy generation and distribution equipment.
Process Industry Equipment
Applied in continuous production systems requiring stable mechanical condition feedback.
Equipment Condition Monitoring
Provides measurement data to support evaluation of alignment, balance, and operational stability.
Key Features and Benefits
Consistent Signal Performance
Designed to deliver stable and repeatable measurement output for monitoring systems.
Industrial-Grade Construction
Stainless steel housing provides structural stability for long-term industrial use.
System Compatibility
Compatible with Bently Nevada 3300 XL monitoring system architecture for straightforward integration.
Continuous Operation Capability
Suitable for long-duration monitoring of rotating equipment.
Flexible Installation Design
Supports standard metric threaded mounting configurations for wide application use.
Technical FAQs
1. What is the main function of this probe?
It measures shaft vibration and position using non-contact sensing technology.
2. What sensing principle does it use?
It operates based on eddy current proximity measurement technology.
3. What is the probe diameter?
The probe diameter is 8 mm.
4. What is the cable length?
The total cable length is 0.5 meters.
5. What mounting standard does it use?
It uses M10 × 1 metric threaded mounting.
6. What materials are used in construction?
It features stainless steel housing and a PPS probe tip.
7. Is it suitable for continuous monitoring?
Yes, it is designed for continuous industrial monitoring environments.
8. What systems is it compatible with?
It is compatible with Bently Nevada 3300 XL series systems.
9. What is the approximate weight?
Approximately 0.32 kg depending on configuration.
10. What is the main advantage of this model?
It provides stable and repeatable measurement signals for machinery condition monitoring systems.
