Industrial Sensing Solution for Rotating Equipment Monitoring

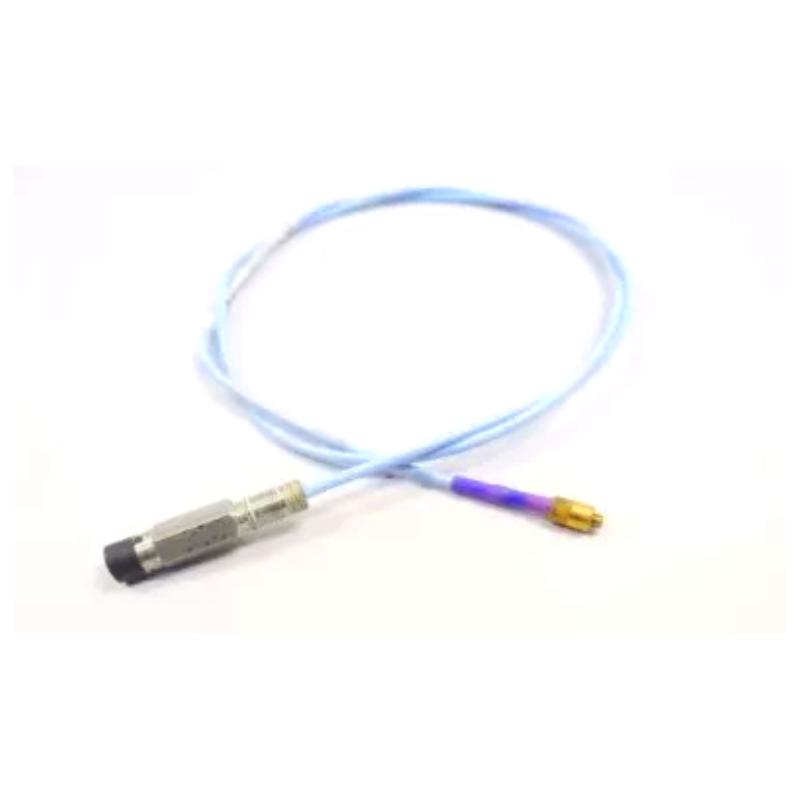

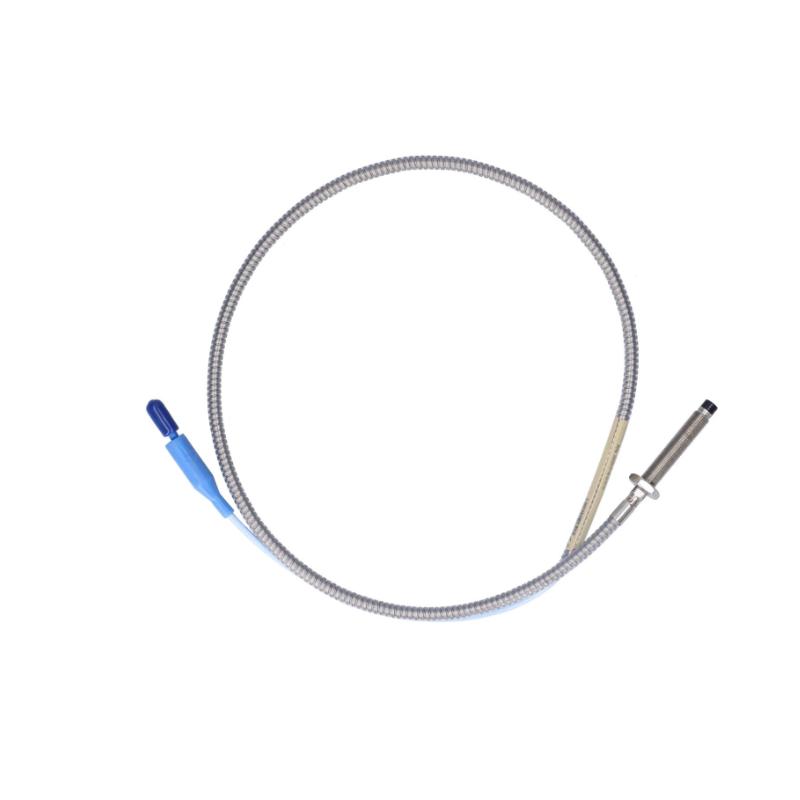

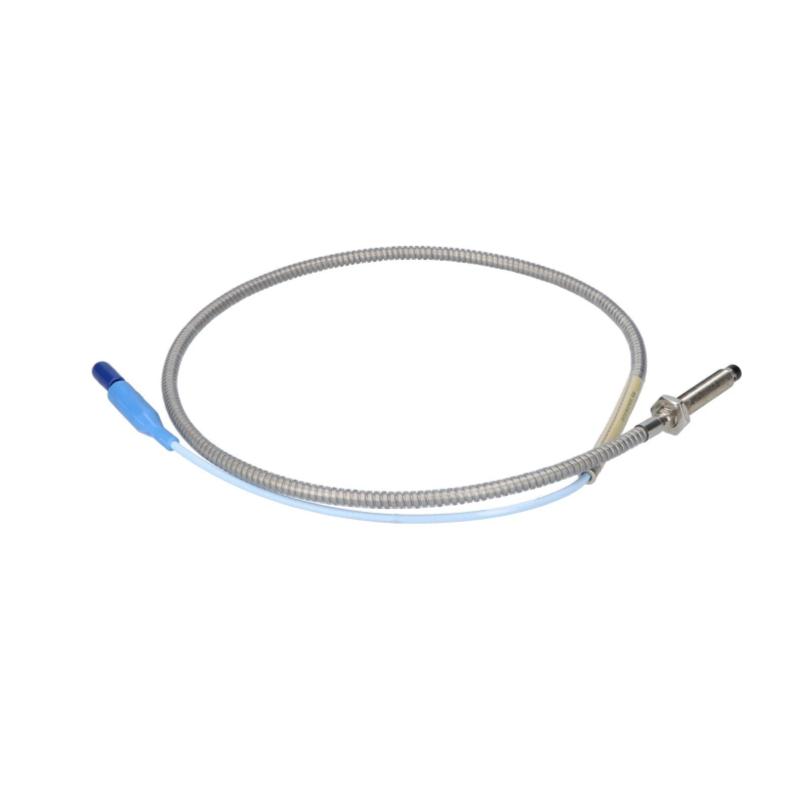

The Bently Nevada 330104-00-14-10-01-05 3300 XL 8 mm Proximity Probe Metric is designed for non-contact measurement of shaft vibration and position in rotating machinery systems. It is part of the widely used 3300 XL proximity transducer series, supporting stable signal output for machinery condition monitoring applications.
This probe is typically used in systems where continuous measurement of mechanical displacement is required to support equipment assessment and operational visibility across industrial environments.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-14-10-01-05 |
| Product Type | 3300 XL 8 mm Proximity Probe (Metric) |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Unthreaded Length | 0 mm |
| Case Length | 140 mm |
| Total Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard coaxial cable |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Housing Material | Stainless steel |
| Measurement Principle | Eddy current proximity sensing |
| Mounting Type | Threaded installation |
| Application | Shaft vibration and position measurement |
| Operating Environment | Industrial monitoring systems |
| Weight | Approx. 0.32 kg |
Typical Application Areas
Rotating Machinery Systems
Used for monitoring shaft vibration and displacement in equipment such as motors, compressors, pumps, and turbines.
Power Generation Equipment
Applied in rotating asset monitoring within energy production and utility systems.
Industrial Processing Equipment
Supports condition monitoring in continuous production environments.
Mechanical Performance Monitoring
Provides measurement data used for evaluating alignment and operational stability.
Key Advantages
Consistent Measurement Output
Designed to provide stable and repeatable signals for industrial monitoring systems.
Durable Mechanical Construction
Stainless steel housing ensures suitability for long-term industrial use.
System Compatibility
Compatible with 3300 XL monitoring system components for straightforward integration.
Continuous Monitoring Capability
Supports long-duration operation in machinery condition monitoring environments.
Flexible Industrial Application
Applicable across a wide range of rotating equipment configurations.
Technical FAQs
1. What is the main function of this probe?
It measures shaft vibration and position using non-contact sensing technology.
2. What sensing principle is used?
It uses eddy current-based proximity measurement.
3. What is the cable length?
The total cable length is 1.0 meter.
4. What is the probe diameter?
The probe diameter is 8 mm.
5. What type of mounting does it use?
It uses M10 × 1 metric threaded mounting.
6. What materials are used in construction?
Stainless steel housing with PPS probe tip material.
7. Is it suitable for continuous operation?
Yes, it is designed for continuous industrial monitoring use.
8. What systems is it compatible with?
It is compatible with Bently Nevada 3300 XL monitoring systems.
9. What is the weight of the probe?
Approximately 0.32 kg depending on configuration.
10. What is the main benefit of this model?
It provides stable and consistent measurement signals for machinery condition monitoring systems.
