Precision-Engineered Monitoring Solution for Rotating Machinery

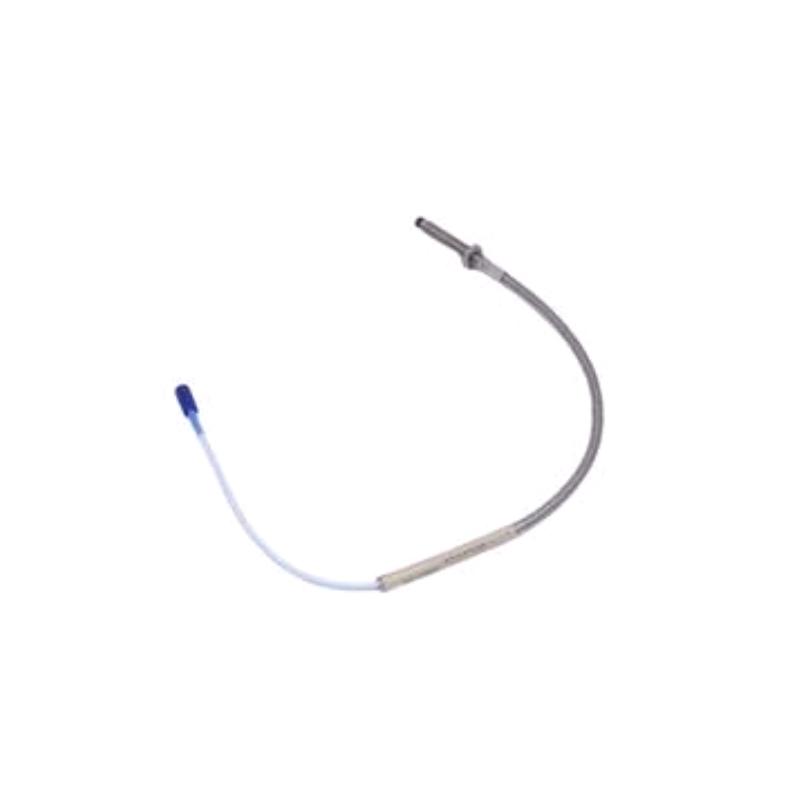

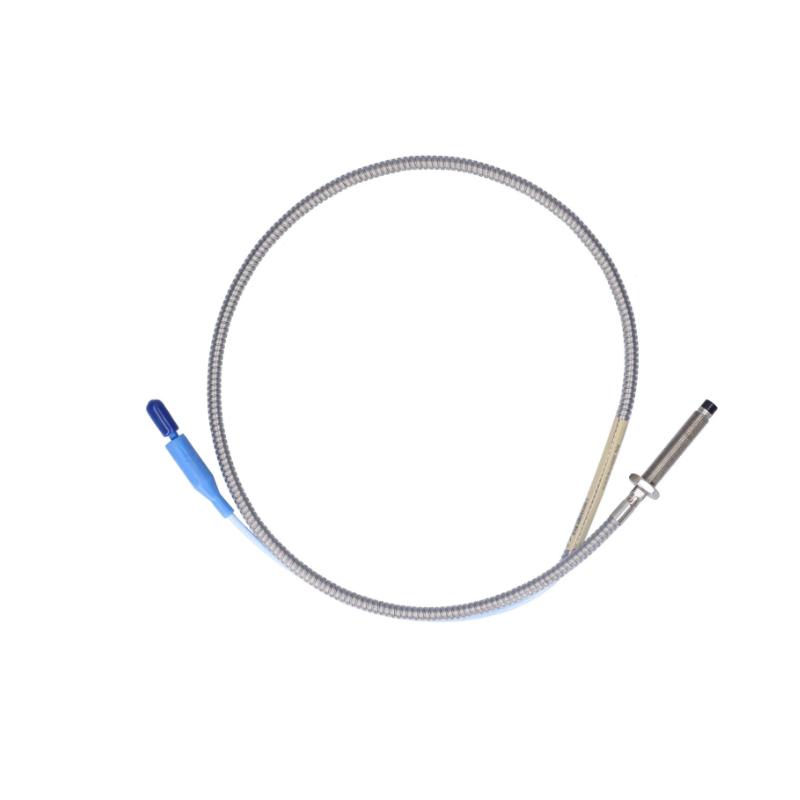

The Bently Nevada 330104-00-14-05-02-00 3300 XL 8 mm Proximity Probe Metric is designed for accurate and stable measurement of shaft vibration and position in rotating machinery systems. It is part of the widely adopted 3300 XL proximity transducer platform, supporting continuous monitoring applications across industrial environments.
This probe is commonly integrated into machinery condition monitoring systems where reliable displacement feedback is required to support operational visibility and equipment performance assessment.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-14-05-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe (Metric) |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Unthreaded Length | 0 mm |
| Case Length | 140 mm |
| Total Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard coaxial cable |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Housing Material | Stainless steel |
| Measurement Principle | Eddy current proximity sensing |
| Mounting Type | Threaded installation |
| Application | Shaft vibration and position measurement |
| Operating Environment | Industrial monitoring systems |
| Weight | Approx. 0.32 kg |
Industrial Application Areas
Rotating Equipment Monitoring
Used for measuring shaft movement, vibration, and positional changes in rotating machinery such as pumps, motors, compressors, and turbines.
Power Generation Systems
Supports condition monitoring of critical rotating assets in energy production facilities.
Process Industry Equipment
Applied in production environments requiring continuous mechanical performance evaluation.
Mechanical Condition Assessment
Helps support analysis of alignment, stability, and operational consistency of rotating components.
Key Advantages
Stable Measurement Output
Designed to provide consistent and repeatable signals for industrial monitoring systems.
Robust Mechanical Construction
Stainless steel housing ensures structural reliability in demanding operating environments.
System Integration Compatibility
Compatible with 3300 XL system components, supporting straightforward installation and replacement.
Continuous Operation Design
Suitable for long-duration monitoring of industrial rotating equipment.
Flexible Application Use
Applicable across a wide range of machinery types and industrial sectors.
Technical FAQs
1. What is the main function of this proximity probe?
It measures shaft vibration and position without physical contact.
2. What measurement principle is used?
It uses eddy current sensing technology.
3. What is the probe diameter?
The probe diameter is 8 mm.
4. What is the cable length?
The total cable length is 0.5 meters.
5. What is the mounting type?
It uses M10 × 1 metric threaded mounting.
6. What materials are used in construction?
The probe features a stainless steel housing and PPS probe tip.
7. Is it suitable for continuous monitoring systems?
Yes, it is designed for continuous industrial monitoring applications.
8. What systems is it compatible with?
It is compatible with Bently Nevada 3300 XL monitoring systems.
9. What is the weight of the probe?
Approximately 0.32 kg depending on configuration.
10. What is the key benefit of this model?
It provides stable and consistent measurement performance for machinery condition monitoring.
