Industrial Measurement Solution for Machinery Condition Monitoring

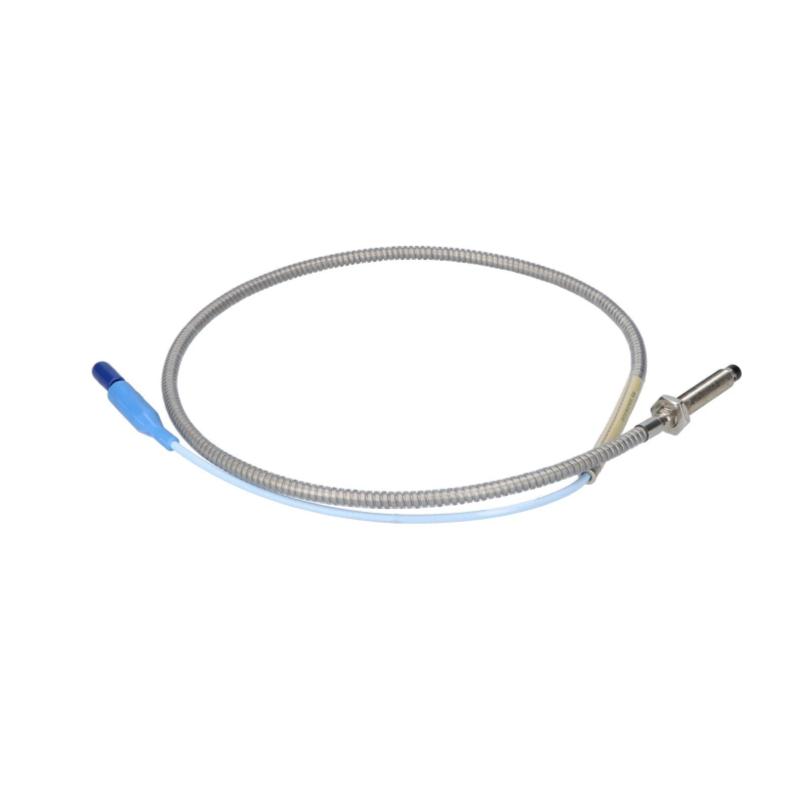

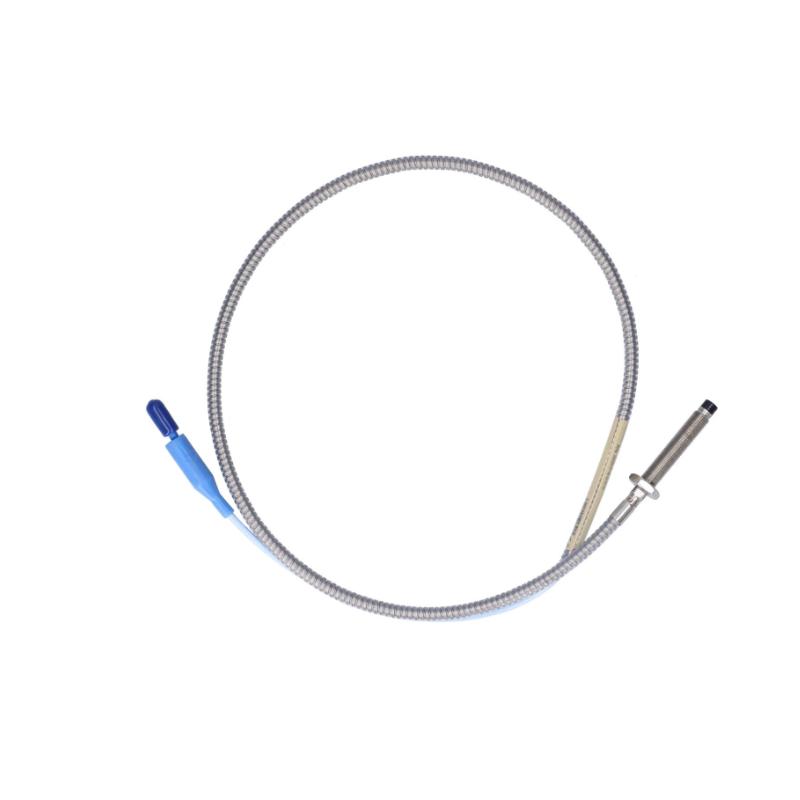

The Bently Nevada 330104-00-13-50-02-05 3300 XL 8 mm Proximity Probe Metric is designed for precise, stable, and continuous measurement of shaft vibration and position in rotating machinery systems. It is part of the 3300 XL proximity transducer series, widely used in industrial monitoring applications where consistent measurement performance is required.
This probe is engineered for integration with compatible monitoring systems to support accurate displacement feedback in mechanical equipment such as turbines, compressors, pumps, and motors.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-13-50-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe (Metric) |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Unthreaded Length | 0 mm |
| Case Length | 130 mm |
| Total Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard coaxial cable |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Housing Material | Stainless steel |
| Measurement Principle | Eddy current proximity sensing |
| Application | Vibration and position measurement |
| Installation Type | Threaded mounting |
| Weight | Approx. 0.32 kg |
Application Areas
Rotating Machinery Systems
Used for monitoring shaft displacement and vibration in rotating equipment.
Industrial Equipment Monitoring
Supports operational condition assessment in manufacturing and process systems.
Energy Systems
Applied in monitoring rotating assets in power generation environments.
Mechanical Performance Evaluation
Provides input for analyzing equipment stability and alignment conditions.
Key Advantages
Stable Measurement Characteristics
Designed to deliver consistent signal output for industrial monitoring systems.
Robust Mechanical Construction
Stainless steel housing ensures structural reliability in industrial environments.
System Compatibility
Compatible with 3300 XL series components for simplified integration.
Continuous Operation Design
Suitable for long-term use in machinery condition monitoring systems.
Flexible Installation
Supports standard threaded mounting configurations.
Technical FAQs
1. What is the main function of this probe?
It measures shaft vibration and position using non-contact sensing technology.
2. What technology does it use?
It uses eddy current-based proximity measurement.
3. What is the cable length?
The integrated cable length is 0.5 meters.
4. What is the probe diameter?
The probe diameter is 8 mm.
5. What is the mounting type?
It uses M10 × 1 metric threaded mounting.
6. What material is used for the probe?
The housing is stainless steel and the tip is PPS material.
7. Is it suitable for continuous monitoring?
Yes, it is designed for continuous industrial monitoring applications.
8. What systems is it compatible with?
It is compatible with Bently Nevada 3300 XL monitoring systems.
9. What is the weight of the probe?
Approximately 0.32 kg depending on configuration.
10. What is the main usage benefit?
It provides stable and repeatable measurement signals for equipment monitoring systems.
