Precision Monitoring Solution for Rotating Machinery Systems

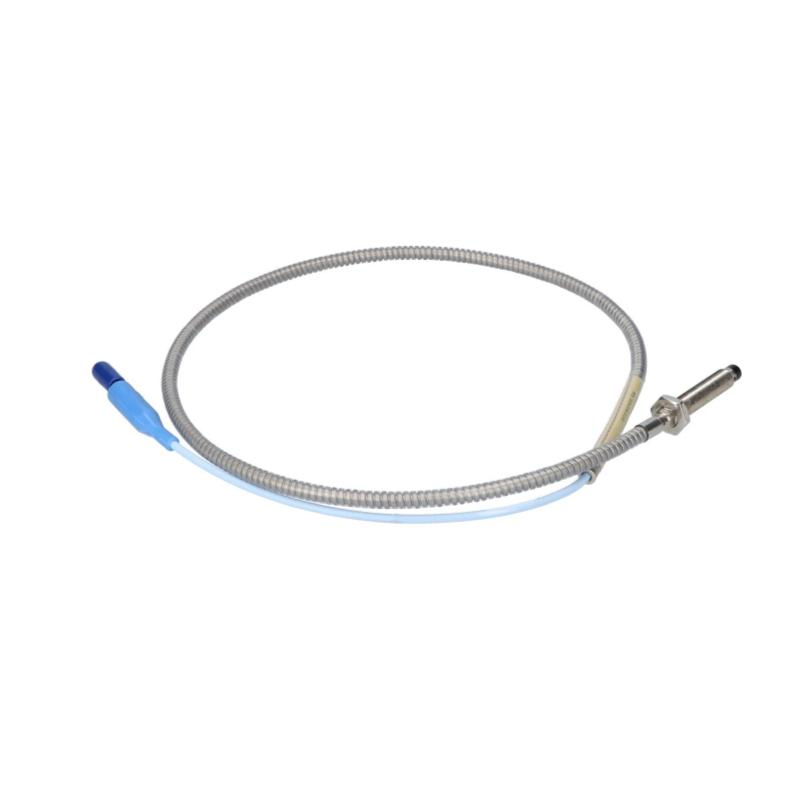

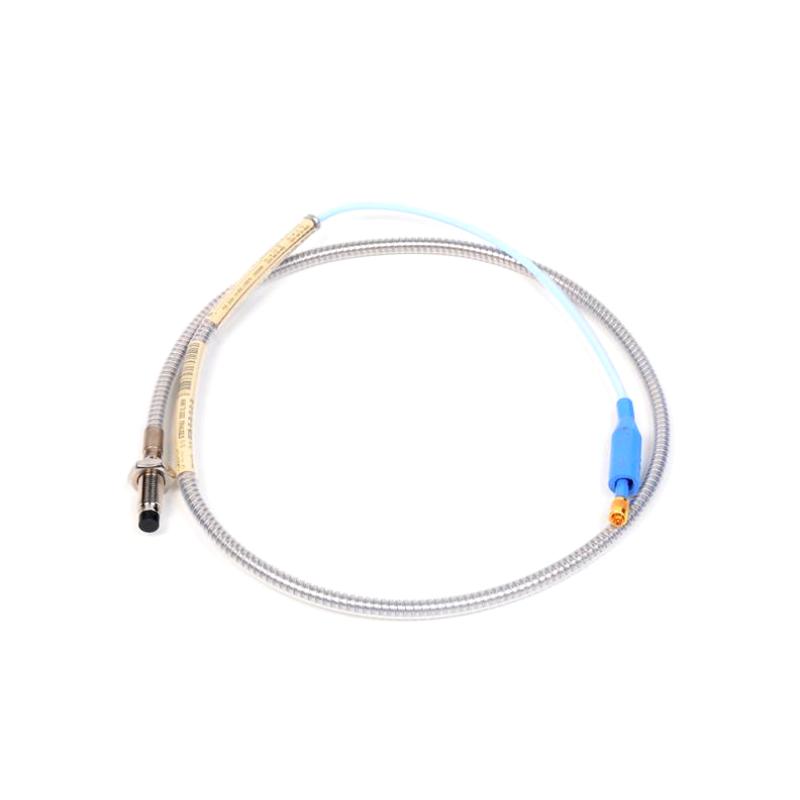

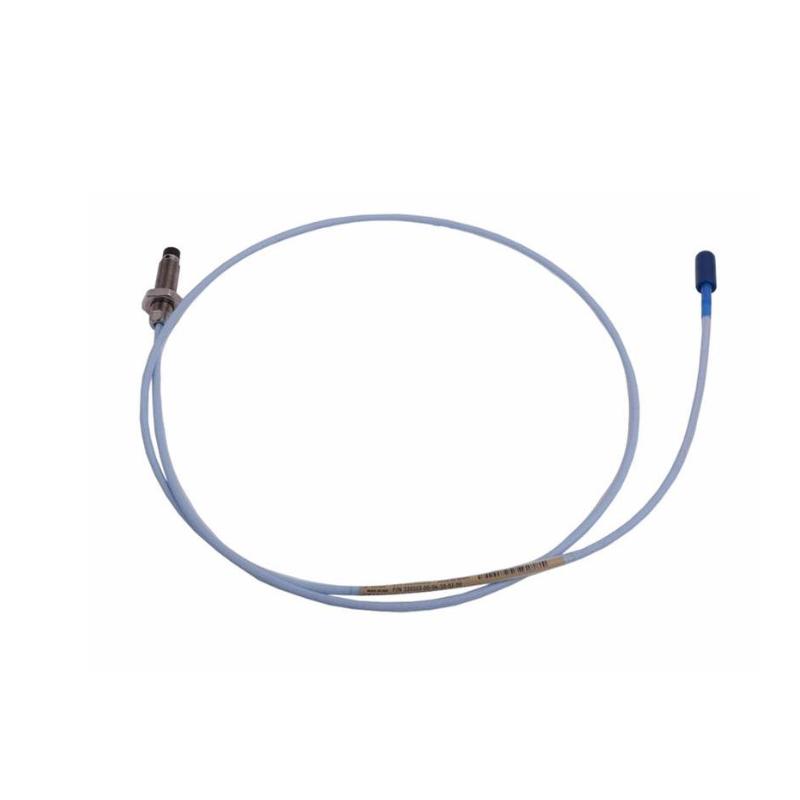

The Bently Nevada 330104-00-13-15-01-00 3300 XL 8 mm Proximity Probe Metric is designed for accurate, stable, and continuous measurement of shaft vibration and position in industrial rotating equipment. As part of the trusted 3300 XL series, this probe supports consistent performance in condition monitoring applications across a wide range of mechanical systems.
Built with a focus on measurement stability and long-term operational consistency, the probe is widely used in systems where reliable displacement data is required for equipment monitoring and analysis.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-13-15-01-00 |
| Product Type | 3300 XL 8 mm Proximity Probe (Metric) |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Unthreaded Length | 0 mm |
| Case Length | 130 mm |
| Total Length | 1.5 m (4.9 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard coaxial cable |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Housing Material | Stainless steel |
| Measurement Principle | Eddy current proximity sensing |
| Mounting Type | Threaded installation |
| Operating Range | Industrial monitoring environments |
| Dimensions | 130 mm probe body length |
| Weight | Approx. 0.32 kg |
Applications Across Industrial Systems
Rotating Equipment Monitoring
Provides consistent displacement and vibration signals for motors, compressors, pumps, and turbines.
Power Generation Systems
Supports continuous monitoring of critical rotating assets in energy production environments.
Industrial Process Equipment
Used in process-driven industries requiring stable mechanical condition feedback.
Mechanical Condition Assessment
Helps evaluate shaft movement behavior and overall equipment stability.
Key Advantages
Stable Signal Performance
Designed to deliver consistent measurement output for long-term monitoring applications.
Durable Mechanical Construction
Stainless steel housing ensures structural stability in industrial environments.
Integration Friendly Design
Compatible with 3300 XL system architecture for straightforward installation and replacement.
Reliable Industrial Operation
Suitable for continuous use in machinery monitoring systems.
Flexible Application Use
Applicable across multiple rotating equipment configurations.
Technical FAQs
1. What is the main function of this proximity probe?
It measures shaft vibration and position without physical contact.
2. Which systems can it be used with?
It is designed for compatibility with Bently Nevada 3300 XL monitoring systems.
3. What is the sensing principle?
It uses eddy current technology for displacement measurement.
4. What is the cable length of this model?
The total cable length is 1.5 meters.
5. What is the probe diameter?
The probe diameter is 8 mm.
6. What material is used for construction?
The probe uses stainless steel housing and PPS tip material.
7. Is this suitable for continuous monitoring?
Yes, it is designed for continuous industrial monitoring environments.
8. What type of connector is used?
It uses a miniature coaxial ClickLoc connector system.
9. Can it be used in multiple industries?
Yes, it is commonly used in energy, manufacturing, and process industries.
10. What is the key benefit of this model?
It provides stable and repeatable measurement performance for machinery condition monitoring.
