Introduction

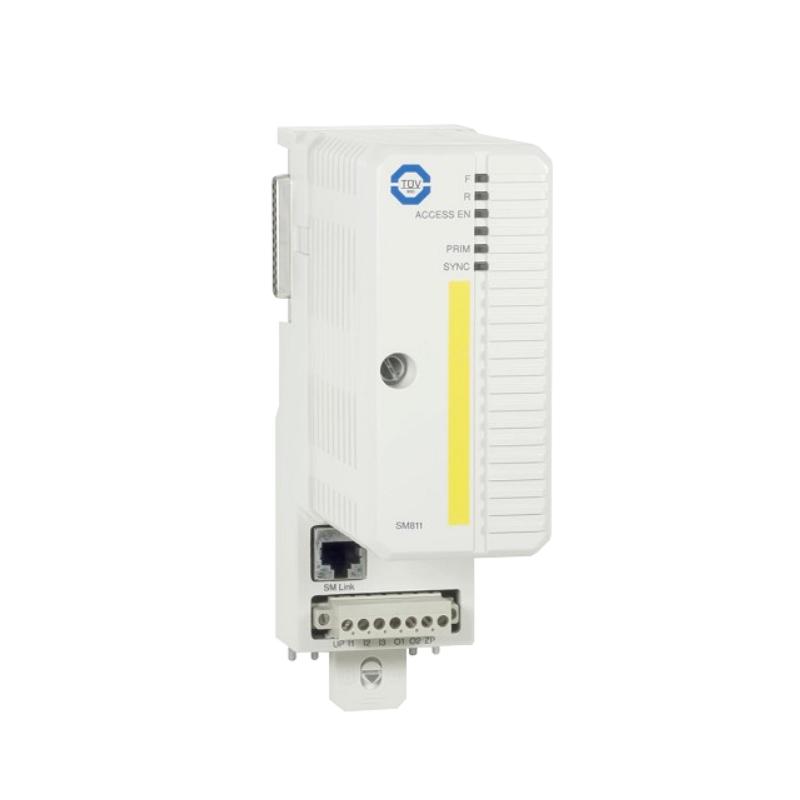

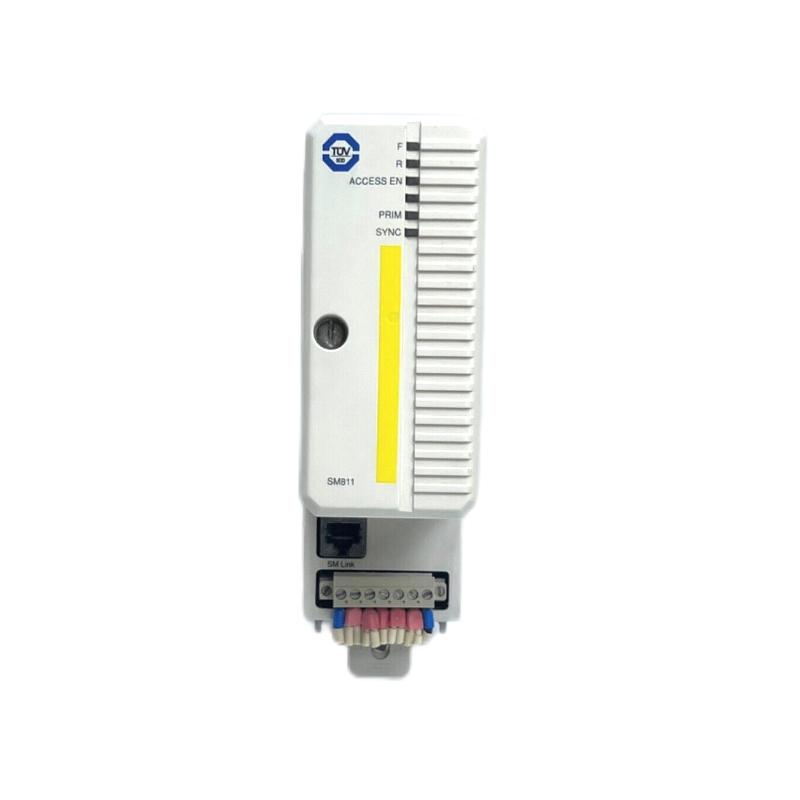

The ABB SM811K01 (3BSE018173R1) Safety CPU Module is a high-integrity control component designed for ABB AC 800M and 800xA safety architectures. It is engineered to supervise controller behavior, execute certified safety logic, and ensure deterministic system response in safety-critical automation environments.
Positioned between standard control and high-level safety execution, this module supports SIL3-oriented configurations when combined with compatible ABB controllers. It is widely used in process industries where operational safety, system traceability, and controlled fault handling are essential.
Technical Specifications
| Parameter | Description |
|---|
| Manufacturer | ABB |
| Model | SM811K01 |
| Order Code | 3BSE018173R1 |
| Product Type | Safety CPU Module Kit |
| System Platform | ABB AC 800M / 800xA |
| Processor | MPC862P @ 96 MHz |
| Memory | 32 MB RAM + 4 MB Flash |
| Supply Voltage | 24 V DC (19.2–30 V DC range) |
| Power Consumption | ~5 W |
| Communication Interface | CEX-Bus |
| Safety Integrity Level | SIL 3 capable architecture |
| Redundancy Support | Yes |
| Operating Temperature | 0°C to +60°C (typical industrial range) |
Applications
The SM811K01 is designed for demanding industrial safety and control environments where continuous supervision and controlled fault response are required:
-
Safety Instrumented Systems (SIS) in process plants
-
Oil & gas refining and offshore platforms
-
Power generation and turbine control systems
-
Chemical and pharmaceutical production lines
-
High-integrity automation within ABB 800xA systems
-
Emergency shutdown (ESD) and interlock architectures
Its role is particularly valuable in systems requiring structured safety logic separation from standard process control.
Advantages
This module delivers a strong balance of safety assurance and system integration performance:
-
High-integrity CPU designed for safety supervision tasks
-
Supports SIL3-level system architecture when properly configured
-
Seamless integration with ABB AC 800M controller ecosystem
-
Reliable CEX-bus communication for coordinated control systems
-
Designed for redundancy and high-availability setups
-
Stable operation under industrial electrical and thermal stress
-
Long lifecycle suitability for continuous process industries
Technical FAQs
1. What is the main function of the SM811K01 module?
It supervises controller operations and executes safety-related processing within ABB AC 800M systems.
2. Is the SM811K01 a standalone PLC?
No, it operates as part of a larger ABB distributed control system architecture.
3. What systems is it compatible with?
It is used primarily with ABB AC 800M and 800xA platforms.
4. What processor does it use?
It uses an MPC862P microprocessor running at 96 MHz.
5. What is its power requirement?
It operates on 24 V DC with low power consumption around 5 W.
6. Does it support redundancy?
Yes, it is designed for redundant and high-availability configurations.
7. What communication method does it use?
It communicates via ABB’s CEX-Bus system.
8. Is it suitable for safety-critical applications?
Yes, it is designed for SIL-oriented safety system architectures.
9. What is included in the module kit?
Typically the SM811 CPU module with baseplate and synchronization accessories depending on configuration.
10. Can it be used in new installations?
In many cases, newer equivalents may be recommended depending on system generation.
