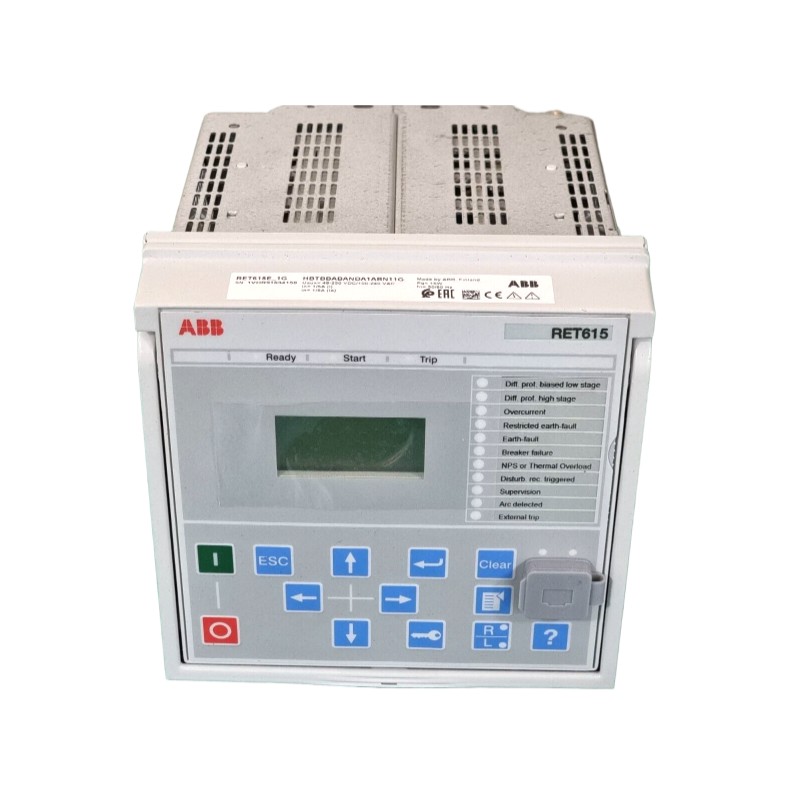

Intelligent Transformer Protection for Modern Power Systems
The ABB RET615 Transformer Protection and Control Relay is a dedicated intelligent electronic device designed to provide comprehensive protection, monitoring, control, and supervision for power transformers in utility and industrial power distribution networks. As part of the renowned Relion® 615 series, the RET615 combines advanced protection functions with flexible communication capabilities, helping operators improve system reliability, enhance asset availability, and reduce maintenance costs.
Engineered for both new installations and modernization projects, the RET615 delivers dependable performance for power transformers, generator-transformer units, and step-up transformer applications where operational continuity is critical.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model | RET615 |
| Product Type | Transformer Protection and Control Relay |
| Product Family | Relion® 615 Series |
| Application | Transformer Protection and Automation |
| Communication Protocols | IEC 61850, Modbus, DNP3, IEC 60870-5-103 |
| Mounting Type | Flush, Semi-Flush, Rack Mount |
| Auxiliary Power Supply | 24–250 VDC / 100–240 VAC |
| Rated Frequency | 50/60 Hz |
| Protection Functions | Differential, REF, Overcurrent, Thermal Overload, Arc Protection |
| Front Protection Rating | IP54 |
| Rear Protection Rating | IP20 |
| Operating Temperature | -25°C to +55°C |
| Dimensions (W × H × D) | 177 × 177 × 201 mm |
| Weight | Approx. 4.1 kg |
Where RET615 Delivers Exceptional Value
The RET615 relay is widely deployed across critical power infrastructure where transformer protection and system stability are essential.
Typical applications include:
- Utility substations
- Industrial power distribution systems
- Renewable energy facilities
- Power generation plants
- Generator-transformer blocks
- Step-up transformer protection
- Process manufacturing facilities
- Electrical infrastructure modernization projects
Its versatile protection and automation capabilities make it an ideal solution for facilities seeking improved operational visibility and long-term equipment protection.
Why Engineers Choose the RET615
Comprehensive Transformer Protection
The relay integrates multiple protection functions into a single platform, helping safeguard valuable transformer assets against electrical faults and abnormal operating conditions.
Advanced Communication Flexibility
Support for modern communication standards enables seamless integration into substation automation and smart grid environments.
Reliable Operational Performance
Designed for demanding industrial and utility applications, the RET615 provides consistent protection performance under varying operating conditions.
Simplified Engineering and Maintenance
User-friendly configuration tools and diagnostic features help reduce commissioning time while supporting efficient maintenance activities.
Scalable Automation Platform
Suitable for both standalone transformer applications and complex networked protection systems, offering flexibility for future expansion.
Enhanced Asset Management
Continuous monitoring functions provide valuable operational data that can support predictive maintenance strategies and improve equipment lifecycle management.
Technical FAQs
1. What is the primary function of the ABB RET615?
The RET615 provides protection, control, monitoring, and supervision of power transformers in industrial and utility power systems.
2. Which transformer types can be protected by the RET615?
It is commonly used for power transformers, unit transformers, step-up transformers, and generator-transformer blocks.
3. Does the relay support IEC 61850 communication?
Yes. The RET615 supports IEC 61850 communication for modern substation automation applications.
4. Can the relay be integrated into existing power systems?
Yes. The device is designed to integrate with both new and existing electrical infrastructure.
5. What protection functions are available?
Typical functions include transformer differential protection, restricted earth fault protection, overcurrent protection, thermal protection, and arc protection.
6. Is remote monitoring supported?
Yes. The relay supports communication protocols that enable remote monitoring and control within automation systems.
7. What industries commonly use the RET615?
Utilities, power generation facilities, manufacturing plants, mining operations, and renewable energy installations.
8. Can the relay help reduce transformer downtime?
Yes. Advanced monitoring and protection functions help detect abnormal conditions early and support proactive maintenance planning.
9. What mounting options are available?
The RET615 supports various installation methods including flush mounting, semi-flush mounting, and rack mounting.
10. Why is the RET615 considered a long-term protection solution?
Its scalable architecture, advanced communication support, and comprehensive protection features make it suitable for evolving power system requirements.
