Introduction

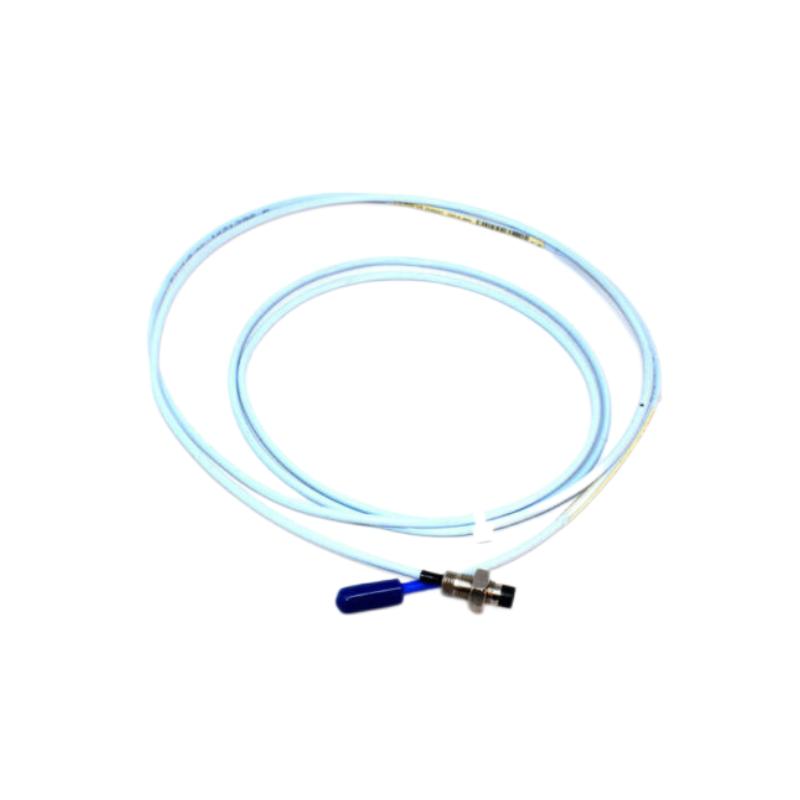

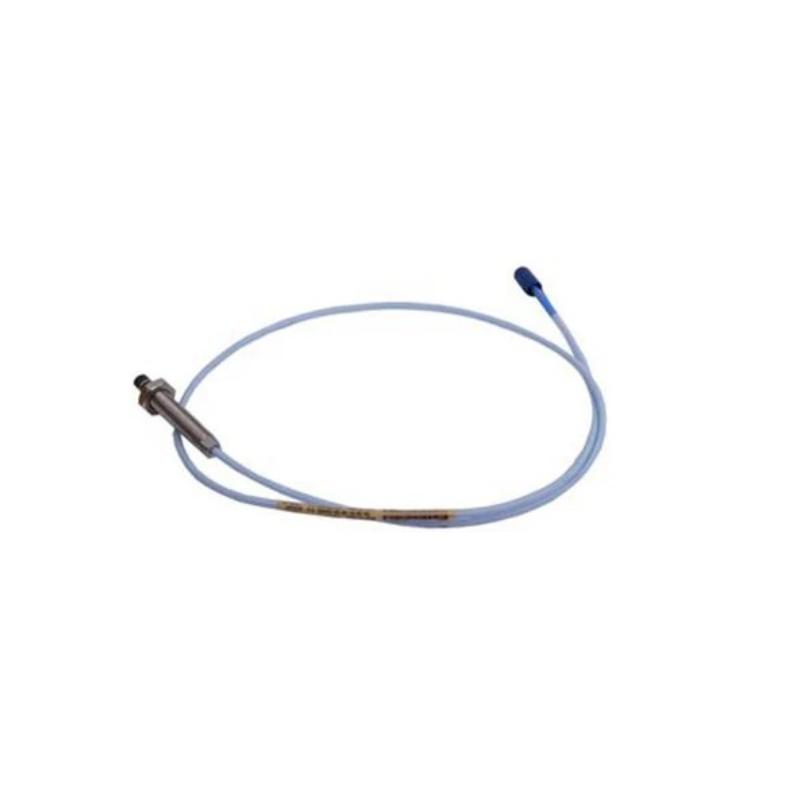

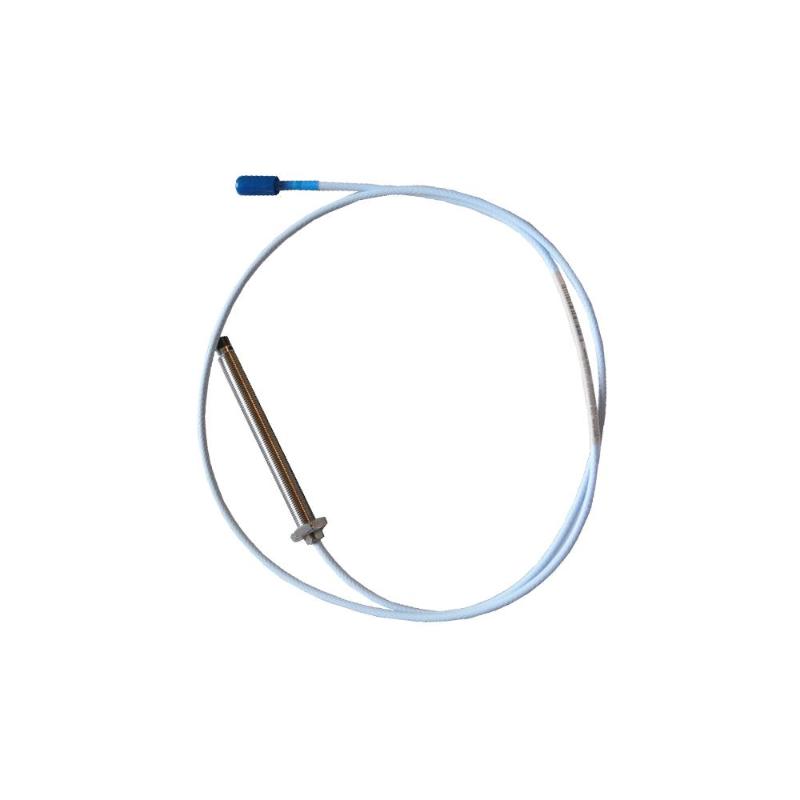

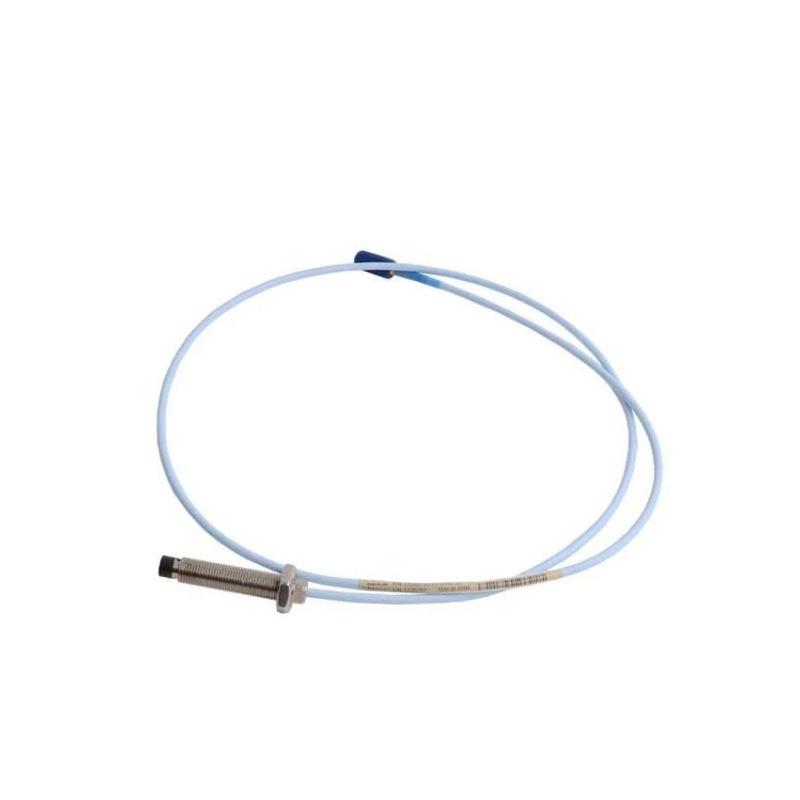

The Bently Nevada 330103-07-12-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor designed for continuous monitoring of shaft vibration and position in critical rotating machinery. As part of the trusted 3300 XL platform, it delivers stable, repeatable measurements that support predictive maintenance strategies in demanding industrial environments.
Built for turbine systems, compressors, pumps, and generators, this probe is engineered to maintain signal integrity even under high vibration, temperature variation, and long-term operational stress. Its modular design allows seamless integration into Bently Nevada’s complete proximity transducer system.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | 3300 XL 8 mm |
| Model | 330103-07-12-10-02-00 |
| Probe Type | Eddy current proximity probe |
| Probe Tip Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Unthreaded Length Option | 07 (approx. 70 mm configuration) |
| Case Length Option | 12 (approx. 120 mm configuration) |
| Cable Length | 1.0 m (standard 3300 XL system length) |
| Connector Type | Miniature coaxial ClickLoc™ |
| Cable Type | Low-noise coaxial industrial cable |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Body Material | Stainless steel (AISI 303/304) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Sensitivity | ~7.87 V/mm (system dependent) |
| Measurement Range | 0.25 mm – 2.0 mm typical |
| Weight | Approx. 0.32 kg |
