Reliable Shaft Vibration Monitoring for Demanding Industrial Systems

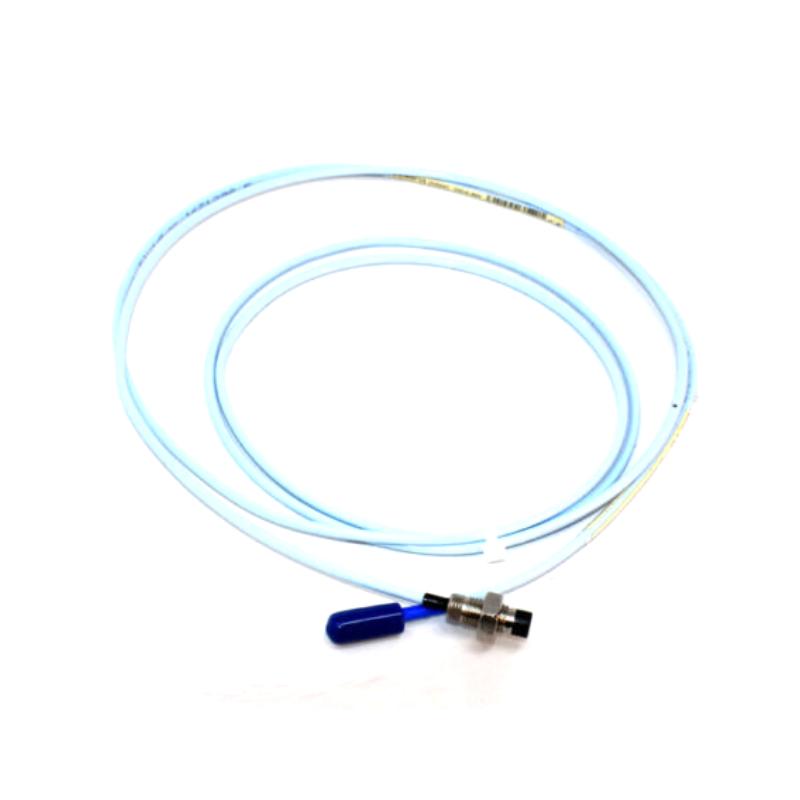

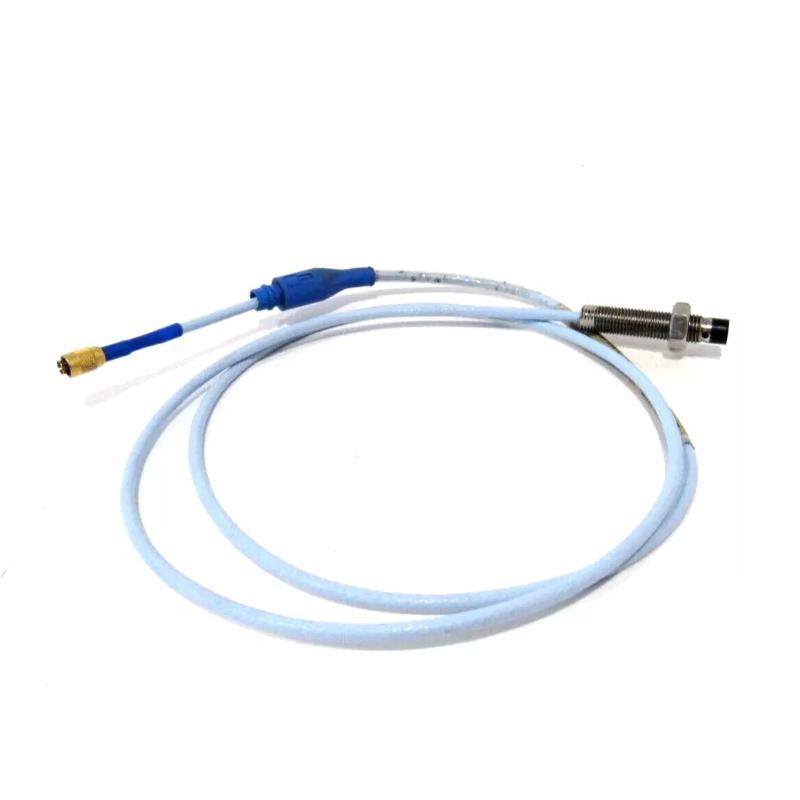

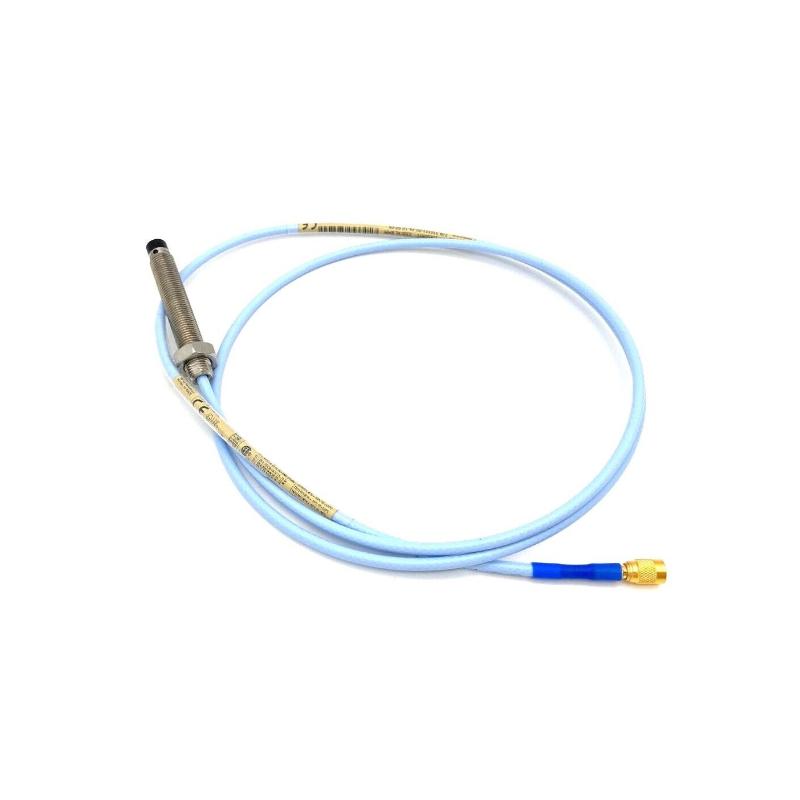

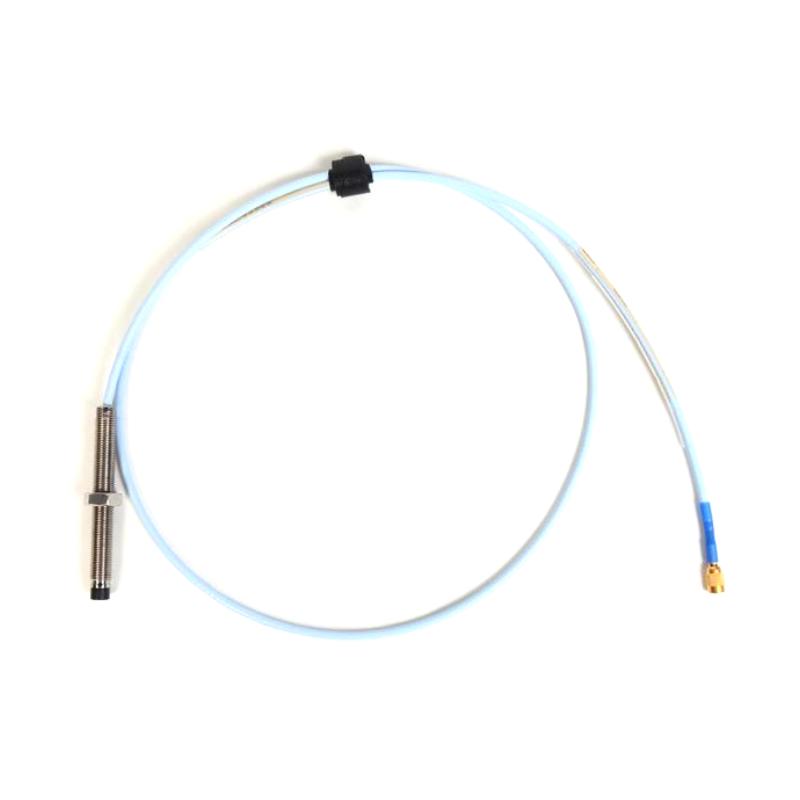

The Bently Nevada 330103-05-17-10-02-00 3300 XL 8 mm Proximity Probe is engineered to provide precise non-contact vibration and displacement measurement for critical rotating machinery. Designed for industrial environments that require dependable condition monitoring, this probe delivers stable signal output, long-term operational consistency, and accurate machinery diagnostics.
As part of the proven 3300 XL series, the probe supports advanced equipment monitoring strategies in industries where machinery reliability and production continuity are essential. Its compact 8 mm sensing design, durable stainless steel construction, and high-performance eddy current technology make it an effective solution for predictive maintenance and continuous machine protection systems.
Technical Specifications Overview
| Specification Item | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-05-17-10-02-00 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Technology | Eddy Current Sensing |
| Probe Diameter | 8 mm |
| Unthreaded Length | 50 mm |
| Overall Case Length | 170 mm |
| System Length | 1.0 meter |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Industrial standard cable |
| Probe Housing Material | Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Measurement Range | 2 mm |
| Frequency Response | DC to 10 kHz |
| Thread Specification | M10 × 1 |
| Operating Temperature Range | -35°C to +177°C |
| Installation Method | Non-contact vibration monitoring |
| Compatible Systems | Bently Nevada 3300 XL Monitoring Systems |
| Country of Manufacture | USA |
Typical Industrial Applications
The 330103-05-17-10-02-00 proximity probe is widely applied in machinery monitoring systems where accurate shaft vibration and displacement analysis are critical for equipment reliability.
Common application areas include:
-
Steam turbine monitoring
-
Gas turbine machinery protection
-
Compressor condition analysis
-
Industrial pump monitoring
-
Motor vibration supervision
-
Gearbox diagnostic systems
-
Petrochemical production facilities
-
Power generation equipment
-
Heavy industrial automation systems
-
Continuous machinery health monitoring
Its non-contact sensing capability helps maintain accurate measurement performance while minimizing mechanical wear and supporting long-term equipment reliability.
Product Advantages
Stable High-Accuracy Measurements
Advanced sensing technology ensures reliable vibration and displacement monitoring for rotating machinery.
Durable Industrial Construction
The stainless steel housing and rugged cable assembly support dependable operation in demanding industrial environments.
Flexible Installation Design
The extended probe body configuration allows installation in machinery systems with deeper mounting requirements.
Optimized for Predictive Maintenance
Supports condition-based maintenance programs by helping operators identify equipment performance trends early.
Excellent System Compatibility
Fully compatible with Bently Nevada 3300 XL machinery monitoring and protection systems.
Long-Term Operational Reliability
Designed for continuous-duty industrial applications requiring stable signal integrity and dependable performance.
Technical FAQs
1. What is the main purpose of this proximity probe?
It is used to measure shaft vibration, displacement, and relative position in rotating industrial machinery.
2. Which monitoring systems are compatible with this model?
The probe is designed for use with Bently Nevada 3300 XL monitoring systems.
3. What sensing technology is used?
The model uses non-contact eddy current sensing technology.
4. What does the 8 mm specification refer to?
It indicates the diameter of the probe tip used for vibration monitoring applications.
5. Is this probe suitable for continuous industrial operation?
Yes. It is engineered for long-term continuous monitoring in industrial environments.
6. What is the operating temperature range?
The probe supports operation from -35°C to +177°C.
7. What materials are used in the probe construction?
The housing uses stainless steel, while the probe tip uses PPS material.
8. Can this probe support predictive maintenance systems?
Yes. It is commonly integrated into machinery health monitoring programs.
9. What type of connector does the probe use?
The probe includes a miniature coaxial ClickLoc connector for secure industrial installation.
10. Which industries commonly use this product?
Power generation, petrochemical processing, manufacturing, and heavy industrial sectors commonly deploy this model.
