Precision Monitoring for High-Integrity Rotating Machinery Systems

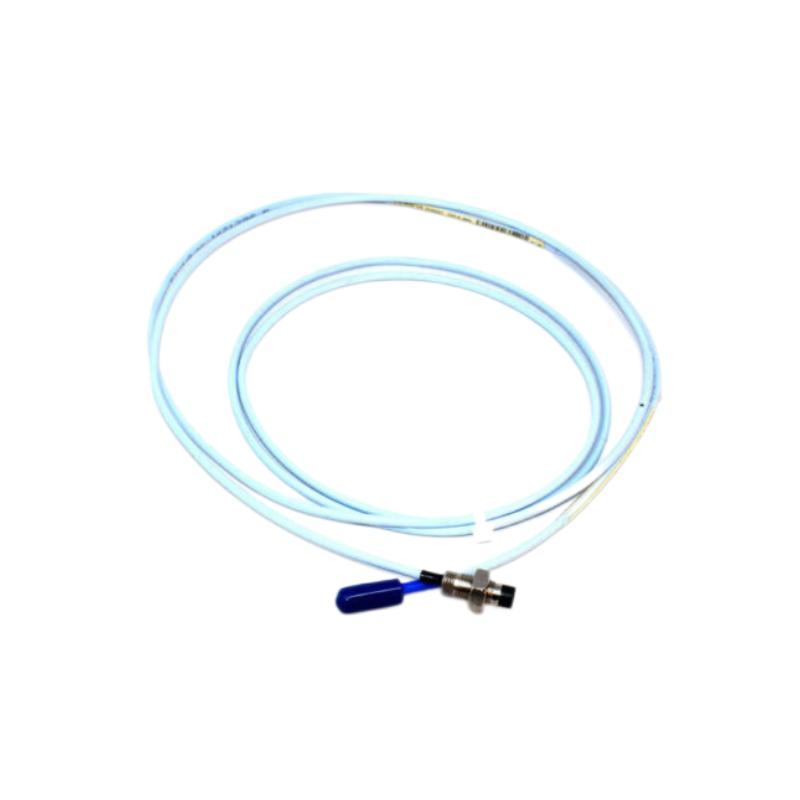

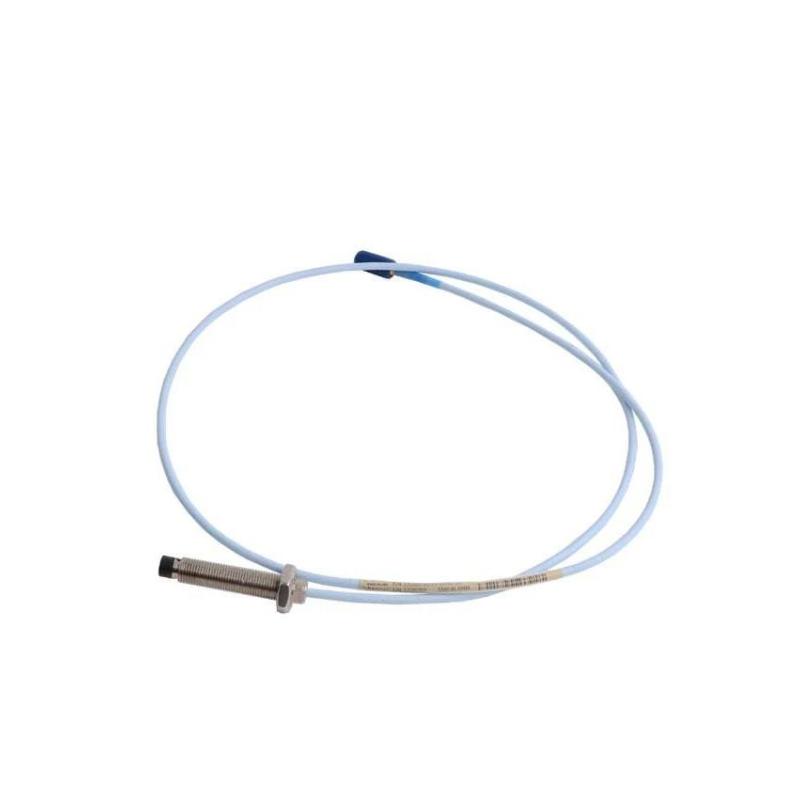

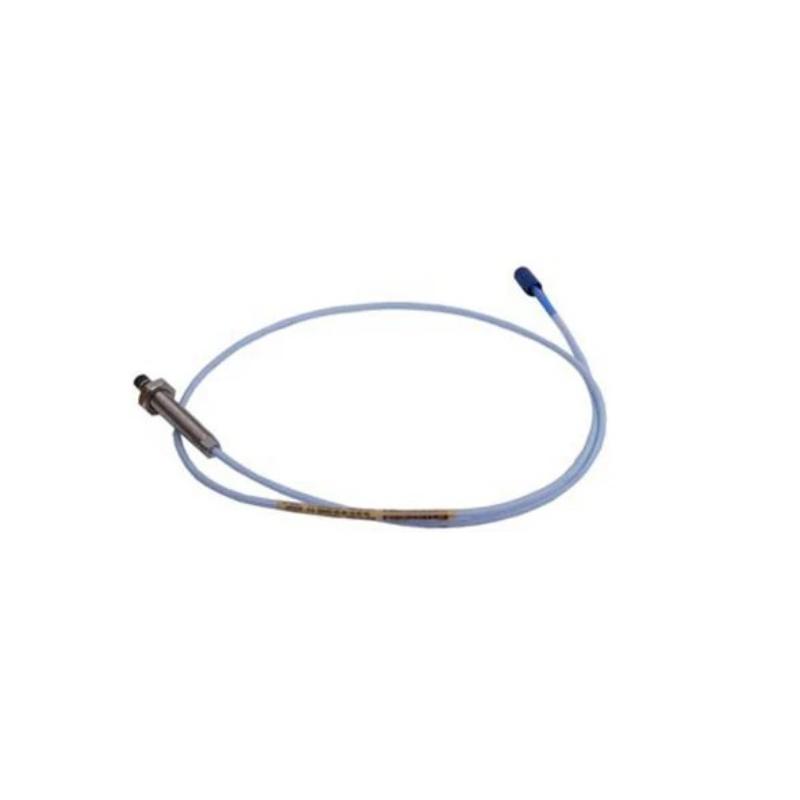

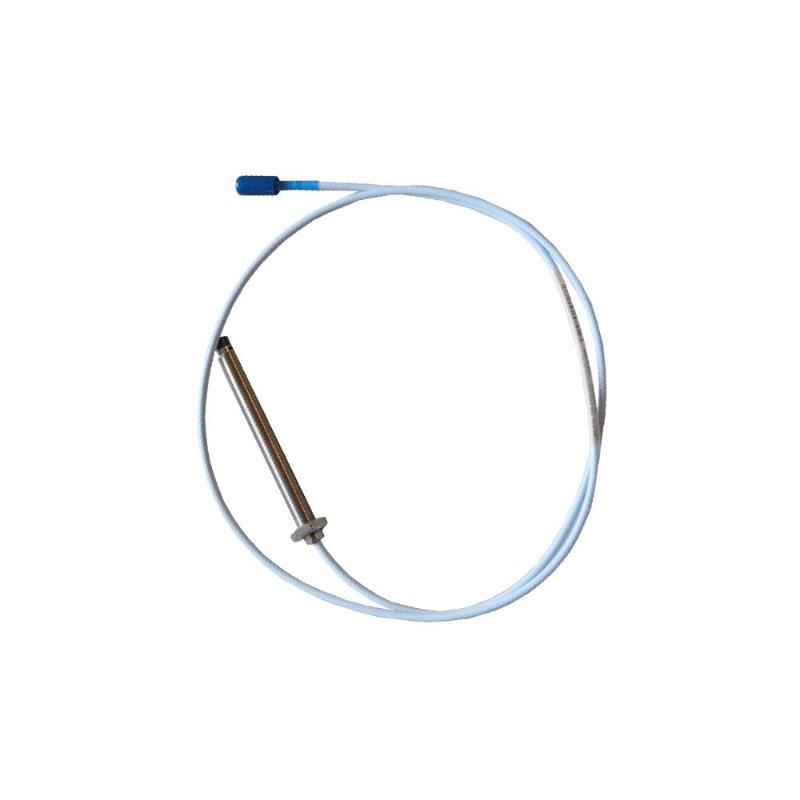

The Bently Nevada 330103-03-10-15-01-05 3300 XL 8 mm Proximity Probe is a non-contact eddy current sensor designed for accurate vibration and shaft position measurement in critical rotating equipment. Built on the proven 3300 XL architecture, it delivers stable signal behavior, strong environmental resistance, and long-term measurement consistency in demanding industrial operations.
This configuration is commonly selected in machinery protection systems where continuous monitoring, predictive maintenance capability, and high measurement repeatability are essential. Its compact 8 mm probe design ensures reliable installation even in constrained mechanical assemblies.
Technical Specifications
| Parameter | Specification |
|---|
| Product Series | 3300 XL |
| Model Number | 330103-03-10-15-01-05 |
| Probe Type | 8 mm Proximity Probe |
| Measurement Technology | Eddy Current Non-contact Sensing |
| Thread Size | M10 × 1 |
| Unthreaded Length | 30 mm |
| Case Length | 100 mm |
| Total System Length | 1.5 m |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Shielded industrial cable |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Body Material | Stainless steel (AISI 303/304) |
| Installation Style | Fixed mounting for rotating machinery |
| System Compatibility | Bently Nevada 3300 XL Proximitor system |
Industrial Applications
This proximity probe is widely used in condition monitoring systems for rotating machinery where precise vibration tracking is required.
Typical applications include:
-
Gas and steam turbines
-
Centrifugal compressors
-
Industrial pumps and pump stations
-
Electric motors and drive systems
-
Gearboxes and mechanical transmission units
-
Petrochemical processing equipment
-
Power generation assets
-
Heavy industrial rotating machinery
Its non-contact measurement approach allows early detection of shaft movement irregularities, improving operational safety and maintenance efficiency.
Key Advantages
Stable High-Accuracy Signal Output
Provides consistent measurement performance across long operating cycles, supporting reliable vibration analysis.
Industrial-Grade Construction
Stainless steel housing and PPS probe tip ensure resistance to corrosion, vibration stress, and harsh operating conditions.
Extended Installation Flexibility
The 100 mm case length configuration offers flexible mounting options for medium-space industrial assemblies.
Strong System Integration
Fully compatible with the Bently Nevada 3300 XL monitoring ecosystem for streamlined deployment.
Supports Predictive Maintenance Strategy
Enables early detection of mechanical deviation trends, reducing unexpected downtime risk.
Technical FAQs
1. What is the main function of this probe?
It measures shaft vibration and displacement using eddy current non-contact sensing.
2. Which system is it compatible with?
It is designed for use with Bently Nevada 3300 XL Proximitor and monitoring systems.
3. What measurement principle does it use?
It uses eddy current technology for high-precision displacement detection.
4. What is the probe diameter?
The probe diameter is 8 mm, optimized for standard rotating machinery applications.
5. What industries typically use this model?
Power generation, oil & gas, petrochemical, and heavy manufacturing industries.
6. What materials are used in construction?
Stainless steel body with PPS insulated probe tip for durability in harsh environments.
7. Can it operate in harsh industrial conditions?
Yes, it is designed for vibration-heavy and thermally variable environments.
8. What is the system cable length?
The total system configuration is 1.5 meters.
9. Is it suitable for continuous monitoring?
Yes, it is intended for permanent installation in condition monitoring systems.
10. Why is the 3300 XL series widely adopted?
Because it offers stable calibration behavior, high reliability, and proven industrial performance.
