High-Reliability Vibration Sensing for Industrial Rotating Machinery

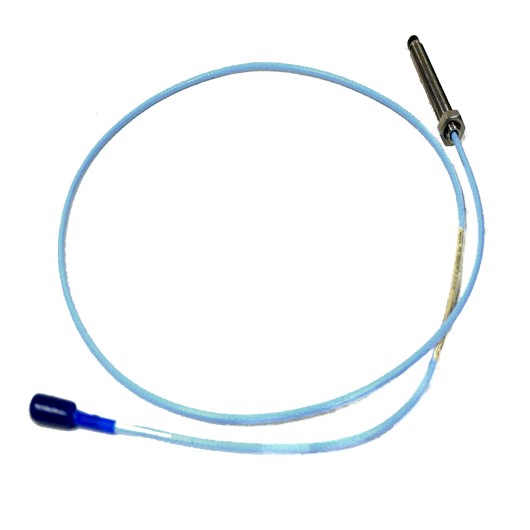

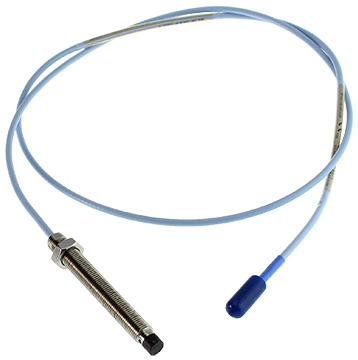

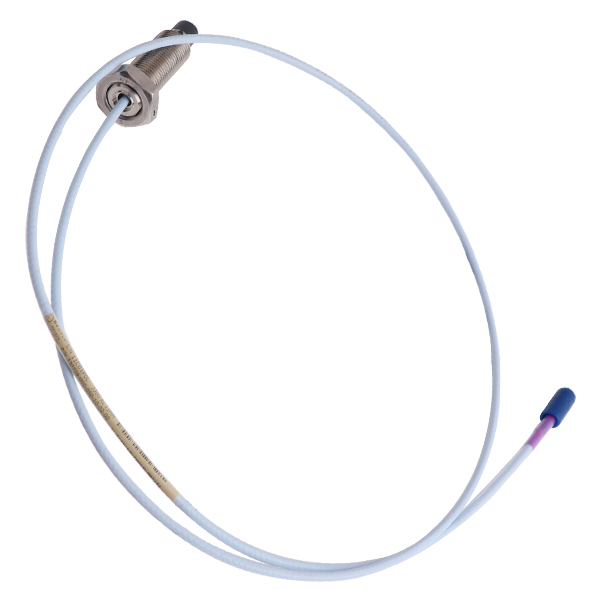

The Bently Nevada 330103-03-10-10-11-00 3300 XL 8 mm Proximity Probe is designed for precise non-contact measurement of shaft vibration and position in rotating equipment. As part of the established 3300 XL series, it provides highly stable eddy current sensing performance, supporting continuous condition monitoring in demanding industrial environments.
This probe configuration is widely used in critical asset protection systems where measurement consistency, mechanical robustness, and long-term operational stability are essential. Its compact 8 mm architecture allows integration into tight mechanical layouts without compromising signal quality or reliability.
Technical Specifications
| Parameter | Specification |
|---|
| Product Series | 3300 XL |
| Model Number | 330103-03-10-10-11-00 |
| Probe Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current Non-contact Sensing System |
| Thread Type | M10 × 1 |
| Unthreaded Length | 30 mm |
| Case Length | 100 mm (typical configuration) |
| Total System Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Industrial shielded cable |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless steel (AISI 303/304) |
| System Compatibility | Bently Nevada 3300 XL Proximitor System |
| Installation Style | Fixed mount for radial/axial monitoring |
Industrial Applications
This proximity probe is designed for continuous monitoring of rotating machinery where early detection of vibration anomalies is essential.
Typical applications include:
-
Steam and gas turbines
-
Centrifugal compressors
-
Industrial pumps and pumping stations
-
Electric motors and drive systems
-
Gearboxes and mechanical transmission systems
-
Petrochemical processing equipment
-
Power generation turbines and auxiliary systems
-
Heavy-duty rotating industrial machinery
Its non-contact sensing capability enables reliable detection of shaft displacement trends before mechanical degradation escalates.
Key Advantages
Stable High-Precision Measurement
Delivers consistent signal output across long operating cycles, ensuring reliable vibration analysis and machine diagnostics.
Industrial-Grade Mechanical Strength
Built with stainless steel housing and reinforced probe construction for resistance to vibration, oil exposure, and thermal variation.
Flexible Installation Capability
100 mm configuration supports integration in machinery systems with moderate mounting constraints.
Fully Integrated System Design
Optimized for seamless operation with Bently Nevada 3300 XL monitoring platforms.
Supports Predictive Maintenance Strategies
Helps detect early-stage mechanical changes, reducing unexpected downtime and improving asset lifecycle control.
Technical FAQs
1. What is the primary function of this probe?
It measures shaft vibration and displacement using eddy current non-contact technology.
2. What system is it compatible with?
It is designed for integration with Bently Nevada 3300 XL monitoring systems.
3. What sensing method does it use?
It uses eddy current technology for accurate proximity measurement.
4. What is the probe diameter?
The probe diameter is 8 mm for stable and precise signal capture.
5. What industries commonly use this model?
Power generation, oil & gas, petrochemical, and heavy industrial manufacturing.
6. What materials are used in construction?
Stainless steel body with PPS insulated probe tip for durability.
7. Can it operate in harsh environments?
Yes, it is designed for vibration-heavy and thermally variable industrial conditions.
8. What is the typical system length?
The standard system configuration is 1.0 meter.
9. Is it suitable for continuous monitoring?
Yes, it is intended for permanent installation in condition monitoring systems.
10. Why is the 3300 XL series widely used?
Because it offers stable calibration behavior, high reliability, and strong industrial robustness.
