Advanced Vibration Detection for Precision Rotating Machinery Monitoring

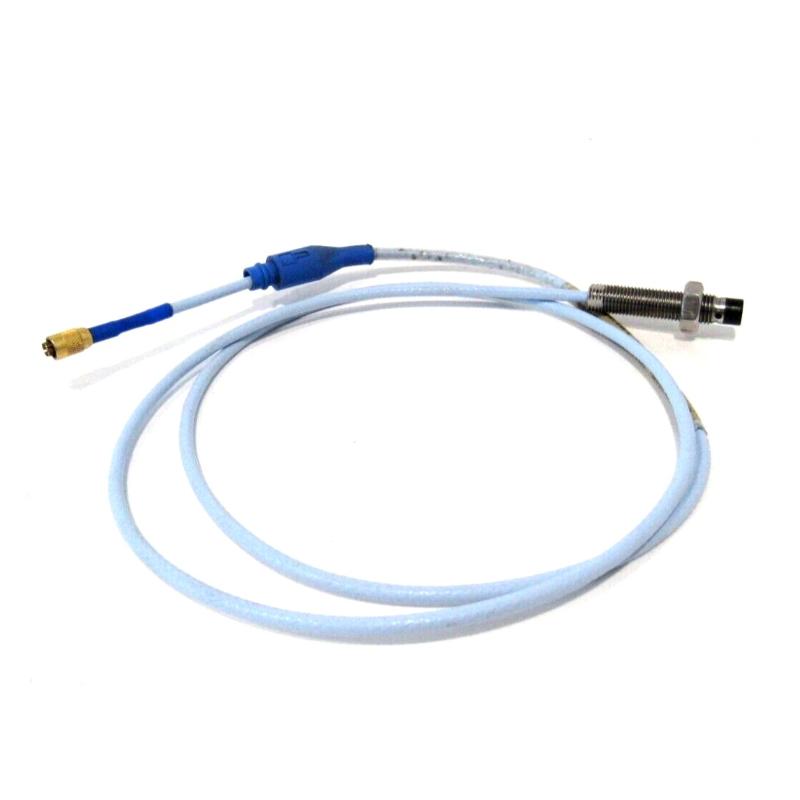

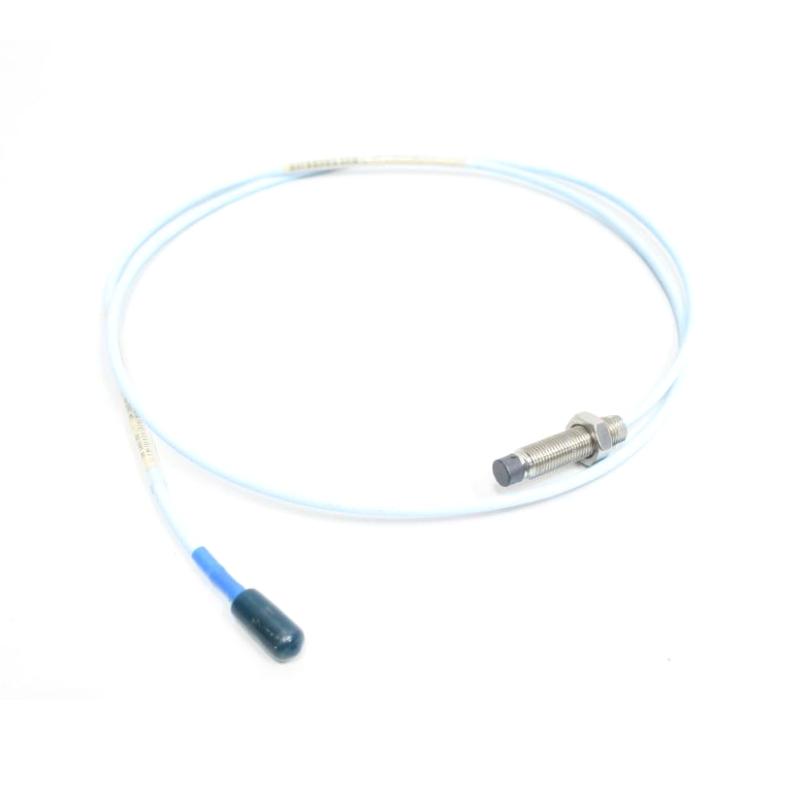

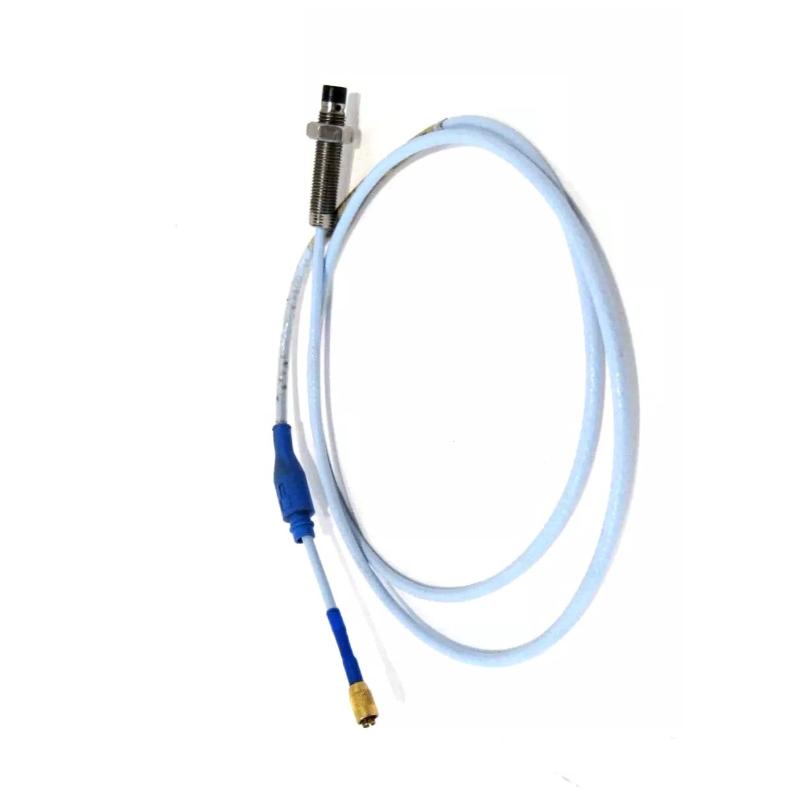

The Bently Nevada 330103-02-04-10-02-RU 3300 XL 8 mm Proximity Probe is engineered for high-accuracy, non-contact monitoring of shaft vibration and displacement in industrial rotating equipment. Designed within the reliable 3300 XL platform, this probe provides stable signal performance, rugged construction, and long-term operational reliability in demanding environments.
Its specialized configuration combines compact installation flexibility with dependable sensing precision, making it ideal for machinery protection systems that require continuous monitoring and predictive maintenance support. The RU configuration variant is optimized for specific industrial deployment requirements while maintaining compatibility with trusted Bently Nevada monitoring architectures.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-02-04-10-02-RU |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Unthreaded Length | 20 mm |
| Probe Case Length | 40 mm |
| Total Cable Length | 1.0 meter (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Configuration | Standard industrial cable |
| Housing Material | Stainless Steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Sensitivity | 200 mV/mil |
| Frequency Response | 0 – 10 kHz |
| Measurement Linearity | ±1% Full Scale |
| Recommended Gap Setting | Approx. 1.27 mm |
| Operating Temperature Range | -52°C to +177°C |
| Environmental Protection | Industrial sealed construction |
| Mounting Style | Threaded installation |
| Approximate Net Weight | 0.31 kg |
| Estimated Shipping Weight | 1.4 – 1.6 kg |
| Regional Configuration | RU Version |
| Country of Origin | USA |
Typical Industrial Applications
The 3300 XL 8 mm proximity probe is widely used in machine protection systems requiring precise shaft vibration and displacement monitoring.
Common application areas include:
-
Steam turbine monitoring systems
-
Gas turbine protection equipment
-
Industrial compressor diagnostics
-
Centrifugal pump vibration monitoring
-
Electric motor shaft analysis
-
Gearbox condition monitoring
-
Blower and fan vibration protection
-
Petrochemical processing systems
-
Offshore rotating machinery
-
Power generation facilities
Its compact 40 mm housing design supports installation in restricted mounting locations while maintaining dependable sensing performance.
Key Product Advantages
Compact and Flexible Installation
The 40 mm probe case allows efficient integration into machinery with limited mounting space.
Reliable Measurement Precision
Provides highly stable shaft vibration and displacement monitoring for critical equipment protection.
Rugged Industrial Durability
Manufactured from corrosion-resistant stainless steel for dependable operation in harsh industrial environments.
Stable Signal Integrity
Designed to maintain accurate output performance under vibration, thermal fluctuation, and industrial electrical interference.
Supports Predictive Maintenance
Helps maintenance teams identify imbalance, shaft movement, and bearing wear before severe failures develop.
Trusted 3300 XL System Compatibility
Fully compatible with globally recognized Bently Nevada monitoring systems used in mission-critical industrial applications.
Technical FAQs
1. What is the primary purpose of this proximity probe?
It is designed for non-contact monitoring of shaft vibration, displacement, and rotor position in rotating machinery.
2. What does the “04” configuration indicate?
The “04” designation refers to the 40 mm probe case length.
3. What cable length is included with this model?
This version includes a 1.0 meter cable assembly.
4. What does the “RU” configuration represent?
The “RU” designation identifies a specific regional or configuration option within the product series.
5. Is this probe compatible with 3300 XL systems?
Yes, it is designed for use with compatible Bently Nevada 3300 XL transducer systems.
6. Does the probe require direct shaft contact?
No. It uses eddy current non-contact sensing technology.
7. Which industries commonly use this probe?
Power generation, petrochemical, oil & gas, manufacturing, and heavy industrial sectors commonly deploy this model.
8. What material is used for the probe body?
The housing is constructed from industrial-grade stainless steel.
9. Why is vibration monitoring important?
It helps detect developing mechanical problems early, improving equipment reliability and reducing unplanned downtime.
10. What makes the 3300 XL series widely preferred?
The series is recognized for dependable performance, accurate sensing capability, and long-term industrial durability.
