Compact Metric Probe Designed for Continuous Machinery Protection

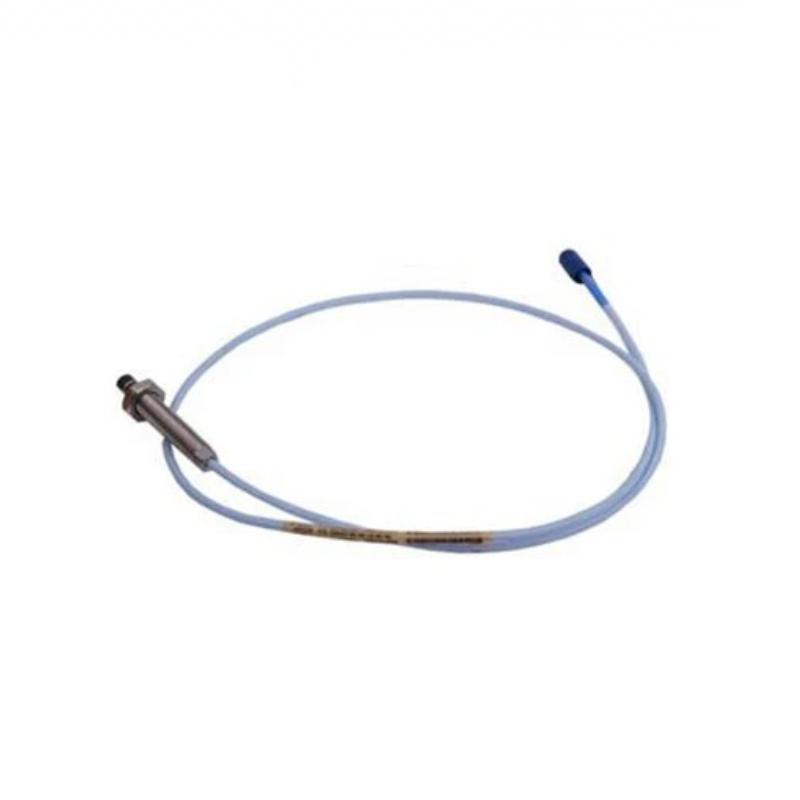

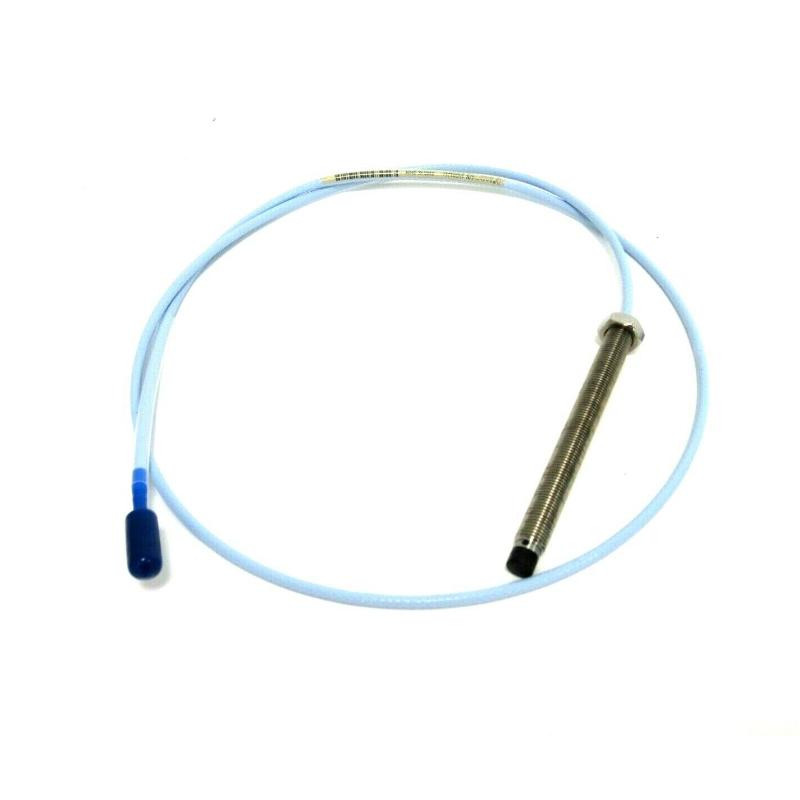

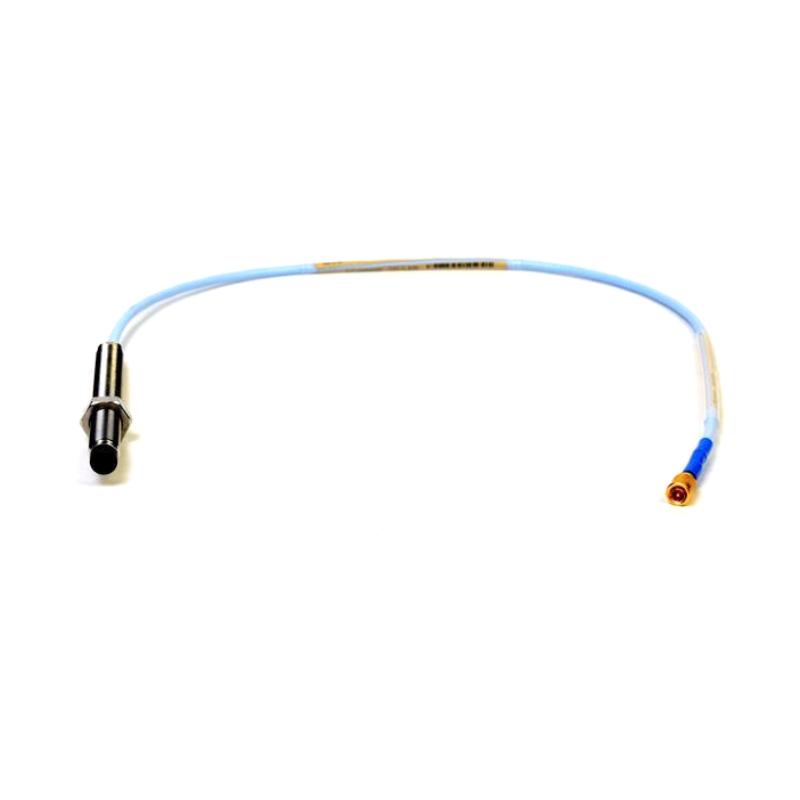

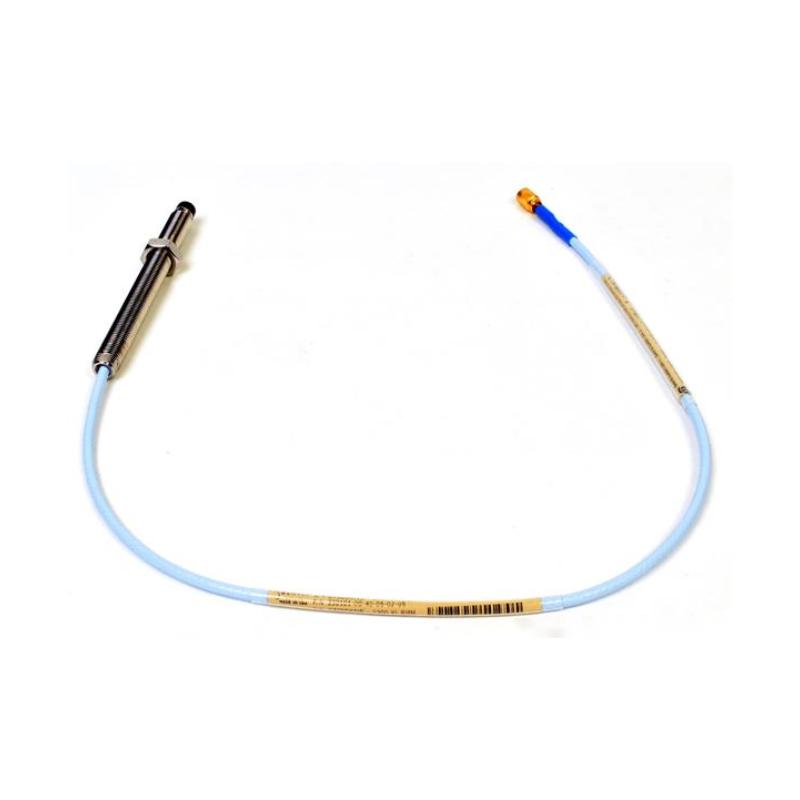

The Bently Nevada 330103-00-11-10-02-CN 3300 XL 8 mm Proximity Probe Metric is engineered for accurate non-contact vibration and shaft position monitoring in industrial rotating equipment. Built as part of the highly regarded 3300 XL series, this probe combines dependable sensing performance with rugged mechanical durability, making it suitable for demanding process environments where equipment reliability is essential.
Featuring a metric-threaded design, enhanced connector protection, and industrial-grade construction, this model supports precise machine diagnostics across turbines, compressors, pumps, and other high-speed rotating systems. Its stable signal output and compact installation profile help maintenance teams improve predictive maintenance efficiency while reducing operational risk.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-11-10-02-CN |
| Product Series | 3300 XL |
| Module Type | 8 mm Proximity Probe Metric |
| Measurement Technology | Eddy Current Sensing |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Overall Case Length | 110 mm |
| Total Length | 1.0 meter (3.3 ft) |
| Thread Type | Metric M10 × 1 |
| Connector Type | Miniature ClickLoc Coaxial Connector |
| Cable Configuration | FluidLoc Cable with Connector Protector |
| Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Measurement Capability | Shaft Vibration & Position Monitoring |
| Signal Output | Dynamic and Static Signals |
| Operating Temperature Range | -52°C to +177°C |
| Installation Method | Fixed Metric Thread Mount |
| Environmental Resistance | Resistant to Oil, Dust, and Industrial Vibration |
| Compliance Approvals | CSA, ATEX, IECEx |
| Dimensions | Approx. 110 mm × 8 mm |
| Weight | Approx. 0.32 kg |
Typical Application Areas
The 330103-00-11-10-02-CN proximity probe is widely used in machinery protection systems requiring accurate shaft movement and vibration analysis.
Common Industrial Applications
-
Steam turbine monitoring systems
-
Gas compressor protection
-
Pump vibration diagnostics
-
Industrial motor condition monitoring
-
Petrochemical rotating equipment
-
Refinery process machinery
-
Power generation assets
-
High-speed manufacturing equipment
Its metric-threaded configuration makes it particularly suitable for facilities using international equipment standards and metric installation systems.
Key Product Advantages
Metric Installation Compatibility
Designed with metric threading for seamless integration into globally standardized industrial machinery systems.
Enhanced Cable Durability
The FluidLoc cable and connector protector help improve long-term reliability in demanding industrial environments.
Stable Monitoring Accuracy
Provides precise shaft vibration and displacement measurements for dependable machinery diagnostics.
Rugged Industrial Construction
Built with stainless-steel housing materials for reliable operation under vibration, oil exposure, and elevated temperatures.
Compact and Flexible Design
The slim 8 mm profile simplifies installation in restricted mounting locations.
Optimized for Predictive Maintenance
Supports early fault detection strategies that help reduce maintenance costs and unplanned downtime.
Technical FAQs
1. What is the primary purpose of this proximity probe?
It is used to monitor shaft vibration and position in rotating machinery through non-contact eddy current sensing technology.
2. What makes this model a metric version?
This model features metric M10 × 1 threading for compatibility with metric-based machinery installations.
3. Which industries commonly use this probe?
Power generation, oil and gas, petrochemical processing, and heavy manufacturing industries frequently use this model.
4. What is the total cable length?
The probe includes a total cable length of 1.0 meter (3.3 feet).
5. Is this probe designed for continuous operation?
Yes. It is engineered for continuous industrial machine monitoring applications.
6. What materials are used in the probe construction?
The housing uses AISI 303/304 stainless steel, while the probe tip is manufactured from PPS material.
7. Does this probe support vibration monitoring?
Yes. It supports both vibration monitoring and shaft position measurement.
8. What connector type is included?
The probe uses a miniature ClickLoc coaxial connector with integrated connector protection.
9. Is this model compatible with 3300 XL systems?
Yes. It is fully compatible with Bently Nevada 3300 XL transducer systems.
10. Why is the 3300 XL series widely trusted in industry?
The series is known for stable signal performance, rugged reliability, and precise machine condition monitoring capabilities.
