Premium Vibration Monitoring Solution for Demanding Industrial Systems

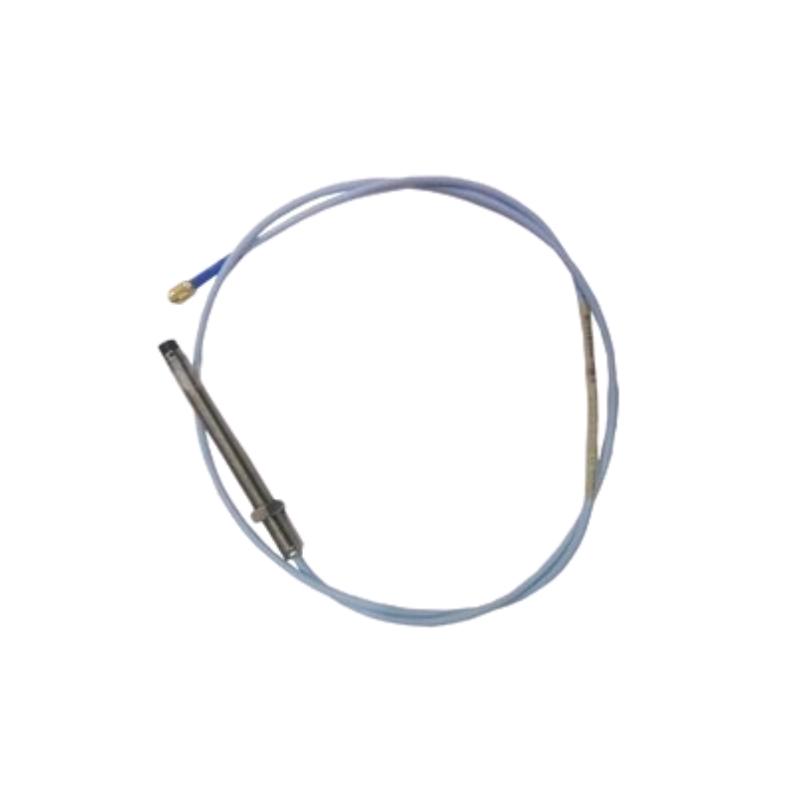

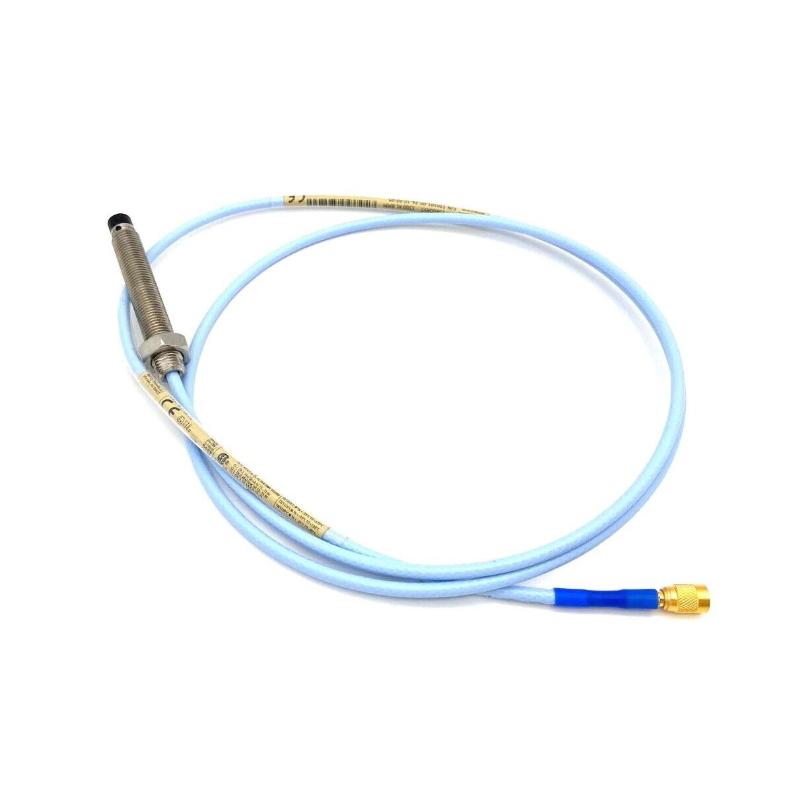

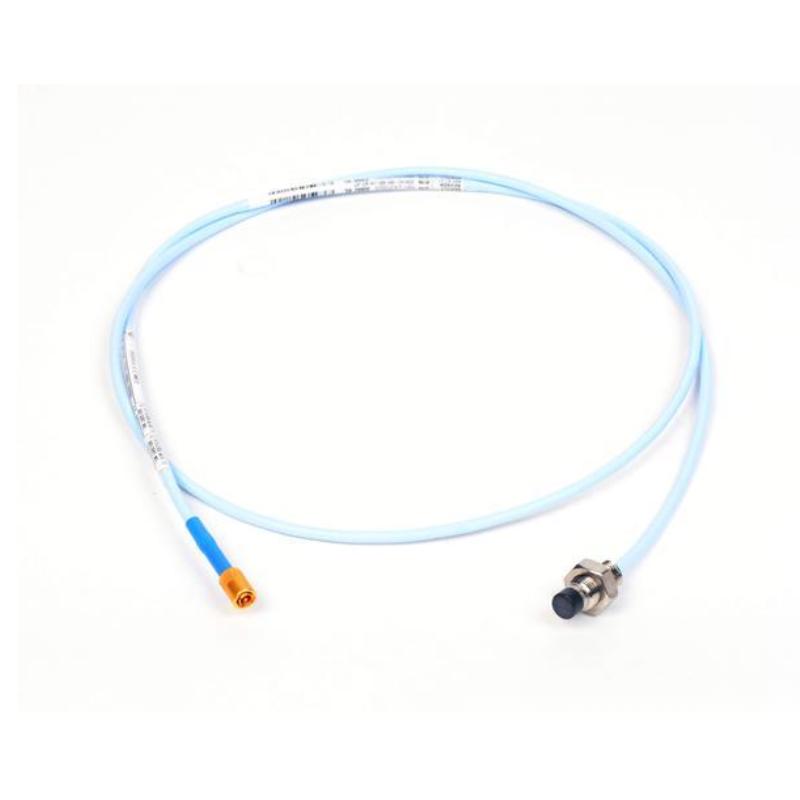

The Bently Nevada 330103-00-11-10-02-05 3300 XL 8 mm Proximity Probe is a precision-engineered sensing device designed for advanced machinery condition monitoring and protection applications. As part of the trusted 3300 XL series, this probe provides highly accurate non-contact measurement of shaft vibration and displacement in rotating equipment operating under continuous industrial workloads.
This configuration features a FluidLoc cable system with connector protection, helping improve durability and signal reliability in harsh operating environments. Its rugged construction and compact 8 mm probe design make it an excellent choice for facilities focused on predictive maintenance, operational stability, and long-term equipment performance.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-11-10-02-05 |
| Product Series | 3300 XL |
| Module Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current Technology |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Overall Case Length | 110 mm |
| Total Length | 1.0 meter (3.3 ft) |
| Connector Type | Miniature ClickLoc Coaxial Connector |
| Cable Type | FluidLoc Cable with Connector Protector |
| Thread Type | M10 × 1 |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Signal Function | Dynamic & Static Measurement |
| Monitoring Capability | Shaft Vibration and Position |
| Operating Temperature Range | -52°C to +177°C |
| Environmental Protection | Oil, Dust, and Vibration Resistant |
| Installation Method | Fixed Threaded Mount |
| Agency Approvals | CSA, ATEX, IECEx |
| Dimensions | Approx. 110 mm probe body length |
| Weight | Approx. 0.323 kg |
Industrial Applications
The 330103-00-11-10-02-05 proximity probe is widely used in rotating machinery monitoring systems where reliable vibration analysis and shaft position measurement are critical.
Typical Applications Include
-
Steam turbine protection systems
-
Gas compressor monitoring
-
Industrial motor diagnostics
-
Pump vibration monitoring
-
Petrochemical process equipment
-
Power generation machinery
-
Oil and gas rotating assets
-
High-speed manufacturing equipment
Its dependable signal transmission and durable cable protection design help reduce maintenance interruptions and support efficient predictive maintenance programs.
Performance Advantages
Enhanced Cable Protection
The integrated connector protector and FluidLoc cable improve mechanical durability and reduce cable-related wear in industrial environments.
Accurate Non-Contact Measurement
Provides stable and precise vibration and displacement monitoring for critical rotating machinery.
Industrial-Grade Construction
Manufactured using stainless-steel housing materials for reliable operation in demanding conditions.
Strong Signal Stability
Designed to maintain accurate monitoring performance during continuous operation and vibration exposure.
Flexible System Integration
Fully compatible with Bently Nevada 3300 XL transducer and machinery protection systems.
Optimized for Predictive Maintenance
Supports early detection of machinery issues, helping facilities improve uptime and maintenance efficiency.
Technical FAQs
1. What is the primary function of this proximity probe?
It measures shaft vibration and displacement in rotating machinery using non-contact eddy current sensing technology.
2. What is the total cable length of this model?
This probe configuration includes a total length of 1.0 meter (3.3 feet).
3. What makes the FluidLoc cable beneficial?
The FluidLoc cable design helps prevent fluid migration and improves long-term cable reliability in industrial environments.
4. Which industries commonly use this probe?
Power generation, petrochemical, oil and gas, and industrial manufacturing sectors frequently use this model.
5. Is this probe suitable for continuous monitoring applications?
Yes. It is specifically designed for continuous machinery condition monitoring.
6. What material is used for the probe housing?
The housing is manufactured from AISI 303/304 stainless steel.
7. Can this probe monitor both vibration and shaft position?
Yes. It supports both dynamic vibration monitoring and static shaft position measurement.
8. What connector type is included?
The probe uses a miniature coaxial ClickLoc connector with connector protection.
9. Is this model compatible with 3300 XL systems?
Yes. It is fully compatible with Bently Nevada 3300 XL monitoring systems.
10. Why is the 3300 XL series widely used in industry?
The series is known for reliable signal accuracy, rugged construction, and dependable long-term monitoring performance.
