High-Accuracy Industrial Monitoring Built for Reliable Machine Protection

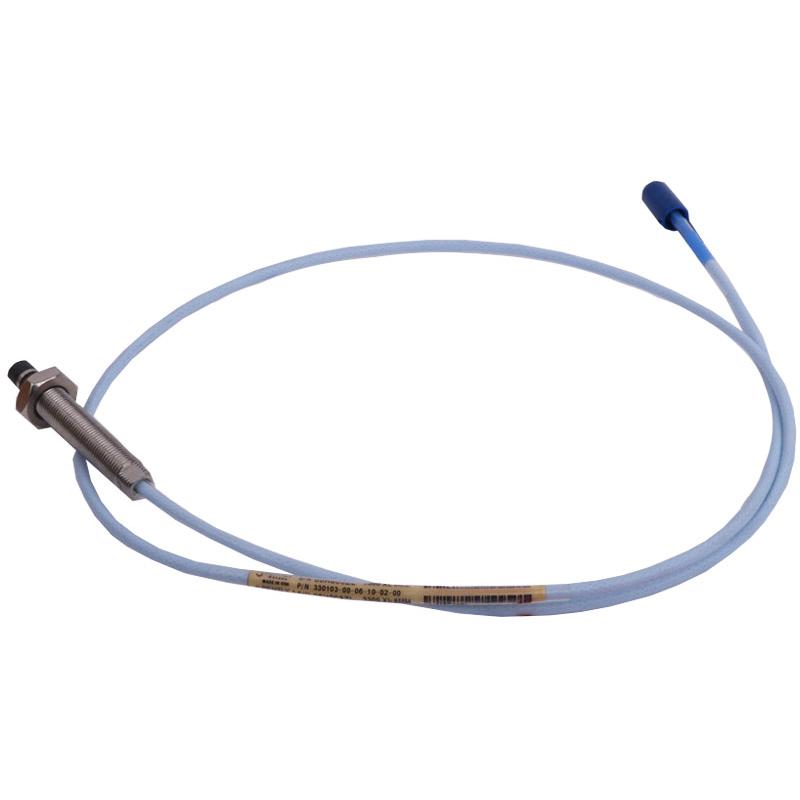

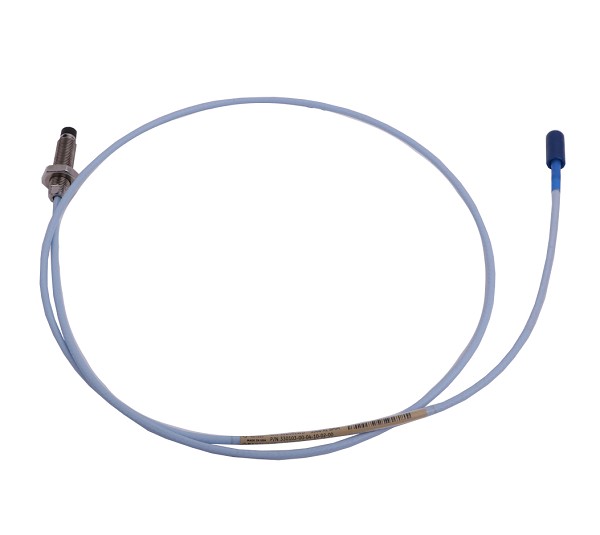

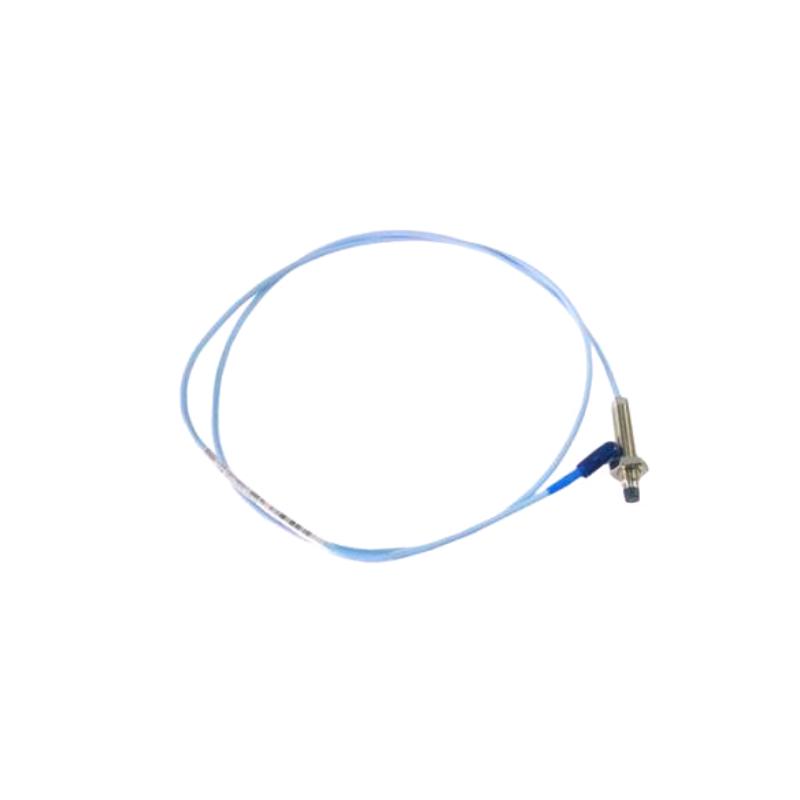

The Bently Nevada 330103-00-09-05-02-00 3300 XL 8 mm Proximity Probe (Metric) is engineered for precise, non-contact measurement of shaft vibration and position in rotating machinery. Designed for continuous industrial service, it provides stable and repeatable signals that support condition monitoring, asset protection, and predictive maintenance strategies across critical industrial environments.
As part of the widely trusted 3300 XL eddy current proximity transducer system, this probe delivers robust mechanical design, strong environmental tolerance, and high measurement consistency. It is commonly deployed in power generation, oil & gas, petrochemical, and heavy manufacturing applications where equipment reliability is essential.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-09-05-02-00 |
| Product Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy current non-contact sensing |
| Thread Standard | Metric (M10 × 1 typical for 8 mm probes) |
| Case Length | 80 mm |
| Total Cable Length | 0.5 m (05 code configuration) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard industrial cable |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Body Material | Stainless steel (industrial grade) |
| Measurement Function | Shaft vibration & radial/axial displacement |
| System Compatibility | 3300 XL Proximitor Sensor system |
| Approx. Weight | ~0.32–0.35 kg |
Industrial Applications
This probe is widely used in rotating machinery protection systems where precise vibration monitoring is essential for operational stability.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine protection systems
-
Compressor condition monitoring
-
Industrial pump performance tracking
-
Motor shaft vibration analysis
-
Petrochemical processing equipment
-
Oil and gas rotating machinery
-
Power plant generation systems
Its compact cable configuration makes it suitable for installations where short-distance routing is preferred or system architecture requires localized sensor integration.
Key Advantages
Stable and Accurate Measurement Output
Provides consistent shaft vibration and position data using proven eddy current sensing technology, ensuring dependable diagnostics.
Compact Cable Configuration
The 0.5 m integrated cable design supports flexible installation in compact or tightly arranged machinery environments.
Industrial Durability
Built with stainless steel housing and rugged cable construction for long-term operation in harsh industrial conditions.
Predictive Maintenance Support
Enables early detection of imbalance, misalignment, and mechanical wear, helping reduce unexpected downtime.
Proven System Integration
Fully compatible with Bently Nevada 3300 XL monitoring architecture, ensuring seamless signal processing and system reliability.
Technical FAQs
1. What does this proximity probe measure?
It measures shaft vibration and displacement in rotating machinery without physical contact.
2. What technology does it use?
It uses eddy current sensing technology for high-precision monitoring.
3. What does the “09” option indicate?
It typically represents an 80 mm case length configuration within the 3300 XL probe coding system.
4. What does the “05” code represent?
It indicates a short integrated cable length (commonly 0.5 m configuration).
5. Is it compatible with 3300 XL systems?
Yes, it is designed specifically for Bently Nevada 3300 XL Proximitor-based systems.
6. What machinery is it commonly used on?
Turbines, compressors, pumps, and industrial motors.
7. Can it operate continuously?
Yes, it is designed for continuous-duty industrial monitoring applications.
8. Is it suitable for harsh environments?
Yes, it is built for vibration, heat, and demanding industrial conditions.
9. Does it support predictive maintenance?
Yes, it helps detect early-stage mechanical issues for maintenance planning.
10. Why is the 3300 XL series widely used?
Because it offers stable performance, strong durability, and long-term measurement reliability.
