High-Integrity ModuleBus Extension Cable for ABB AC 800xA / S800 I/O Systems

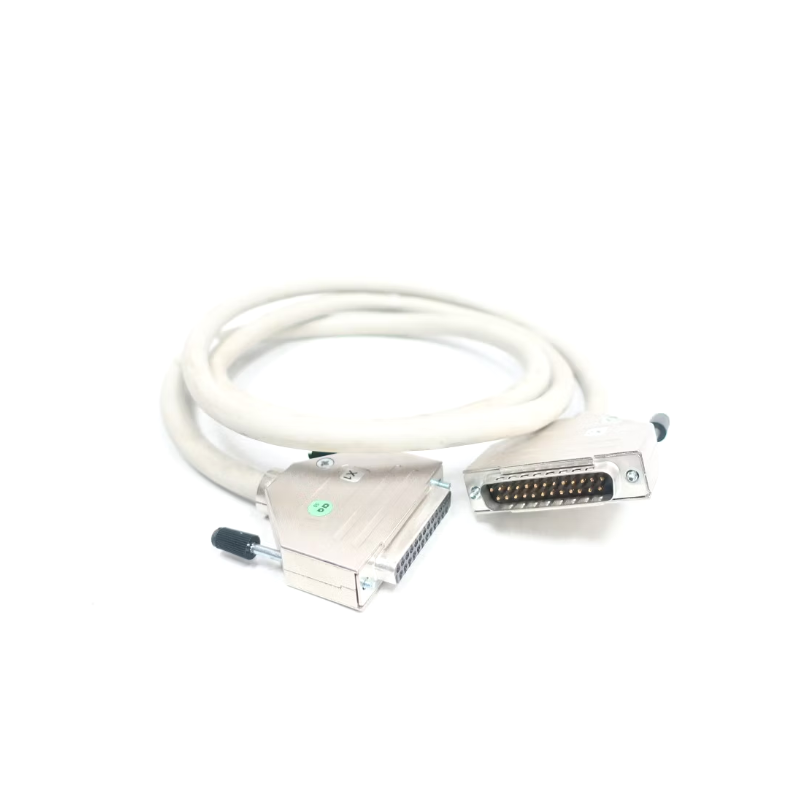

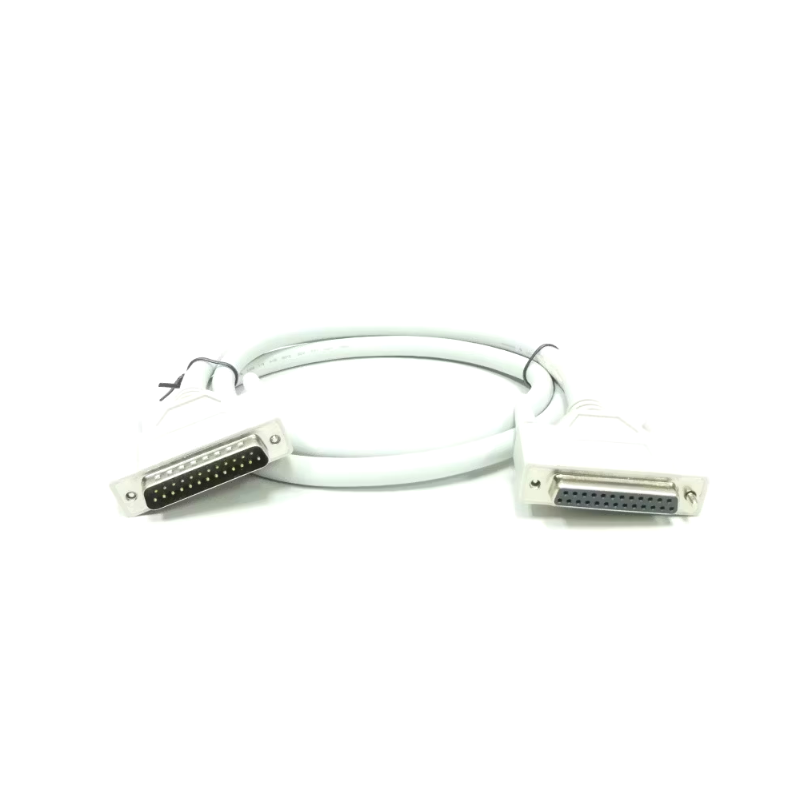

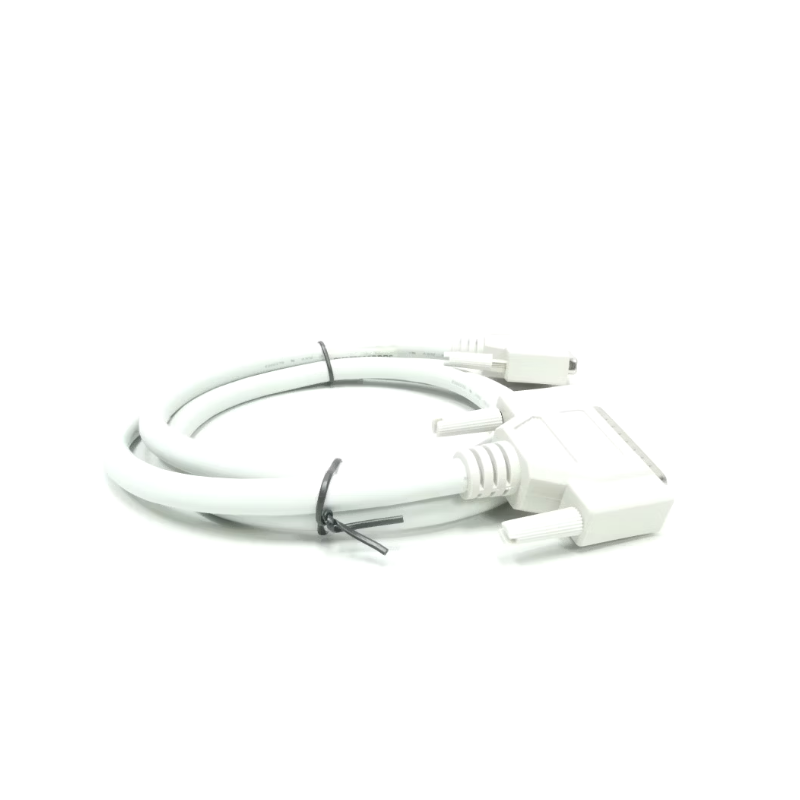

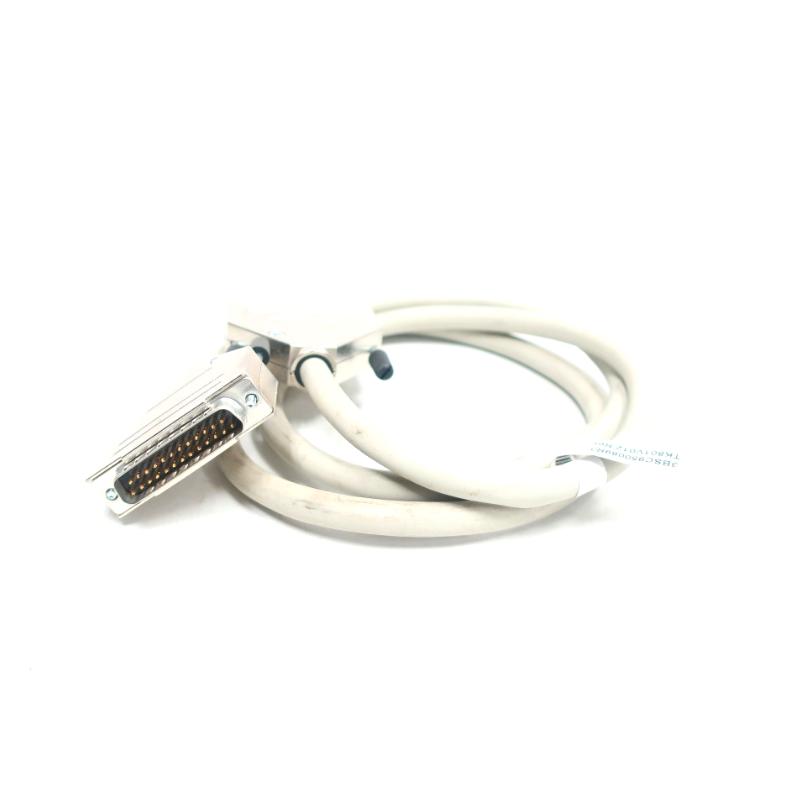

The ABB TK801V012 (3BSC950089R3) is a ModuleBus extension shielded cable designed for ABB S800 I/O systems within AC 800xA and related distributed control architectures. It is used to extend the internal ModuleBus connection between I/O modules mounted on different DIN rails, ensuring stable communication and flexible cabinet layout design.
This cable plays a key role in maintaining signal integrity, system scalability, and installation flexibility in modern industrial automation panels.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | TK801V012 |
| Order Code | 3BSC950089R3 |
| Product Type | ModuleBus Extension Cable |
| Manufacturer | ABB |
| System Compatibility | ABB S800 I/O / AC 800xA |
| Function | ModuleBus communication extension |
| Cable Length | 1.2 meters |
| Connector Type | D-sub 25, male-to-female |
| Shielding | EMI-shielded industrial cable |
| Signal Type | Digital communication / ModuleBus |
| Operating Temperature | -20°C to +60°C |
| Cable Diameter | ~10 mm |
| Weight | ~0.26 kg |
| Installation Type | Plug-and-play prefabricated cable |
| Standard Compliance | IEC industrial wiring standards |
