High-Reliability PLC CPU for Distributed Industrial Automation

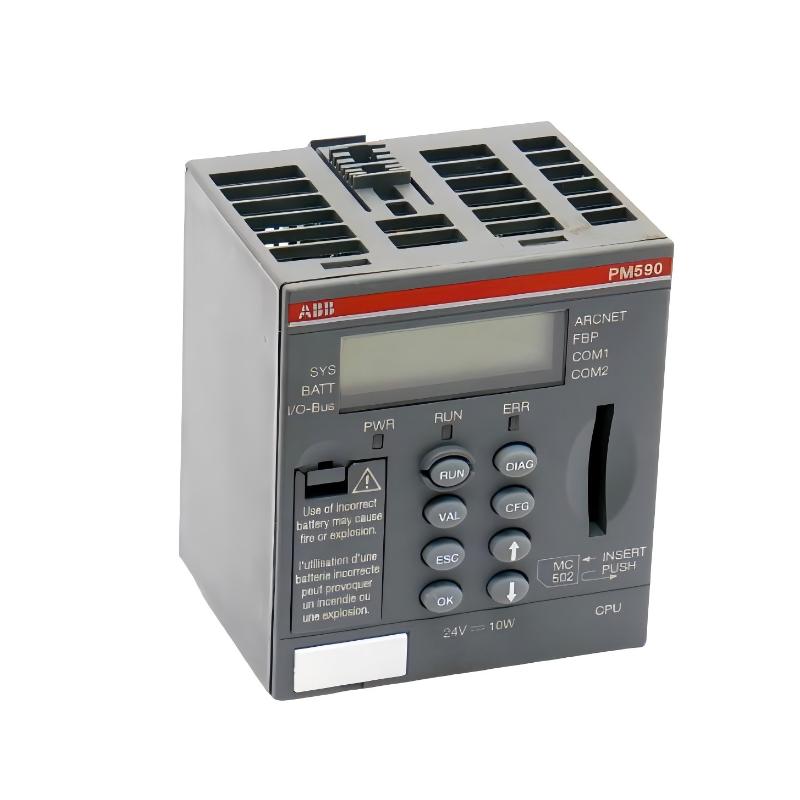

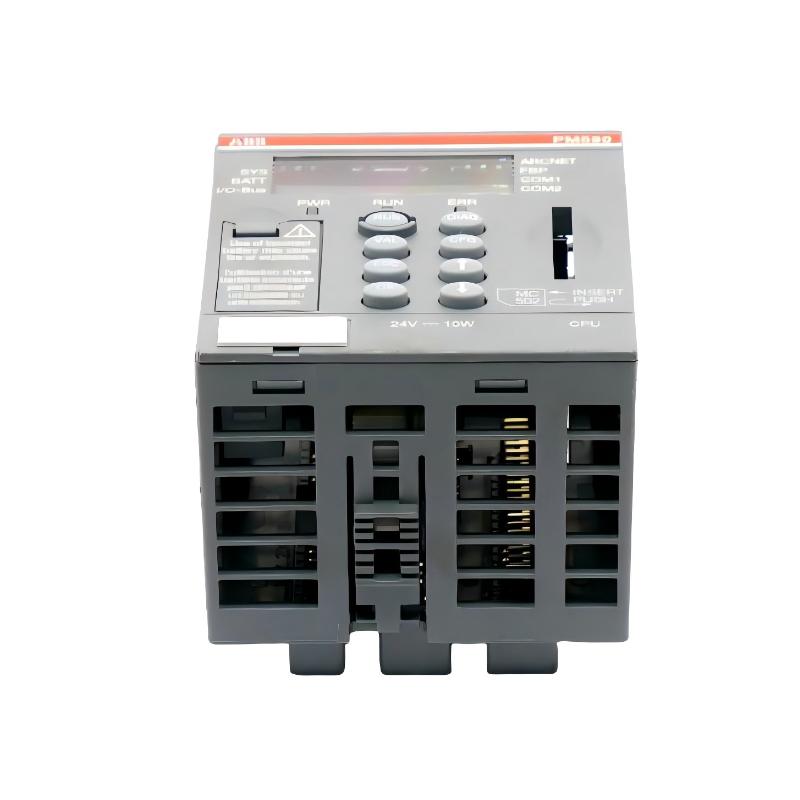

The ABB PM590-ARCNET (1SAP150000R0260) is a powerful AC500 series processor module designed for distributed automation systems, complex machine control, and industrial process applications. It is built to deliver deterministic control performance, multi-protocol communication, and stable system execution in demanding industrial environments.
With integrated ARCNET communication and multi-serial interfaces, this CPU is widely used in systems requiring fast data exchange, reliable I/O coordination, and long-term operational stability.
Technical Specifications
| Parameter | Details |
|---|
| Model | PM590-ARCNET |
| Order Code | 1SAP150000R0260 / 1SAP150000R0261 |
| Product Type | PLC Processor Module (AC500 Series) |
| Manufacturer | ABB |
| CPU Architecture | Industrial PLC Processor |
| Program Memory | ~2 MB (system + user memory up to ~5 MB depending configuration) |
| Communication Interfaces | ARCNET, 2× RS232/RS485, FBP |
| Display | Integrated LCD status display |
| Power Supply | 24 V DC (20.4–28.8 V DC) |
| Isolation | Industrial-grade galvanic isolation |
| I/O Expansion | Supports distributed AC500 I/O systems |
| Operating Temperature | -20°C to +60°C |
| Protection Class | IP20 |
| Dimensions | 67.5 × 76 × 62 mm |
| Weight | ~0.157–0.181 kg |
| Mounting Type | DIN rail / control cabinet installation |
Industrial Applications
This processor module is widely deployed in:
-
Factory automation systems
-
Conveyor and material handling lines
-
Packaging and labeling machines
-
Pumping and compressor control systems
-
Energy and utility automation platforms
-
Distributed process control systems (DCS subsystems)
-
OEM machine control architectures
-
Legacy ABB AC500 installations requiring maintenance or upgrades
Its stability and communication flexibility make it suitable for both standalone machine control and networked automation systems.
Key Advantages
- Deterministic control performance for industrial automation loops
- ARCNET communication for stable industrial networking
- Compact PLC CPU design for dense control cabinets
- Multi-interface connectivity (RS232/RS485 + FBP)
- Reliable 24/7 continuous operation capability
- Strong compatibility with ABB AC500 modular ecosystem
- LCD status display for fast diagnostics and monitoring
- Proven long lifecycle in installed industrial systems
These advantages make it a trusted CPU module for long-term industrial deployment where system stability is critical.
Technical FAQs
Q1: Is the ABB PM590 a full PLC system?
A: No, it is a PLC CPU module and requires AC500 I/O modules to form a complete system.
Q2: What communication protocols does it support?
A: ARCNET, RS232/RS485, and FBP interfaces are supported.
Q3: What is the main application of ARCNET in this module?
A: It provides deterministic high-speed communication for industrial networks.
Q4: Can it operate in harsh environments?
A: Yes, it is designed for industrial temperature ranges and electrical noise resistance.
Q5: What is the power requirement?
A: Standard 24 V DC industrial supply.
Q6: Does it support Ethernet?
A: This variant focuses on ARCNET and serial interfaces rather than built-in Ethernet.
Q7: What is the typical weight?
A: Approximately 0.157 kg depending on configuration.
Q8: Is it still widely used today?
A: Yes, especially in legacy ABB AC500 systems and installed industrial bases.
Q9: Can it be programmed easily?
A: Yes, using ABB Automation Builder / CoDeSys environment.
Q10: Why is it still popular in industry?
A: Because of its reliability, stable communication design, and long service lifecycle in industrial automation.
