High-Precision DC Feed Unit for Industrial Reel Systems

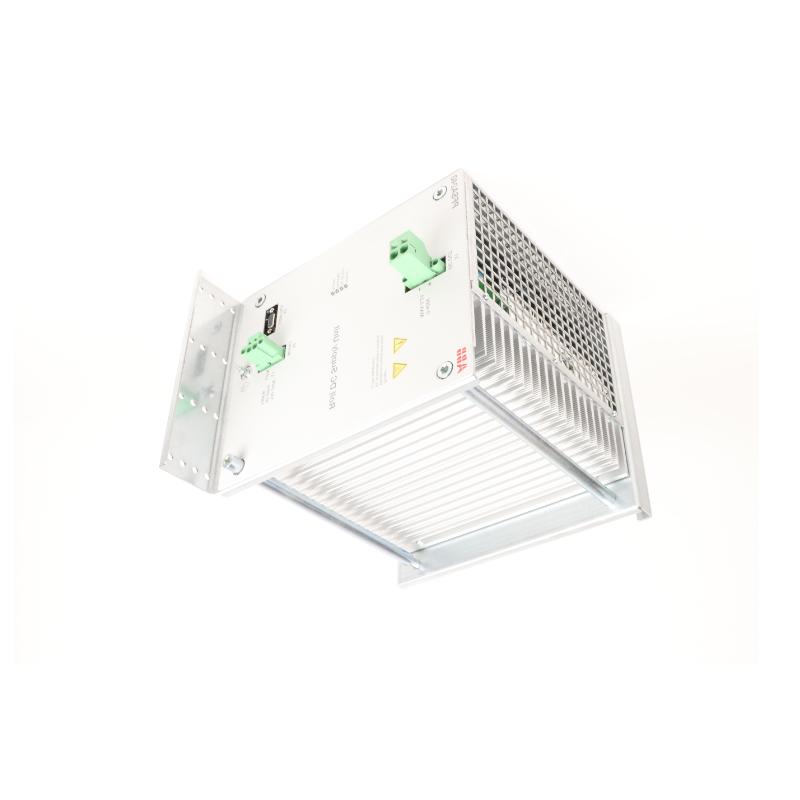

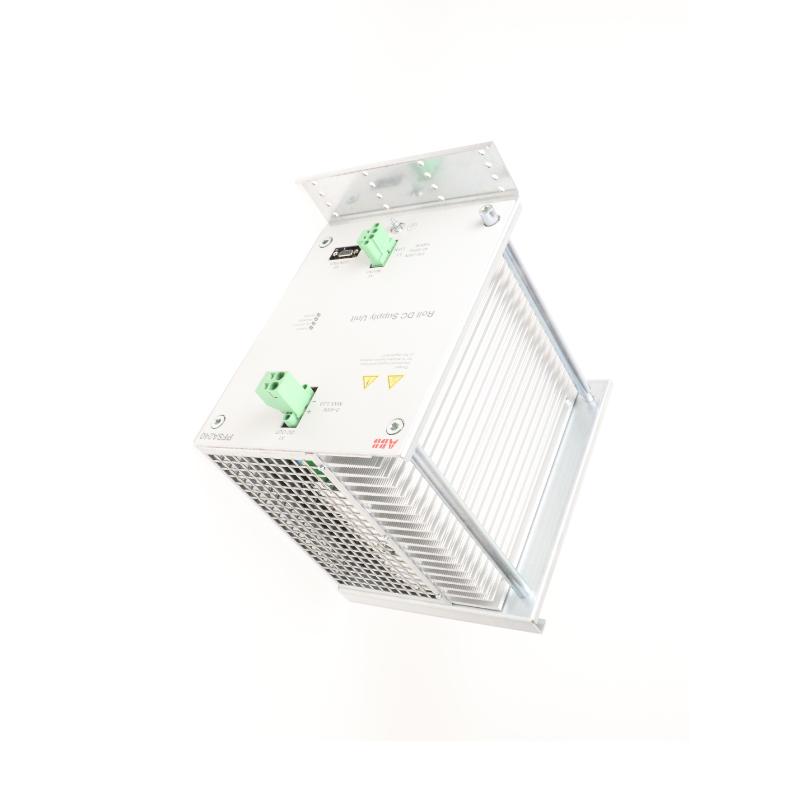

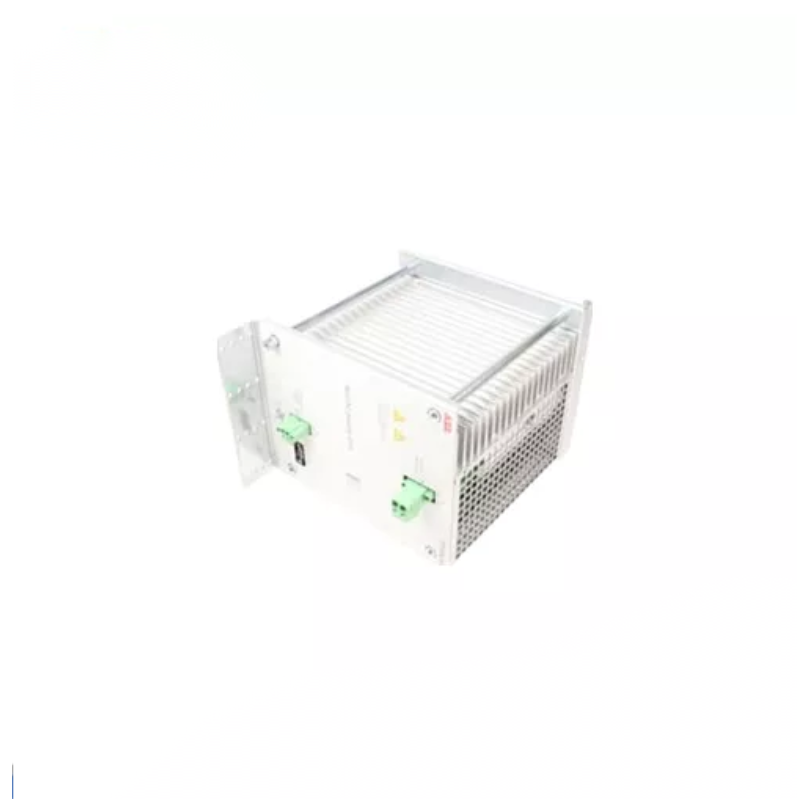

The ABB PFSA240 3BSE073476R1 Reel DC Power Supply is a specialized industrial DC feed and power regulation unit designed for precision material handling systems, particularly in reel, winding, and continuous process automation applications. Engineered within ABB’s automation architecture, it delivers stable DC power distribution with high reliability, ensuring consistent control performance in demanding production environments.
This module is widely recognized for its role in roll-to-roll systems, tension-controlled production lines, and automated feeding processes, where smooth and stable power delivery directly impacts process quality and product consistency.
Technical Specifications
| Parameter | Details |
|---|
| Model | PFSA240 |
| Order Code | 3BSE073476R1 |
| Product Type | Reel DC Power Supply / DC Feed Unit |
| Manufacturer | ABB |
| Application | Reel / Roll-to-roll automation systems |
| Output Type | Regulated DC supply |
| Function | DC power feeding & process energy stabilization |
| Origin | Sweden |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Control Role | Process power stabilization & material feed control |
| Dimensions | Approx. 276 × 206 × 37 mm |
| Weight | Approx. 0.01–0.42 kg (variant dependent) |
| Mounting Type | Industrial cabinet / system rack integration |
| Protection | Industrial-grade electrical isolation design |
Industrial Applications
The ABB PFSA240 DC Power Supply is widely used in industries requiring controlled winding, feeding, or continuous material movement:
-
Paper and pulp reel-to-reel systems
-
Film and plastic extrusion lines
-
Textile production and tension control systems
-
Wire and cable manufacturing lines
-
Printing and packaging automation
-
Industrial roll handling equipment
-
Continuous process control systems
-
ABB automation-driven production machines
Its ability to maintain stable DC output makes it especially valuable in systems where tension consistency and synchronized motor behavior are critical.
Advantages
The PFSA240 Reel DC Power Supply delivers strong operational benefits in industrial automation environments:
-
Stable DC output for continuous reel operation
-
Improved process consistency in tension-controlled systems
-
High reliability under long-duration industrial loads
-
Compact industrial design for cabinet integration
-
Strong compatibility with ABB automation platforms
-
Reduced vibration and feed fluctuation in material systems
-
Low-maintenance electrical architecture
-
Long service life in 24/7 production environments
These advantages help manufacturers reduce downtime while improving product uniformity in continuous production processes.
Technical FAQs
Q1: What is the main function of the ABB PFSA240?
A: It provides regulated DC power for reel and continuous material handling systems.
Q2: Is it a PLC or motor drive?
A: No, it is a DC feed/power supply module used within ABB automation systems.
Q3: Where is it commonly used?
A: It is used in roll-to-roll production lines such as paper, film, textile, and cable manufacturing.
Q4: Does it directly control motors?
A: Not directly. It supports process control systems that coordinate motor operation.
Q5: What is the typical weight?
A: Depending on configuration, it ranges from approximately 0.01 kg to 0.42 kg.
Q6: Is it suitable for harsh industrial environments?
A: Yes, it is designed for continuous industrial operation with thermal and electrical stability.
Q7: What is its operating temperature range?
A: Typically -20°C to +60°C in industrial environments.
Q8: What makes it important in reel systems?
A: It ensures stable DC energy supply, which is critical for maintaining tension consistency.
Q9: Is it still widely used today?
A: Yes, especially in ABB-based legacy and installed automation systems.
Q10: Can it be replaced with a general power supply?
A: Not recommended, as it is designed specifically for ABB system integration and process synchronization.
