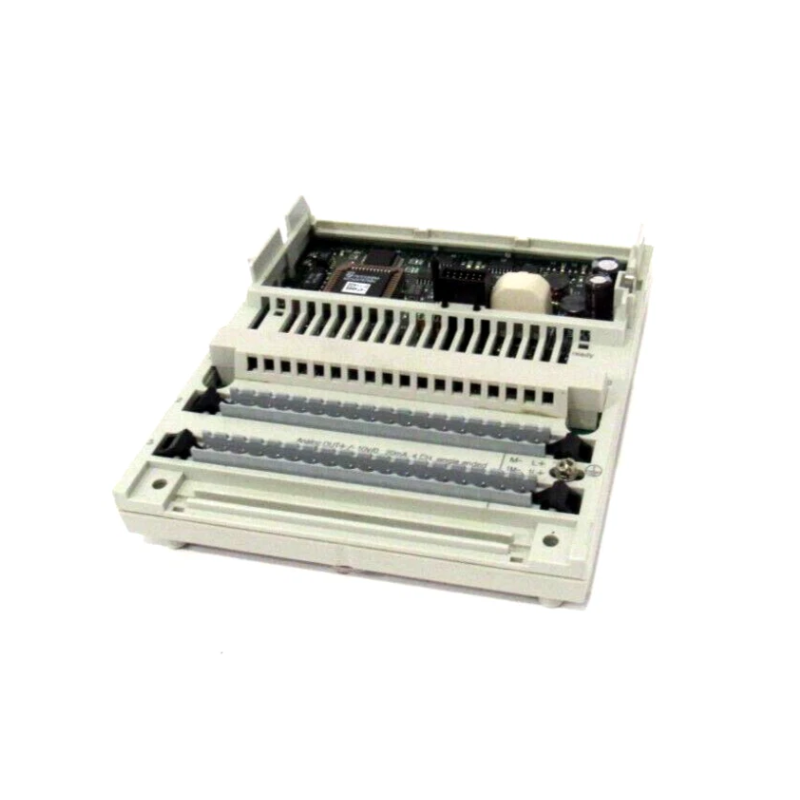

Schneider Electric 170AAO12000 Distributed Analog Output Module – Modicon Momentum Series (4-Channel AO Module)
The Schneider Electric 170AAO12000 Distributed Analog Output Module is designed for the Modicon Momentum distributed automation system. It provides reliable analog signal output for industrial control applications, enabling PLC systems to drive field devices such as control valves, actuators, and variable control equipment with stable and precise output signals.
This module is widely used in distributed control architectures where consistent signal conversion and efficient system integration are required.
Technical Specifications
The module is designed for stable analog signal generation in industrial environments.
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Series | Modicon Momentum |
| Model | 170AAO12000 |
| Product Type | Distributed Analog Output Module |
| Output Channels | 4 channels |
| Output Signal Range | 0–20 mA / ±10 V |
| Resolution | 16-bit |
| Response Time | Fast update cycle (typical millisecond-level response) |
| Channel Isolation | Electrical isolation between channels and system |
| Diagnostic Indication | Channel status indicators |
| Power Requirement | Low power consumption design |
| System Compatibility | Modicon Momentum backplane system |
Industrial Applications
The 170AAO12000 analog output module is used in automation systems requiring stable analog signal control.
Typical applications include:
-
Process control systems
-
Flow and pressure regulation systems
-
Industrial automation equipment
-
Motor and drive reference signal control
-
HVAC system control applications
-
Water and utility automation systems
-
General manufacturing process control
Key Advantages
Stable Analog Signal Output
Provides consistent analog signals suitable for continuous industrial process control.
Flexible Output Types
Supports both current and voltage outputs for compatibility with various field devices.
Modular System Integration
Designed for seamless integration within the Modicon Momentum distributed architecture.
Compact Design
Space-efficient structure supports high-density installation in control cabinets.
Reliable Operation
Built for continuous industrial use with stable electrical performance.
Simplified Maintenance
Clear channel structure helps improve diagnostics and system servicing efficiency.
Technical FAQs
1. What is the function of the 170AAO12000 module?
It converts PLC signals into analog outputs for controlling industrial devices.
2. How many output channels does it have?
It provides 4 analog output channels.
3. What output signals are supported?
It supports 0–20 mA current and ±10 V voltage outputs.
4. What is its resolution?
It uses 16-bit resolution for precise signal control.
5. What system is it used with?
It is designed for the Modicon Momentum platform.
6. Can it be used for valve control?
Yes, it is commonly used for valve and actuator control applications.
7. Does it support electrical isolation?
Yes, it provides isolation between channels and system ground.
8. What is its physical size?
Approximately 141.5 × 125 × 47.5 mm.
9. What is its weight?
Approximately 0.2 kg.
10. What is its main benefit in automation systems?
It provides stable and flexible analog output control in distributed systems.
