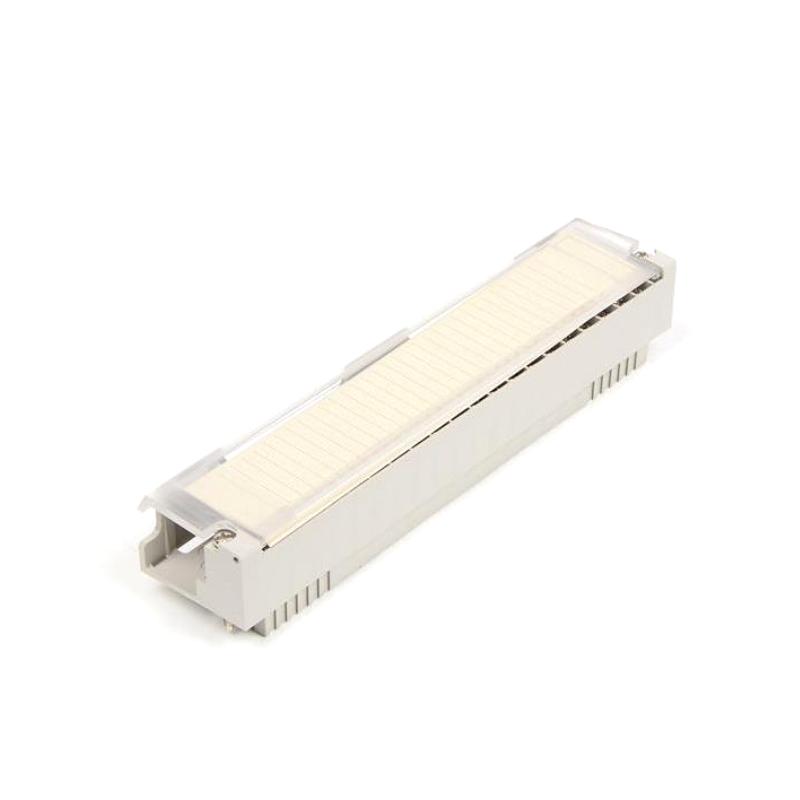

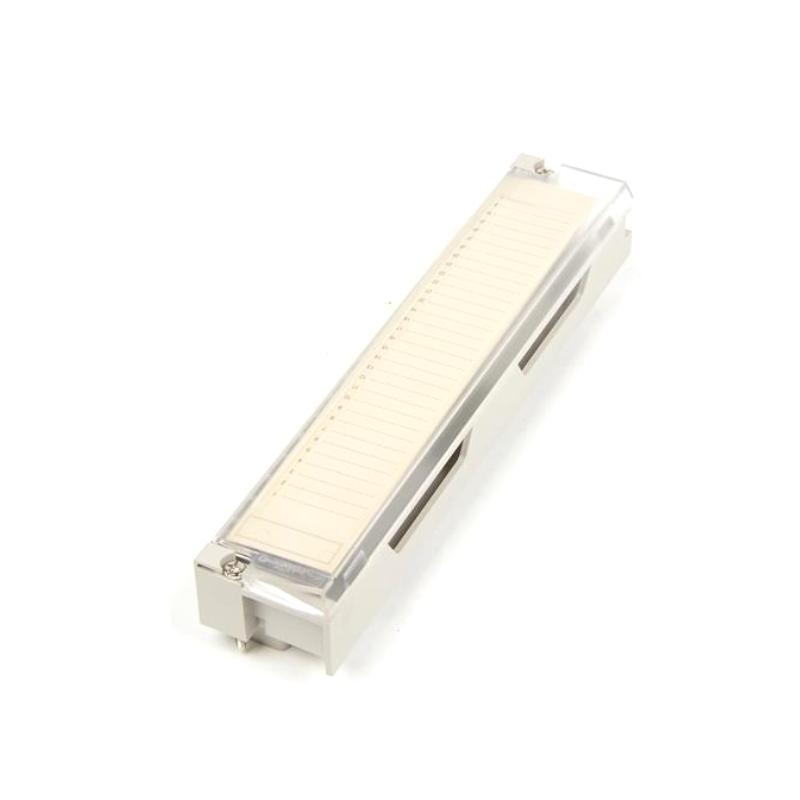

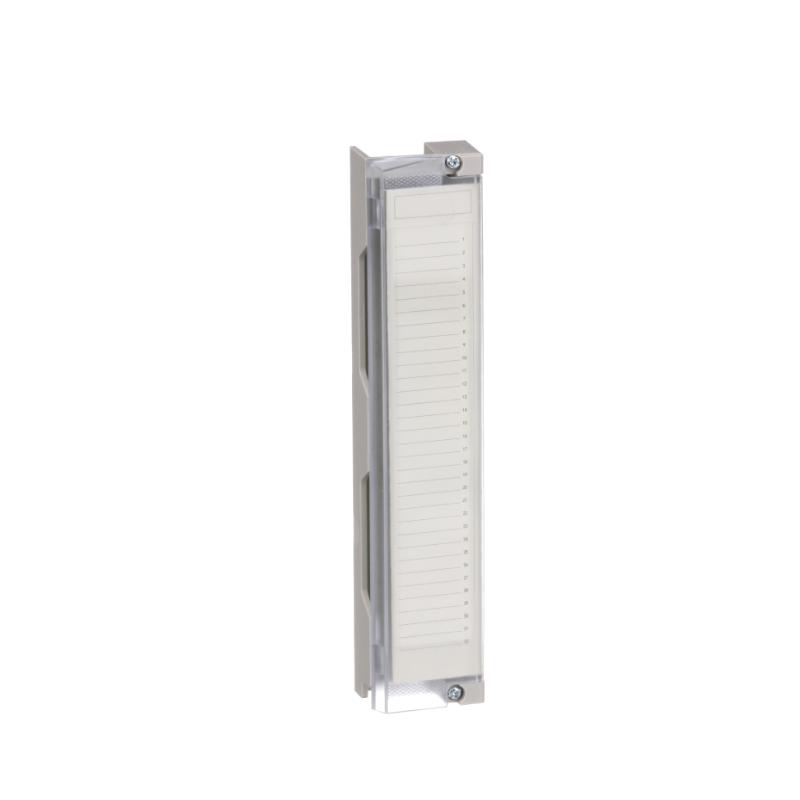

Schneider Electric 140XTS00200 Screw Terminal Block – Modicon Quantum Series (40-Point I/O Connection Module)
The Schneider Electric 140XTS00200 Screw Terminal Block is a high-reliability wiring interface designed for the Modicon Quantum automation platform. It provides a structured and secure connection point between PLC I/O modules and field wiring, ensuring stable signal transmission and simplified cabinet organization in industrial control systems.
Built for demanding automation environments, this 40-point terminal block is widely used in process control, manufacturing systems, and infrastructure automation where wiring clarity, long-term reliability, and fast maintenance are essential.
Technical Specifications
The 140XTS00200 is engineered to support multiple Quantum I/O modules while maintaining consistent electrical performance and safe wiring access.
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Series | Modicon Quantum |
| Model | 140XTS00200 |
| Product Type | Screw Terminal Block |
| Connection Points | 40 pins |
| Application | PLC I/O signal interface |
| Compatible Modules | Analog, digital, counter, and safety I/O modules |
| Mounting Type | Control cabinet / rack-mounted interface |
| Wiring Method | Screw clamp terminals |
| Protection Rating | < IP20 (cabinet installation only) |
| Material | Industrial-grade insulating housing |
Industrial Applications
The 140XTS00200 terminal block is used in large-scale automation systems where multiple I/O signals must be routed efficiently and safely.
Typical applications include:
-
PLC-based industrial automation systems
-
Process control plants
-
Water and wastewater treatment systems
-
Oil, gas, and petrochemical control systems
-
Power generation monitoring systems
-
Manufacturing production lines
-
Infrastructure and building automation
Its structured wiring layout significantly improves system reliability and reduces installation complexity.
Key Advantages
Clean and Organized Wiring Architecture
Provides a structured interface that simplifies complex I/O wiring in large automation cabinets.
High Connection Reliability
Screw-terminal design ensures stable mechanical and electrical contact for long-term operation.
Multi-Module Compatibility
Supports a wide range of Modicon Quantum I/O modules, including analog, digital, and safety-related modules.
Simplified Maintenance
Clear terminal grouping allows faster diagnostics, replacement, and system upgrades.
Industrial-Grade Durability
Designed for continuous operation in demanding industrial environments with stable electrical performance.
Compact Integration Design
Optimized for high-density PLC racks without increasing cabinet footprint.
Technical FAQs
1. What is the main function of the 140XTS00200?
It provides a secure wiring interface between Modicon Quantum PLC I/O modules and field devices.
2. How many connection points does it have?
It has 40 screw-terminal connection points.
3. What PLC system is it used with?
It is designed for the Modicon Quantum automation platform.
4. What is its weight?
Approximately 0.15 kg.
5. What type of wiring does it use?
It uses screw-clamp terminals for secure electrical connections.
6. Is it suitable for analog and digital signals?
Yes, it supports both analog and discrete I/O modules.
7. What is its protection rating?
Less than IP20, intended for installation inside control cabinets.
8. Can it be used outside a cabinet?
No, it is designed only for protected industrial enclosures.
9. What is its main benefit in PLC systems?
It improves wiring organization and reduces maintenance complexity.
10. Is it still used in modern systems?
Yes, it is still widely used in existing Modicon Quantum installations and maintenance systems.
