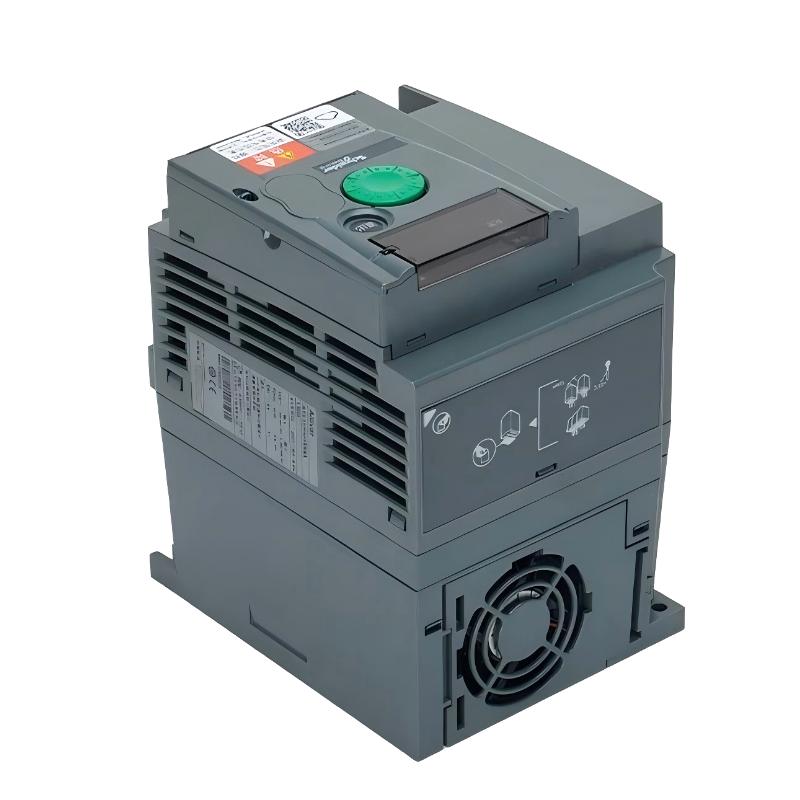

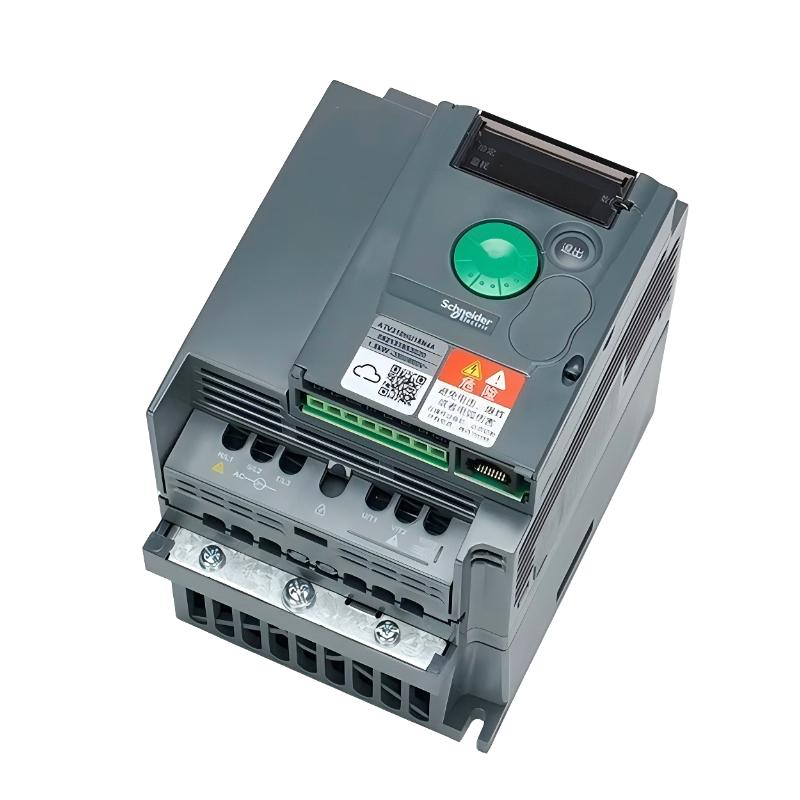

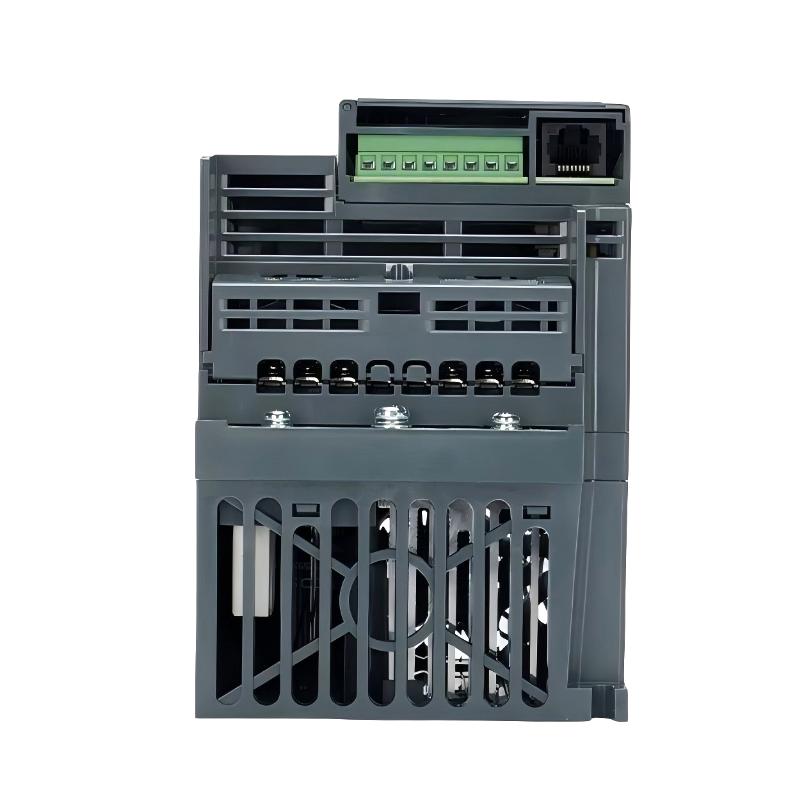

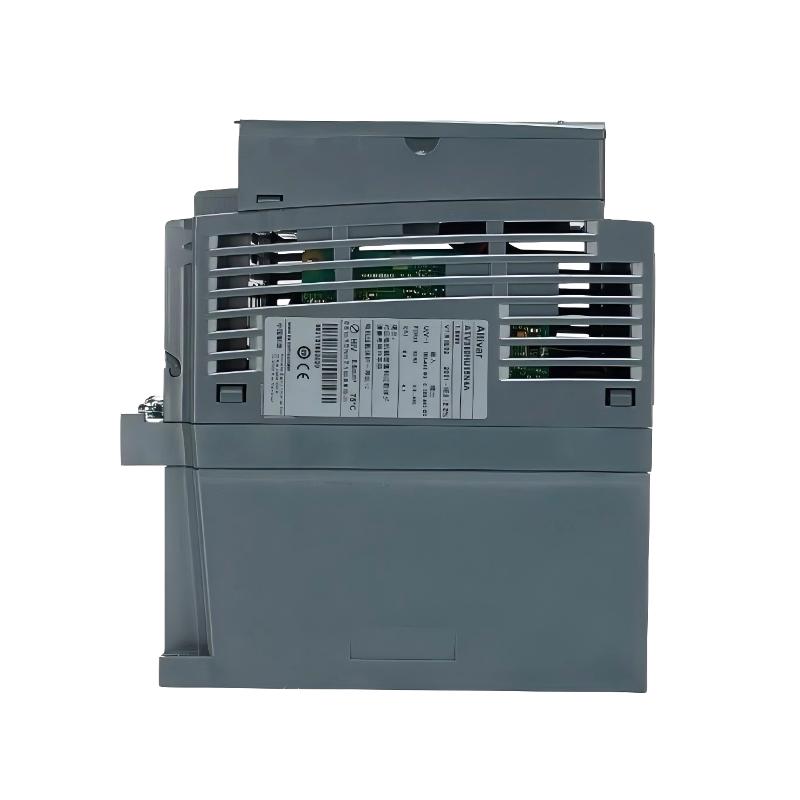

Schneider Electric ATV310HU15N4A Variable Speed Drive – Altivar Easy 310 Series (1.5 kW Compact VFD)
The Schneider Electric ATV310HU15N4A Variable Speed Drive is a compact and reliable motor control solution designed for simple machine automation and light industrial applications. As part of the Altivar Easy 310 series, it delivers stable motor speed regulation, smooth torque performance, and efficient energy usage in everyday industrial environments.
This model is widely used in OEM machinery, conveyors, packaging systems, and light-duty production equipment where space efficiency, easy commissioning, and consistent performance are key priorities. Its streamlined design makes it a practical choice for cost-effective automation without compromising reliability.
Technical Specifications
The ATV310HU15N4A is engineered for stable operation in three-phase industrial systems with flexible control capabilities.
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Series | Altivar Easy 310 |
| Model | ATV310HU15N4A |
| Device Type | Variable Speed Drive (VFD) |
| Rated Motor Power | 1.5 kW / 2 HP |
| Supply Voltage | 380–460 V AC |
| Phase | 3-Phase |
| Output Current | ~4.1 A |
| Output Frequency Range | 0.5–400 Hz |
| Control Method | Sensorless Flux Vector Control |
| Communication | Modbus RS-485 (RJ45) |
| EMC Filter | Optional / not included in some variants |
| Protection Rating | IP20 |
| Cooling | Integrated fan cooling |
| Mounting | Panel-mounted (vertical installation) |
Industrial Applications
The ATV310HU15N4A is designed for straightforward automation tasks requiring dependable motor control in small-to-medium machines.
Typical applications include:
-
Conveyor systems
-
Packaging machines
-
Textile equipment
-
Light industrial pumps
-
Small fan and ventilation systems
-
Material handling units
-
OEM automation machinery
It performs especially well in applications where consistent speed control and low maintenance are more important than advanced process control features.
Key Advantages
Compact and Space-Saving Design
Its slim housing allows easy installation in crowded electrical panels without complex cabinet redesign.
Stable Motor Performance
Sensorless vector control ensures smooth acceleration, reduced vibration, and stable torque output under varying load conditions.
Easy Integration
Modbus communication enables quick connection with PLCs, HMIs, and industrial control systems.
Energy-Efficient Operation
Adjusts motor speed according to load demand, helping reduce unnecessary energy consumption.
Reliable Industrial Operation
Built for continuous-duty use in light industrial environments with stable thermal performance.
Simple Setup & Maintenance
Straightforward parameter configuration reduces commissioning time and improves service efficiency.
Technical FAQs
1. What is the main function of the ATV310HU15N4A?
It controls AC motor speed and torque for industrial automation systems.
2. What motor size does it support?
It supports motors up to 1.5 kW (2 HP).
3. What is the input voltage range?
It operates on 380–460 V AC three-phase power supply.
4. What is the output current rating?
Approximately 4.1 A depending on load conditions.
5. Does it support communication protocols?
Yes, it supports Modbus RS-485 communication via RJ45 interface.
6. Is it suitable for conveyor systems?
Yes, it is commonly used in conveyors and light automation machinery.
7. Does it include EMC filtering?
Some variants are supplied without EMC filter depending on configuration.
8. What is its protection rating?
IP20 for installation inside electrical cabinets.
9. What are its physical dimensions?
Approximately 105 × 143 × 151 mm.
10. What is its weight?
Around 1.1 kg.
