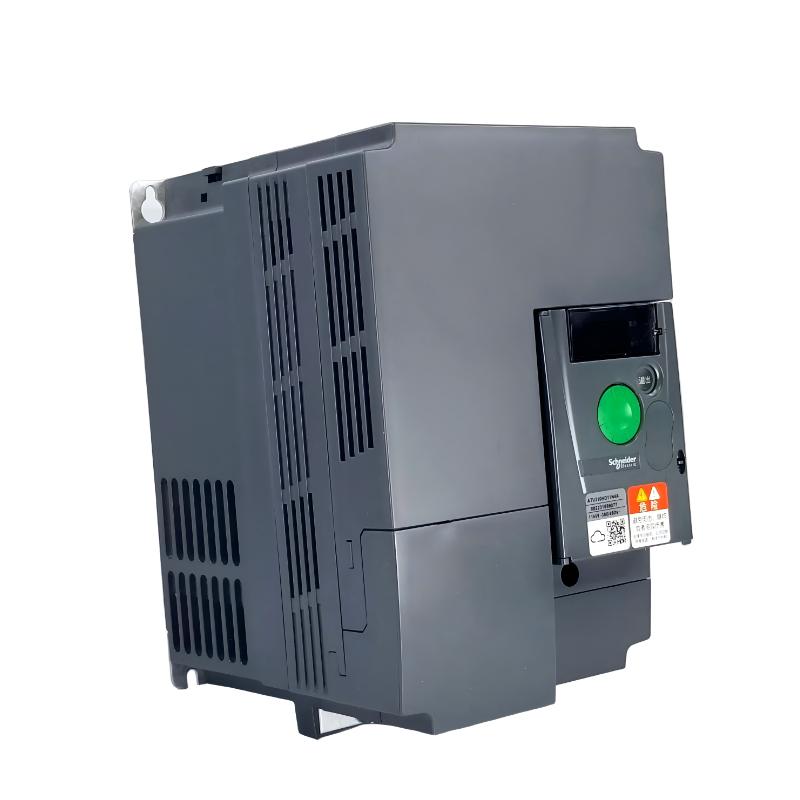

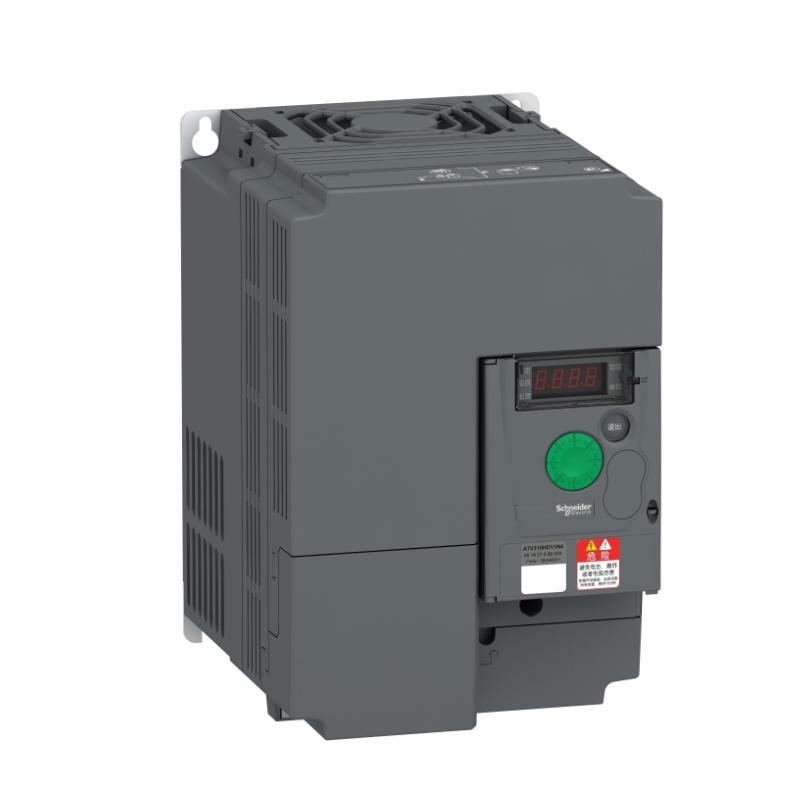

Schneider Electric ATV310HD11N4A Variable Speed Drive – Altivar Easy 310 Series
The Schneider Electric ATV310HD11N4A Variable Speed Drive is a powerful and compact industrial inverter developed for reliable motor control in demanding automation environments. Belonging to the trusted Altivar Easy 310 series, this drive is engineered to deliver stable torque performance, efficient speed regulation, and simplified machine integration for modern industrial systems.
Designed for three-phase asynchronous motors, the ATV310HD11N4A is widely used in material handling, packaging machinery, conveyors, pumps, and industrial fan systems where operational stability and energy-efficient motor control are essential. Its rugged construction and intelligent control capabilities make it a dependable choice for OEM equipment manufacturers and industrial automation projects.
Electrical & Mechanical Specifications
The ATV310HD11N4A combines compact industrial design with advanced motor control functionality, providing excellent performance in continuous-duty applications.
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Product Series | Altivar Easy 310 |
| Model Number | ATV310HD11N4A |
| Module Type | Variable Speed Drive (VFD) |
| Rated Motor Power | 11 kW / 15 HP |
| Supply Voltage | 380–460 V AC |
| Phase Configuration | 3-Phase |
| Output Frequency Range | 0.5–400 Hz |
| Continuous Output Current | Approx. 24 A |
| Control Technology | Sensorless Flux Vector Control |
| Communication Protocol | Modbus RS-485 |
| EMC Filter | Integrated |
| Protection Rating | IP20 / IP41 Top |
| Mounting Orientation | Vertical Panel Mount |
| Cooling System | Integrated Heat Sink & Fan |
Industrial Applications
The ATV310HD11N4A is engineered for medium-duty industrial automation systems requiring precise speed control and dependable long-term operation.
Typical applications include:
-
Conveyor and transport systems
-
Packaging and labeling machinery
-
Textile manufacturing equipment
-
Industrial pumping systems
-
Ventilation and industrial fan control
-
Material handling machinery
-
Automated production lines
-
OEM machine automation
Its flexible motor control architecture makes it particularly suitable for compact industrial systems where reliability and performance are equally important.
Key Advantages
Powerful Motor Control Performance
Advanced sensorless vector control technology provides smooth acceleration, stable torque output, and reduced motor vibration under varying load conditions.
Compact Industrial Structure
The drive’s space-efficient design helps optimize electrical cabinet layouts and simplifies installation in constrained environments.
Energy-Efficient Operation
By dynamically adjusting motor speed according to process demand, the drive helps reduce unnecessary energy consumption and operating costs.
Reliable Industrial Communication
Integrated Modbus RS-485 communication enables seamless integration with PLCs, HMIs, and automation networks.
Durable Continuous-Duty Design
Built for industrial environments, the ATV310HD11N4A offers dependable long-term operation with efficient thermal management.
Simplified Configuration & Maintenance
User-friendly parameter settings and straightforward commissioning help reduce installation time and maintenance complexity.
Technical FAQs
1. What is the primary function of the ATV310HD11N4A?
It controls AC motor speed and torque in industrial automation systems.
2. What motor power does this drive support?
The drive supports motors up to 11 kW (15 HP).
3. What input voltage range is required?
It operates on 380–460 V AC three-phase power supplies.
4. Which communication protocol is supported?
The drive supports Modbus RS-485 communication for industrial automation integration.
5. Is the ATV310HD11N4A suitable for conveyor systems?
Yes, it is widely used in conveyors, packaging systems, and material handling applications.
6. Does the drive include EMC protection?
Yes, selected configurations include an integrated EMC filter for improved electromagnetic compatibility.
7. What is the protection rating?
The drive offers IP20 protection with optional IP41 top protection configuration.
8. What are the physical dimensions?
The dimensions are approximately 150 × 232 × 171 mm.
9. What is the approximate weight?
The unit weighs approximately 3.7 kg.
10. Is the drive designed for continuous industrial operation?
Yes, it is engineered for stable continuous-duty performance in demanding automation environments.
