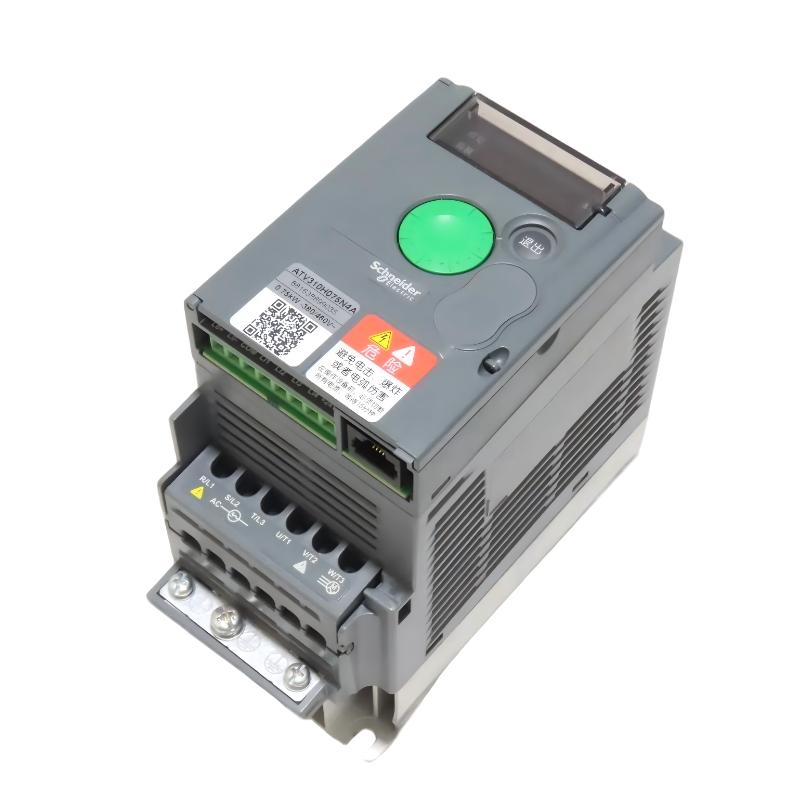

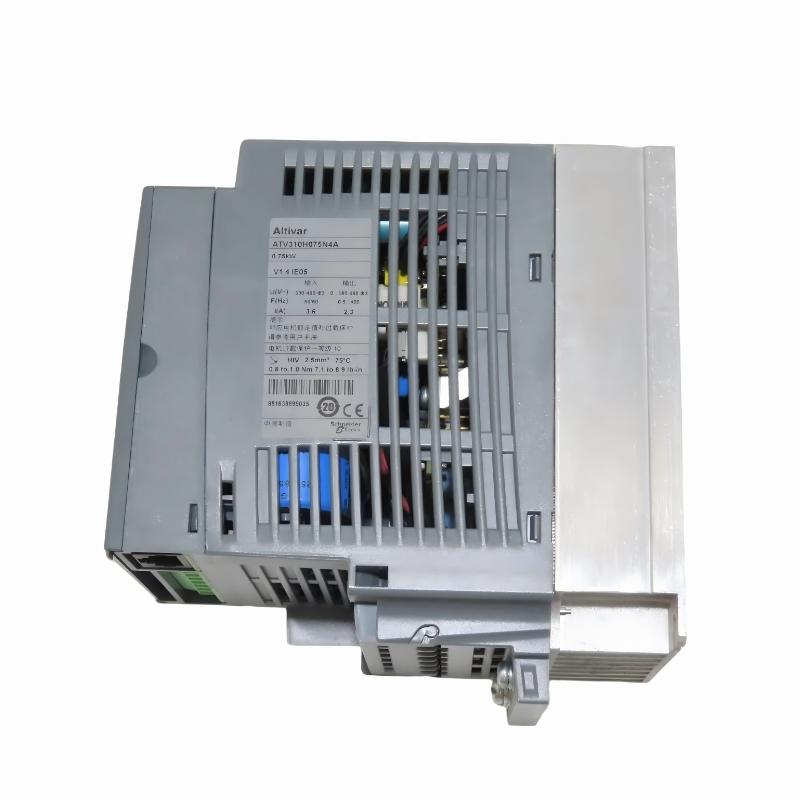

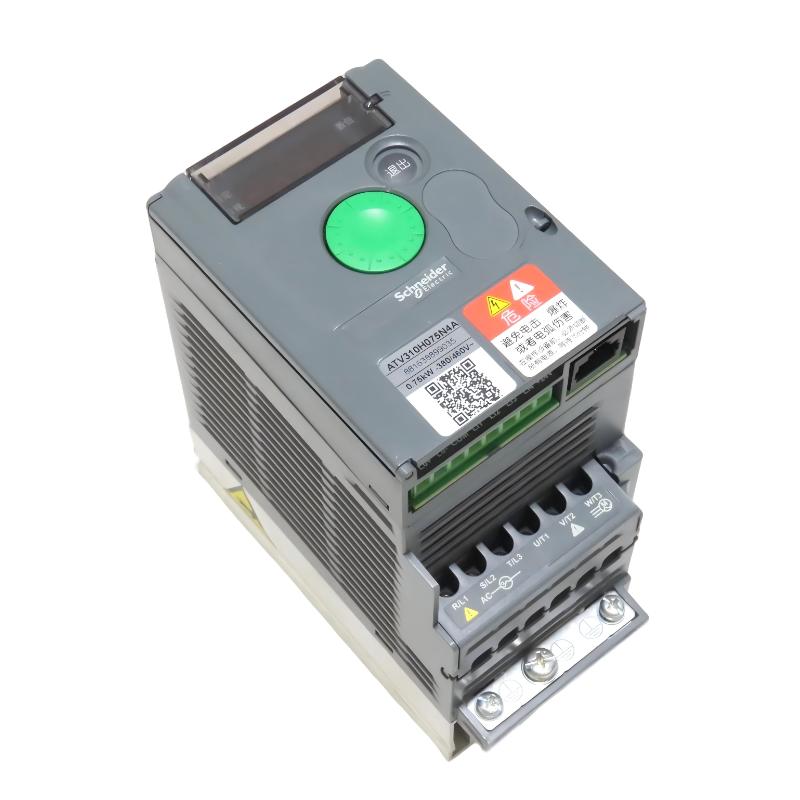

Schneider ATV310H075N4A Variable Speed Drive

Brand:Schneider PLC
Item No.:ATV310H075N4A
Product Origin:France
Product Dimensions:143 x 72 x 140 mm
Product Weight:0.8kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

ATV310H075N4A-4ATV310H075N4A-3ATV310H075N4A-2ATV310H075N4A-1

Schneider Electric ATV310H075N4A Variable Speed Drive – Altivar Easy 310 Series

The Schneider Electric ATV310H075N4A Variable Speed Drive is a compact and dependable motor control solution developed for simple machine automation and light industrial applications. As part of the proven Altivar Easy 310 series, this drive is engineered to deliver smooth speed regulation, efficient torque performance, and reliable operation in demanding industrial environments.

Designed for three-phase asynchronous motors, the ATV310H075N4A is widely used in conveyors, packaging systems, textile equipment, and material handling machinery where compact installation, stable performance, and cost-effective automation are essential. Its streamlined architecture and user-friendly setup make it an excellent choice for manufacturers seeking practical and efficient drive technology.

Technical Specifications

The ATV310H075N4A combines flexible motor control with industrial-grade reliability, making it suitable for a broad range of compact automation systems.

ParameterSpecification
ManufacturerSchneider Electric
Product SeriesAltivar Easy 310
Model NumberATV310H075N4A
Module TypeVariable Speed Drive (VFD)
Rated Motor Power0.75 kW / 1 HP
Input Voltage380–460 V AC
Phase ConfigurationThree-Phase
Output Frequency0.5–400 Hz
Continuous Output Current2.3 A
Motor Control MethodSensorless Flux Vector Control
Communication ProtocolModbus RS-485
Communication PortRJ45
Protection RatingIP20 / IP41 Top
Mounting TypeVertical Panel Mount
Cooling MethodIntegrated Heat Sink


Industrial Applications

The ATV310H075N4A is designed for simple machine applications that require stable motor speed regulation and reliable continuous operation.

Typical applications include:

  • Conveyor and transport systems
  • Packaging and labeling machines
  • Textile processing equipment
  • Light-duty pump systems
  • Industrial fan control
  • Material handling machinery
  • Compact production lines
  • Automated workshop equipment

Its flexible control capability and compact footprint make it highly suitable for modern industrial automation upgrades.


Key Advantages

Compact and Efficient Design

The drive’s space-saving enclosure helps maximize cabinet efficiency while simplifying electrical integration.

Reliable Motor Performance

Advanced sensorless vector control delivers stable torque, smooth acceleration, and reduced motor vibration.

Simplified Machine Integration

Integrated Modbus communication allows quick connection with PLCs, HMIs, and industrial automation networks.

Energy-Conscious Operation

By adjusting motor speed according to actual load demand, the drive helps reduce unnecessary energy consumption.

Stable Industrial Durability

Designed for continuous-duty industrial applications with strong protection against electrical disturbances and operational stress.

Easy Parameter Configuration

User-friendly programming structure simplifies commissioning and reduces maintenance downtime.


Technical FAQs

1. What is the primary function of the ATV310H075N4A?

It controls the speed and torque of AC motors in industrial automation systems.

2. What motor capacity does this drive support?

The drive supports motors up to 0.75 kW (1 HP).

3. What voltage range is required?

It operates on 380–460 V AC three-phase power supplies.

4. Which communication protocol is supported?

The unit supports Modbus RS-485 communication via an RJ45 interface.

5. Is the drive suitable for conveyor systems?

Yes, it is widely used in conveyors, packaging systems, and compact machine automation.

6. What control technology is included?

It features sensorless flux vector motor control for improved speed stability.

7. What is the protection rating?

The drive offers IP20 protection with IP41 top protection configuration.

8. What are the physical dimensions?

The dimensions are approximately 72 × 143 × 140 mm.

9. What is the approximate weight?

The unit weighs around 0.8 kg.

10. Is the ATV310H075N4A designed for simple machine applications?

Yes, the Altivar Easy 310 series is specifically optimized for compact and straightforward industrial automation systems
