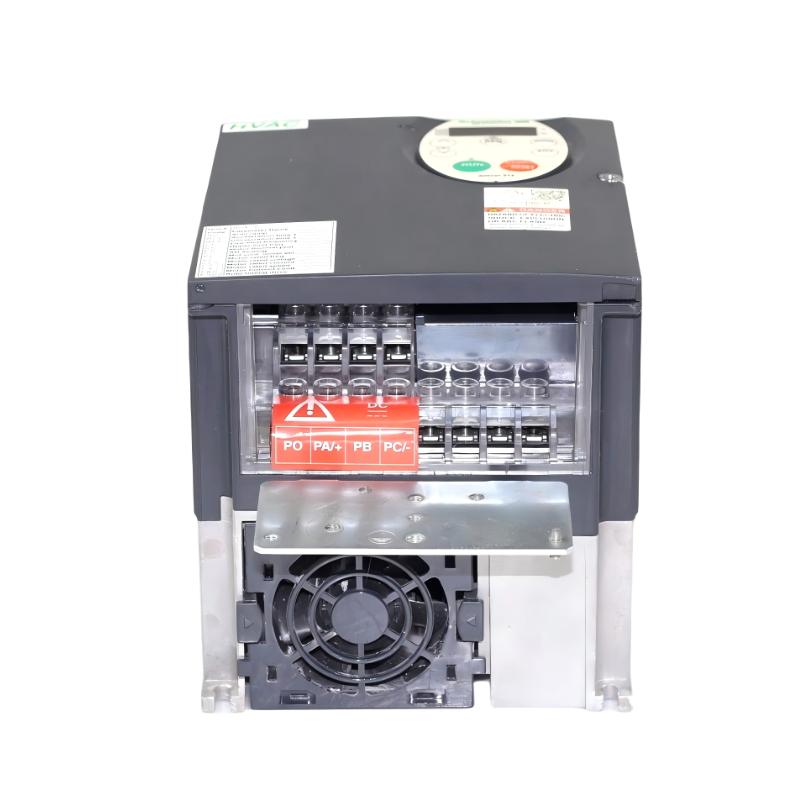

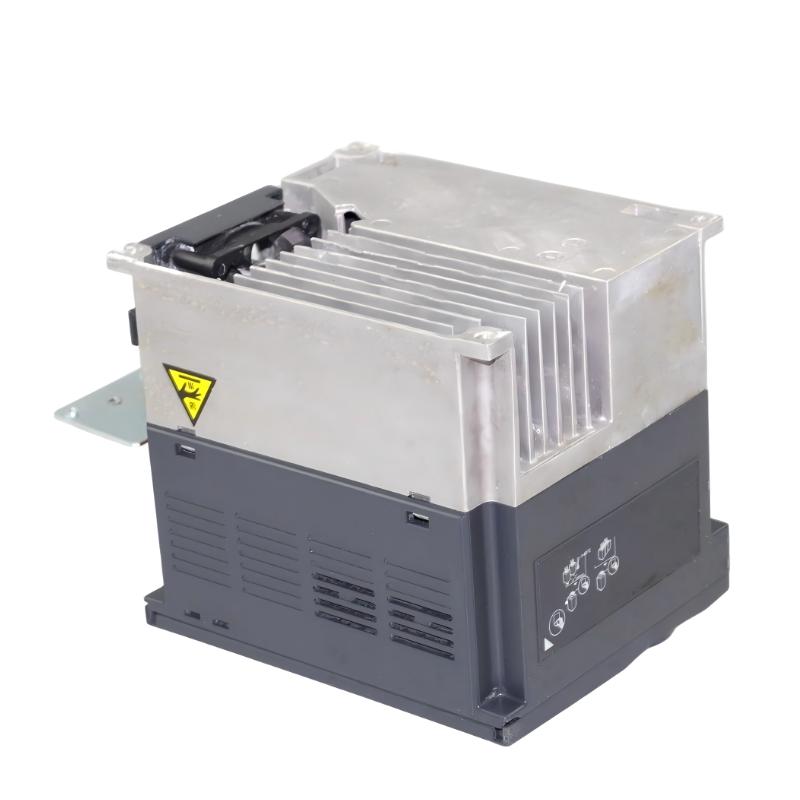

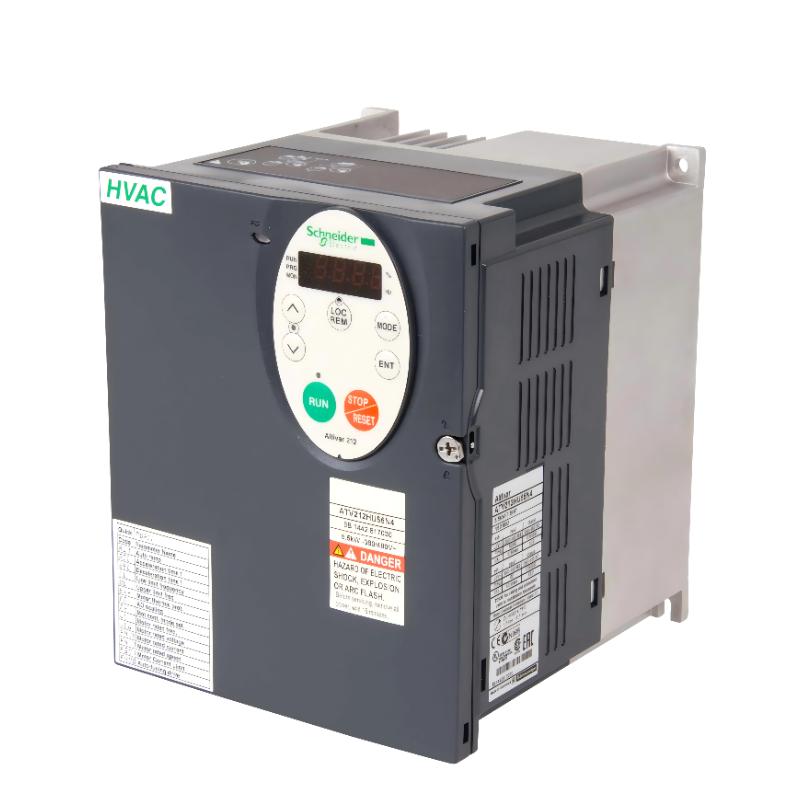

Schneider Electric ATV212HU55N4 Variable Speed Drive – Altivar 212 Series (5.5 kW HVAC Optimized VFD)
The Schneider Electric ATV212HU55N4 Variable Speed Drive is a high-performance 3-phase inverter engineered for energy-efficient motor control in HVAC and fluid handling systems. As part of the Altivar 212 series, it is specifically designed for variable torque applications such as pumps and fans, where stable flow control and reduced energy consumption are essential.
Built with Schneider Electric’s eco-energy architecture, this drive delivers reliable performance in building automation and industrial infrastructure while significantly lowering operating costs through intelligent motor speed regulation.
Technical Specifications
The ATV212HU55N4 is optimized for medium-power HVAC applications requiring efficiency, communication flexibility, and stable motor control.
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Series | Altivar 212 |
| Model | ATV212HU55N4 |
| Device Type | Variable Speed Drive (VFD) |
| Rated Power | 5.5 kW (7.5 HP) |
| Supply Voltage | 380–480 V AC (3-phase) |
| Output Current | 12 A |
| Motor Type | Asynchronous (Induction Motor) |
| Control Mode | Variable torque (HVAC optimized) |
| Communication | Modbus, BACnet, Metasys N2, Apogee P1 |
| EMC Filter | Integrated |
| Protection Rating | IP21 |
| Mounting | Panel-mounted, vertical ±10° |
