Compact High-Precision Excitation Control for Industrial Power Stability

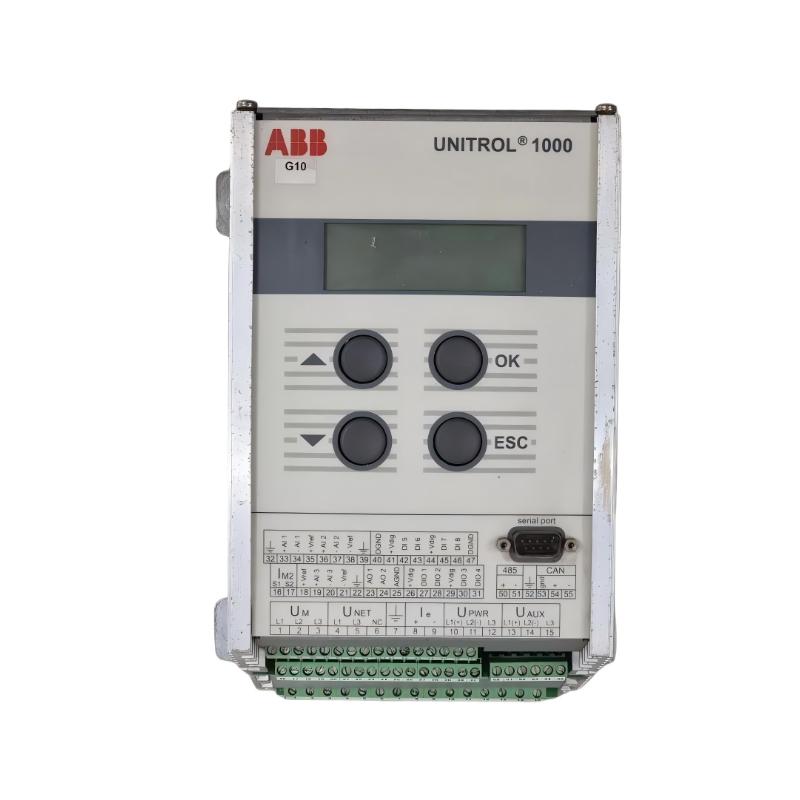

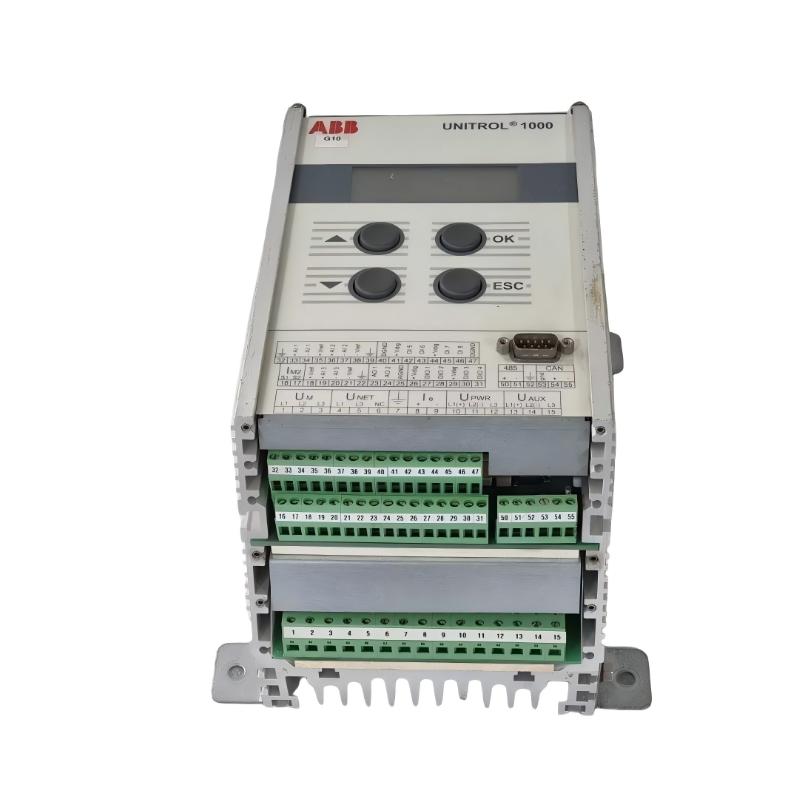

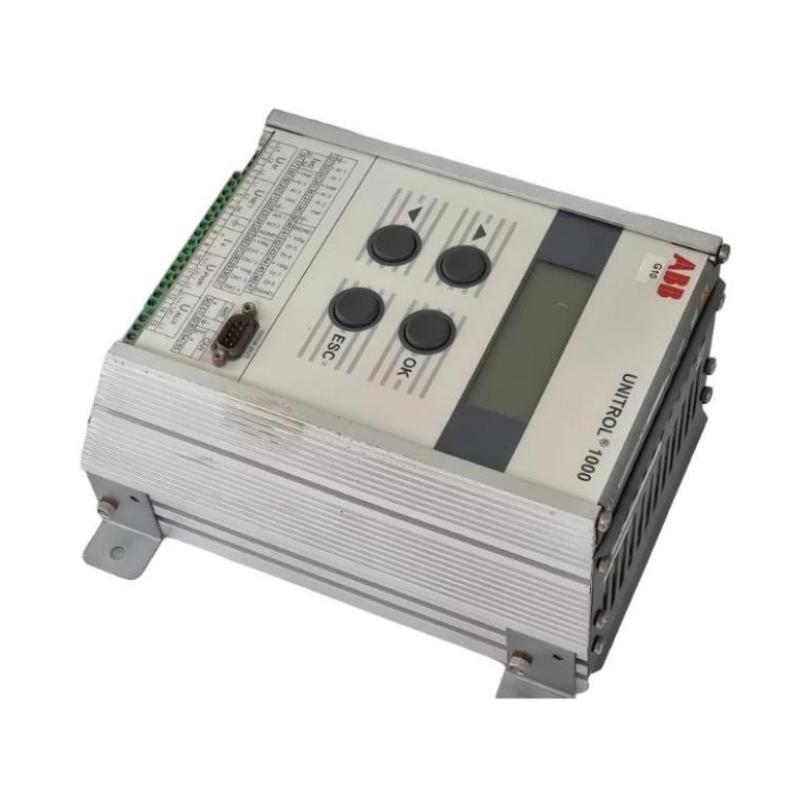

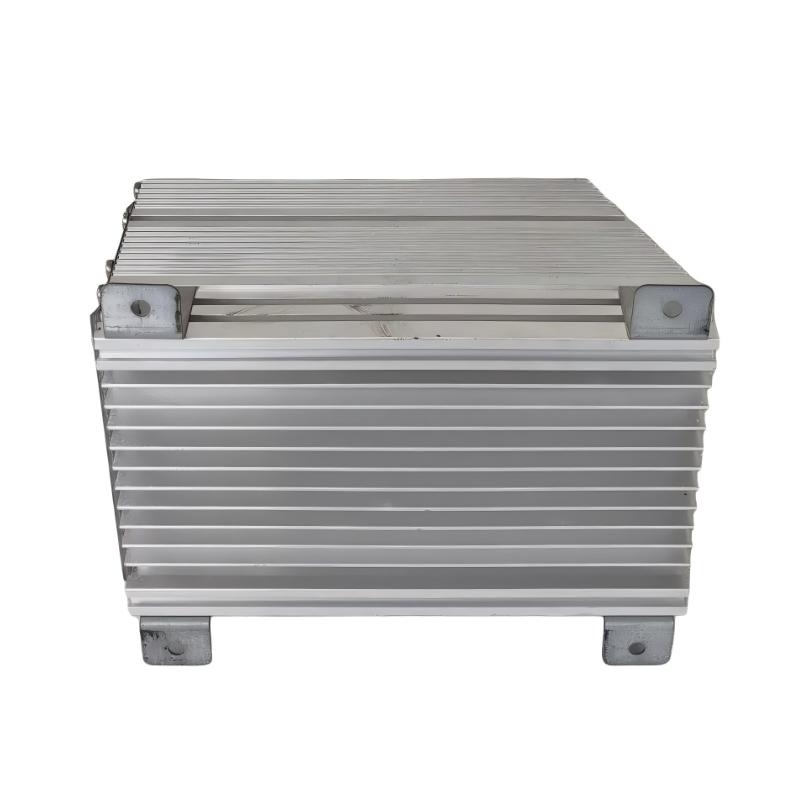

The ABB UN 1000a-Z,V1 3BHE005774R0002 Voltage Regulator is an advanced automatic voltage regulation (AVR) module designed for precise excitation control of synchronous machines. As part of ABB’s UNITROL 1000 series, it provides stable voltage regulation, fast dynamic response, and reliable performance for power generation and industrial energy systems.
Engineered for demanding electrical environments, this regulator ensures consistent generator output, improved grid stability, and optimized system efficiency under varying load conditions. Its compact design and microprocessor-based control architecture make it suitable for modern industrial automation and power plant applications.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model | UN 1000a-Z,V1 |
| Part Number | 3BHE005774R0002 |
| Product Type | Voltage Regulator / AVR |
| System Family | ABB UNITROL 1000 |
| Primary Function | Automatic Voltage Regulation |
| Application | Synchronous Generator Excitation Control |
| Control Technology | Microprocessor-based digital control |
| Operating Temperature | -20°C to +50°C |
| Humidity Range | Up to 95% non-condensing |
| Protection Features | Over/under voltage and overcurrent protection |
| Communication | Industrial fieldbus / Ethernet (system dependent) |
| Installation Type | Control cabinet / rack mounted |
| Cooling Method | Passive cooling |
| Dimensions | Approx. 2.2 × 12.4 × 12.6 cm |
| Weight | Approx. 0.1 kg |
Industrial Applications
The ABB UN 1000a-Z Voltage Regulator is widely used in high-reliability power and industrial systems, including:
-
Thermal and hydroelectric power plants
-
Synchronous generator excitation systems
-
Industrial power distribution networks
-
Marine and offshore electrical propulsion systems
-
Mining and heavy industrial equipment
-
Renewable energy generation systems
-
Grid stabilization and utility power control
-
Process industry power management systems
Its precise regulation capability ensures stable voltage output even under rapidly changing load demands.
Key Advantages
Precise Voltage Control
Maintains stable generator output voltage with high accuracy, improving overall power quality.
Fast Dynamic Response
Rapidly adjusts excitation levels to stabilize voltage fluctuations during load variations.
Compact Industrial Design
Small form factor allows easy integration into control cabinets and excitation systems.
High Reliability Architecture
Designed for continuous industrial operation with strong resistance to electrical and thermal stress.
ABB UNITROL Integration
Fully compatible with ABB excitation and power control platforms for seamless system deployment.
Enhanced System Stability
Improves synchronization and reduces voltage instability in power generation systems.
Technical FAQs
1. What is the main function of the ABB UN 1000a-Z regulator?
It provides automatic voltage regulation for synchronous generators by controlling excitation levels.
2. Which ABB system is it part of?
It belongs to the ABB UNITROL 1000 excitation system family.
3. Where is this module commonly used?
It is used in power plants, industrial generators, marine systems, and energy infrastructure.
4. Does it support automatic voltage regulation?
Yes, it performs AVR (Automatic Voltage Regulation) functions.
5. What type of machines does it control?
It is designed for synchronous generators and related excitation systems.
6. What is its operating temperature range?
It operates between -20°C and +50°C.
7. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial usage.
8. Does it require active cooling?
No, it uses a passive cooling design.
9. How heavy is the module?
Approximately 0.1 kg.
10. Why is voltage regulation important in power systems?
It ensures stable power output, protects equipment, and maintains grid reliability.
