Introduction

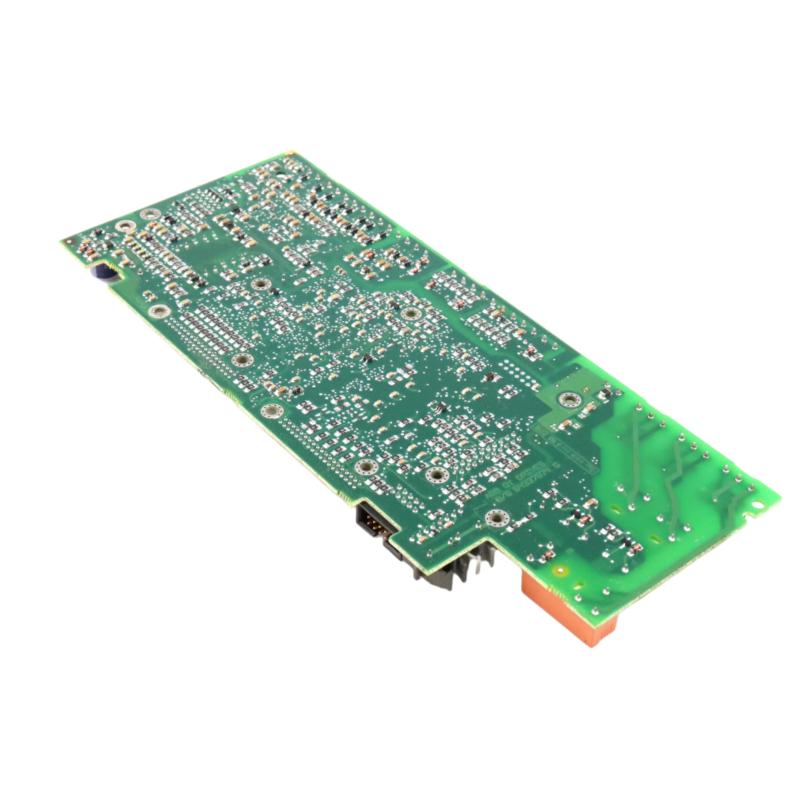

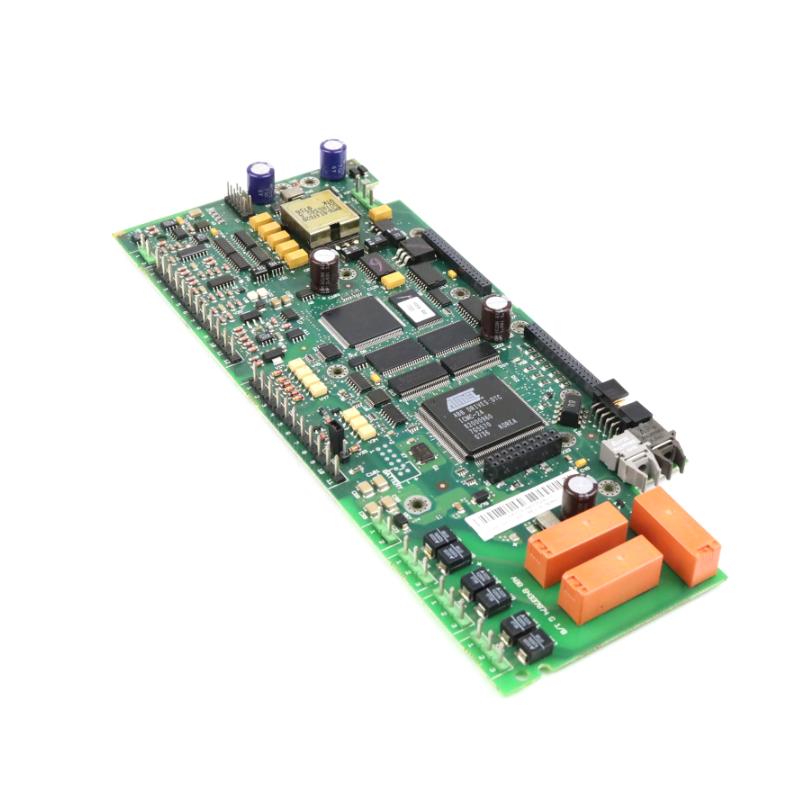

The ABB RMIO-02C 64379160 Power Control Board is a specialized control module used primarily in ABB ACS800 drive systems. Designed for high-performance industrial automation, this board plays a critical role in managing signal processing, I/O expansion, and drive-level control functions. Built with ABB’s robust engineering standards, it ensures stable operation, precise motor coordination, and reliable communication between control and power sections in demanding environments.
This module is widely valued in retrofit and maintenance scenarios where long-term system stability and compatibility with existing ABB drive architecture are essential.
Technical Specifications
| Parameter | Details |
|---|

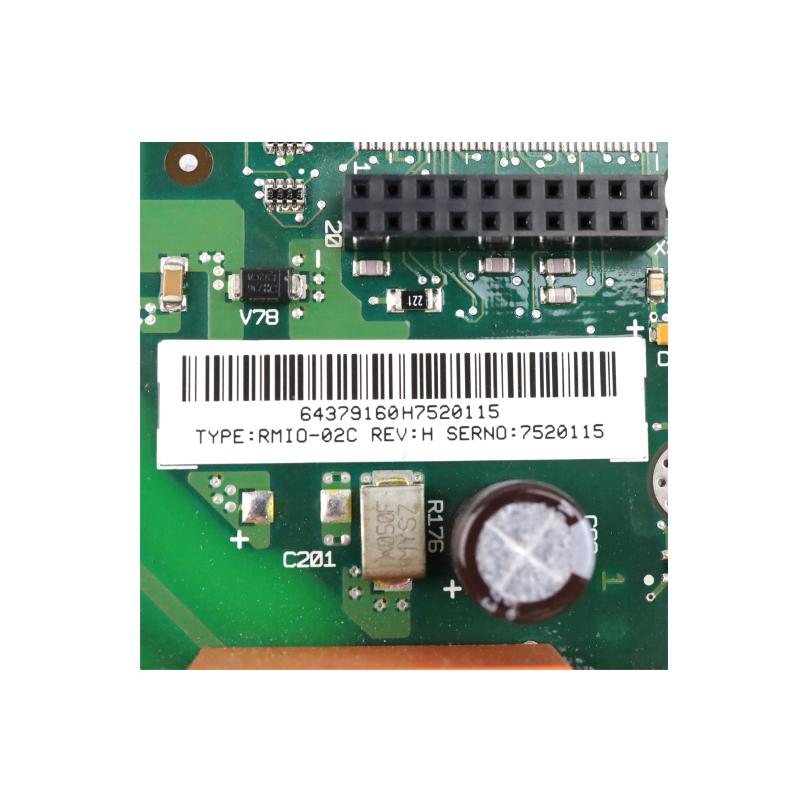

| Model | RMIO-02C (64379160) |
| Product Type | Power Control / Remote I/O Control Board |
| Drive Compatibility | ABB ACS800 Series |
| Function | Drive control, I/O expansion, signal processing |
| Operating Voltage | 200–500 V AC (system dependent) |
| Control Supply Voltage | 24 V DC (logic supply) |
| Communication Interface | Fiber optic / internal drive bus |
| I/O Expansion Support | Yes |
| Protection Class | IP20 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| Dimensions (H × W × D) | Approx. 186 × 261 × 40 mm |
| Weight | Approx. 0.21 – 0.4 kg (variant dependent) |
Applications
The RMIO-02C is mainly used within ABB ACS800 drive systems to extend control capabilities and manage real-time signal exchange between sensors, actuators, and drive processors. It is commonly deployed in:
-
Industrial motor drive systems
-
Conveyor and material handling systems
-
Pumps, fans, and compressor control
-
Heavy manufacturing automation lines
-
Process industries requiring stable motor regulation
Its role is especially important in systems requiring precise coordination between control logic and power electronics.
Advantages
One of the key strengths of the RMIO-02C is its deep integration within ABB’s ACS800 architecture, allowing highly synchronized communication between control and power stages. This results in improved system stability and reduced signal latency.
Its modular structure simplifies maintenance and replacement, which is particularly valuable in legacy industrial installations where downtime must be minimized. The board also supports reliable I/O expansion, enabling flexible system upgrades without redesigning the entire control architecture.
Designed for industrial resilience, it performs consistently under electrical noise, vibration, and temperature fluctuations commonly found in heavy-duty environments. Its compact design further enhances installation efficiency inside drive cabinets.
Technical FAQs
-
What is the main function of the RMIO-02C board?
It manages control signals and I/O communication in ACS800 drive systems.
-
Which drives is it compatible with?
It is specifically designed for ABB ACS800 series frequency converters.
-
Is it a CPU board?
It acts as a remote I/O and control interface, not a standalone CPU.
-
What does RMIO stand for?
Remote Measurement / Input Output interface used in ABB drive architecture.
-
Can it be used outside ACS800 systems?
It is primarily designed for ACS800 compatibility and is not universally interchangeable.
-
Does it handle power directly?
No, it manages control and signal functions, not main power conversion.
-
What type of communication does it use?
It typically uses internal drive buses and fiber optic links.
-
Is it hot-swappable?
No, installation should be done with the system powered down.
-
What environments is it suitable for?
Industrial environments with controlled cabinet installation (IP20).
-
Why is it important in drive systems?
It ensures accurate coordination between control logic and power modules for stable motor operation.
