Introduction

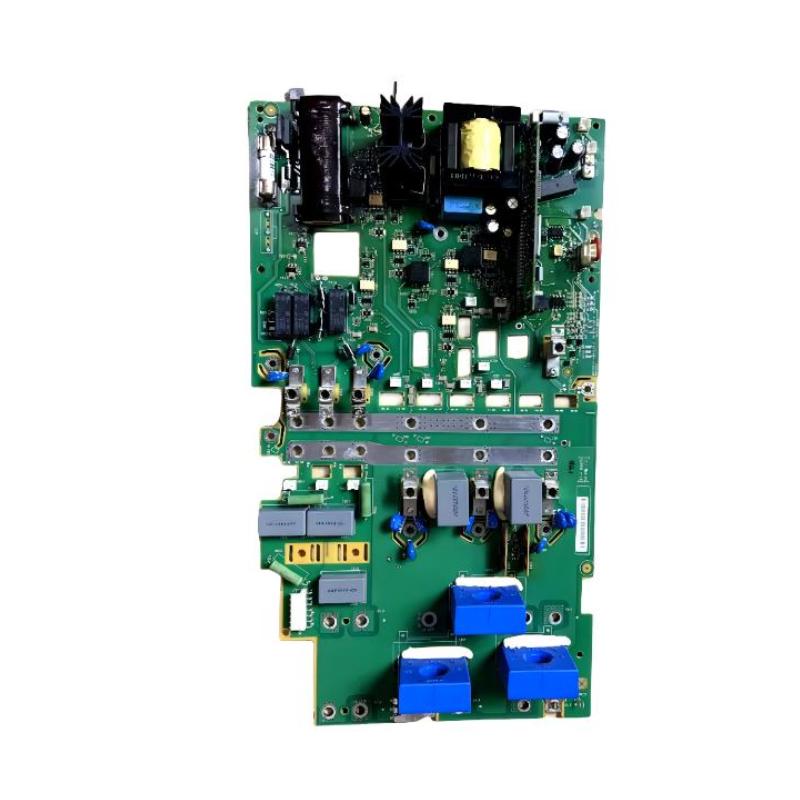

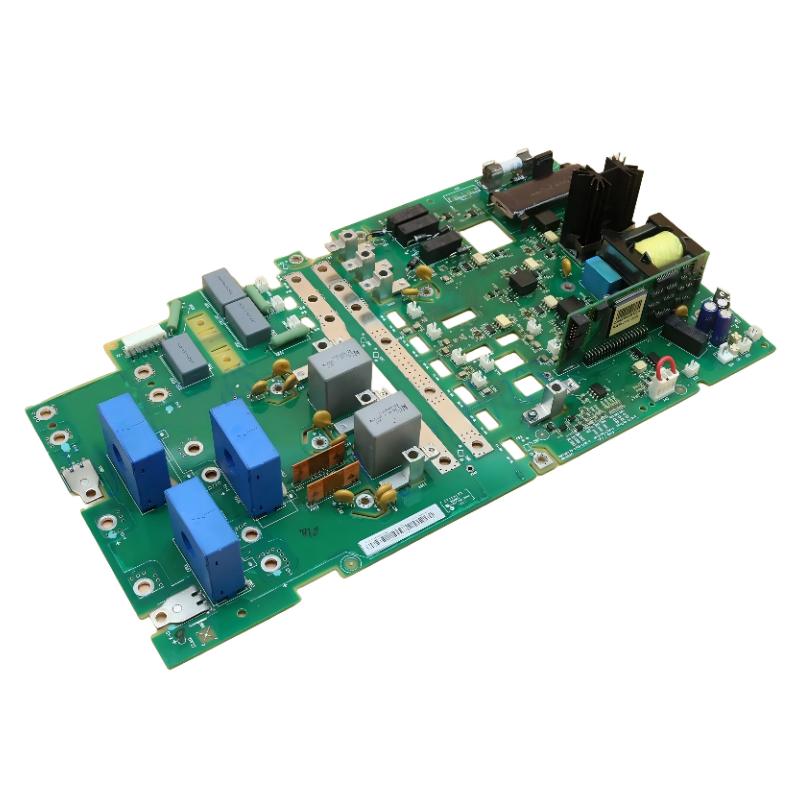

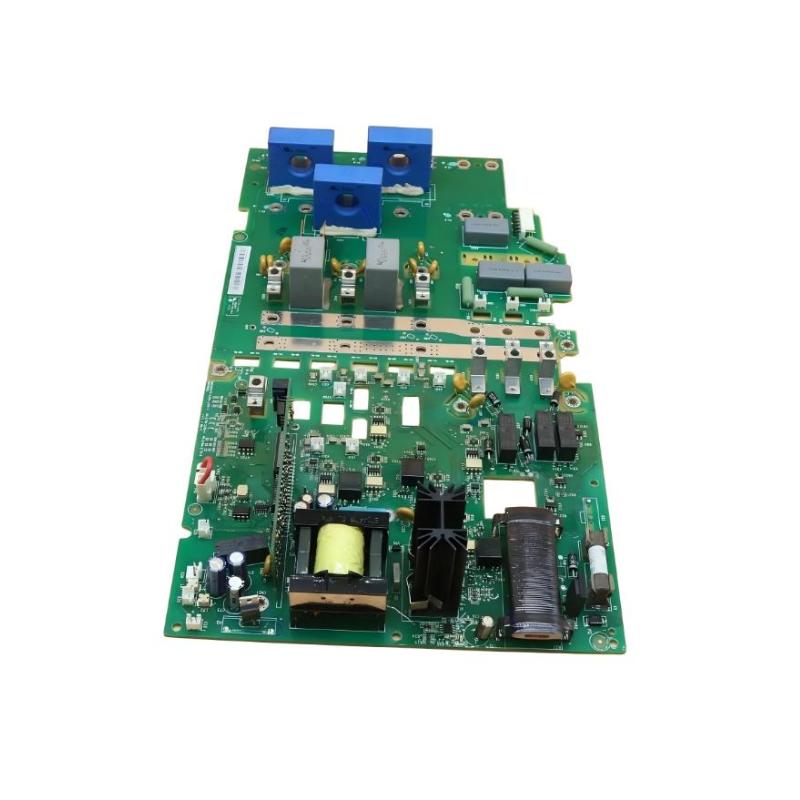

The ABB RINT-5521C 3AUA0000016016E Inverter Control Drive Board is a critical component engineered for high-performance motor control within the ABB ACS800 drive series. Designed with precision and durability in mind, this board ensures stable inverter operation, efficient power conversion, and accurate signal processing. Its integration of advanced switching technology and robust industrial design makes it a trusted solution for demanding automation environments where reliability and continuous operation are essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | RINT-5521C (3AUA0000016016E) |
| Module Type | Inverter Control Drive Board |
| Compatible Systems | ABB ACS800 Series Drives |
| Input Voltage | 24 V DC |
| Output Current | Up to 10 A |
| Rated Drive Power | Up to approx. 55 kW systems |
| Switching Technology | IGBT-based |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions (H × W × D) | 200 × 100 × 50 mm |
| Alternative Dimensions | 125 × 52 × 105 mm (variant reference) |
| Weight | Approx. 1.1 – 2.1 kg (depending on configuration) |
| Installation Type | Internal drive mounting |
