Introduction

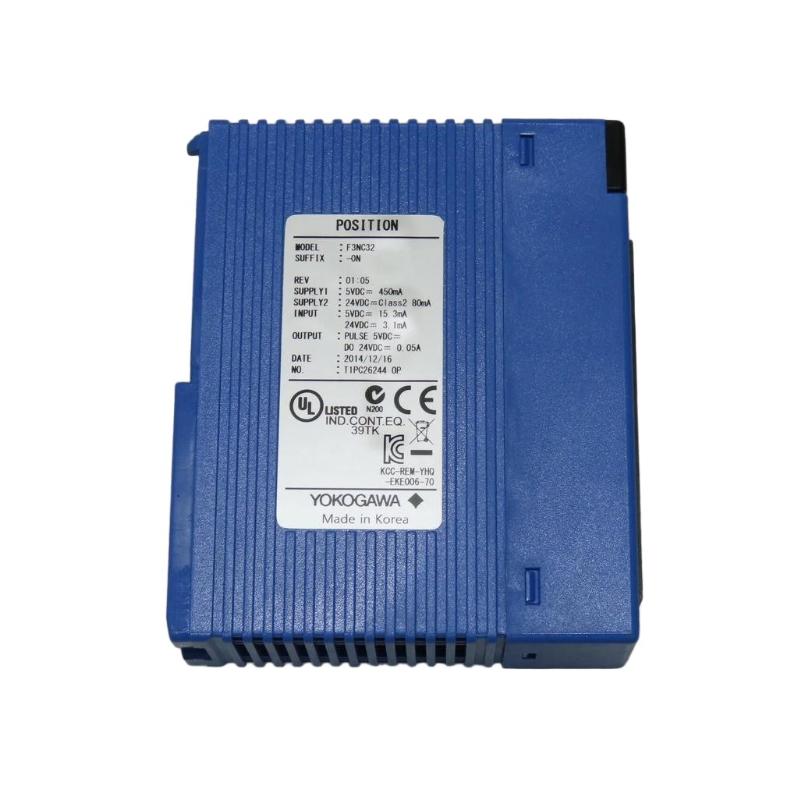

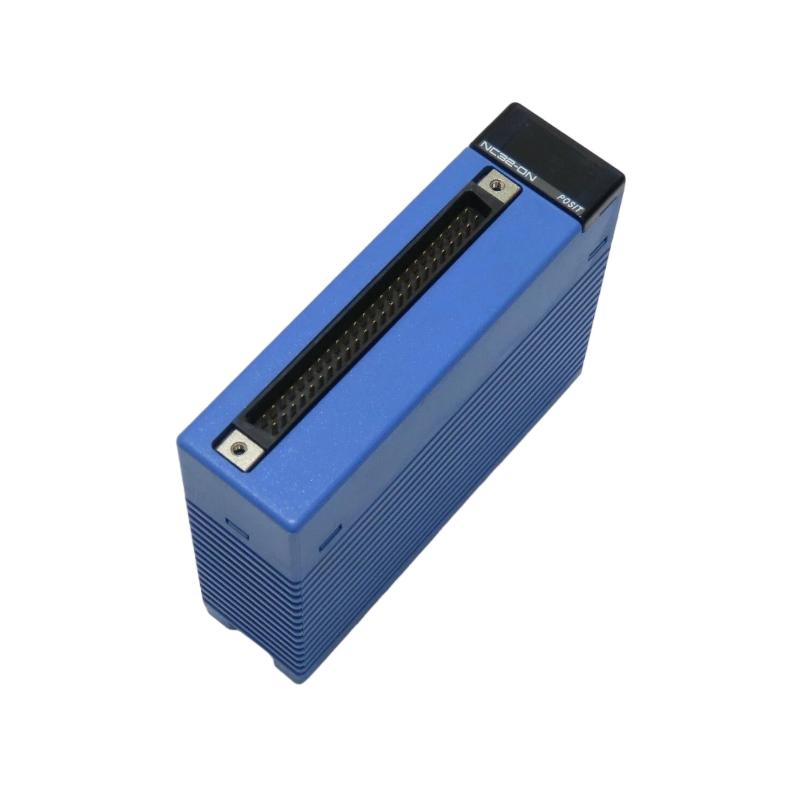

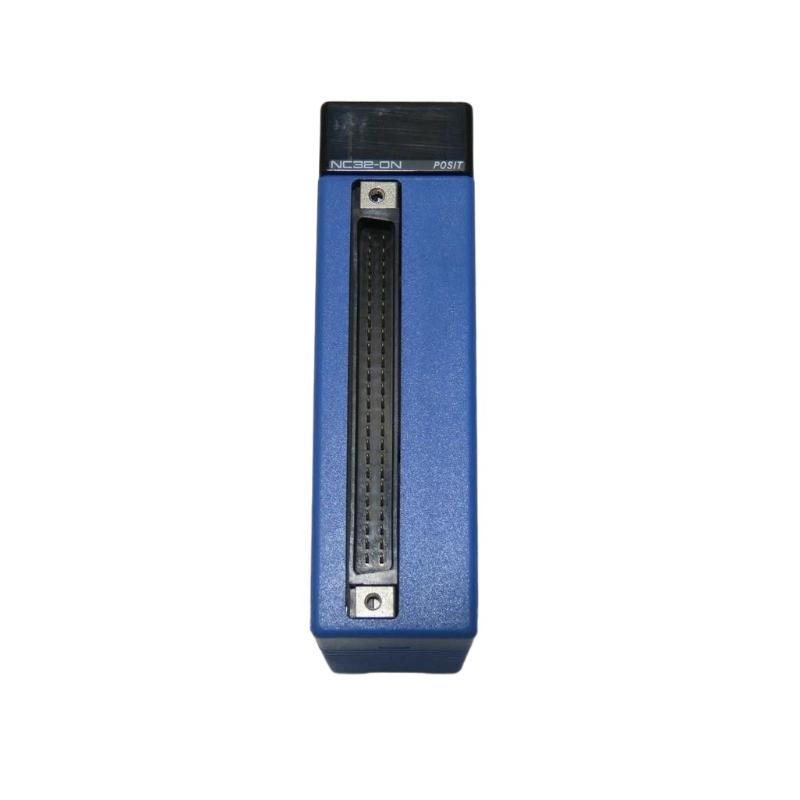

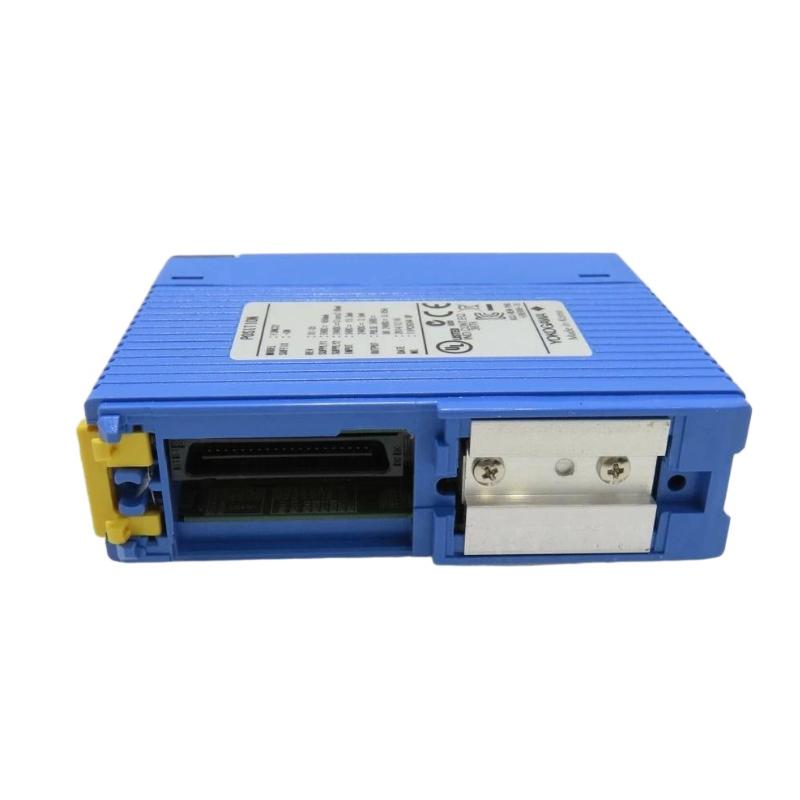

The Yokogawa F3NC32-0N Positioning Module is a high-speed motion control unit designed for FA-M3 PLC systems, enabling precise multi-axis positioning control in advanced industrial automation applications. It is engineered to deliver accurate pulse-based motion control for servo systems, stepper motors, and high-speed mechanical positioning tasks.
With its ability to handle fast pulse output and multi-mode motion profiles, this module is widely used in manufacturing environments where precision, repeatability, and synchronized motion control are essential for productivity and product quality.
Technical Specifications
| Parameter | Specification |
|---|
| Model | F3NC32-0N |
| Module Type | Positioning Module (Pulse Output) |
| Series | FA-M3 |
| Control Axes | 2 axes |
| Output Type | Pulse + Direction / CW-CCW |
| Max Output Frequency | Up to 5 Mpps (mega pulses per second) |
| Motion Control Types | PTP, linear interpolation |
| Operation Modes | Direct operation, pattern operation |
| Encoder Support | Absolute encoder counter (2 channels) |
| Positioning Data | Multi-point programmable positioning |
| Acceleration/Deceleration | Programmable trapezoidal control |
| Pulse Output Interface | Open collector / line driver (depending system design) |
| Response Performance | High-speed real-time control architecture |
| Power Consumption | Approx. 450 mA @ 5 V DC |
| Mounting | FA-M3 base unit slot |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 75°C |
| Humidity | 10–90% RH (non-condensing) |
| Dimensions (W × H × D) | 28.9 × 100 × 106.2 mm |
| Weight | Approx. 0.25 kg |
Applications
The F3NC32-0N is designed for precision motion control in industrial automation systems requiring high-speed and high-accuracy positioning. It is commonly used in:
-
CNC auxiliary positioning systems
-
Packaging and labeling machinery
-
Semiconductor and electronics assembly equipment
-
Robotic pick-and-place systems
-
Conveyor synchronization and indexing systems
-
Automated inspection and measurement systems
Its ability to deliver high-frequency pulse output makes it ideal for fast and accurate mechanical motion control.
Advantages
One of the key advantages of the F3NC32-0N is its high-speed pulse output capability up to 5 Mpps, enabling extremely fast and precise motor positioning even in demanding automation processes.
It supports multiple motion control modes, including point-to-point positioning and linear interpolation, allowing flexible machine design without additional motion controllers.
The module features absolute encoder counter support, improving positioning accuracy and reducing homing time during system startup.
Its real-time control architecture ensures minimal delay between PLC commands and motion execution, enhancing machine responsiveness and production efficiency.
Additionally, its integration within the FA-M3 system allows seamless coordination with other I/O, communication, and control modules, creating a unified automation platform.
Technical FAQs
1. How many axes does the F3NC32-0N support?
It supports 2 independent motion control axes.
2. What is the maximum pulse output frequency?
Up to 5 Mpps (mega pulses per second).
3. What types of motion control are supported?
PTP (point-to-point) and linear interpolation control.
4. Does it support encoders?
Yes, it supports absolute encoder input for position tracking.
5. Can it perform multi-point positioning?
Yes, it supports programmable multi-position control.
6. Is it suitable for high-speed machines?
Yes, it is designed for high-speed industrial motion systems.
7. What PLC system is it compatible with?
It is designed for Yokogawa FA-M3 PLC platforms.
8. Does it support synchronized motion?
Yes, it can coordinate multi-axis motion within the FA-M3 system.
9. What kind of output signal does it use?
Pulse + direction or CW/CCW pulse signals depending on configuration.
10. Is it suitable for precision manufacturing?
Yes, it is widely used in high-precision automation and manufacturing equipment.
