Introduction

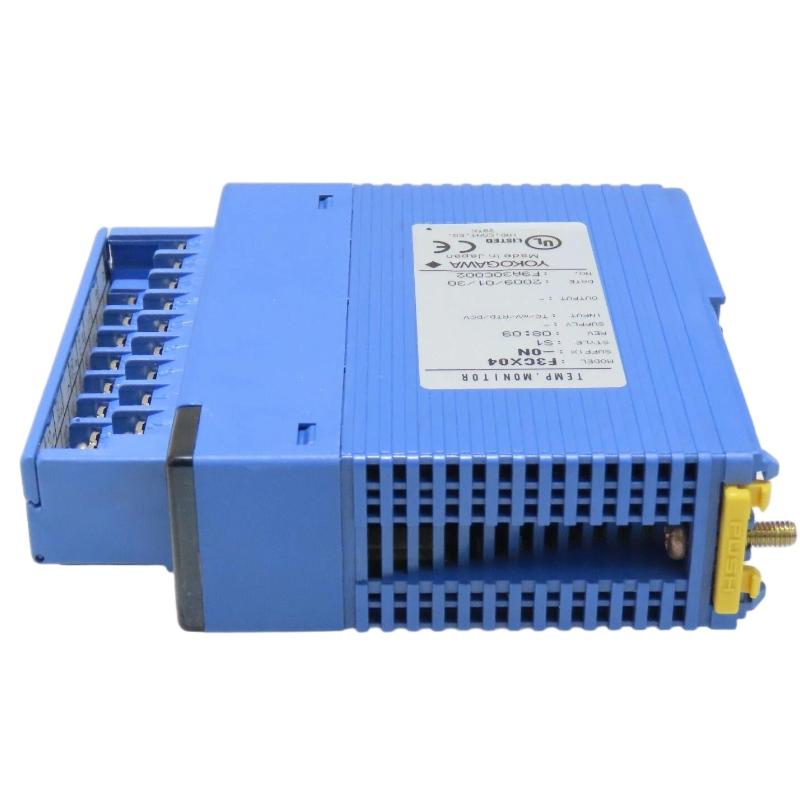

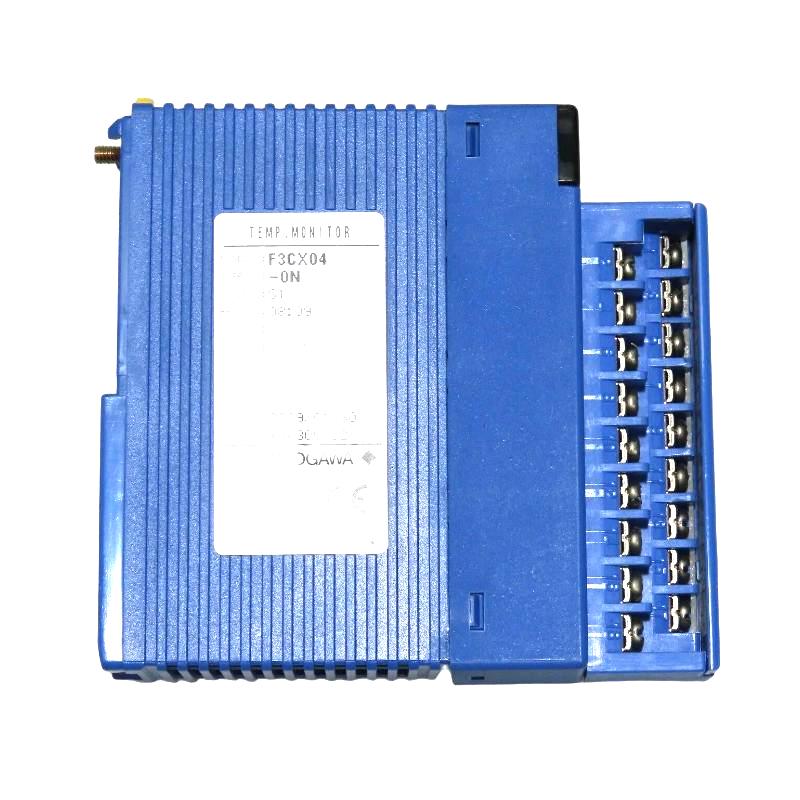

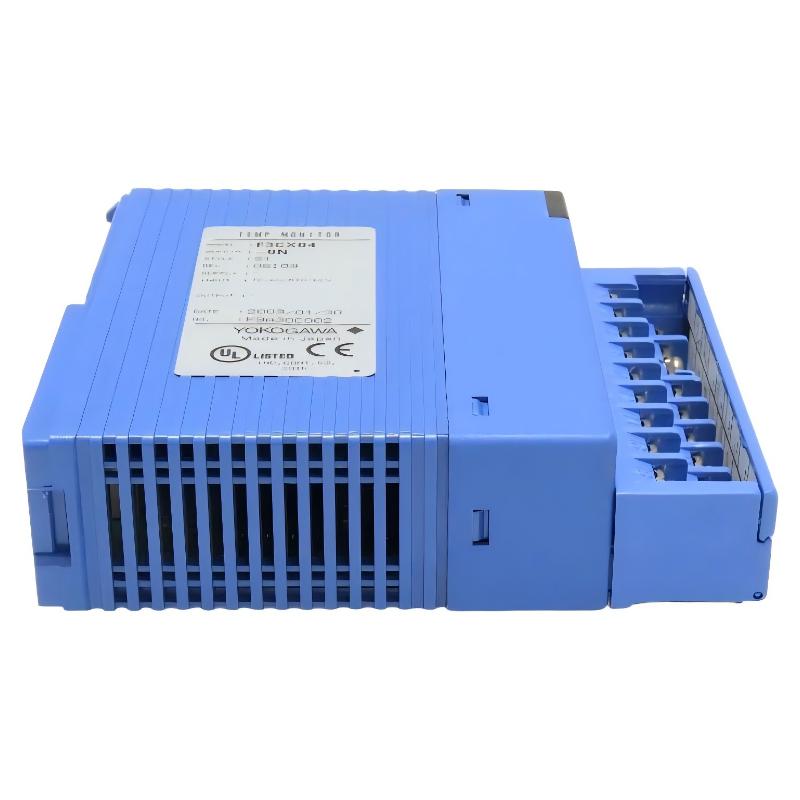

The Yokogawa F3CX04-0N Temperature Monitoring Module is a compact, high-precision input solution designed for the FA-M3 PLC platform. Built for industrial environments that demand stable thermal visibility, it continuously monitors multi-channel temperature signals and converts them into reliable, high-resolution data for process supervision and control.
Unlike general-purpose I/O modules, this unit is purpose-built for temperature acquisition, offering isolation, fast sampling, and universal sensor compatibility. It is widely used in automation systems where consistent temperature monitoring directly impacts product quality, equipment safety, and process efficiency.
Technical Specifications
| Parameter | Specification |
|---|
| Model | F3CX04-0N |
| Module Type | Temperature Monitoring Module |
| Series | FA-M3 |
| Input Channels | 4 channels |
| Input Types | Thermocouple, RTD, DC voltage (universal input) |
| Supported Sensors | Multiple thermocouple types (K, J, T, E, etc.), RTD |
| Sampling Period | 200 ms (4 channels) / 100 ms (2 channels mode) |
| Input Accuracy | ±0.1% of full scale |
| Resolution | 0.1°C |
| Input Impedance | ≥ 1 MΩ |
| Isolation | Channel-to-channel & input-to-system isolation |
| Burnout Detection | Supported |
| Alarm Functions | Upper/lower limit alarms with delay option |
| Power Consumption | Approx. 440 mA @ 5 V DC |
| Mounting | FA-M3 base unit single-slot installation |

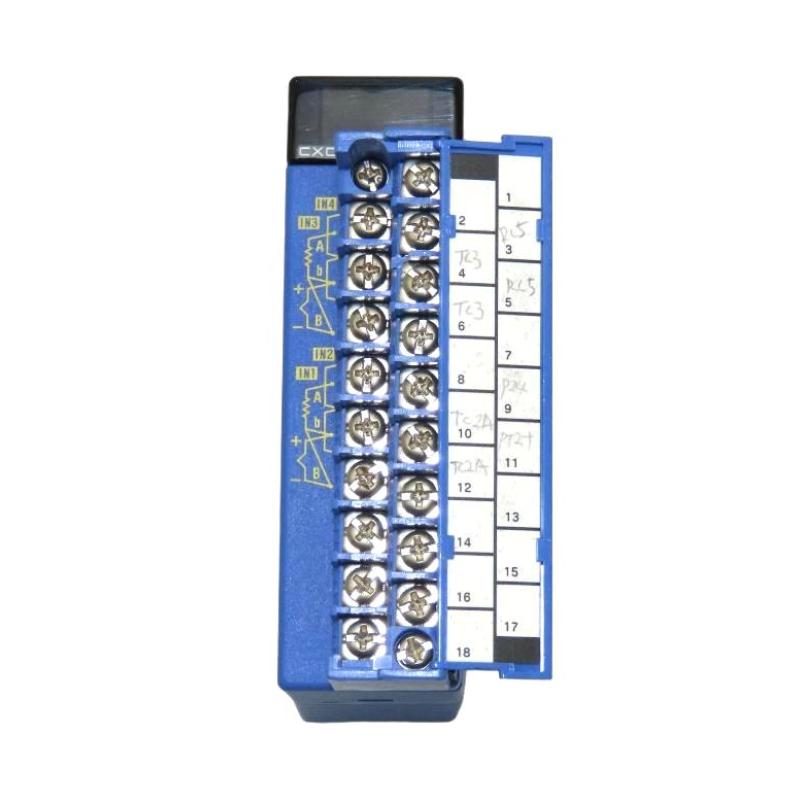

| Terminal Type | 18-point terminal block |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 75°C |
| Humidity | 10–90% RH (non-condensing) |
| Dimensions (W × H × D) | 28.9 × 100 × 106.1 mm |
| Weight | Approx. 0.2–0.3 kg (varies slightly by configuration) |
Applications
The F3CX04-0N is designed for continuous temperature visibility in demanding industrial environments where even small deviations matter. It is commonly deployed in:
-
Heat treatment and furnace monitoring systems
-
Plastic molding and extrusion machines
-
Semiconductor manufacturing equipment
-
Chemical process temperature supervision
-
Packaging machines requiring thermal stability
-
Multi-zone industrial heating systems
Its ability to handle multiple sensor types makes it highly adaptable across both discrete and process industries.
Advantages
What makes this module particularly valuable is its combination of precision, isolation, and flexibility. Each channel operates independently, reducing noise interference and ensuring accurate temperature readings even in electrically harsh environments.
Its universal input capability allows engineers to mix thermocouples and RTDs within the same module, simplifying system design and reducing hardware complexity.
The built-in alarm and burnout detection functions further enhance operational safety by providing early warnings of abnormal temperature conditions or sensor failures.
Additionally, because input processing is handled locally within the module, the main PLC CPU is relieved from heavy scanning tasks, improving overall system responsiveness.
Technical FAQs
1. How many temperature inputs does it support?
It supports 4 independent channels.
2. What types of sensors are compatible?
Thermocouples, RTDs, and DC voltage signals are supported.
3. Is each channel isolated?
Yes, all channels are electrically isolated from each other and from internal circuits.
4. What is the sampling speed?
200 ms for 4-channel operation (or 100 ms in reduced-channel mode).
5. Does it support alarm functions?
Yes, upper and lower limit alarms with optional delay timing are included.
6. Can it detect sensor failure?
Yes, it supports burnout detection for thermocouples and RTDs.
7. What is the measurement resolution?
0.1°C resolution is supported.
8. Does it require complex setup?
No, basic configuration is stored in the module, reducing startup parameter setup.
9. What PLC system is it compatible with?
It is designed for Yokogawa FA-M3 systems.
10. Is it suitable for high-noise environments?
Yes, strong electrical isolation improves stability in industrial conditions.
