Product Perspective

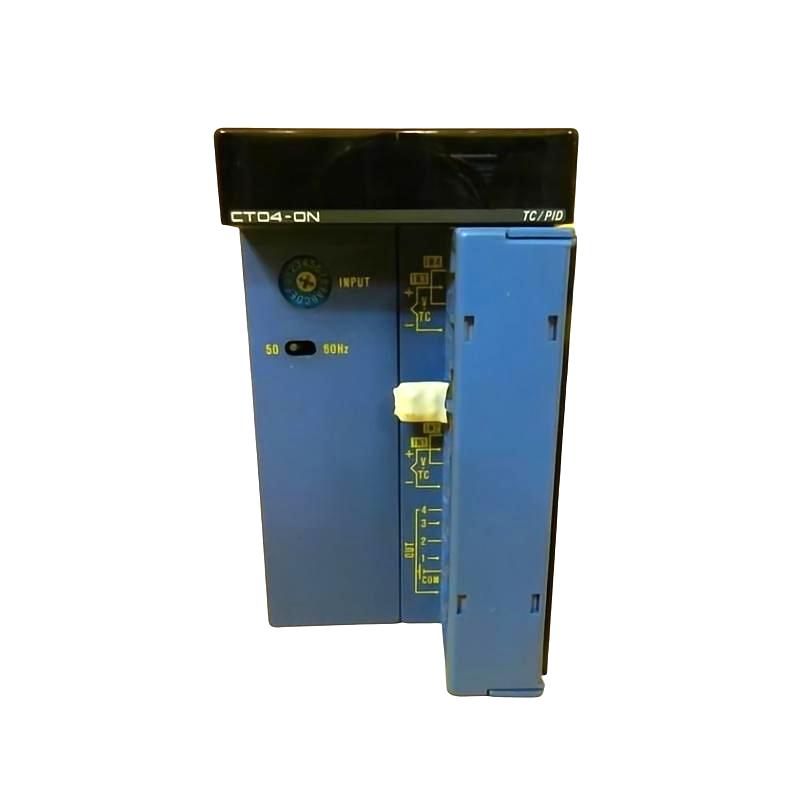

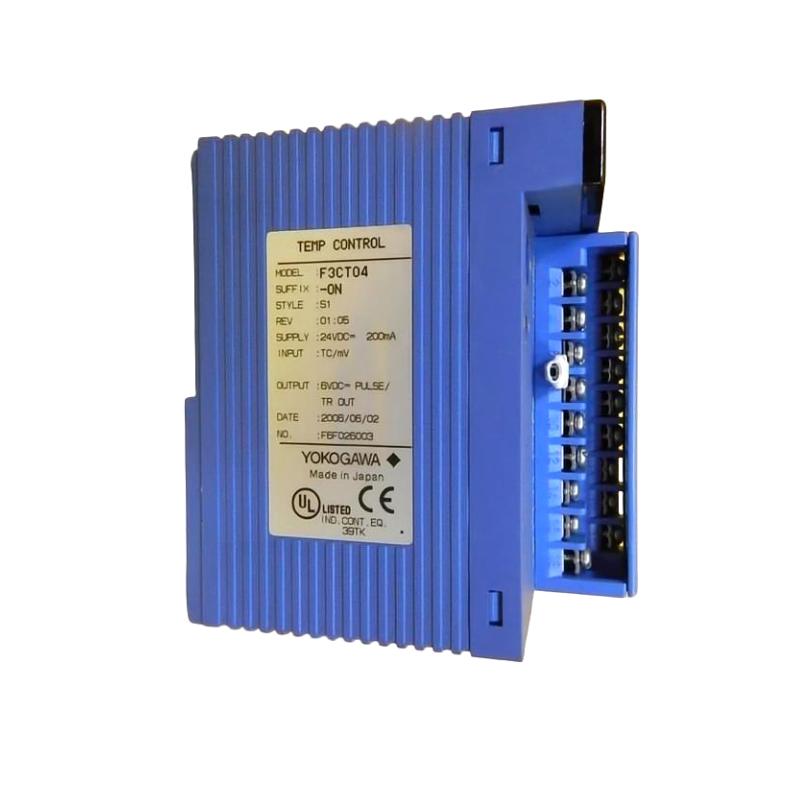

The Yokogawa F3CT04-0N Temperature Control/Monitoring Module is a precision-engineered solution designed for FA-M3 PLC platforms, delivering stable and high-speed thermal regulation in demanding industrial environments. Built to handle multi-loop temperature processes, this module integrates advanced control algorithms directly at the hardware level, reducing CPU workload while enhancing system responsiveness.
Its ability to independently manage multiple temperature channels makes it especially suitable for applications where consistency, repeatability, and process stability directly impact product quality. Whether used for control, monitoring, or both, it offers a refined balance between performance and system efficiency.
Technical Specifications
| Parameter | Specification |
|---|
| Model | F3CT04-0N |
| Module Type | Temperature Control/Monitoring Module |
| Series | FA-M3 |
| Control Loops | 4 independent loops |
| Input Types | Thermocouple (multiple types), mV signals |
| Supported Sensors | K, J, T, E, R, S, B, N, and others |
| Input Voltage Range | 0–10 mV, 0–100 mV |
| Control Method | PID, ON/OFF control |
| Output Type | Time-proportional (open collector / voltage pulse) |
| Sampling Interval | Approx. 0.5 s |
| Input Impedance | ≥ 20 MΩ |
| Isolation | Photocoupler isolation |
| Power Supply | 24 V DC, approx. 200 mA |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 75°C |
| Humidity | 5–95% RH (non-condensing) |
| External Connection | 18-point terminal block |
| Dimensions (W × H × D) | 28.9 × 100 × 83.2 mm |
| Weight | Approx. 0.24–0.4 kg |
Application Scenarios
The F3CT04-0N is widely used in industries where thermal precision is critical to process quality and safety. Its multi-channel architecture enables efficient control across several zones simultaneously. Typical applications include:
-
Industrial furnaces and heat treatment systems
-
Plastic injection molding and extrusion lines
-
Semiconductor manufacturing processes
-
Chemical reactors and batch processing
-
Environmental chambers and laboratory ovens
-
Packaging equipment requiring consistent heat sealing
Its consistent sampling and independent loop control ensure minimal temperature fluctuation, even in dynamic production environments.
Competitive Advantages
The strength of this module lies in its dedicated temperature control capability, operating independently from the main PLC scan cycle. This ensures stable control performance regardless of CPU load fluctuations.
Its four-loop architecture allows simultaneous multi-zone control without additional hardware, reducing system complexity and cost. Additionally, the flexible input compatibility simplifies integration with various sensor types, making system design more efficient.
Engineers also benefit from smoother process transitions thanks to built-in PID functionality and adaptive control behavior, which helps reduce overshoot and improve energy efficiency in heating systems.
Technical FAQs
1. How many temperature channels does the module support?
It supports four independent temperature control or monitoring channels.
2. What types of sensors can be connected?
Thermocouples and millivolt input signals are supported.
3. Does it perform PID control internally?
Yes, it includes built-in PID control for each loop.
4. Can it operate without heavy CPU involvement?
Yes, it processes control loops independently, reducing CPU load.
5. What is the sampling speed?
Approximately 0.5 seconds depending on configuration.
6. Is it suitable for multi-zone heating systems?
Yes, it is specifically designed for multi-zone temperature control.
7. What kind of output does it provide?
Time-proportional outputs such as open collector or voltage pulse signals.
8. Can it be used only for monitoring?
Yes, it supports both monitoring-only and control applications.
9. How is installation handled?
It is a plug-in module designed for FA-M3 base units.
10. Does it support system diagnostics?
Yes, it enables real-time monitoring and facilitates system debugging through loopback and feedback features.
