Introduction

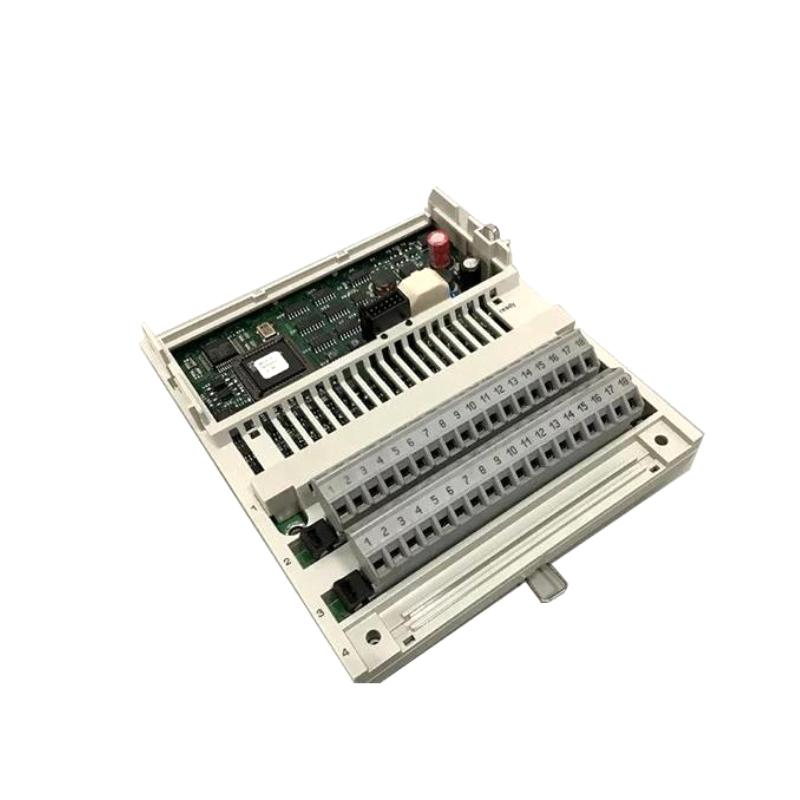

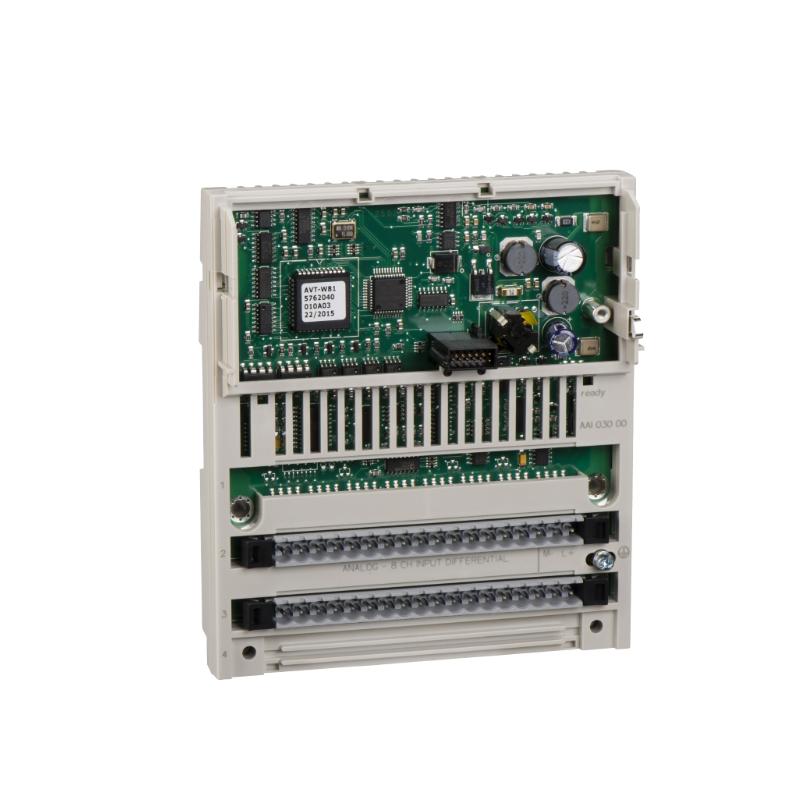

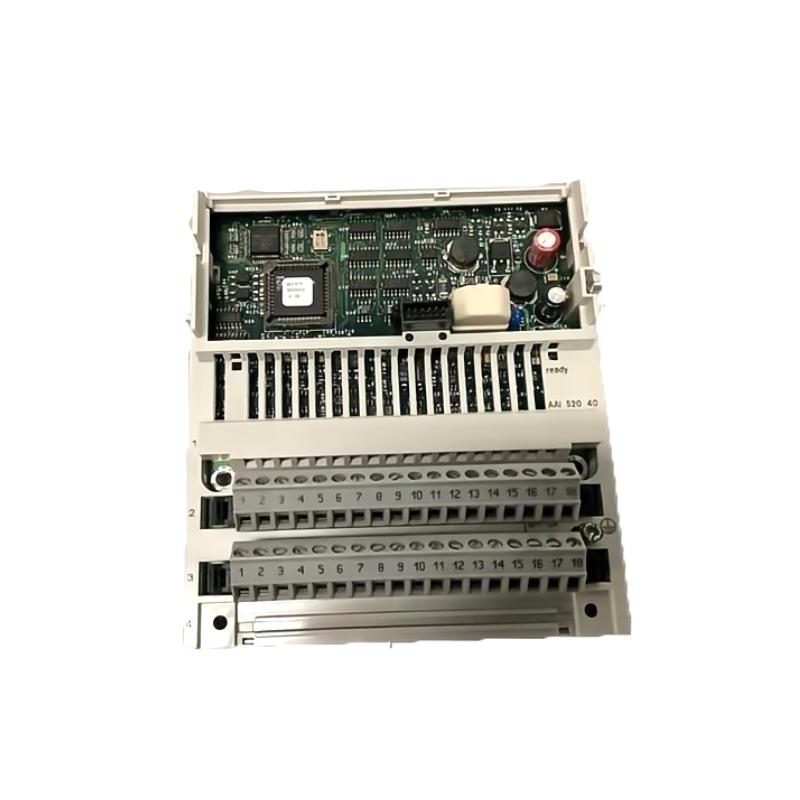

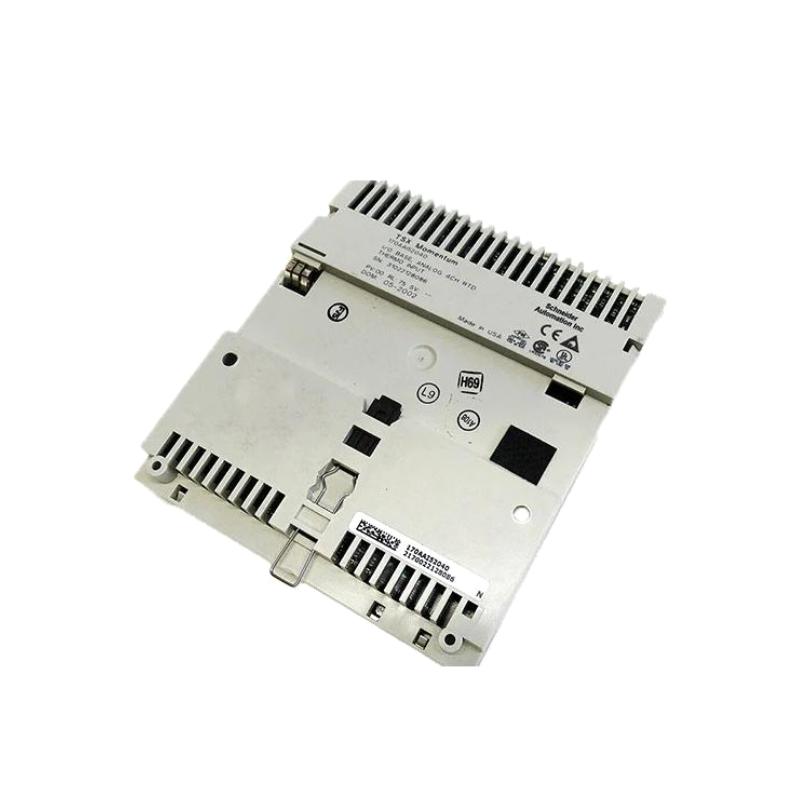

The Schneider 170AAI52040 Distributed Analog Input Base is a compact, high-precision I/O module from the Modicon Momentum automation platform. It is designed for distributed control systems where accurate analog signal acquisition is required close to field instrumentation.
This module provides reliable measurement of low-level analog signals such as millivolt inputs and thermocouples, making it ideal for precision process monitoring in industrial environments. Its modular Momentum architecture allows flexible system expansion while keeping wiring simple and localized.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Distributed Analog Input Base |
| Platform | Modicon Momentum |
| Analog Input Channels | 4 differential inputs |
| Input Signal Range | ±25 mV / ±100 mV |
| Resolution | 16-bit signed |
| Supported Sensors | Thermocouples (K, J, T, E, N, S, R, B), RTD (Pt100, Ni100, etc.) |
| Input Type | Differential |
| Input Impedance | >10 MΩ |
| Update Time | ~500 ms |
| Isolation (Channel to Channel) | ~400 V DC |
| Isolation (Channel to Ground) | 500 V AC (1 min) |
| Power Supply | External 24–30 V DC (system dependent) |
| Power Dissipation | ~5–6 W |
| Diagnostics | 4 LED channel status indicators |
| Connection Type | Removable terminal blocks |
| Mounting Type | Momentum base system (rack or wall) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
Applications
The 170AAI52040 is designed for industrial environments requiring precise low-level analog measurement in distributed architectures. Typical applications include:
-
Process control systems in chemical and pharmaceutical plants
-
Energy monitoring and instrumentation systems
-
Temperature and pressure monitoring networks
-
Water and wastewater treatment facilities
-
Industrial furnace and thermal control systems
-
Remote field signal acquisition in distributed automation setups
Its ability to directly interface with thermocouples and millivolt signals makes it especially valuable in high-precision measurement applications.
Advantages
The 170AAI52040 delivers strong measurement accuracy in a compact distributed format. Its 16-bit resolution ensures fine signal detail, enabling reliable monitoring of small analog variations in industrial processes.
A key advantage is its direct support for thermocouples and RTD sensors without requiring external signal conditioning in many applications. This simplifies system design and reduces hardware costs.
High electrical isolation between channels and ground improves system safety and signal integrity, especially in electrically noisy environments. The modular Momentum design also allows engineers to deploy I/O close to the process, reducing long cable runs and improving measurement stability.
LED-based diagnostics provide fast visual feedback on channel status, supporting easier maintenance and faster troubleshooting in the field.
Technical FAQs
1. What is the main function of the 170AAI52040?
It converts low-level analog signals into digital data for PLC systems.
2. How many inputs does it have?
It provides 4 differential analog input channels.
3. What signal ranges are supported?
±25 mV and ±100 mV differential input ranges.
4. Does it support thermocouples?
Yes, it supports multiple thermocouple types including K, J, T, and others.
5. What is the resolution?
It provides 16-bit signed resolution for high accuracy.
6. What is the update time?
Approximately 500 ms per scan cycle.
7. What is the isolation rating?
Up to 500 V AC channel-to-ground isolation.
8. What is its weight?
Approximately 0.215 kg.
9. What industries use this module?
Manufacturing, energy, utilities, and process automation industries.
10. Is it suitable for distributed systems?
Yes, it is specifically designed for Momentum distributed I/O architectures.
