Introduction

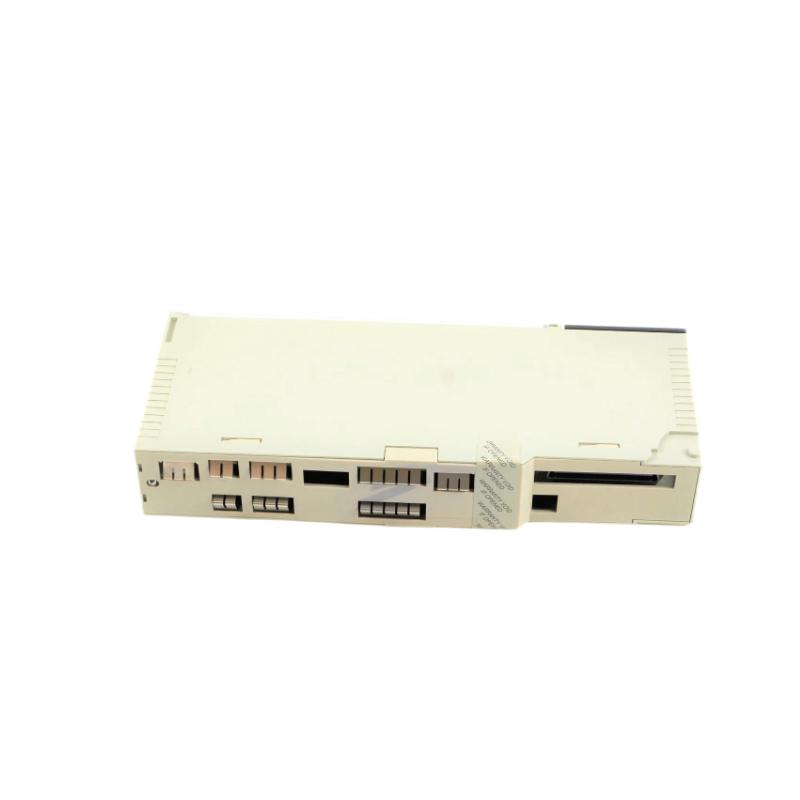

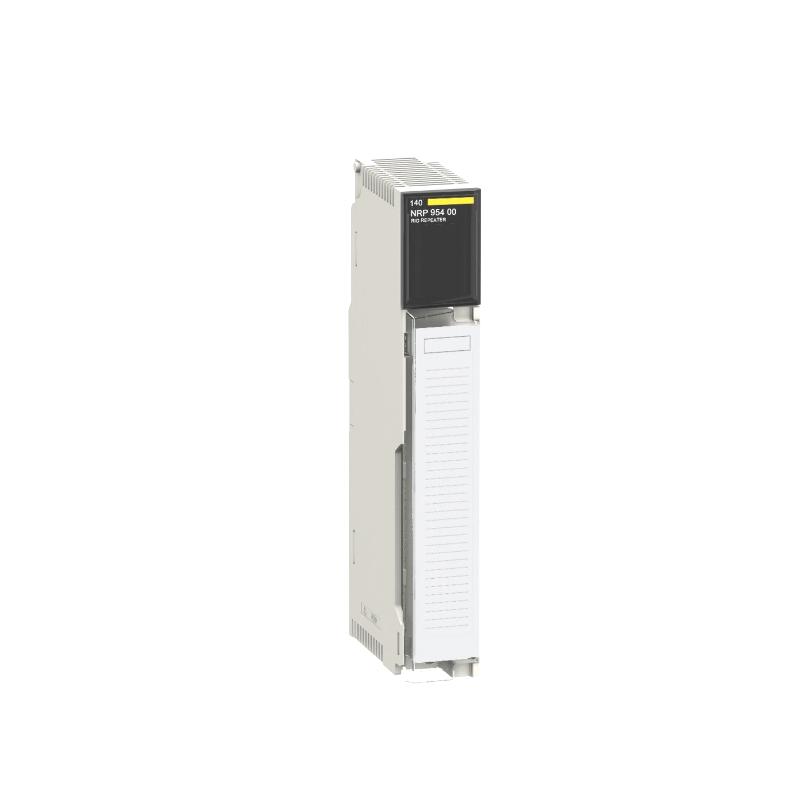

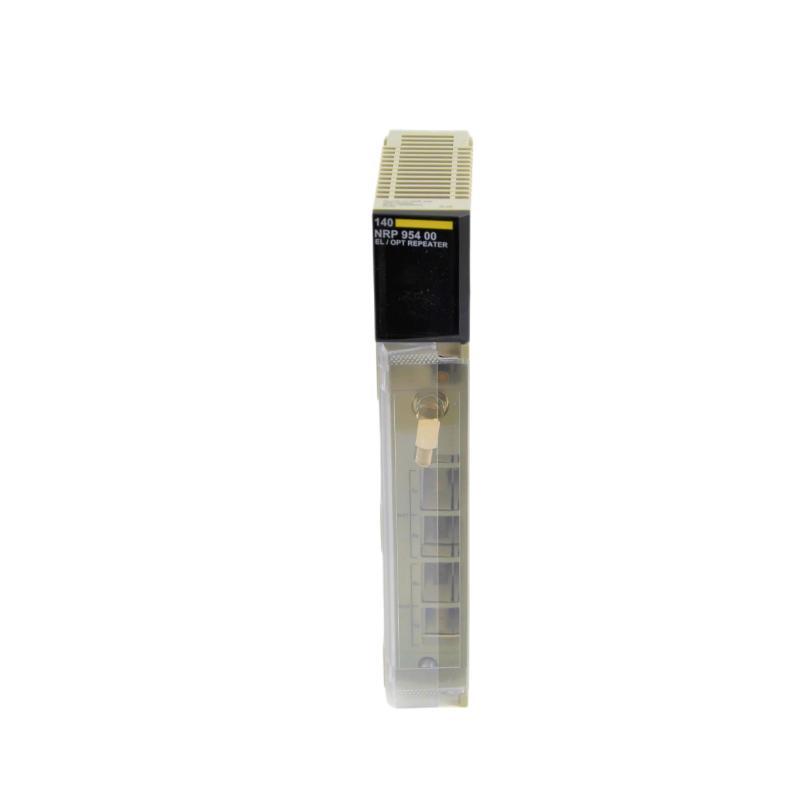

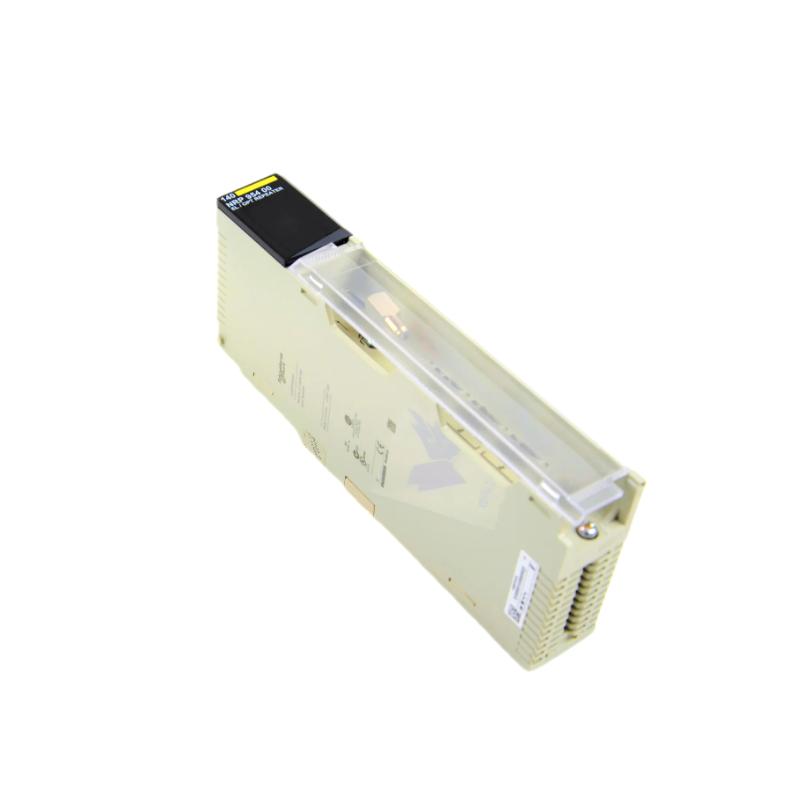

The Schneider 140NRP95400 Fibre Optic Repeater is a high-reliability communication module engineered for the Modicon Quantum platform. Designed to extend remote I/O (RIO) networks, it ensures stable and noise-immune data transmission across long distances using multimode fiber optic technology.
In industrial environments where electromagnetic interference, long cable runs, or distributed architectures are common, this module plays a vital role in maintaining communication integrity. Its dual-channel design and optical isolation make it a dependable solution for mission-critical automation systems.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Fibre Optic Repeater Module |
| Platform | Modicon Quantum |
| Network Type | Remote I/O (RIO) S908 |
| Fiber Type | Multimode (50/125 µm, 62.5/125 µm, 100/140 µm) |
| Optical Ports | 2 × ST fiber optic channels |
| Additional Port | 1 × Coaxial connector |
| Transmission Distance | Up to 2000 m / 3000 m (fiber dependent) |
| Wavelength | 820 nm |
| Data Channels | Dual-channel |
| Power Supply | 5 V DC via backplane |
| Power Consumption | ~5 W |
| Bus Current | ~700 mA |
| Inrush Current | 1 A |
| Diagnostics | LED indicators (status, activity, fault) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 0–95% non-condensing |
Applications
The 140NRP95400 is widely used in industrial systems where long-distance and interference-resistant communication is required. Typical applications include:
-
Distributed manufacturing automation systems
-
Power plants and electrical substations
-
Oil & gas processing facilities
-
Water and wastewater treatment systems
-
Remote I/O networks across large industrial sites
-
High-noise environments requiring optical isolation
Its ability to extend communication distances while maintaining signal integrity makes it essential for large-scale automation infrastructures.
Advantages
The 140NRP95400 delivers exceptional communication reliability through its fiber optic design. By converting and regenerating optical signals, it effectively eliminates signal degradation and electrical noise interference over long distances.
Its dual-channel architecture enhances system availability, allowing continuous operation in demanding industrial environments. Optical isolation further protects sensitive control systems from voltage fluctuations and electromagnetic disturbances.
The module’s compatibility with S908 remote I/O networks ensures seamless integration into existing Modicon Quantum systems, reducing upgrade complexity. In addition, built-in LED diagnostics provide clear real-time feedback, enabling faster troubleshooting and minimizing downtime.
Compact yet rugged, it is built for continuous operation in harsh industrial conditions, offering long-term stability and performance.
Technical FAQs
1. What is the primary function of the 140NRP95400?
It extends and regenerates fiber optic communication in remote I/O networks.
2. What type of fiber does it support?
It supports multimode fiber such as 50/125 µm and 62.5/125 µm.
3. What is the maximum transmission distance?
Up to 3000 meters depending on fiber type.
4. How many communication channels does it provide?
It features a dual-channel optical communication design.
5. What network does it operate on?
It is designed for S908 Remote I/O networks.
6. How is it powered?
Through the Modicon Quantum rack backplane at 5 V DC.
7. Does it include diagnostic features?
Yes, LED indicators provide status and fault monitoring.
8. What is the benefit of fiber optic communication?
It offers high noise immunity and long-distance transmission without signal loss.
9. What industries commonly use this module?
Manufacturing, energy, utilities, and process automation sectors.
10. Is it suitable for harsh environments?
Yes, it is designed for industrial conditions with high EMI and temperature variation.
