Introduction

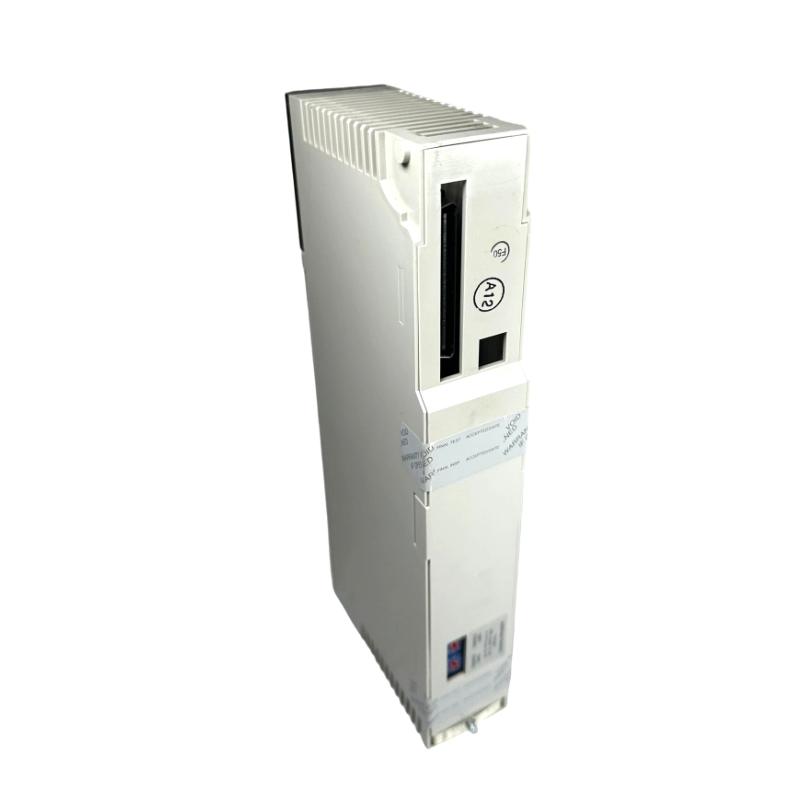

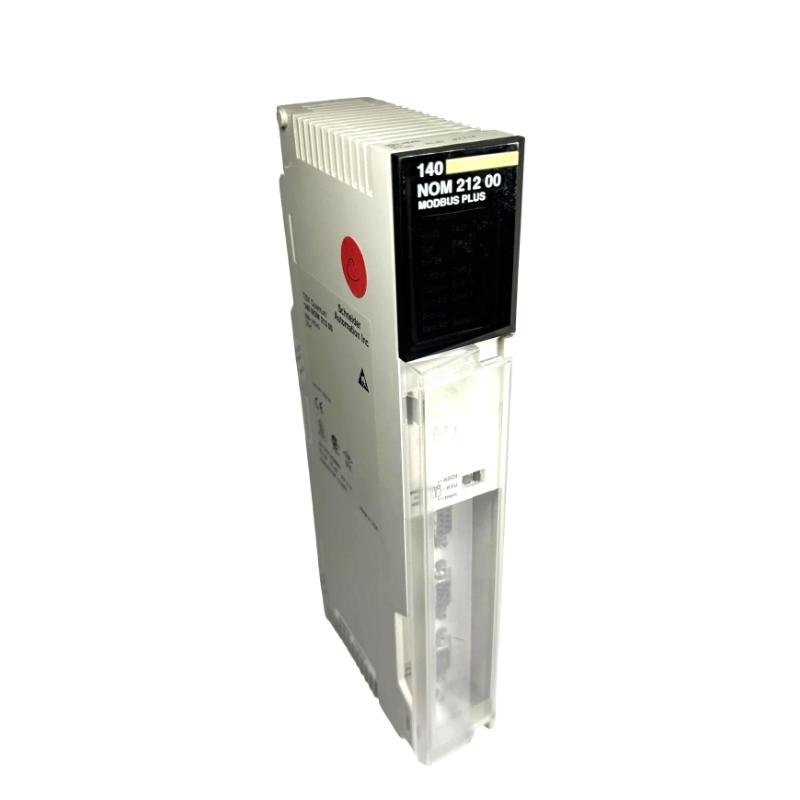

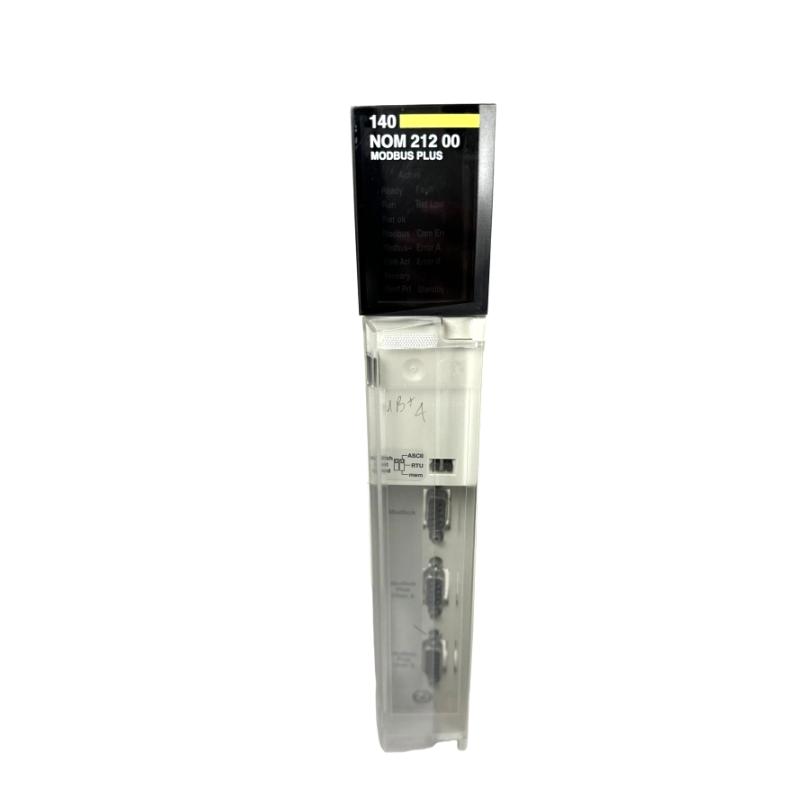

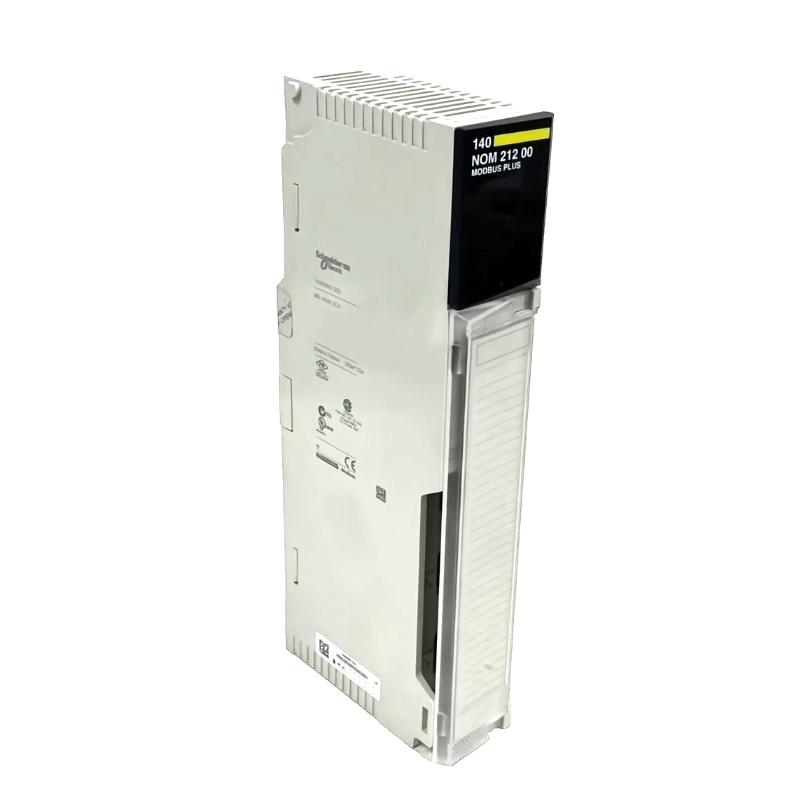

The Schneider 140NOM21200C DIO Head-End Adaptor is a robust communication interface module designed for the Modicon Quantum automation platform. It serves as the central link between distributed discrete I/O systems and the main PLC, enabling structured and high-speed data exchange across industrial networks.
This enhanced “C” version features conformal coating for improved durability, making it especially suitable for harsh environments where humidity, dust, or chemical exposure may impact system reliability. It is widely adopted in large-scale automation systems requiring dependable remote I/O communication and redundancy support.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | DIO Head-End Adaptor Module |
| Platform | Modicon Quantum |
| Communication Ports | 2 × Modbus Plus RS485 (redundant), 1 × Modbus RS232 |
| Transmission Rate | 1 Mbit/s |
| I/O Capacity | 30 input words / 32 output words |
| Compatibility | 140CRA21210, 140CRA21220 |
| Communication Function | Distributed I/O data exchange |
| Diagnostics | Processor, RAM, checksum, address monitoring |
| Power Dissipation | ~4 W |
| Bus Current | ~780 mA |
| Protection | Conformal coating (industrial protection layer) |
| Mounting | Quantum rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | Up to 95% non-condensing |
Applications
The 140NOM21200C is designed for distributed automation environments where remote I/O systems must communicate efficiently with central controllers. Typical applications include:
-
Large manufacturing plants with decentralized control systems
-
Power generation and grid monitoring systems
-
Oil & gas processing facilities
-
Water and wastewater treatment infrastructure
-
Industrial logistics and conveyor systems
-
Harsh environments requiring coated electronic components
Its redundancy capability makes it particularly valuable in critical systems where continuous operation is required.
Advantages
The 140NOM21200C stands out for its combination of redundancy, durability, and integration flexibility. Its dual Modbus Plus RS485 ports ensure continuous communication even if one channel encounters issues, significantly improving system availability.
The conformal coating adds an extra layer of environmental protection, allowing the module to perform reliably in demanding industrial conditions such as high humidity or airborne contaminants.
With support for up to 30 input and 32 output words, it efficiently manages distributed I/O data while maintaining fast transmission speeds of up to 1 Mbit/s.
Additionally, its seamless integration with Quantum racks and drop adaptors simplifies system expansion, reducing wiring complexity and engineering time while maintaining a clean and scalable architecture.
Technical FAQs
1. What is the main function of the 140NOM21200C?
It acts as a head-end adaptor connecting distributed DIO systems to a Quantum PLC.
2. What makes the “C” version different?
It includes conformal coating for enhanced environmental protection.
3. What communication ports are available?
Two Modbus Plus RS485 ports (redundant) and one Modbus RS232 port.
4. What is the transmission speed?
Up to 1 Mbit/s for fast and reliable communication.
5. How many I/O words does it support?
30 input words and 32 output words.
6. Which modules is it compatible with?
140CRA21210 and 140CRA21220 remote I/O adaptors.
7. What is its power consumption?
Approximately 4 W.
8. Does it support redundancy?
Yes, dual RS485 channels provide communication redundancy.
9. What industries use this module?
Manufacturing, energy, utilities, oil & gas, and process automation.
10. Is it suitable for harsh environments?
Yes, the conformal coating enhances resistance to moisture and contaminants.
