Overview

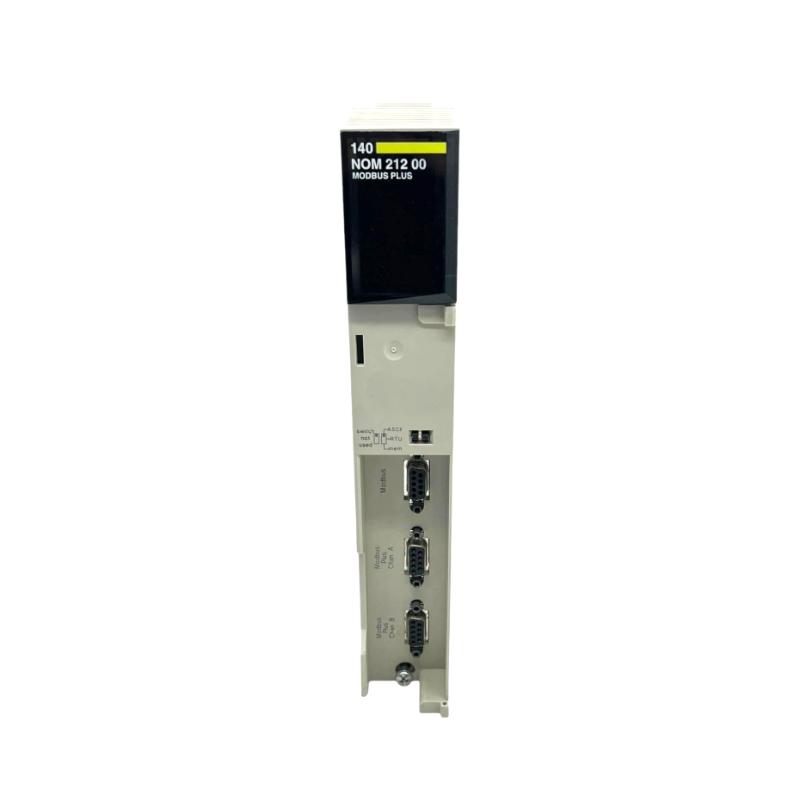

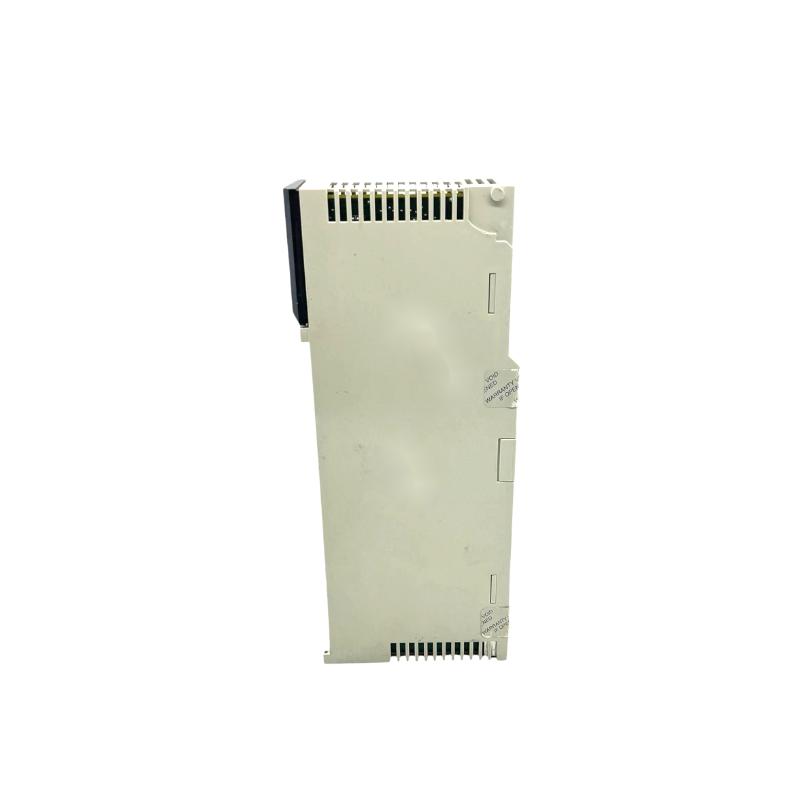

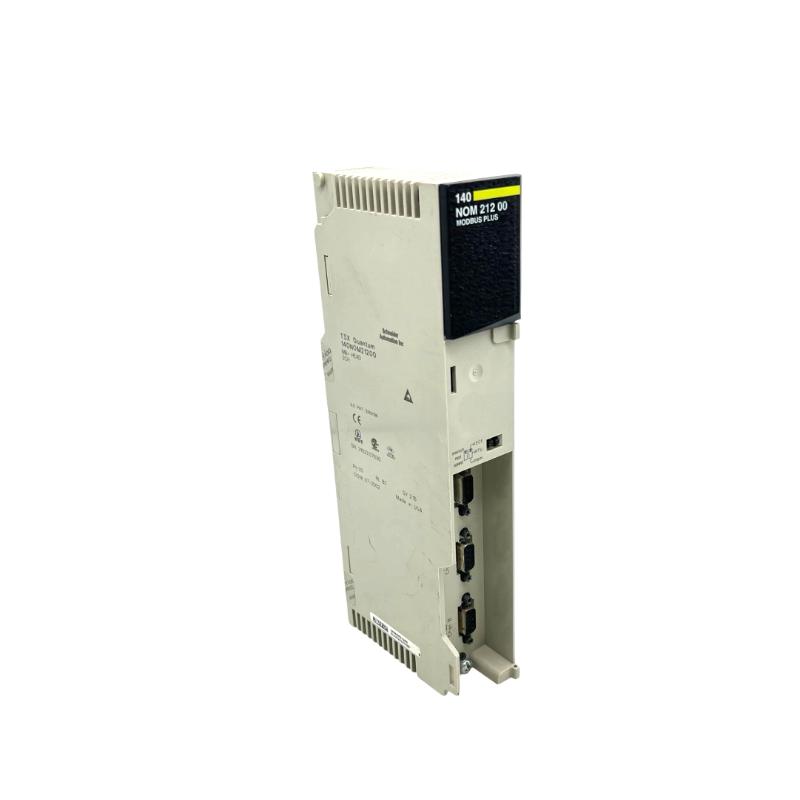

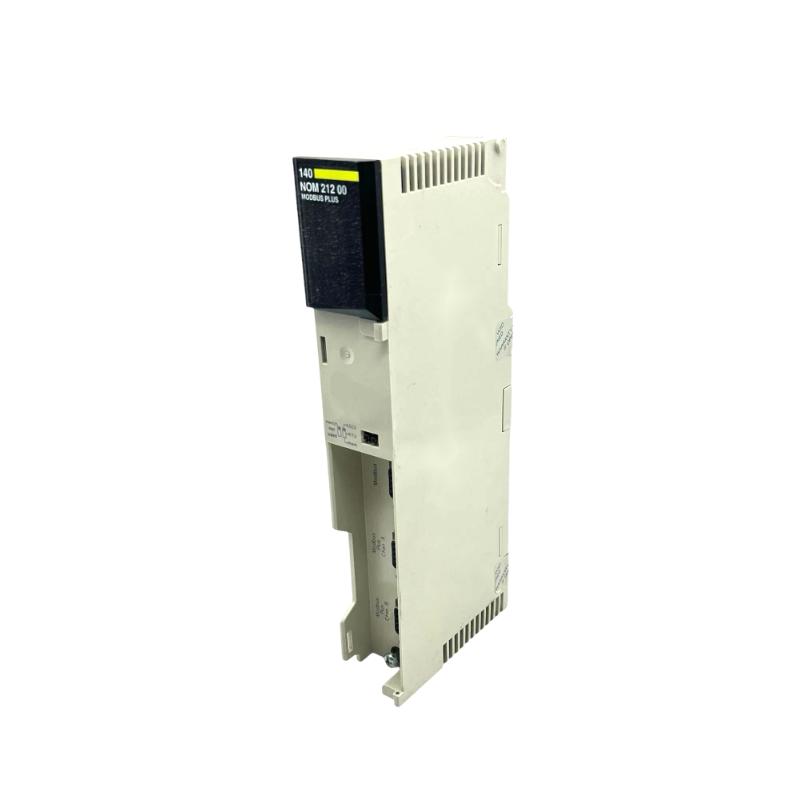

The Schneider 140NOM21200 DIO Head-End Adaptor is a high-reliability interface module designed for the Modicon Quantum automation platform. It serves as a central communication gateway between distributed discrete I/O systems and the PLC, enabling structured, high-speed data exchange across industrial networks.
Built for demanding automation environments, this module supports redundant communication paths and ensures stable operation in distributed architectures. It is widely used in large-scale industrial systems where reliability, scalability, and seamless I/O integration are critical.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | DIO Head-End Adaptor Module |
| Platform | Modicon Quantum |
| Communication Ports | 2 × Modbus Plus RS485 (redundant), 1 × Modbus RS232 |
| Transmission Rate | 1 Mbit/s |
| I/O Capacity | 30 input words / 32 output words |
| Communication Function | Distributed I/O data exchange |
| Compatible Modules | 140CRA21210 / 140CRA21220 |
| Diagnostics | Processor, RAM, checksum, address verification |
| Power Dissipation | Approx. 4 W |
| Bus Current | ~780 mA |
| Mounting Type | Quantum rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | Up to 95% non-condensing |
Application Scenarios
The 140NOM21200 is engineered for distributed automation systems that require reliable communication between remote I/O stations and central controllers. Typical use cases include:
-
Large manufacturing lines with decentralized I/O architecture
-
Power generation and electrical distribution systems
-
Oil & gas process control facilities
-
Water treatment and infrastructure automation
-
Material handling and logistics systems
-
Industrial plants with remote field device integration
Its redundant communication capability makes it especially suitable for mission-critical environments where system uptime is essential.
Key Benefits
The 140NOM21200 stands out for its robust communication architecture and redundancy support. With dual Modbus Plus RS485 ports and an additional RS232 interface, it provides flexible connectivity options for both modern and legacy systems.
Its redundancy design enhances system reliability by minimizing the risk of communication failure, ensuring continuous data flow in critical operations. This makes it a strong choice for industries where downtime directly impacts productivity and safety.
The module also simplifies distributed I/O integration by acting as a centralized communication hub, reducing wiring complexity and improving system organization. Built-in diagnostics further enhance maintainability by providing real-time monitoring of processor status, memory integrity, and communication health.
Combined with its rugged industrial design, the 140NOM21200 delivers long-term stability and consistent performance even in harsh operating environments.
Technical FAQs
1. What is the main role of the 140NOM21200?
It acts as a head-end adaptor connecting distributed DIO systems to a Quantum PLC.
2. What communication interfaces are available?
Two Modbus Plus RS485 ports and one Modbus RS232 port.
3. Does it support redundancy?
Yes, it supports redundant communication via dual RS485 ports.
4. What is the transmission speed?
Up to 1 Mbit/s for efficient data exchange.
5. How many I/O words can it handle?
30 input words and 32 output words.
6. Which modules is it compatible with?
It works with 140CRA21210 and 140CRA21220 drop adaptors.
7. What is its power consumption?
Approximately 4 W, ensuring efficient operation.
8. What diagnostics are included?
Processor, RAM, checksum, and address monitoring functions.
9. What industries typically use this module?
Manufacturing, utilities, oil & gas, and process automation.
10. Is it suitable for distributed control systems?
Yes, it is specifically designed for remote I/O communication in distributed architectures.
