Application Areas
This module is widely used in industrial environments where multiple analog or frequency-based signals must be processed simultaneously. Typical applications include flow measurement systems, turbine monitoring, production line tracking, and multi-sensor data acquisition systems. It is particularly effective in process industries such as water treatment, energy systems, and manufacturing automation where stable multi-channel counting is essential for operational accuracy.
Advantages

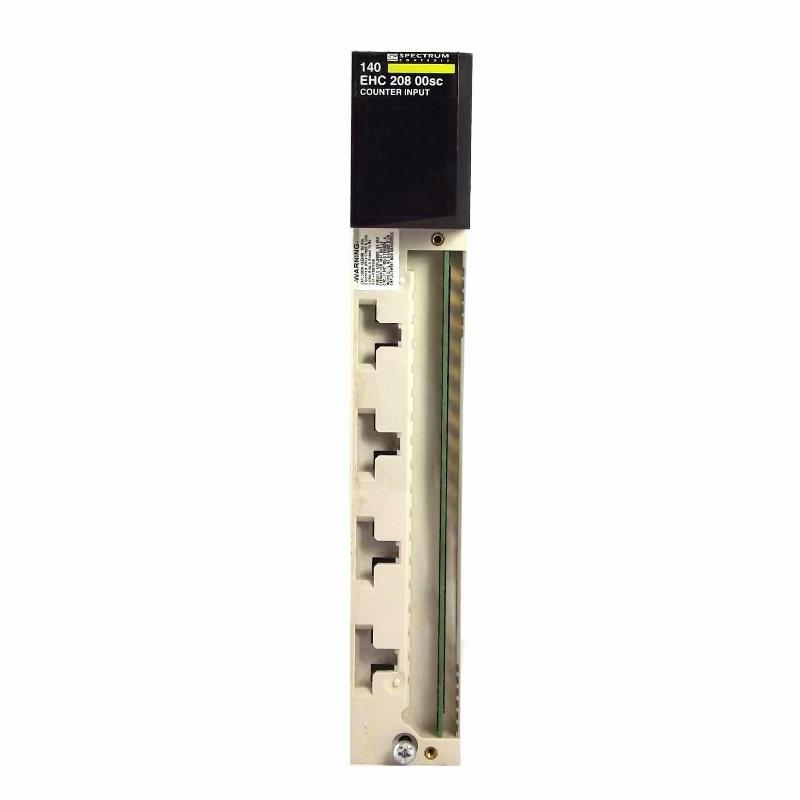

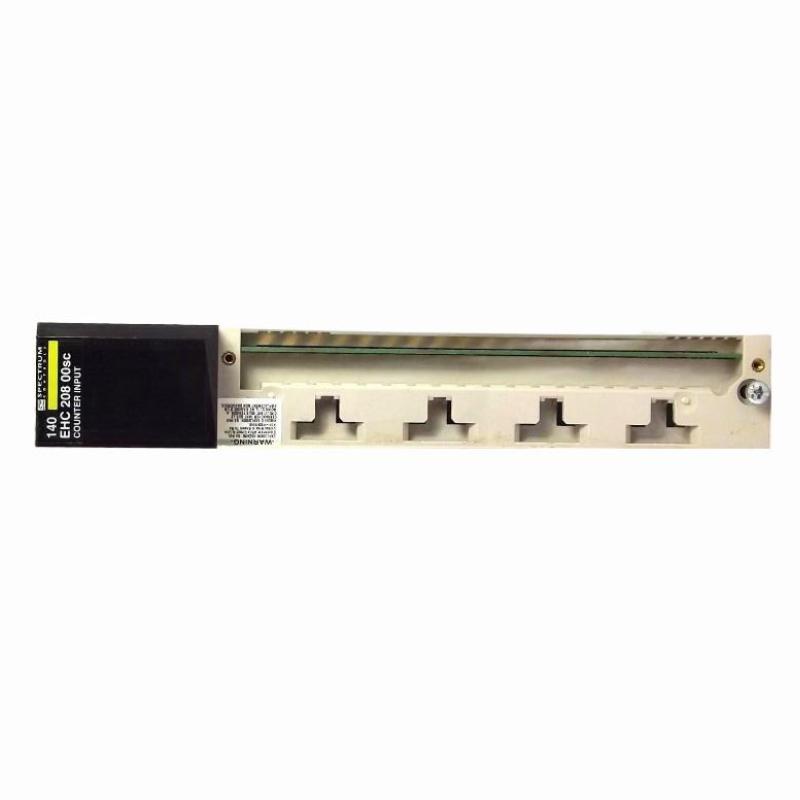

The 140EHC20800 delivers strong value through its ability to process multiple analog and pulse inputs simultaneously across eight independent channels. Its medium-speed design (up to 50 kHz) provides a balanced combination of responsiveness and stability, making it suitable for continuous industrial monitoring rather than ultra-high-speed motion control.
Its multi-channel architecture reduces the need for multiple modules, simplifying system design and lowering overall installation complexity. The module is engineered for electrical robustness, ensuring reliable operation even in environments with signal noise or fluctuating input conditions.
Built-in channel diagnostics and LED indicators help operators quickly identify system status and improve maintenance efficiency. Its compatibility with a wide range of industrial sensors enhances flexibility, allowing it to be used in both legacy and modern automation systems.
Technical FAQs
1. What is the main function of the 140EHC20800?
It performs multi-channel analog and pulse-based counting in industrial automation systems.
2. How many channels does it support?
It supports 8 independent channels for simultaneous counting.
3. What is the maximum counting speed?
Up to approximately 50 kHz for medium-speed applications.
4. What types of signals can it process?
It supports analog and frequency signals such as turbine flowmeters and industrial sensors.
5. Is it suitable for flow measurement applications?
Yes, it is commonly used with turbine flowmeter systems.
6. What is the typical input voltage range?
Usually compatible with 5–24 V DC signal levels depending on configuration.
7. Does it support simultaneous channel operation?
Yes, all 8 channels can operate independently at the same time.
8. Is it suitable for industrial environments?
Yes, it is designed for stable operation in harsh industrial conditions.
9. Does it include diagnostics?
Yes, LED indicators provide real-time channel status monitoring.
10. What makes it different from high-speed counter modules?
It focuses on multi-channel analog counting rather than ultra-high-speed motion control.
