Introduction

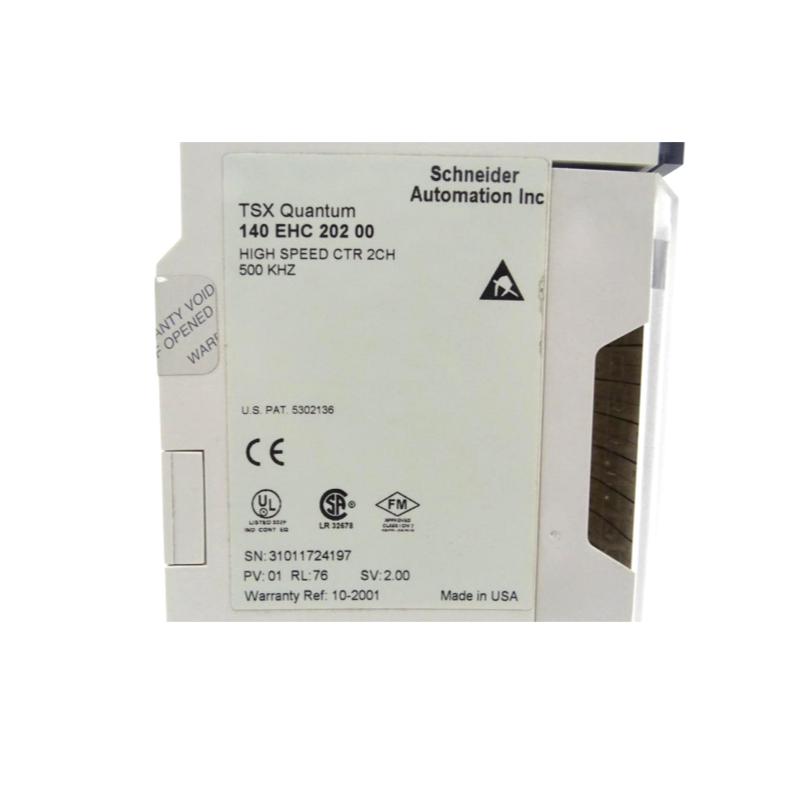

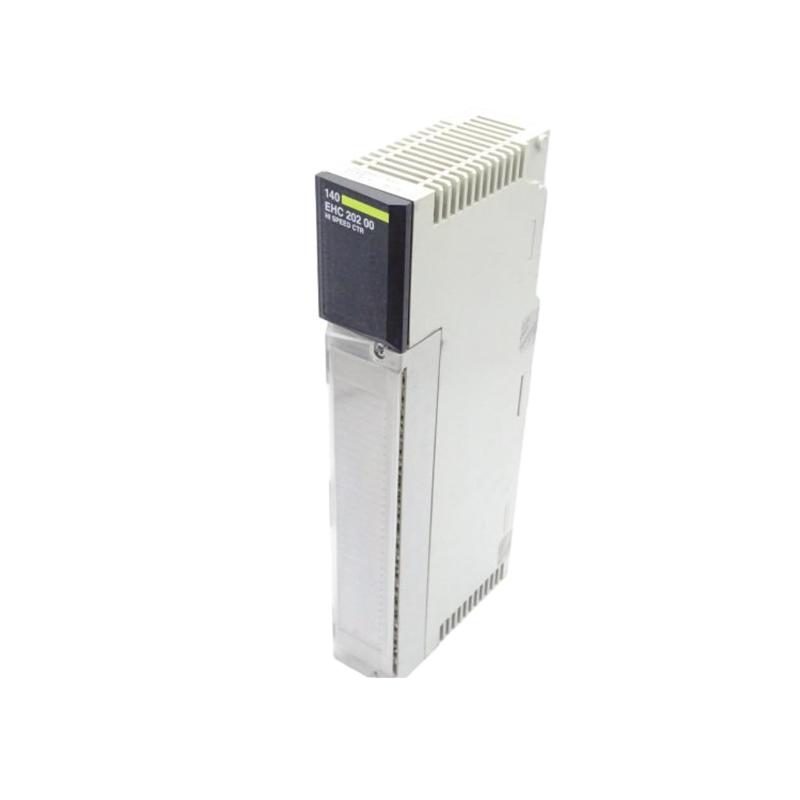

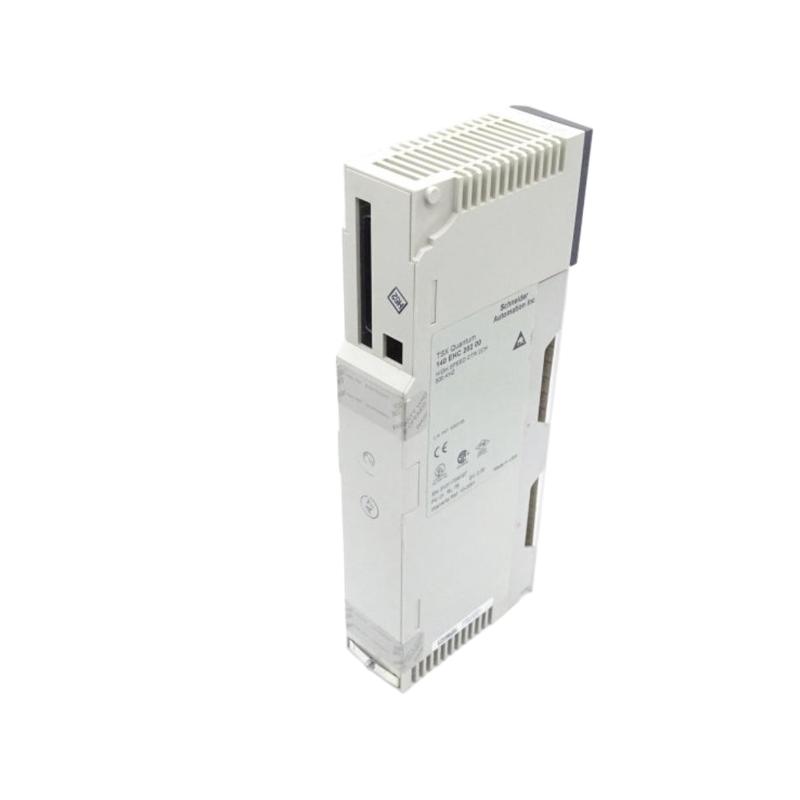

The Schneider 140EHC20200 High-Speed Counter Module is engineered for precision motion and pulse-based control within the Modicon Quantum automation platform. It is designed to capture extremely fast digital signals with high accuracy, making it ideal for applications involving encoders, speed measurement, and position tracking. With its dual-channel architecture and robust industrial design, it ensures stable performance even in high-noise, high-speed environments where timing precision is critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | High-Speed Counter Module |
| Platform | Modicon Quantum |
| Number of Channels | 2 high-speed counter channels |
| Number of Inputs | 8 discrete inputs |
| Counting Frequency | Up to 500,000 Hz |
| Input Type | Incremental / Quadrature encoder signals |
| Input Voltage Range | < 30 V DC |
| Input Resistance | 10 kΩ |
| Data Format | 16-bit / 32-bit counting |
| Output Type | 4 FET discrete outputs |
| Output Load Current | 0.5 A per channel |
| Isolation | 1780 Vrms (channel to bus) |
| Bus Current Consumption | ~650 mA |
| External Power Supply | 19.2 – 30 V DC |
| Power Dissipation | ~4 W + load-dependent |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
