Introduction

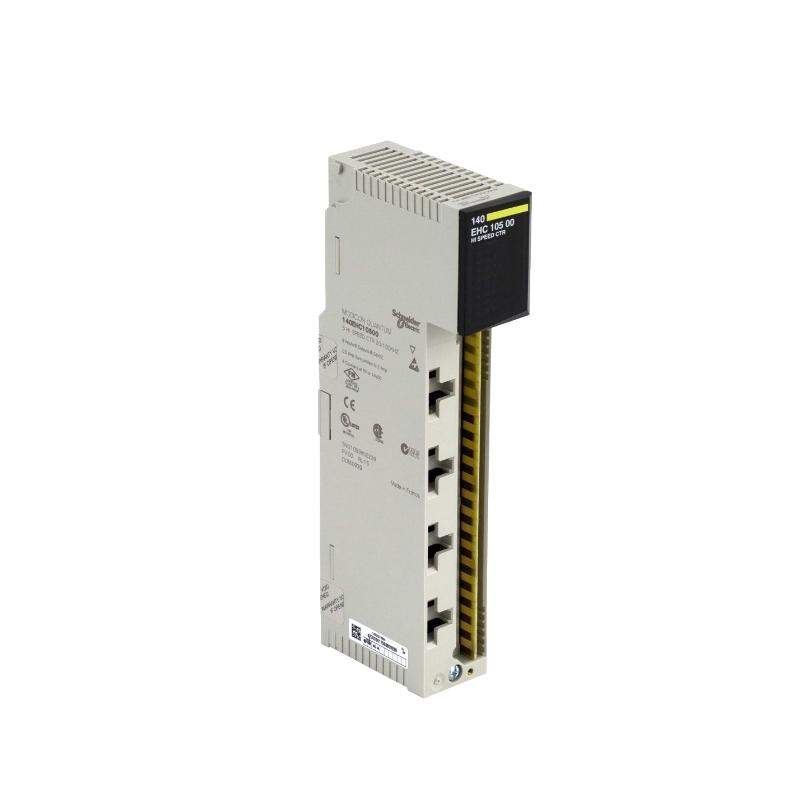

The Schneider 140EHC10500 High Speed Counter Module is a precision-engineered solution designed for demanding industrial automation systems where ultra-fast signal processing is required. As part of the Modicon Quantum platform, this module specializes in high-frequency pulse counting, making it ideal for applications such as motion control, speed measurement, and position tracking. Its robust architecture ensures stable operation even in electrically noisy environments, delivering consistent performance for mission-critical processes.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | High-Speed Counter Module |
| Platform | Modicon Quantum |
| Number of Channels | 5 high-speed counter channels |
| Number of Inputs | 8 discrete inputs |
| Counting Frequency | Up to 100,000 Hz |
| Counting Input Voltage | 30 V DC max |
| Input Current | 7 mA |
| Output Type | 8 × FET discrete outputs |
| Output Voltage Range | 20–30 V DC |
| Output Load Current | 0.21 A per point |
| Isolation | 500 Vrms (channel to bus) |
| Power Dissipation | ≥ 6 W |
| Bus Current Requirement | 250 mA |
| External Power Supply | 19.2–30 V DC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
Industrial Applications
The 140EHC10500 is widely used in automation environments requiring accurate and high-speed pulse counting. It is commonly applied in packaging machinery, conveyor tracking systems, CNC equipment, textile machines, and process industries where real-time measurement of speed, position, or flow is critical. Its ability to handle multiple high-frequency signals simultaneously makes it especially valuable in synchronized production systems and motion control setups.
Advantages
One of the key strengths of the 140EHC10500 is its high-speed processing capability, supporting up to 100 kHz counting frequency, which ensures precise real-time data acquisition. The module integrates both input and output flexibility, allowing seamless interaction with field devices.
Its solid-state FET output design provides fast switching with minimal voltage drop, improving efficiency in control operations. Built-in isolation (500 Vrms) enhances system safety and protects against electrical disturbances, while diagnostic LEDs simplify maintenance and troubleshooting.
Engineered for industrial durability, it performs reliably under wide temperature ranges and harsh conditions, making it a dependable choice for long-term automation infrastructure.
Technical FAQs
1. What is the main function of this module?
It performs high-speed pulse counting for industrial automation systems.
2. How many channels does it support?
It supports 5 independent high-speed counter channels.
3. What is the maximum counting frequency?
Up to 100,000 Hz for fast signal processing.
4. How many inputs are available?
It includes 8 discrete input channels.
5. What type of outputs does it use?
8 FET-based discrete outputs for fast switching.
6. What is the operating voltage range?
19.2–30 V DC external power supply.
7. Is electrical isolation included?
Yes, with 500 Vrms isolation between channels and bus.
8. What industries commonly use it?
Manufacturing, packaging, motion control, and process automation.
9. Does it support diagnostic indicators?
Yes, it includes LED status indicators for channel monitoring.
10. Is it suitable for high-noise environments?
Yes, it is designed with strong electrical isolation and industrial-grade protection.
