Introduction

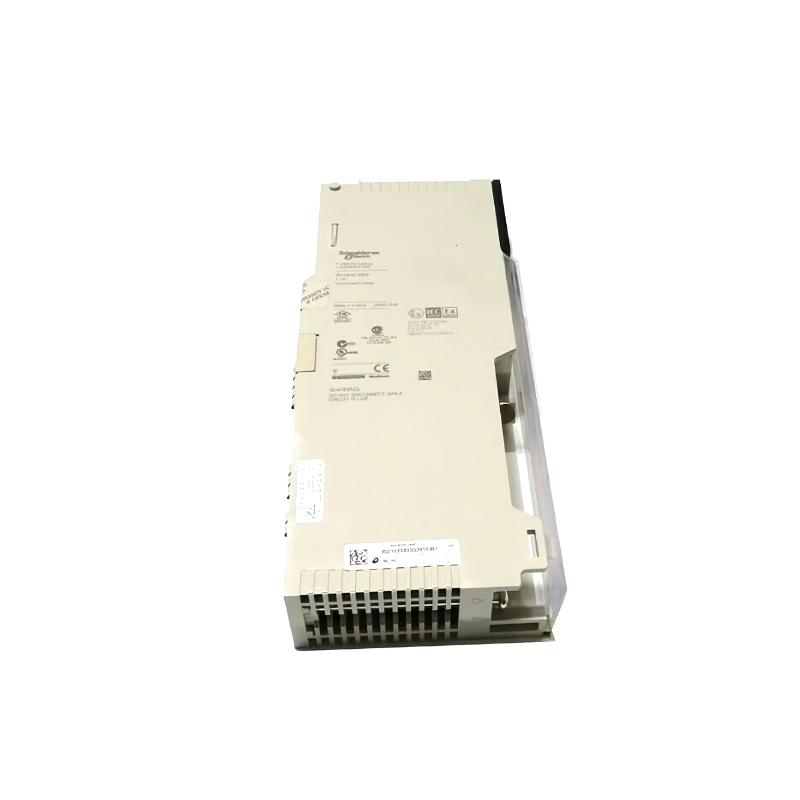

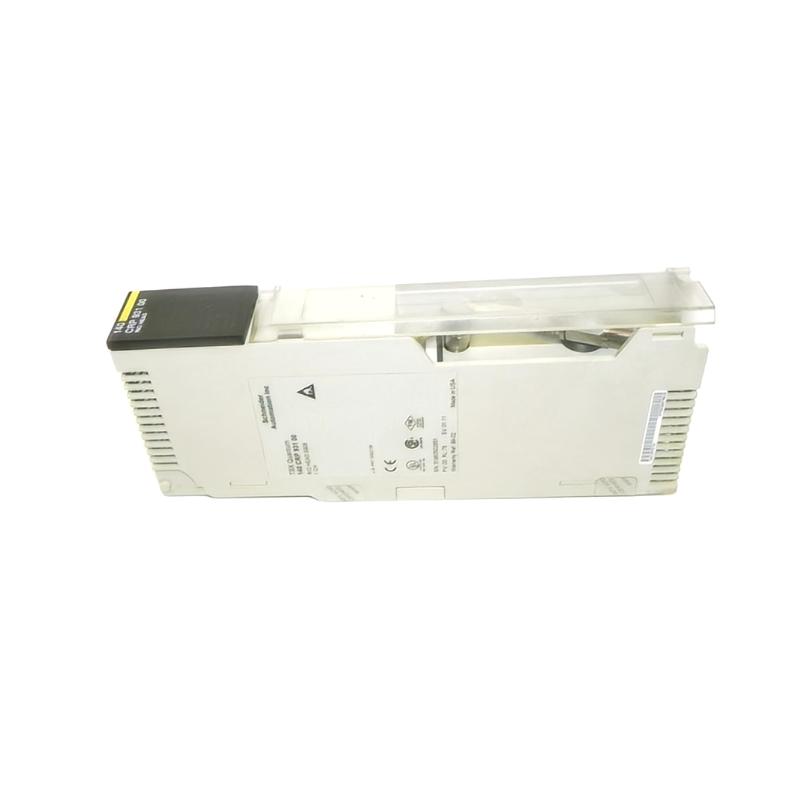

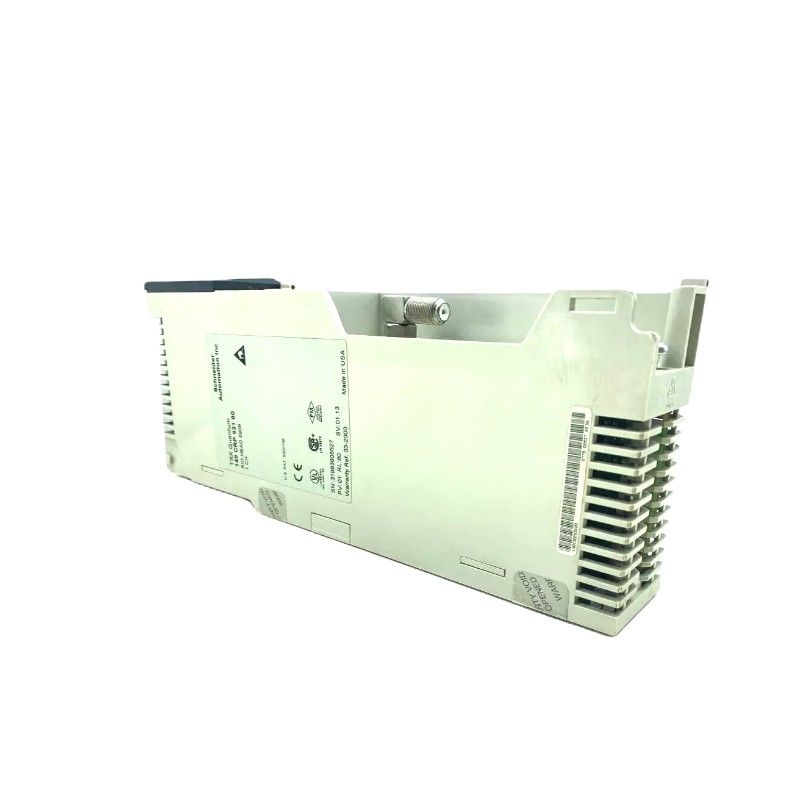

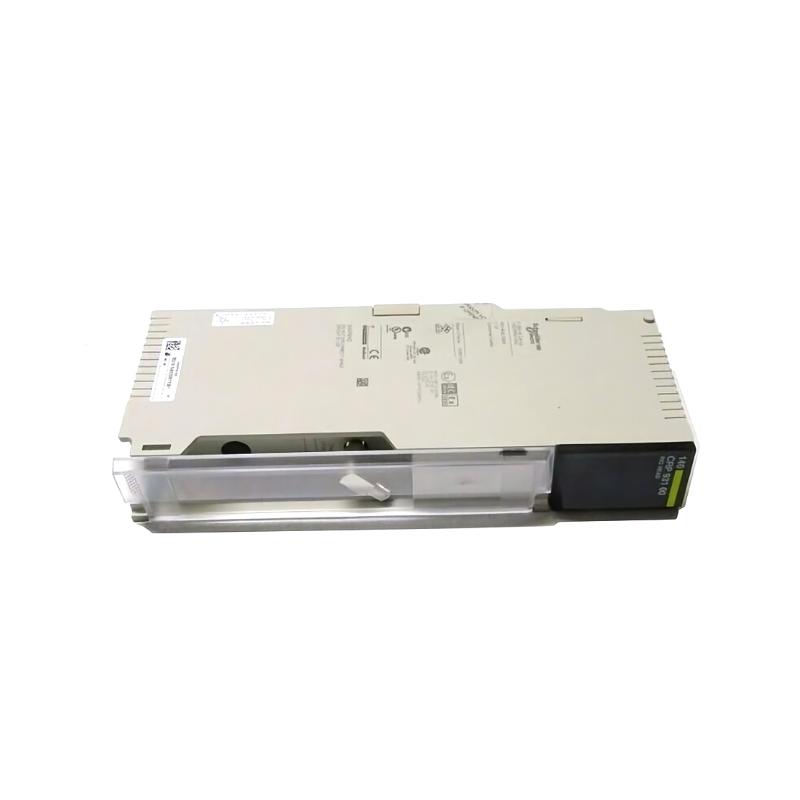

Engineered for dependable remote I/O communication, the Schneider 140CRP93100 RIO Head-End Adaptor Module plays a central role in Modicon Quantum automation architectures. This module acts as the communication bridge between the PLC and distributed I/O systems, ensuring stable, high-speed data exchange across industrial networks. Its design reflects Schneider’s focus on reliability and long-term system scalability, making it a trusted solution for mission-critical operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | RIO Head-End Adaptor Module |
| Platform Compatibility | Modicon Quantum 200/500/800, Symax |
| Max Drops per Network | ≤ 31 |
| I/O Capacity per Drop | 64 Input / 64 Output Words |
| Transmission Rate | 1544 Mbit/s |
| Cable Type | 75 Ohm Coaxial |
| Dynamic Range | 35 dB |
| Isolation Voltage | 500 V DC |
| Power Dissipation | 3 W |
| Bus Current | 600 mA |
| Connector Type | 1 Female F Connector (elbowed) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | Up to 95% non-condensing |
| Certifications | UL, CSA, FM Class 1 Div 2 |
