Reliable Field Wiring Interface for High-Density Digital I/O Systems

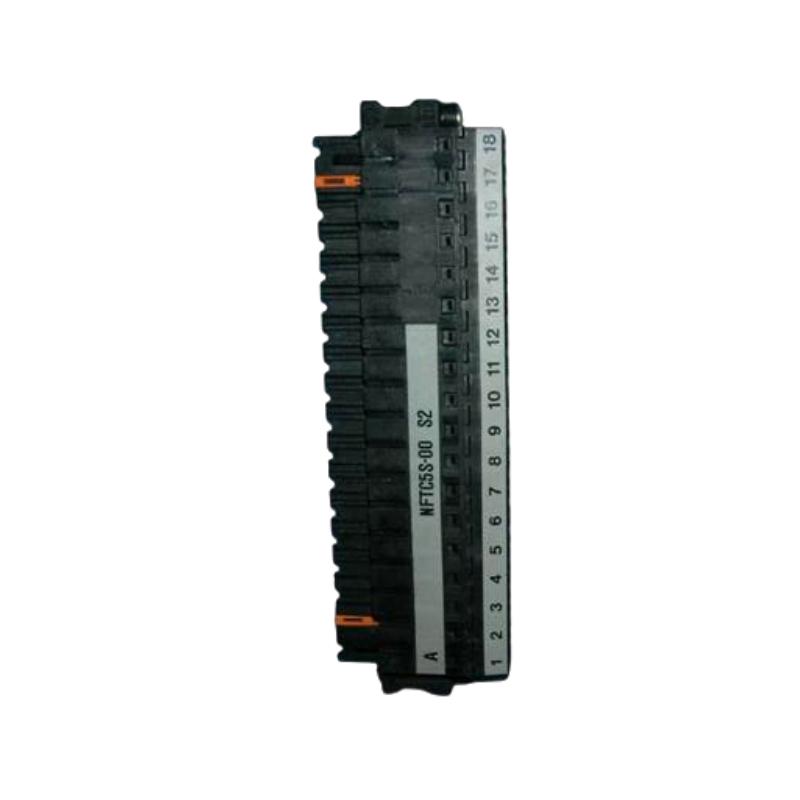

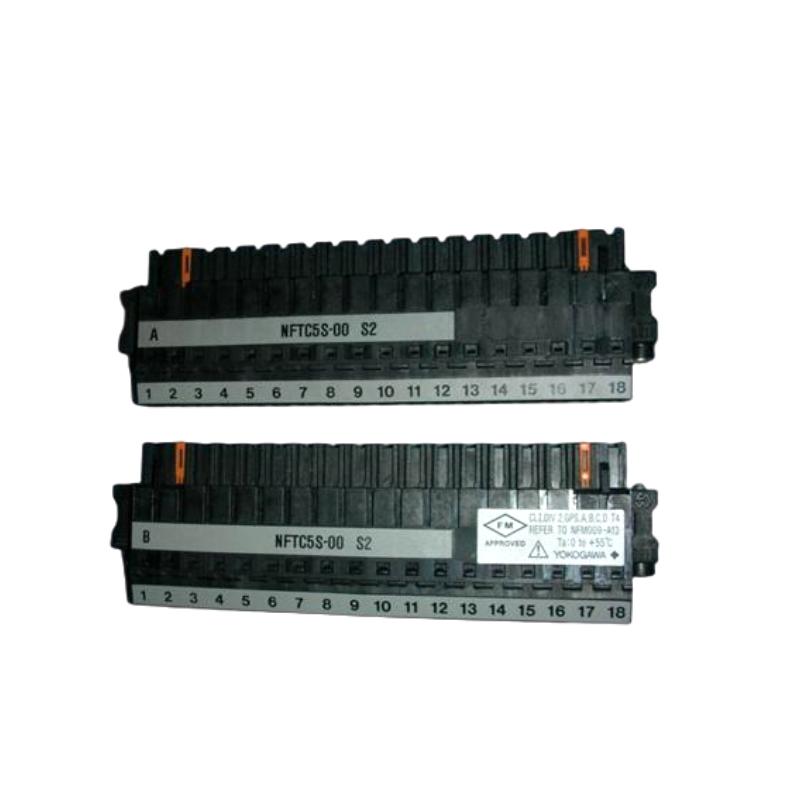

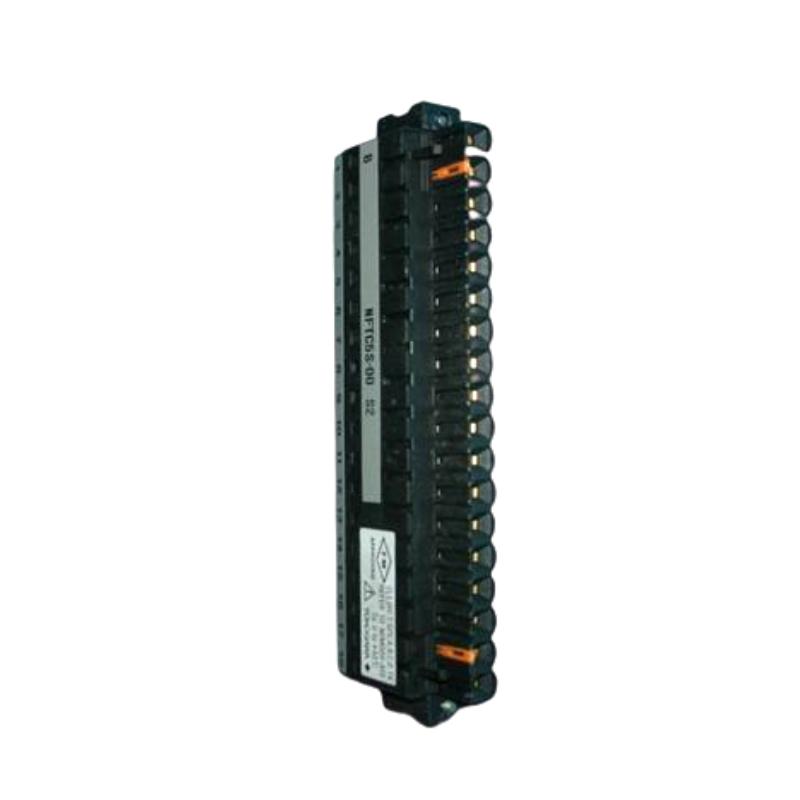

The Yokogawa NFTC5S-00 Pressure Clamp Terminal Block is a dedicated field connection component designed for Yokogawa FCN/FCJ and FIO-based distributed control systems. It provides a secure, tool-less wiring interface between digital I/O modules and field devices such as switches, sensors, and relay contacts.
Built for industrial automation environments, this terminal block ensures stable electrical contact, reduced wiring errors, and fast installation, making it a practical choice for high-density digital signal applications in modern control systems.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Pressure Clamp Terminal Block |
| Model | NFTC5S-00 |
| System Compatibility | Yokogawa FCN / FCJ / FIO digital I/O systems |
| Function | Field wiring connection for digital input modules |
| Channel Capacity | Typically 32-channel digital input support |
| Connection Method | Pressure clamp (tool-less wiring) |
| Compatible Modules | NFDV151 / NFDV157 / NFDV161 |
| Rated Voltage | 24 V DC |
| Installation Type | DIN rail / panel mounting |
| Wiring Method | Spring pressure clamp terminals |
| Terminal Type | Screwless / tool-less clamp system |
| Material | Industrial-grade flame-retardant thermoplastic |
| Weight | Approx. 0.2 – 0.3 kg |
| Dimensions | Approx. 44 × 102 × 108 mm |
| Operating Temperature | -10°C to +55°C (system dependent) |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
Industrial Applications
The NFTC5S-00 is widely used in process and factory automation environments where reliable digital signal wiring is essential:
-
Oil & gas control and monitoring systems
-
Petrochemical and refining plants
-
Power generation and turbine control systems
-
Water treatment and utility automation
-
Manufacturing lines with discrete signal monitoring
Its structured wiring approach makes it especially valuable in large-scale distributed control systems where maintenance efficiency is critical.
Engineering Advantages
The NFTC5S-00 is designed to improve field wiring quality and reduce installation complexity in industrial automation systems. Its pressure clamp technology ensures consistent electrical contact even in vibration-prone environments.
Key advantages include:
-
Tool-less pressure clamp wiring for fast installation
-
Stable and vibration-resistant connections for industrial reliability
-
High-density 32-channel support for compact cabinet design
-
Reduced wiring errors through standardized terminal layout
-
Easy maintenance and replacement in field environments
-
Compatible with multiple Yokogawa digital input modules
These features make it a practical and widely adopted solution in modern DCS installations.
Technical FAQs
1. What is the main function of NFTC5S-00?
It provides field wiring connections for Yokogawa digital input modules.
2. What modules is it compatible with?
It is commonly used with NFDV151, NFDV157, and NFDV161 modules.
3. How many channels does it support?
Typically supports 32-channel digital input configurations.
4. What type of wiring does it use?
Pressure clamp (spring-type, tool-less) wiring system.
5. What voltage level is supported?
Standard 24 V DC digital input systems.
6. Is it suitable for harsh environments?
Yes, it is designed for industrial control cabinet environments.
7. Does it require special tools for installation?
No, it is designed for tool-less wiring connection.
8. What is its main advantage in system design?
It simplifies wiring while improving reliability and maintainability.
9. What industries use it most?
Oil & gas, chemical, power generation, and manufacturing industries.
10. Why is it important in DCS systems?
It ensures stable and organized field signal termination for high-density I/O systems.
